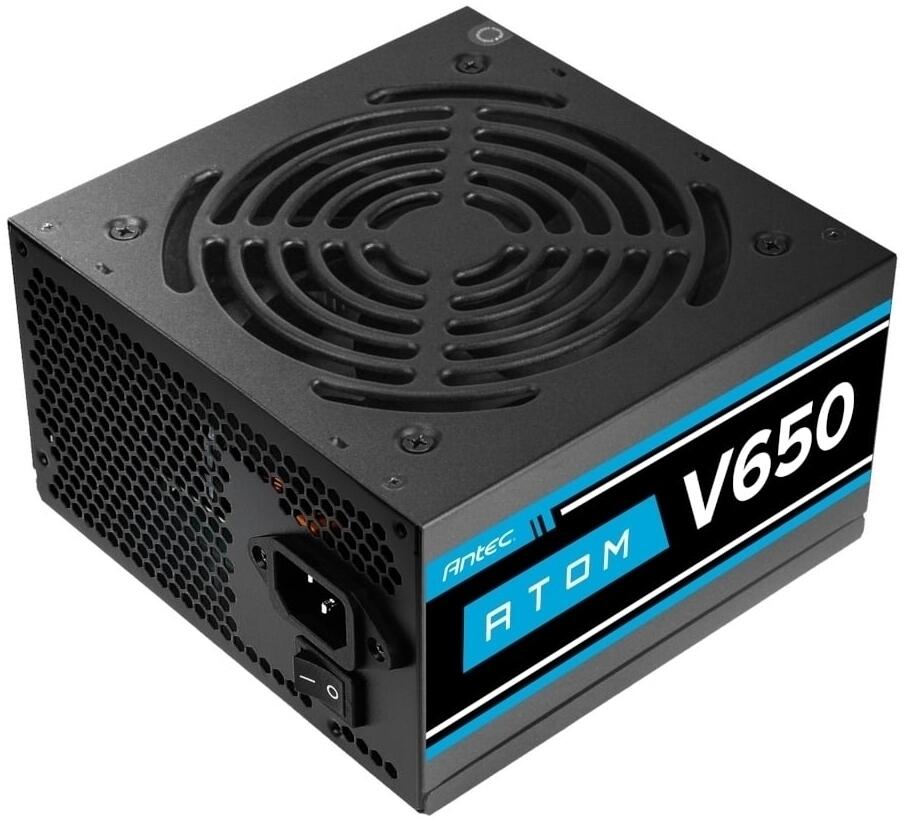

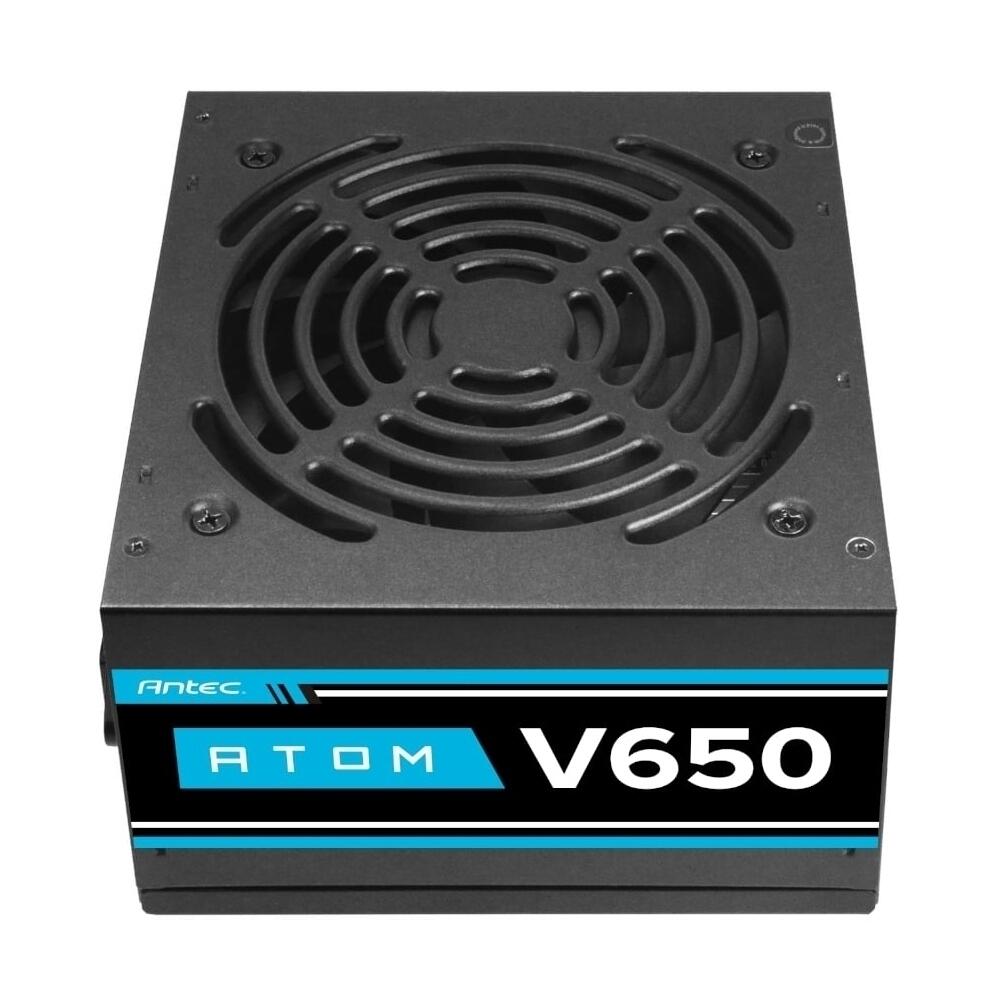

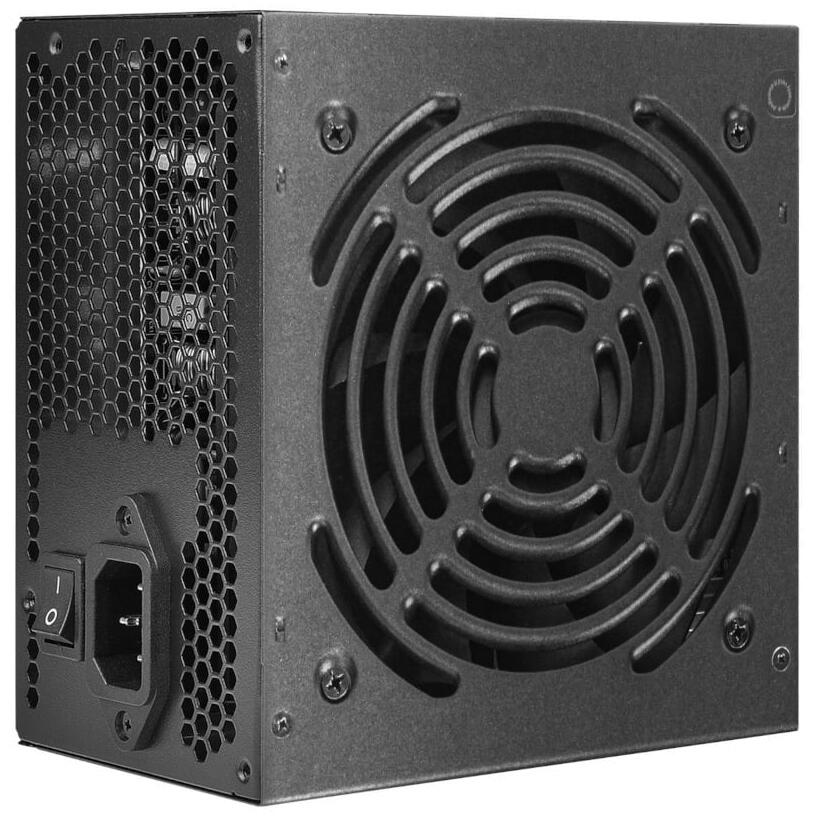

Antec Atom V650 Non-Modular PSU

Description

More Headroom for Mid-Range Builds

Stepping up from the V550, the ATOM V650 guarantees a continuous 650W output — giving you the breathing room to run a modern mid-range CPU and discrete GPU without pushing the PSU to its limits. Compliant with Intel ATX12V 2.31 standards, it offers broad compatibility across a wide range of systems.

Quiet Cooling with Thermal Manager

The 120mm silent fan works in tandem with Antec’s Thermal Manager technology, which provides advanced fan speed control for optimal heat and noise management — keeping the unit quiet under light loads and only spinning up when your system demands it.

80 PLUS Standard Efficiency

The ATOM V650 carries 80 PLUS certification, delivering up to 85% efficiency to help reduce your electricity costs and lower heat output inside your case — a meaningful benefit during extended gaming sessions or all-day office use.

CircuitShield™ Protection

CircuitShield™ industrial-grade protections cover Over Voltage (OVP), Over Power (OPP), Short Circuit (SCP), and No Load Operation (NLO), safeguarding every component in your build from unexpected electrical events.

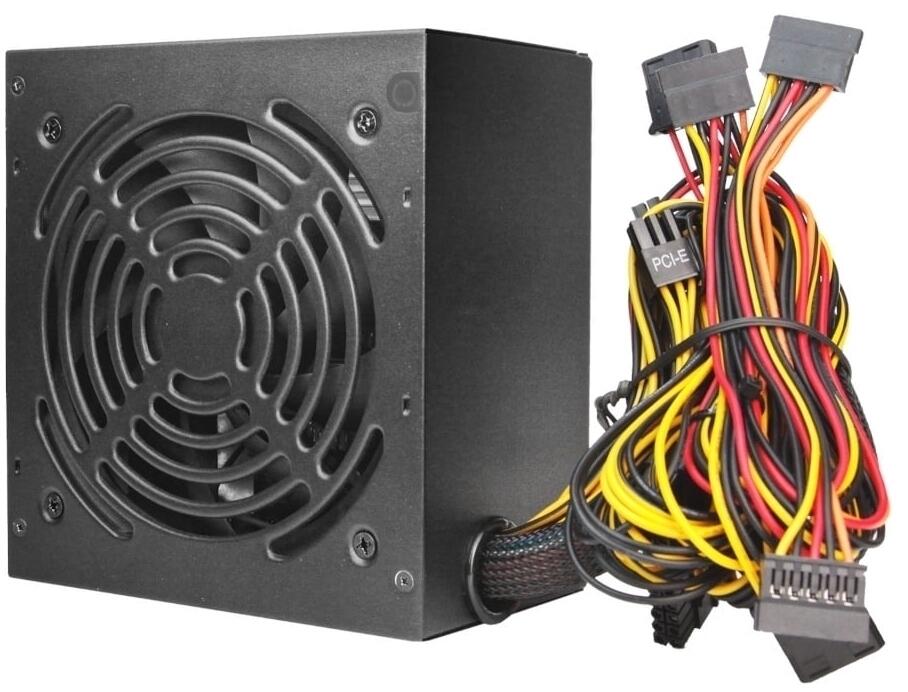

Connector Layout

The non-modular cable set provides solid coverage for mainstream build configurations:

• 1× 24-pin ATX motherboard connector
• 1× 8(4+4)-pin EPS 12V CPU connector
• 2× 8(6+2)-pin PCIe connectors
• 5× SATA power connectors
• 2× Molex connectors
• 1× FDD connector

Key Highlights

• 650W continuous rated output
• Non-modular ATX design — ATX 12V 2.31 compliant
• 80 PLUS Standard certified — up to 85% efficiency
• 120mm silent fan with Thermal Manager speed control
• CircuitShield™ protection: OVP, OPP, SCP, NLO
• Dual PCIe connectors for single discrete GPU support
• 2-year Antec warranty
