Antec AX61 RGB ELITE ATX Gaming Case

Description

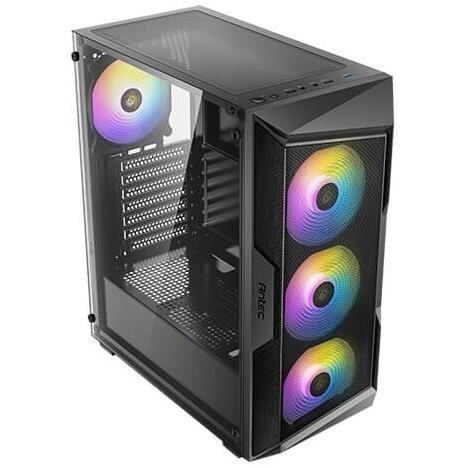

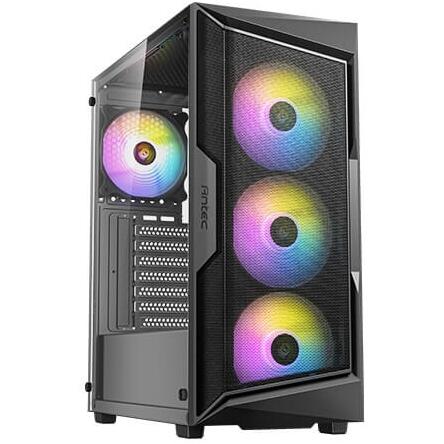

Geometric Mesh Front Panel Built for Airflow

The AX61’s front panel leads with purpose — a bold geometric mesh design that’s as functional as it is distinctive. Unlike solid or tempered glass fronts that restrict airflow, the high-density mesh allows cool air to flow freely into the chassis, feeding the pre-installed fans and keeping intake temperatures low. Combined with bottom air intakes, the AX61 establishes strong all-round airflow paths that support sustained performance during demanding gaming sessions. It’s a front panel that looks the part without compromising what matters most.

Four Pre-Installed ARGB Fans with Daisy-Chain Sync

Out of the box, the AX61 comes with four 120mm ARGB fans — three mounted at the front and one at the rear — covering the most critical airflow positions immediately. All four fans support ARGB lighting synchronisation with your motherboard, and the daisy-chain design allows you to link the front fans together via the main fan, keeping cable runs clean. The case supports up to eight 120mm fans simultaneously, leaving room to expand cooling capacity as your build grows.

Serious Radiator and Hardware Clearance

Despite sitting in the accessible end of the market, the AX61 doesn’t shortchange you on cooling potential. The front panel supports radiators up to 360mm, making it compatible with most 240mm and 360mm AIO liquid coolers for builders who want to go beyond air cooling. CPU coolers up to 160mm tall are supported, covering the majority of high-end tower air coolers, while GPUs up to 320mm in length fit without issue. Cable management is addressed with 24mm of clearance on the left side and 13mm on the right, keeping the interior tidy once the build is complete.

⚠️ Buyer Tip: The HDD cage can interfere with longer PSUs (160mm or more in cable length). If your power supply is on the longer side, the HDD cage may need to be repositioned toward the front of the case or removed entirely to ensure a proper fit. Check your PSU dimensions before building.

⚠️ Note: The ARGB fans are SATA-powered and connect to the motherboard via a SATA cable for lighting control. Ensure your motherboard has an available SATA port and ARGB header, or use the onboard LED control button on the front I/O panel to cycle lighting effects independently.

Key Highlights

• Form Factor: Mid Tower (ATX / Micro-ATX / Mini-ITX)
• GPU Clearance: Up to 320mm
• CPU Cooler Clearance: Up to 160mm
• Max PSU Length: Up to 165mm (with HDD cage) / 345mm (without)
• Pre-Installed Fans: 4× 120mm ARGB (3 Front, 1 Rear)
• Max Fan Support: Up to 8× 120mm simultaneously
• Radiator Support: Front: 120 / 240 / 360mm | Top: 120 / 240mm
• Drive Bays: 2× 3.5″, 2× 2.5″
• Expansion Slots: 7
• Front I/O: 1× USB 3.0, 2× USB 2.0, HD Audio/Mic, LED Control
• Side Panel: Tempered Glass
• Dimensions: 405 × 200 × 449mm (D × W × H)
• PSU: Not included (standard ATX)
• Colour: Black
