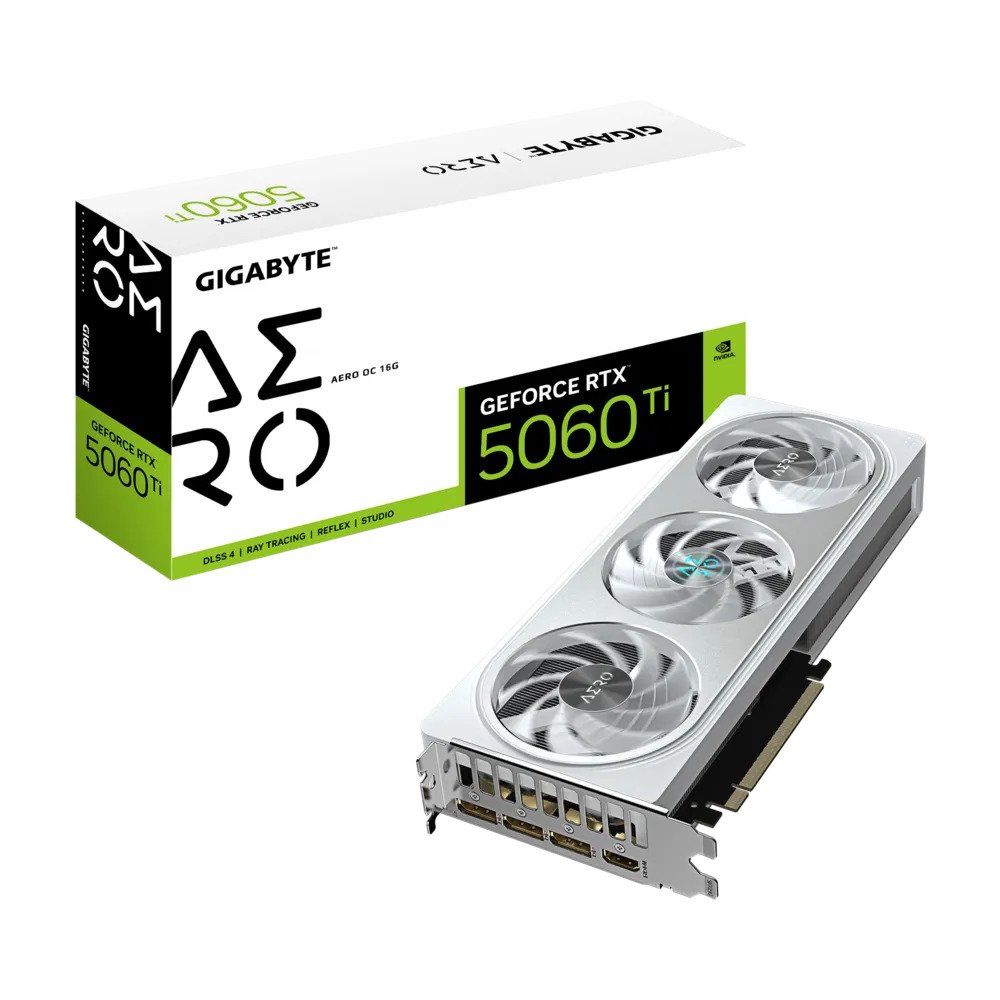

Gigabyte AERO GeForce RTX™ 5060 Ti OC (16GB GDDR7)

Description

Blackwell Architecture — A New Generation of NVIDIA

The RTX 5060 Ti is NVIDIA’s first mainstream Blackwell GPU, succeeding the Ada Lovelace-based RTX 4060 Ti with a generational upgrade across compute, AI, and ray tracing. 4608 CUDA cores power the rasterisation workload, while 5th-generation Tensor Cores and 4th-generation RT Cores handle AI-accelerated tasks and ray intersection respectively. The headline feature is DLSS 4 with Multi Frame Generation — NVIDIA’s AI upscaling suite now generates up to three additional frames for every rendered frame using a Transformer-based neural model, delivering frame rates in supported titles that would otherwise require significantly more expensive hardware. The AERO OC’s factory boost clock is 2647 MHz, 75 MHz above NVIDIA’s reference 2572 MHz. NVIDIA Reflex, RTX neural rendering, RTX HDR, and the full suite of Blackwell AI features round out the platform.

GDDR7 — A Memory Technology Step Up

The RTX 5060 Ti is the first card in our range to use GDDR7 memory. 16GB of GDDR7 running at 28 Gbps on a 128-bit bus delivers meaningfully higher bandwidth than the GDDR6 used by previous-generation 128-bit cards — a direct result of GDDR7’s higher data rate per pin. Real-world bandwidth figures are substantially above what the RTX 4060 Ti’s GDDR6 delivered at the same bus width, which helps offset the 128-bit interface constraint at 1440p in bandwidth-sensitive workloads.

WINDFORCE AERO Cooling — Hawk Fans, Server-Grade Gel, White Aesthetic

The WINDFORCE cooling system uses three Hawk fans with alternate spin directions, server-grade thermal conductive gel at the GPU die interface, composite copper heat pipes, a copper plate, screen cooling, and 3D active fan mode. The Hawk blade design delivers higher static pressure and airflow at equivalent noise levels, and the server-grade gel maintains superior thermal contact over the card’s lifetime compared to standard paste. Dual BIOS switches between Performance and Silent profiles without software. The AERO aesthetic is distinctly different from the rest of our GPU range — a white and silver shroud with a rippled backplate design that suits white or neutral-themed builds particularly well. RGB lighting on the fans and shroud is controllable via GIGABYTE Control Center.

Display Output, PCIe 5.0 x8 — Important Technical Note

Output covers 3× DisplayPort 2.1b and 1× HDMI 2.1b — four simultaneous displays at up to 7680×4320 — making the AERO one of the few cards in our range with three DisplayPort outputs plus HDMI. Power delivery uses a single 8-pin PCIe connector with a 180W TDP and a 550W PSU recommendation — among the most efficient configurations in our GPU range at this performance level.

⚠️ PCIe 5.0 x8 interface: The RTX 5060 Ti uses a PCIe 5.0 x8 electrical connection — not x16 — despite fitting in a standard x16 slot. NVIDIA’s testing shows minimal real-world gaming performance impact from this decision at current GPU performance levels, but it is a genuine architectural constraint worth understanding. Older PCIe 4.0 x8 or x16 platforms will see no meaningful bandwidth limitation in gaming.

⚠️ 128-bit memory bus: Like the RX 9060 XT, the 128-bit bus limits raw bandwidth. GDDR7 partially compensates with higher per-pin data rates, but this remains a 1080p-primary, 1440p-capable card rather than a 4K card.

⚠️ DLSS 4 vs FSR 4: DLSS 4 Multi Frame Generation requires an RTX 40 or 50 series GPU and is not available on AMD hardware. FSR 4 requires RDNA 4 hardware and is not available on NVIDIA. Both are excellent AI upscaling solutions — the right choice depends on your GPU platform, not just the feature name.

⚠️ AERO colour scheme: The AERO is a white and silver card. Verify it suits your build’s colour scheme before purchasing if aesthetics are a priority.

Specs at a Glance

• GPU: NVIDIA GeForce RTX 5060 Ti (Blackwell, GB206)
• CUDA Cores: 4608
• Boost Clock (OC): 2647 MHz | Base Clock: 2410 MHz
• Memory: 16GB GDDR7, 128-bit, 28 Gbps
• Outputs: 3× DisplayPort 2.1b, 1× HDMI 2.1b (4 displays max)
• Power Connector: 1× 8-pin PCIe | TDP: 180W | Recommended PSU: 550W
• Dimensions: 281mm length (2-slot, 3 fans)
• PCIe: 5.0 x8 | DirectX: 12 Ultimate | OpenGL: 4.6
• Features: Dual BIOS (Performance/Silent), Hawk fans, server-grade thermal gel, RGB, DLSS 4, Multi Frame Generation, RTX ray tracing, NVIDIA Reflex, G-Sync Compatible
