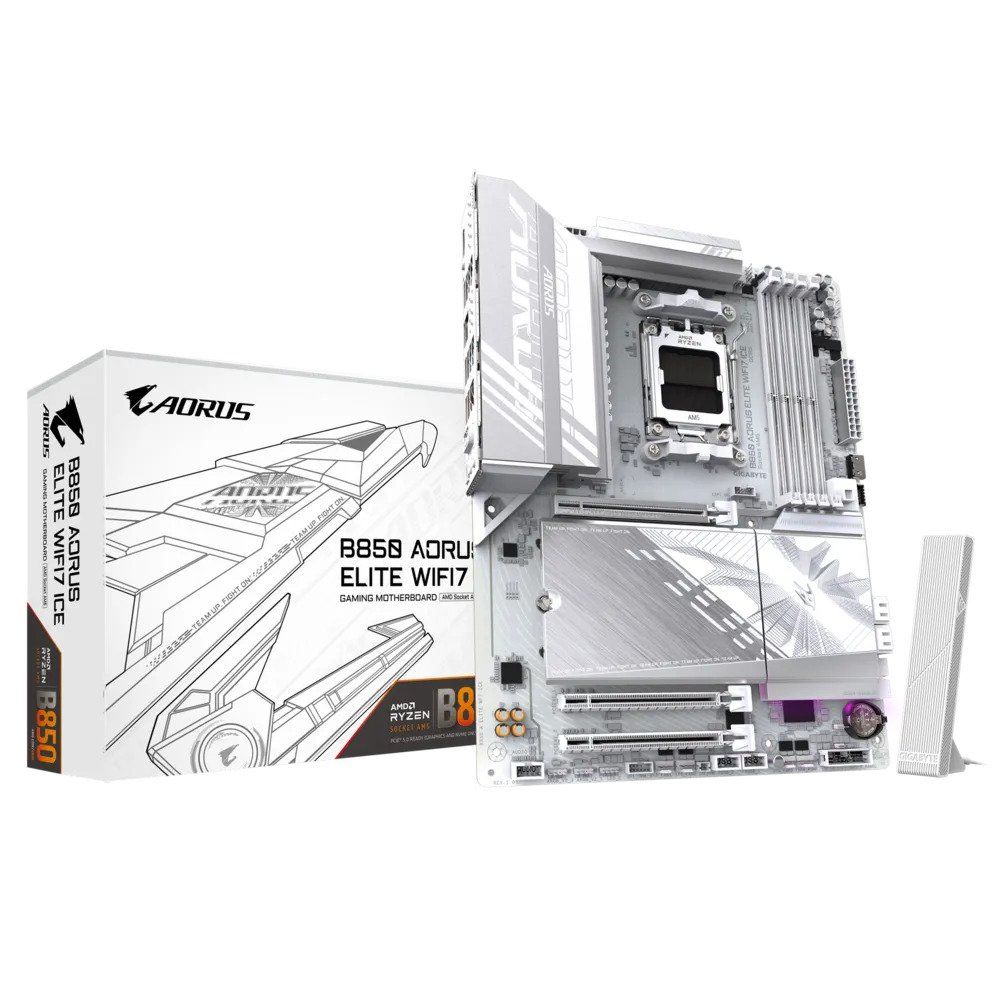

Gigabyte B850 AORUS Elite WiFi7 Ice (AM5)

Gigabyte B850 AORUS Elite WiFi7 Ice (AM5)

Gigabyte B850 AORUS Elite WiFi7 Ice (AM5)

R5,130.00 inc. VAT

The Gigabyte B850 AORUS Elite WiFi7 Ice is a sleek white ATX motherboard built for AMD’s AM5 platform. Featuring Wi-Fi 7, PCIe 5.0, DDR5 support, and GIGABYTE’s AI-driven AORUS AI SNATCH overclocking, it’s a premium foundation for any modern Ryzen build — dressed to impress in all-white.

In stock

SKU: MB-GB850AEW+W Categories: , , Tags: , , , , , , , , , , , , Brand:

Description

The White Build’s Power Centrepiece

The Gigabyte B850 AORUS Elite WiFi7 Ice brings flagship-tier features to the B850 chipset in a stunning white PCB finish. Designed for AMD’s AM5 socket, it’s compatible with AMD Ryzen 9000, 8000, and 7000 series processors and ready for whatever comes next.

Blazing-Fast Memory & Storage

DDR5 support reaches up to 8200 MT/s (OC), giving enthusiasts serious headroom for memory tuning. Triple M.2 slots with PCIe 5.0 on the primary slot mean your storage will never be the bottleneck.

Next-Gen Connectivity

Wi-Fi 7 and a 14+2+2 power phase design keep your system connected and stable under any load. A 2.5GbE LAN port, USB-C, and rear USB 10Gbps ports round out a comprehensive I/O lineup.

AI-Powered Overclocking

GIGABYTE’s AORUS AI SNATCH technology takes the guesswork out of tuning — with a single click, it unleashes the full potential of your CPU and DDR5 memory, instantly boosting gaming and work efficiency. X3D Turbo Mode further optimises performance for Ryzen X3D processors.

Key Highlights:

  • AMD AM5 Socket – supports Ryzen 7000/8000/9000 series
  • B850 Chipset | ATX Form Factor | White “ICE” PCB
  • DDR5 up to 8200 MT/s (OC) | 4 DIMM slots
  • PCIe 5.0 x16 GPU slot | 3x M.2 (PCIe 5.0 + PCIe 4.0)
  • Wi-Fi 7 | 2.5GbE LAN | Bluetooth 5.4
  • AORUS AI SNATCH one-click overclocking
  • X3D Turbo Mode for Ryzen X3D CPUs
  • GIGABYTE EZ-Latch for tool-free GPU & M.2 installation
  • 5-year Warranty

Proudly sold by the Ringwood Digital Store.

Additional information

Weight 2.16 kg
Dimensions 36 × 28 × 8 cm
Form Factor

ATX Form Factor
30.5cm x 24.4cm
CPU Socket

AMD AM5
Supported CPUs

AMD Ryzen 7000/8000/9000 Series Processors
Chipset

AMD B850
Memory

Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) with Dual Channel Architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules.

Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules.
Audio

Realtek® Audio CODEC (Only for rev. 1.0)
High Definition Audio
2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out

Realtek® ALC1220 CODEC(Only for rev. 1.1)

* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Onboard Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support:
– 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz

* Support for DisplayPort 1.4 version and HDR.

– 1 x Front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz

* Support for HDMI 1.4 version

(Graphics specifications may vary depending on CPU support.)
LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Comms.

Realtek® Wi-Fi 7 RTL8922AE
– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.4
– Support for 11be 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)

* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations
Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:
– 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2)
Storage Interface

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB

CPU:
– 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
– 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
CPU+USB 2.0 Hub:
– 4 x USB 2.0/1.1 ports on the back panel
Chipset:
– 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header
– 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
– 4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 3.2 Gen 1 Hub:
– 4 x USB 3.2 Gen 1 ports on the back panel
Internal I/O

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

(Note) Actual support may vary by CPU.
Backpanel

1 x DisplayPort (Note)
1 x Q-Flash Plus button
4 x USB 2.0/1.1 ports
1 x USB Type-C® port, with USB 3.2 Gen 2 support
5 x USB 3.2 Gen 1 ports
1 x RJ-45 port
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector

(Note) Actual support may vary by CPU.
I/O Controller

iTE® I/O Controller Chip
H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
