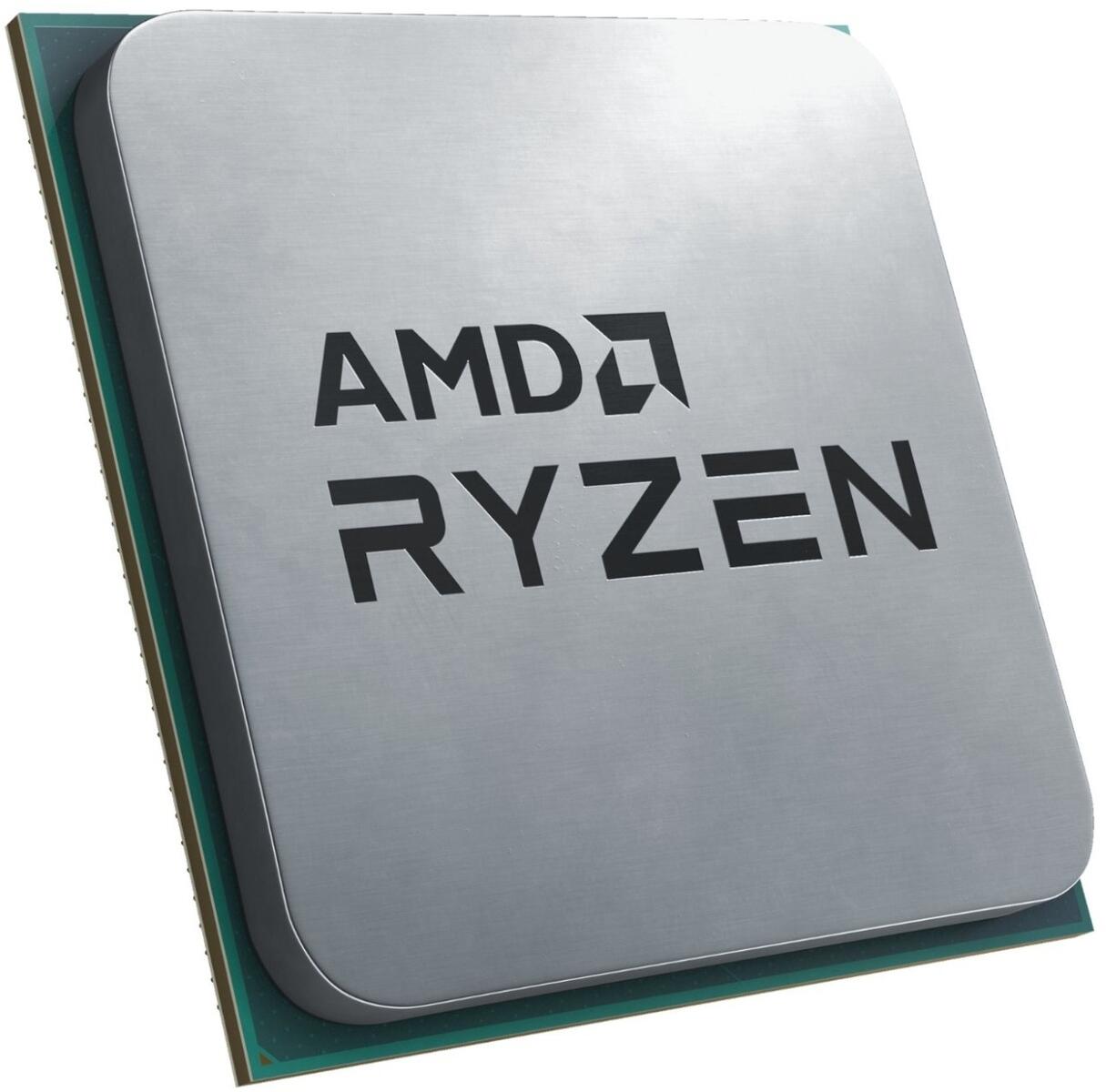

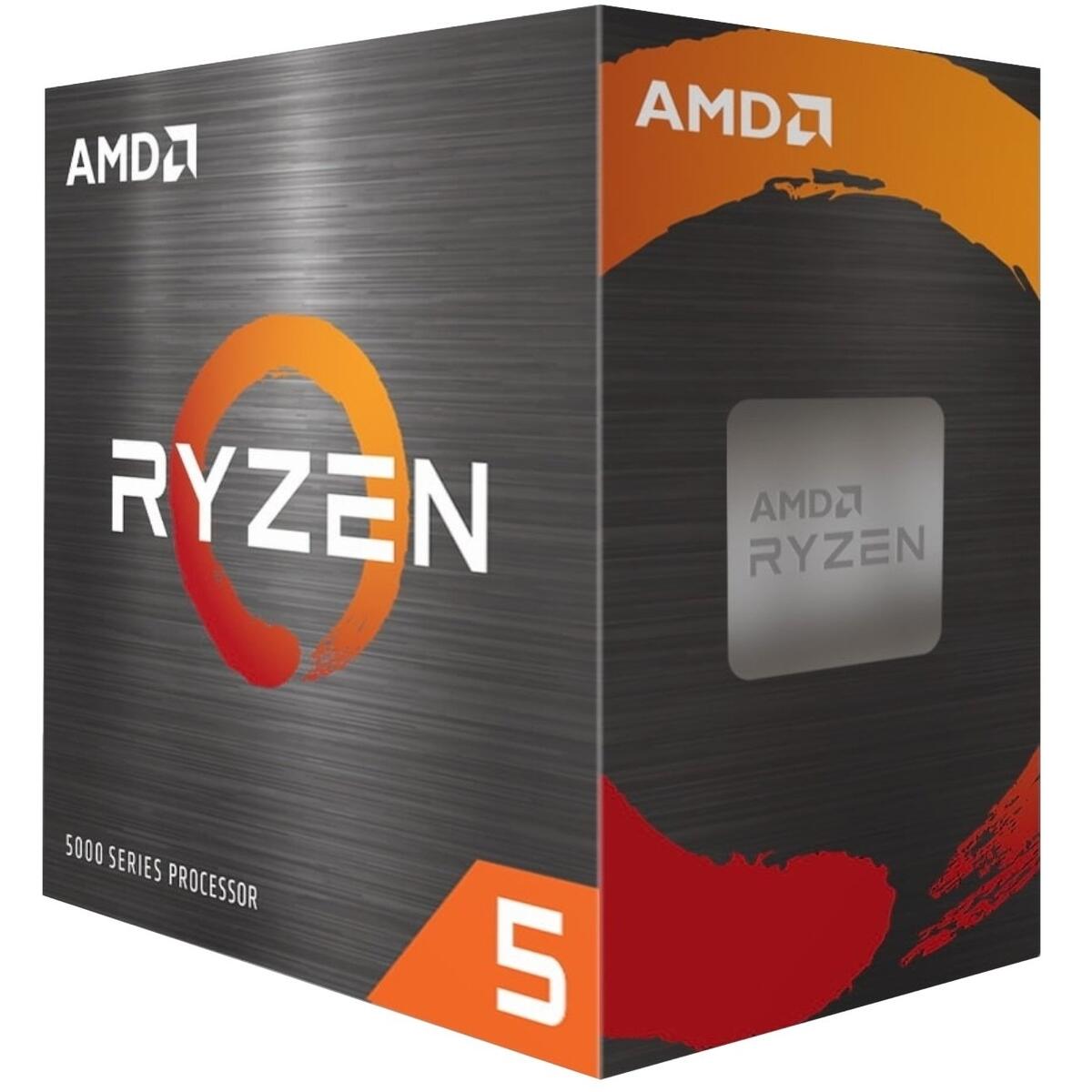

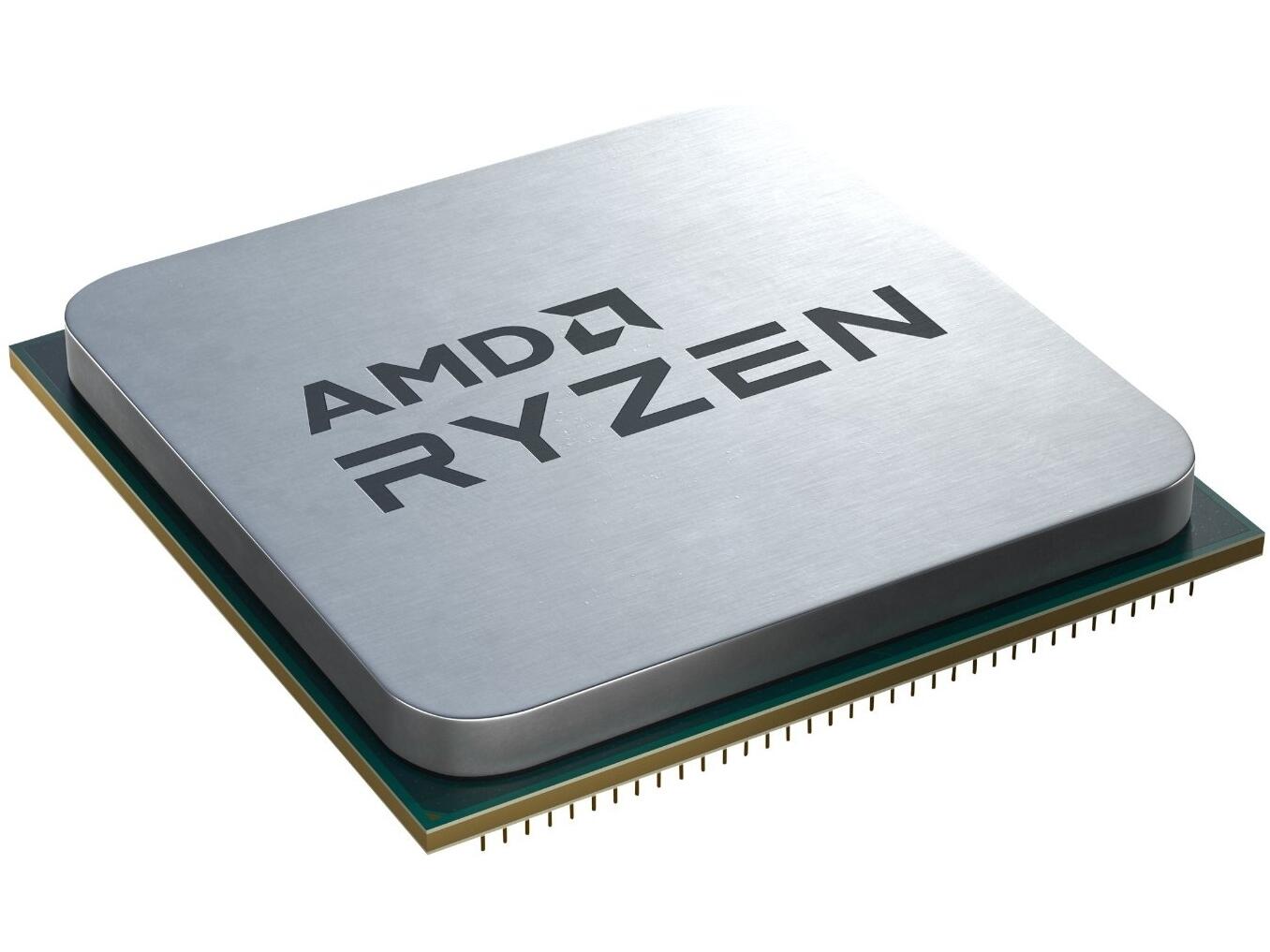

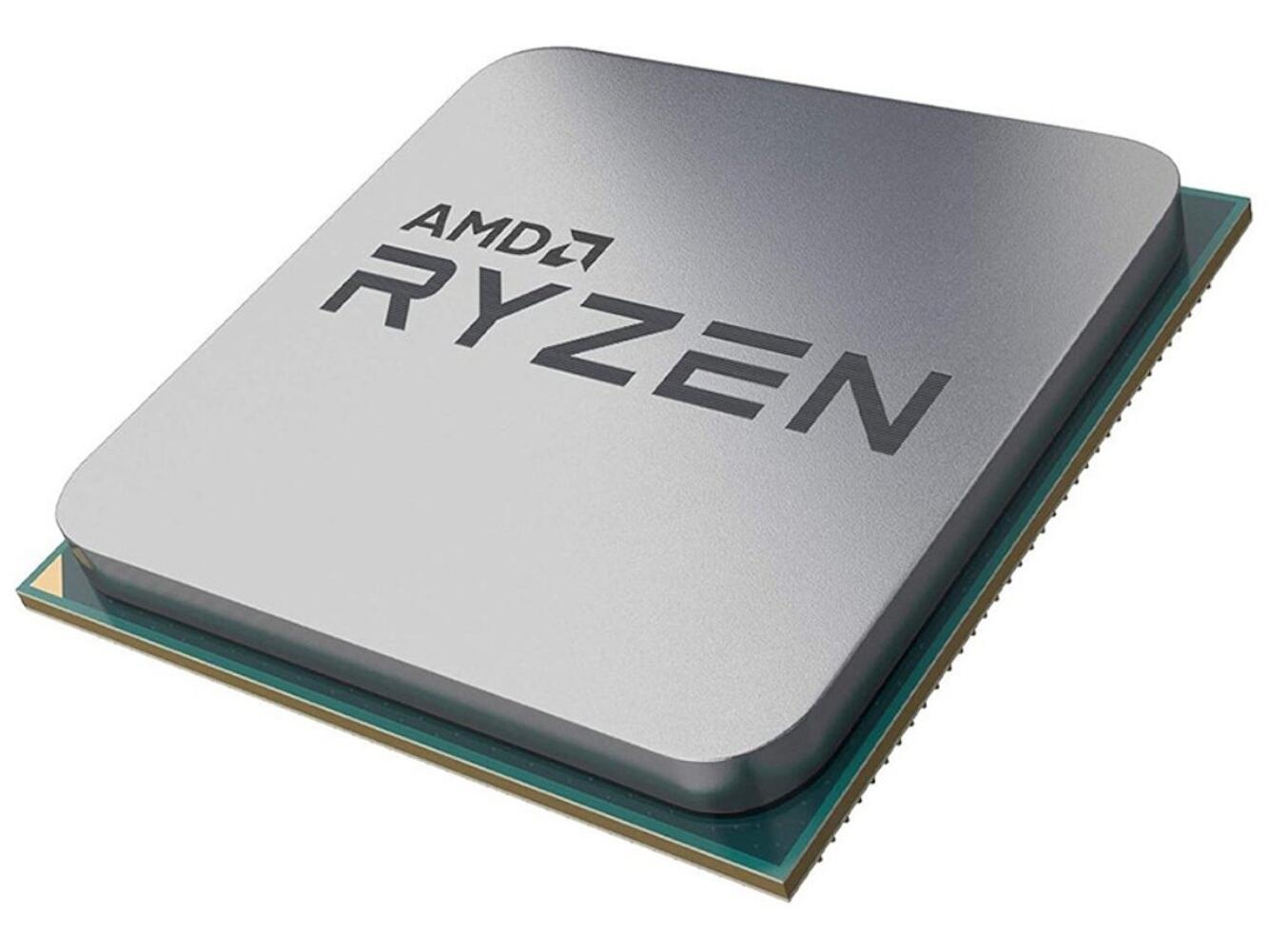

AMD Ryzen 5 5600XT 3.7GHz 6-Core AM4

R3,509.00 inc. VAT

The AMD Ryzen 5 5600XT is the latest and most refined version of AMD’s beloved Zen 3 6-core AM4 formula. With a base clock of 3.7 GHz, a boost clock of up to 4.7 GHz, and a generous 32MB of L3 cache on a 65W TDP, it edges past the 5600X in boost speed while offering the same core AM4 platform compatibility. No integrated graphics are included — ideal when pairing with a dedicated GPU. Includes AMD Wraith Stealth cooler.

In stock

Description

Zen 3 Refined. AM4’s Latest 6-Core.

The Ryzen 5 5600XT is essentially a finely tuned version of the renowned Ryzen 5 5600X, offering a slightly different frequency balance that may come at a more favourable price for builders seeking maximum AM4 Zen 3 value. It launched in late 2024 as AMD’s last word on the AM4 platform.

32MB L3 Cache — More Than the 5600X

The Ryzen 5 5600XT’s generous 32MB of L3 cache significantly supports fast data processing, and its full PCIe 4.0 support ensures a future-proof connection for current graphics cards and fast NVMe storage. Compared to the original 5600X’s 32MB, it matches it exactly while adding a higher boost clock ceiling.

Snappier Boost Clock

With a maximum boost clock speed of 4.7 GHz — 100 MHz higher than the 5600X — it delivers the fastest Zen 3 6-core gaming performance on AM4, extracting every last bit of performance from the platform before the AM5 transition.

The Ultimate AM4 Upgrade

Compatible with B550, X570, B450, X470, and A520 motherboards (BIOS update required for Zen 5000 series support on older boards). If you’re on an older AM4 Ryzen and want the biggest possible upgrade without changing platforms, this is the chip.

⚠️ Note: The Ryzen 5 5600XT has no integrated graphics despite the XT suffix — a discrete GPU is required.

Key Highlights:

  • AMD Zen 3 Architecture | Vermeer | 7nm TSMC FinFET
  • 6 Cores / 12 Threads | Base: 3.7 GHz | Boost: up to 4.7 GHz
  • 32MB L3 Cache | 3MB L2 Cache
  • Socket AM4 | DDR4-3200 | PCIe 4.0
  • 65W TDP | Unlocked Multiplier
  • No Integrated Graphics — discrete GPU required
  • Compatible: AMD A520 / B450 / B550 / X470 / X570 Motherboards

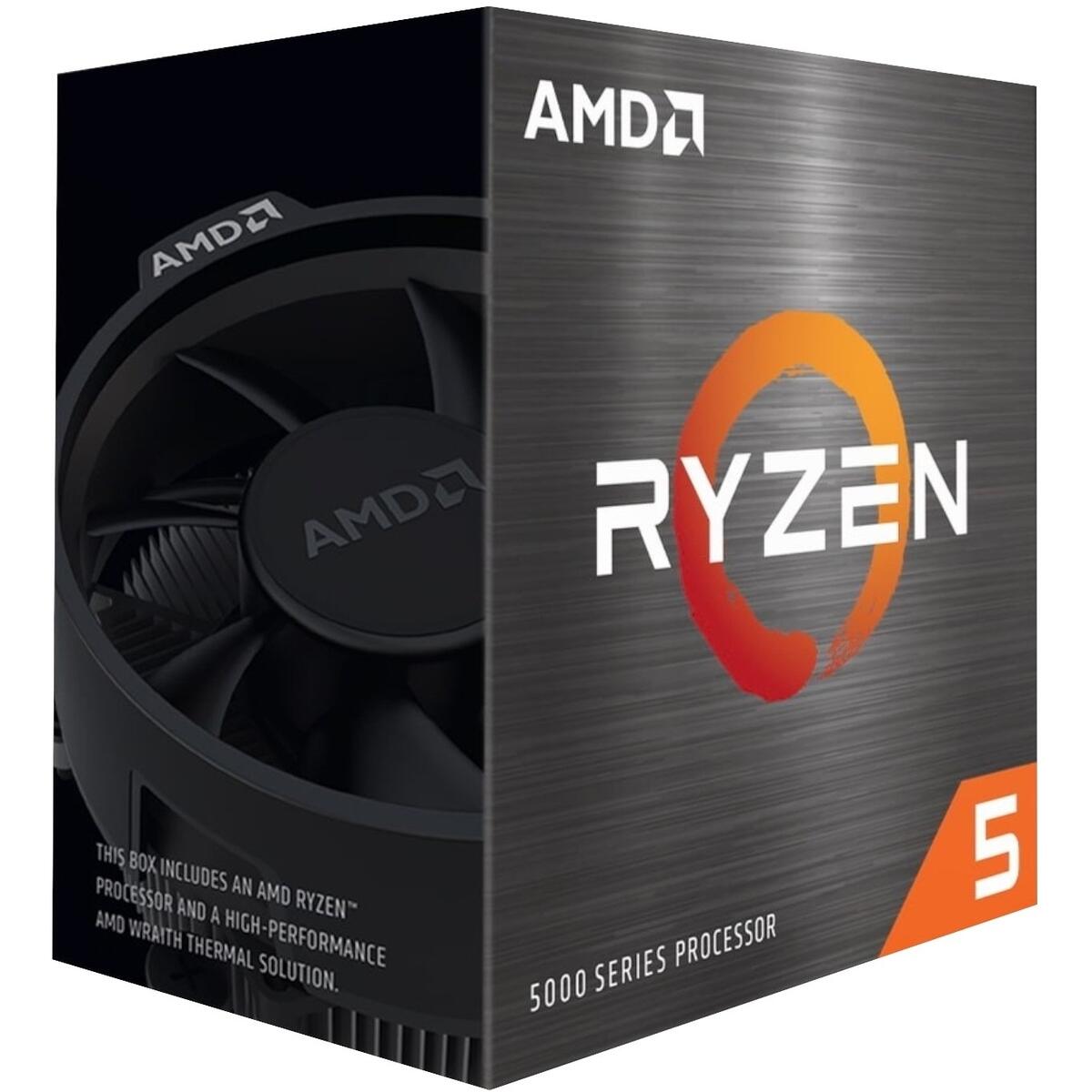

  • Includes AMD Wraith Stealth Cooler
  • 3-Year Warranty

Proudly sold by the Ringwood Digital Store.

Additional information

Weight 0.5 kg
Dimensions 15 × 15 × 5 cm
Series

AMD Ryzen 5000 Series

Codename

Formerly Vermeer

Launch Date

31/10/2024

Architecture

Zen 3

CPU Socket

AM4

Clock Speed

3.7GHz, Max. Boost up to 4.7GHz

Total Cores/Threads

6x Cores, 12x Threads

Instruction Set

x86-64

Multithreading

Yes, SMT

Cache Size

L1: 384 KB, L2: 3MB, L3: 32MB

TDP

65W

Lithography

TSMC 7nm FinFET (CPU Cores)
Globalfoundries 12nm (I/O Die)
CPU CCD Size: 74mm²
I/O Die Size: 125mm²

Overclocking Unlocked

Yes
* Proceed at your own risk. Any damage caused is NOT covered by the warranty.

Supported Chipsets

X570, X470, X370
B550, B450, B350
A520

Boost Technology

Precision Boost 2

Supported Extensions

AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution

Wraith Stealth (Included)

Tjmax

95° C

Connectivity

4x Native USB 3.0 Gen 2
2x Native SATA Ports

PCIe

PCIe Revision 4.0
20x Usable PCIe Lanes (24 total)
Additional Usable Lanes from Motherboard:
X570 – 16x Gen 4
X470 – 2x Gen 3, 8x Gen 2

NVMe Support

Boot , RAID0 , RAID1 , RAID10

Supported Memory

DDR4 Dual Channel (UDIMM)
Max. 128GB Supported
Up to 3200 MT/s
Max. Memory Speed:
2x1R – DDR4-3200
2x2R – DDR4-3200
4x1R – DDR4-2933
4x2R – DDR4-2667
*ECC is supported but requires motherboard support

Virtualization

AMD-V/SVM

Graphics

None. Discreet graphics card required.

Supported Technologies

AMD StoreMI Technology , AMD Ryzen™ VR-Ready Premium
