Asus Dual Radeon™ RX 9060 XT (16GB GDDR6)

Description

Small Card, Full RDNA 4

At 202 × 120 × 49mm and 2.5 slots, the ASUS Dual RX 9060 XT 16G is a genuinely compact graphics card — shorter than most ITX cards from previous generations and easily the smallest GPU in our current range. The Dual is designed specifically for builders who want powerful RDNA 4 gaming in a compact form factor, with broad case compatibility as a primary design constraint. The silicon underneath is unchanged from the larger RX 9060 XT models: AMD’s 6nm Navi 33 RDNA 4 die at 2048 stream processors, 32 compute units, 2nd-generation AI accelerators, and 3rd-generation RT hardware. The factory OC pushes the boost clock to 3250 MHz in OC mode via GPU Tweak III, with a game clock of 2640 MHz — both well above AMD’s reference figures, delivered from a dual-fan card at sub-200mm length. FSR 4, HYPR-RX, Fluid Motion Frames, Anti-Lag 2, hardware AV1 encoding, and AMD Smart Access Memory are all fully supported.

Dual Axial-Tech Fans — Leveraging Your Case

ASUS designs the Dual’s heatsink, shroud, and heatpipe layout specifically to leverage chassis side-panel ventilation for thermal performance beyond what the compact cooler size alone would suggest — a 2.5-slot dual-fan card in a well-ventilated mid-tower will run cooler than the same card in a sealed mini-ITX box. Both Axial-tech fans use a smaller hub to maximise blade length, with a barrier ring on each fan increasing downward air pressure into the heatsink. All fans stop completely when GPU temperature drops below 55°C for silent idle and light-load operation — a meaningful quality-of-life feature at this price point. GPU Tweak III handles fan curve adjustment, OC mode toggling, and real-time monitoring.

16GB GDDR6, PCIe 5.0, DisplayPort 2.1a

The 16GB GDDR6 frame buffer at 20 Gbps on a 128-bit bus gives this card the VRAM headroom that the standard RX 7600 8GB sorely lacks — future-proofing 1080p gaming and enabling comfortable 1440p use in most titles. PCIe 5.0 x16 ensures full platform compatibility with AM5 and Intel platforms. Display output covers 1× HDMI 2.1b and 2× DisplayPort 2.1a — a maximum of three simultaneous displays. A single 8-pin PCIe connector keeps cabling minimal with a 450W PSU recommendation — the most power-efficient setup of any card in our RX 9060 XT range.

⚠️ 3 displays only: The Dual RX 9060 XT supports a maximum of 3 simultaneous displays — not 4. Plan your multi-monitor setup accordingly.

⚠️ No RGB, no Dual BIOS: The Dual carries no onboard lighting and no BIOS mode switch. If either is a requirement, consider the TUF Gaming or Prime variants.

⚠️ Dual-fan vs triple-fan: The compact dual-fan design runs warmer than triple-fan alternatives under sustained load, particularly in poorly ventilated cases. Ensure your case has adequate side-panel and front panel airflow for best thermal results.

⚠️ 128-bit memory bus: Despite the 16GB VRAM, the 128-bit bus limits raw bandwidth. This card is optimised for 1080p and capable at 1440p — it is not a 4K card.

Specs at a Glance

• GPU: AMD Radeon RX 9060 XT (RDNA 4, 6nm)
• Stream Processors: 2048 | Compute Units: 32
• Boost Clock (OC mode): Up to 3250 MHz | Game Clock: 2640 MHz
• Boost Clock (Default mode): Up to 3230 MHz | Game Clock: 2620 MHz
• Memory: 16GB GDDR6, 128-bit, 20 Gbps

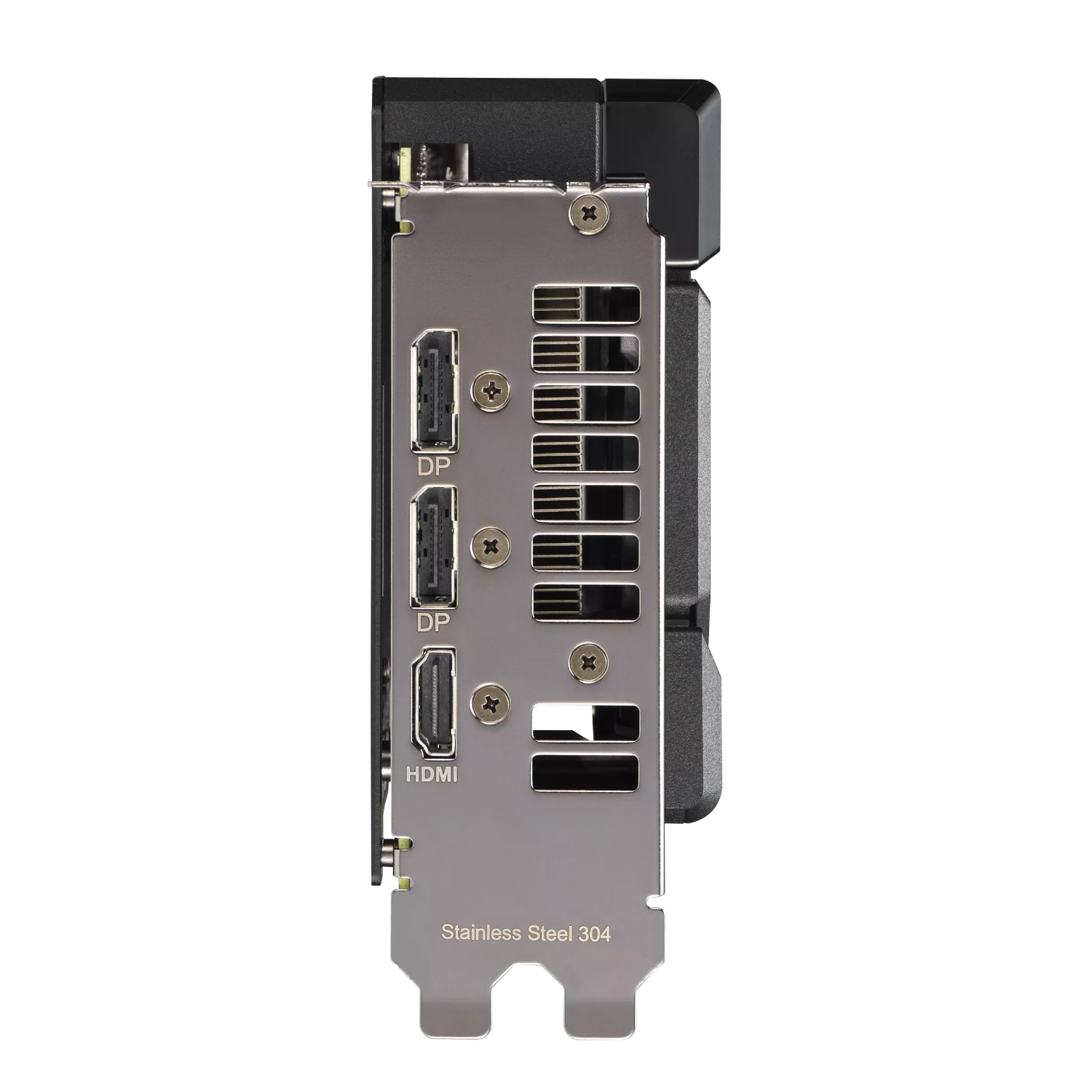

• Outputs: 2× DisplayPort 2.1a, 1× HDMI 2.1b (3 displays max)
• Power Connector: 1× 8-pin PCIe | Recommended PSU: 450W
• Dimensions: 202 × 120 × 49mm (2.5 slots)
• PCIe: 5.0 x16 | DirectX: 12 Ultimate | OpenGL: 4.6
• Features: Dual Axial-tech fans, 0dB mode, FSR 4, HYPR-RX, Fluid Motion Frames, Anti-Lag 2, AV1 encoding, Smart Access Memory, GPU Tweak III
