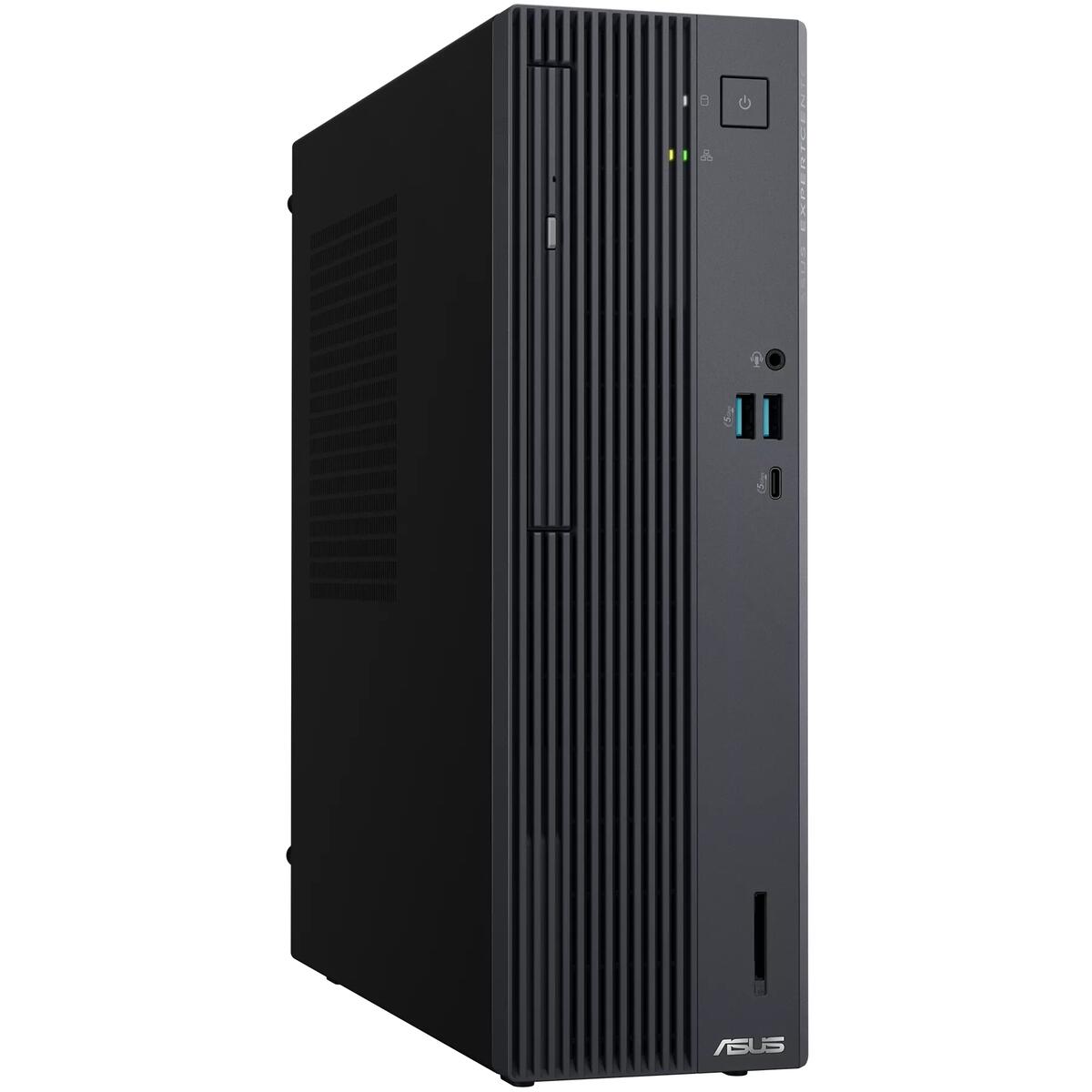

Asus ExpertCenter P500SV Desktop PC

Description

Professional Graphics Horsepower in a Quiet Compact Chassis

The Core i7-13620H delivers 10 cores (6 performance + 4 efficiency), 16 threads, and a boost frequency of 4.9 GHz with a 24MB cache. Through ASUS’s copper heat pipe compact air cooler, it sustains a 45W TDP at just 30.8 dB in Performance mode — matching or bettering the noise levels of far less powerful machines. The 16GB DDR5 ships in one of two SO-DIMM slots, with a second slot free and 64GB maximum supported.

NVIDIA RTX™ A400 — Professional GPU for Visual Workloads

The RTX™ A400 4GB GDDR6 is NVIDIA’s entry-level professional workstation GPU, running the full NVIDIA professional driver stack with ISV certification across CAD, BIM, and visualisation applications. Unlike consumer GeForce cards, it is designed for sustained 24/7 operation and delivers stable, certified performance in applications such as AutoCAD, Revit, and similar professional software. It occupies the PCIe 4.0 x16 (operating at x8) expansion slot in the 8.6L chassis, with display output via HDMI 1.4 and DisplayPort 1.4 on the rear.

Storage, Connectivity & Expansion

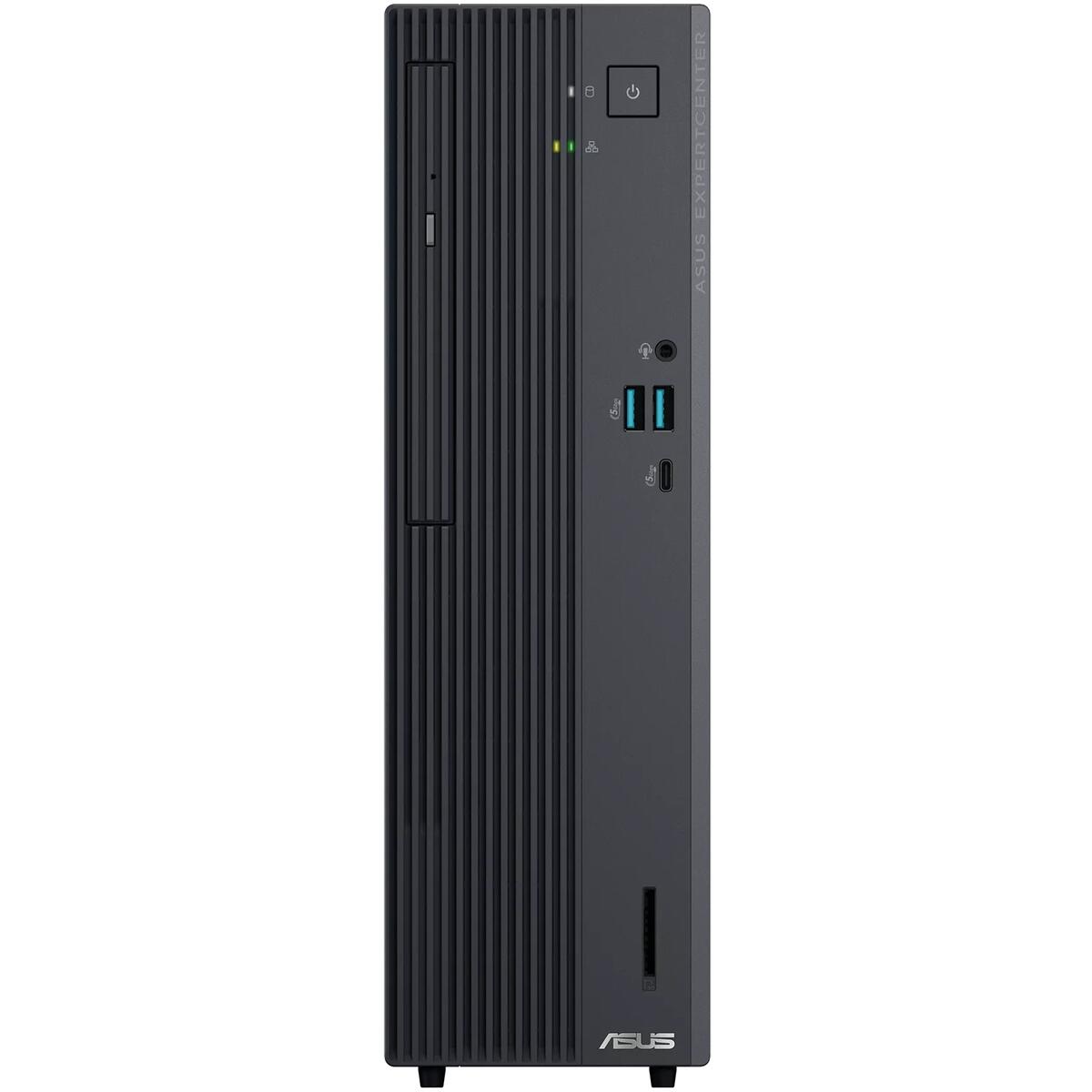

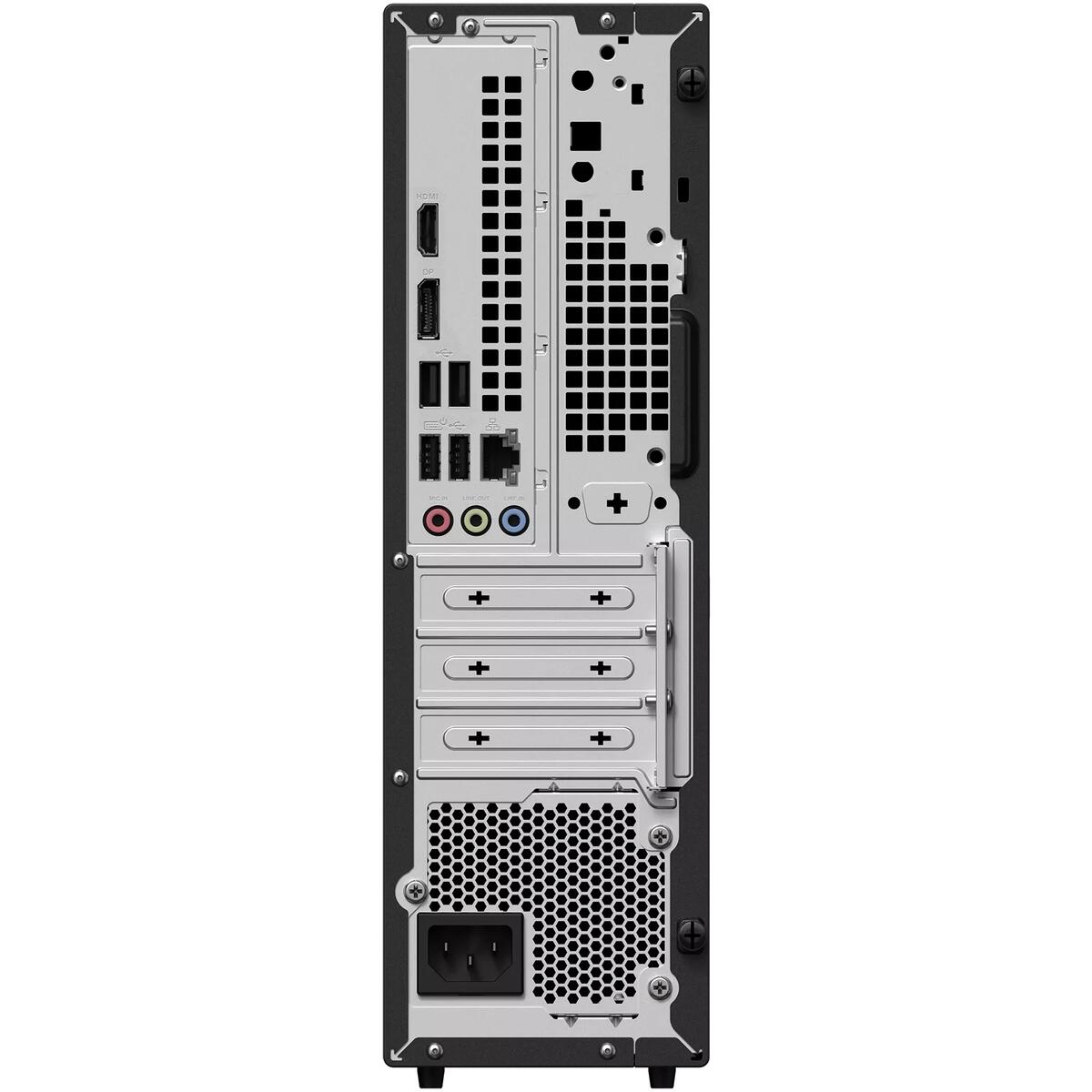

The 512GB M.2 2280 PCIe 4.0 NVMe SSD handles primary storage, with a second M.2 2280 slot and two SATA 6Gb/s ports available for expansion. Front I/O covers 2x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 1 Type-C, a 3.5mm combo audio jack, and a 2-in-1 SD/MMC card reader. The rear provides 4x USB 2.0 Type-A, HDMI 1.4, DisplayPort 1.4, Gigabit Ethernet (RJ-45), 7.1-channel audio (microphone, line-out, line-in), and a Kensington lock slot. Wi-Fi 6 and Bluetooth are built in.

Security & Build

ExpertGuardian security provisions include a NIST SP 800-155-compliant BIOS with automatic tamper-detection rollback, discrete TPM 2.0, HDD user password protection, and Kensington lock. ASUS guarantees at least five years of BIOS and driver updates for the platform. The chassis is MIL-STD-810H certified.

💡 The RTX™ A400’s ISV-certified professional driver stack is a meaningful advantage for CAD, BIM, and AEC workflows — providing certified rendering stability in professional applications that consumer GeForce drivers don’t guarantee.

⚠️ This model ships with Windows 11 Home. Users requiring domain join, BitLocker, or Remote Desktop will need to upgrade to Windows 11 Pro. The P500SV-C716512G1X variant ships with Windows 11 Pro pre-installed if this is a requirement.

⚠️ Display outputs route through the RTX™ A400 only — onboard video is inactive when the discrete GPU is installed. The P500SV’s DisplayPort does not support Dual-Mode (DP++); passive DP-to-HDMI/DVI adapters will not function.

Key Highlights

• Intel Core i7-13620H — 10 cores / 16 threads, up to 4.9 GHz, 45W sustained TDP
• NVIDIA RTX™ A400 4GB GDDR6 — professional driver stack, ISV-certified
• 16GB DDR5 — 1 slot free, upgradeable to 64GB
• 512GB M.2 2280 PCIe 4.0 NVMe SSD — 2nd M.2 + 2x SATA ports available
• Front 2-in-1 SD/MMC card reader
• HDMI 1.4 + DisplayPort 1.4 (GPU outputs)
• USB 3.2 Gen 1 Type-C (front) + multiple USB 3.2 Gen 1 Type-A
• Wi-Fi 6 + Bluetooth
• Copper heat pipe compact air cooler — 30.8 dB in Performance mode
• MIL-STD-810H certified chassis
• NIST SP 800-155-compliant BIOS + discrete TPM 2.0
• 3-year on-site warranty (ASUS South Africa)
• Windows 11 Home (64-bit)
