Asus NUC 15 Pro Slim L10 (500GB SSD) Mini PC

Description

NUC 15 Pro Slim L10 — Core 5 Performance at the Entry Configuration

The ASUS NUC 15 Pro Slim L10 (NUC15-C5S8500W11P) is the starter configuration of the NUC15CRK Mini PC platform — sharing every hardware and connectivity advantage of the higher-configured C5161TBW11P variant, with 8 GB DDR5 and a 500 GB NVMe SSD rather than 16 GB and 1 TB. The Intel Core 5 210H (Raptor Lake, 4 Performance + 4 Efficiency cores, 8 cores total, 4.8 GHz single-core max turbo, 25W cTDP), Intel Graphics (Xe), dual HDMI 2.1, dual Thunderbolt 4 with DisplayPort 2.1, Wi-Fi 7, Bluetooth 5.4, Intel 2.5 GbE LAN, MIL-STD-810H certification for 24/7 operation, and Windows 11 Pro are all identical across both configurations. The difference is purely in the pre-installed memory and storage, making this the better choice for deployments where the buyer intends to upgrade RAM and storage independently, or where 8 GB / 500 GB is sufficient for the intended workload.

The 8 GB DDR5 SODIMM handles everyday office productivity, web browsing, document work, and video conferencing comfortably. The 500 GB NVMe SSD provides ample space for Windows 11 Pro, business applications, and working files. Both remain user-upgradeable — a second SODIMM slot supports up to 48 GB total DDR5 (or DDR5-6400 CUDIMM), and a second M.2 2242 slot accommodates an additional NVMe SSD without replacing the primary drive.

⚠️ The Intel Core 5 210H (Core Series CPU) provides PCIe 4.0 x4 on the primary M.2 slot — not PCIe 5.0 x4, which is available on NUC15 Pro variants with Core Ultra Series CPUs.

⚠️ 8 GB DDR5 in a single SODIMM operates in single-channel mode. For maximum Intel Iris Xe GPU performance and memory bandwidth, adding a second matched SODIMM to enable dual-channel is recommended. Two SODIMM slots are available.

⚠️ Wi-Fi 7 full features (MLO, 320 MHz channels, Bluetooth 5.4 advanced audio) require Windows 11 24H2 and a Wi-Fi 7 compatible router.

💡 If additional storage is anticipated, the second M.2 2242 (PCIe 4.0 x4) slot accepts a secondary NVMe SSD without replacing or removing the 500 GB primary drive — a straightforward internal upgrade path.

Technical Specifications

Intel Core 5 210H: Raptor Lake, 4P+4E cores (8 total), 16 threads, 4.8 GHz P-core max turbo, 25W cTDP, 12 MB L3. Intel Graphics (Xe). Memory: 8 GB DDR5 SODIMM (2 slots, max 48 GB DDR5-5600 or DDR5-6400 CUDIMM). Storage: 500 GB M.2 PCIe 4.0 x4 NVMe SSD + second M.2 2242 slot available. Rear: 2× HDMI 2.1 + 2× Thunderbolt 4 Type-C (DP 2.1 alt-mode) + 1× USB 3.2 Gen2 Type-A (10 Gbps) + 1× USB 2.0 Type-A + 1× RJ-45 2.5 GbE. Front: 1× USB 3.2 Gen2x2 Type-C (20 Gbps) + 2× USB 3.2 Gen2 Type-A (10 Gbps). Wireless: Intel Wi-Fi 7 + Bluetooth 5.4. OS: Windows 11 Pro 64-bit. Dimensions: 117 × 112 × 37 mm.

Key Highlights

• Intel Core 5 210H — Raptor Lake, 8 cores (4P+4E) / 16 threads, up to 4.8 GHz, 25W cTDP
• Intel Graphics (Xe architecture)
• 8 GB DDR5 SODIMM — 2 slots, expandable to 48 GB (single-channel as shipped)
• 500 GB M.2 PCIe 4.0 x4 NVMe SSD + second M.2 2242 slot available
• 2× HDMI 2.1 (rear) + 2× Thunderbolt 4 / USB4 Type-C with DP 2.1 (rear) — up to 4× 4K

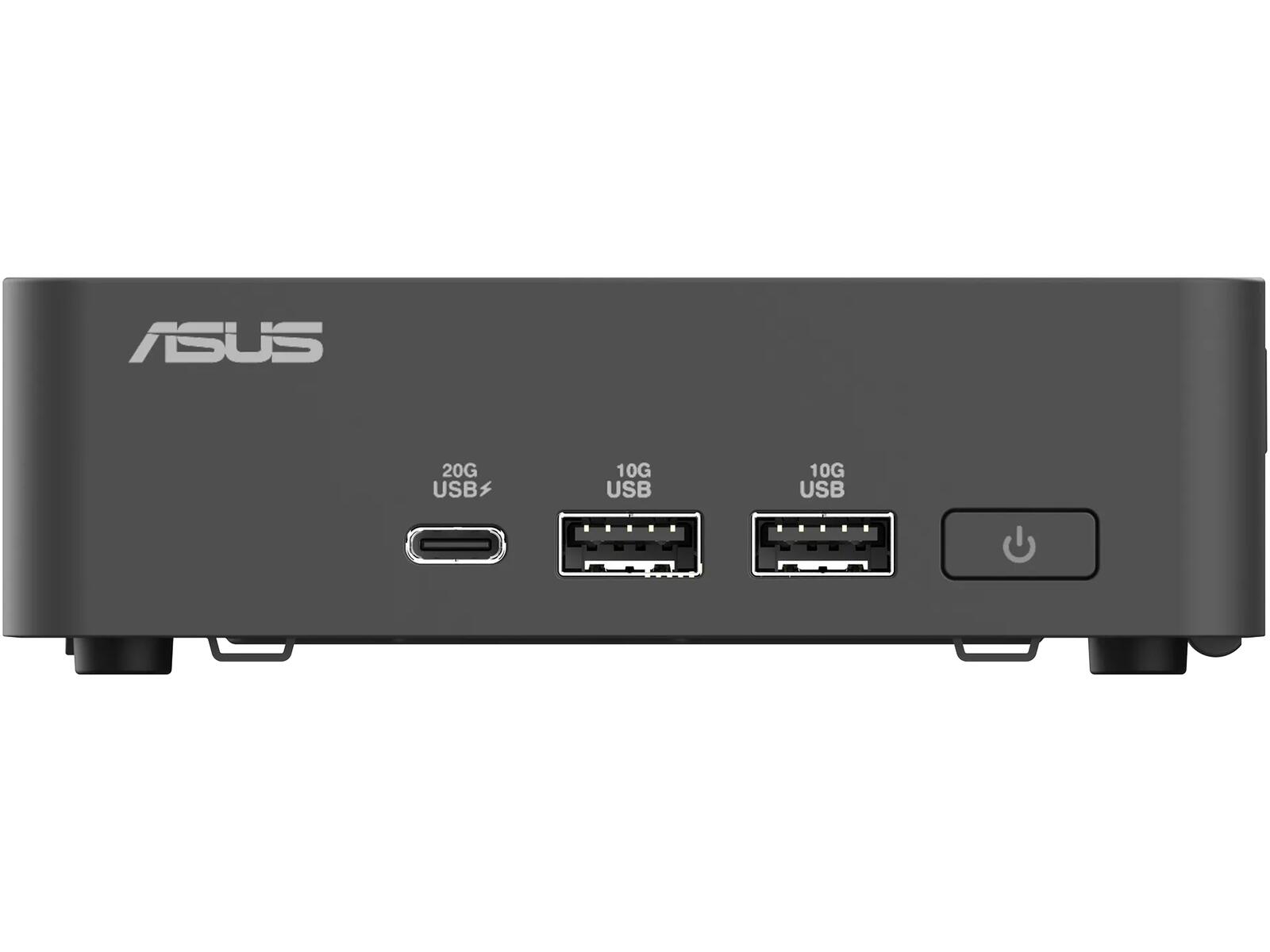

• Front: 1× USB 3.2 Gen2x2 Type-C (20 Gbps) + 2× USB 3.2 Gen2 Type-A (10 Gbps)

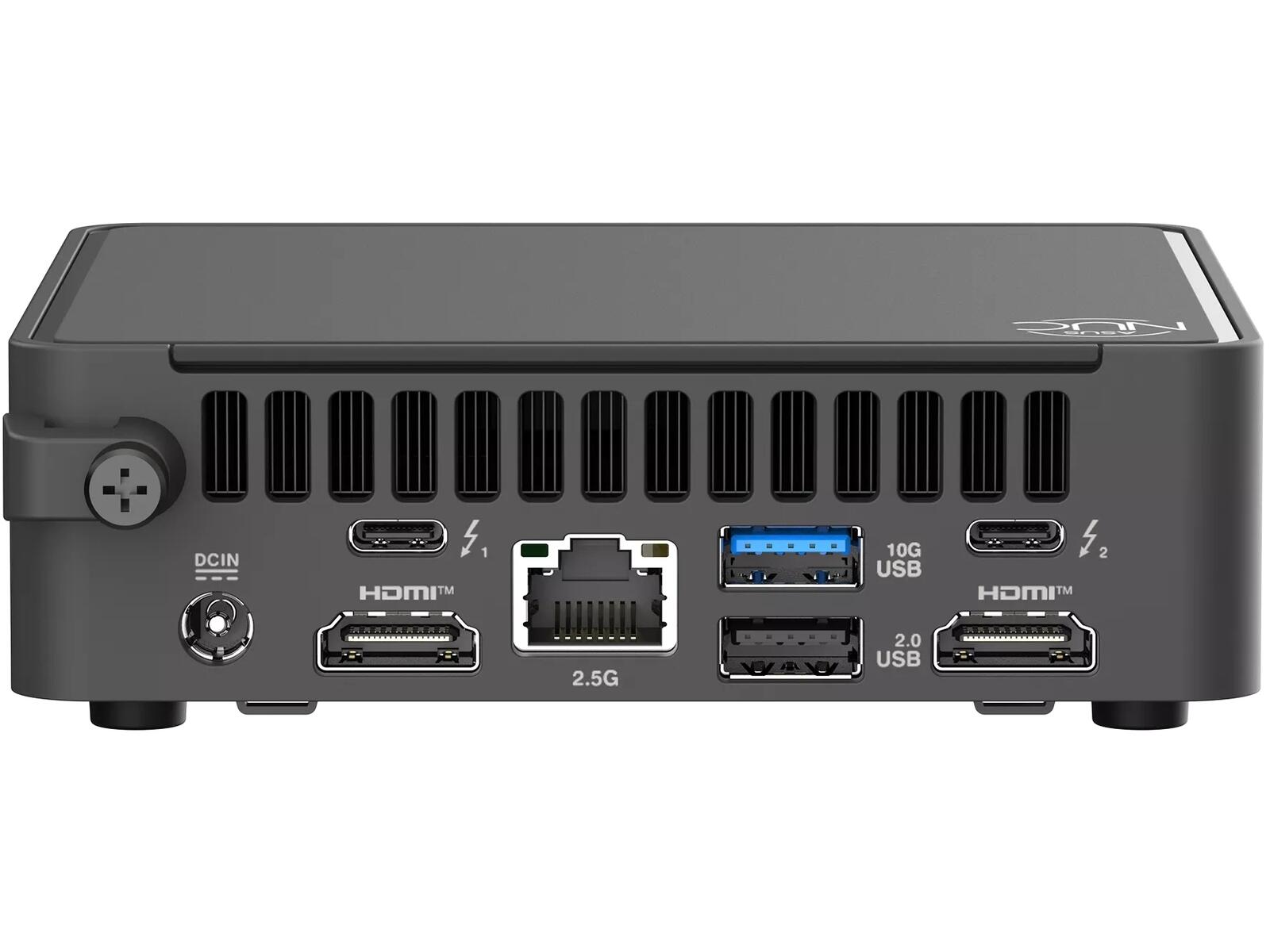

• Rear: 1× USB 3.2 Gen2 Type-A (10 Gbps) + 1× USB 2.0 Type-A
• Intel 2.5 GbE LAN (RJ-45)
• Intel Wi-Fi 7 (802.11be, 2.4/5/6 GHz, MLO) + Bluetooth 5.4
• MIL-STD-810H certified — 24/7 sustained operation validated
• ASUS OpenClaw AI framework support
• Tool-less chassis — quick internal access for upgrades
• VESA wall mount kit included
• Windows 11 Pro 64-bit pre-installed
• 117 × 112 × 37 mm slim chassis — Black
• Entry configuration — RAM and SSD independently upgradeable
