Dell EMC PowerEdge R470 1U (Intel Xeon 6507P 3.5GHz, 32GB RAM, 480GB SSD, 8x 2.5″ SATA/SAS Bays) Server
R121,395.00 inc. VAT
The Dell EMC PowerEdge R470 1U server delivers exceptional performance density with an Intel Xeon 6507P processor running at 3.5GHz. Equipped with 32GB of DDR5 memory and a 480GB SSD, it provides a balanced foundation for demanding workloads. Its 8-bay 2.5-inch SATA/SAS front storage configuration offers flexible capacity for data-intensive applications. Designed for modern data centers, this 1U rack server combines robust management features with enterprise-grade security.
In stock
Description
Performance & Processing Power
The Intel Xeon 6507P P-core processor delivers up to 86 cores with the R1S option, providing high clock speeds of 3.5GHz for single-threaded performance. This architecture excels in virtualization, database, and high-performance computing workloads. The processor supports DDR5 memory speeds up to 6400 MT/s, ensuring low latency and high throughput. With up to 4TB maximum memory capacity on P-core models, the platform scales to meet growing demands.
Memory & Storage Flexibility
The server features 16 DDR5 DIMM slots supporting registered ECC memory for data integrity and reliability. The configured 32GB RAM provides a solid starting point, expandable to 4TB for memory-intensive applications. Storage options include front bays supporting up to 8 x 2.5-inch SATA/NVMe drives, with the current configuration offering 8 bays for SATA/SAS drives. A 480GB SSD ensures fast boot and application response times.
Scalability & Management
With up to 4 Gen5 PCIe slots (x16 connectors), the R470 accommodates GPUs, DPUs, and high-speed networking cards. The integrated iDRAC10 with RESTful API, Redfish, and RACADM CLI enables comprehensive remote management. Optional OCP NIC 3.0 cards provide flexible networking up to 200GbE with NVIDIA BlueField-3 DPU support. Hot-swappable redundant power supplies and fans maximize uptime and serviceability.
Security & Reliability
Built on a Silicon Root of Trust, the server ensures cryptographically signed firmware and secure boot processes. Features like System Lockdown, Secure Erase, and TPM 2.0 FIPS certification protect data at rest and in transit. Chassis intrusion detection and Secured Component Verification add physical and hardware integrity assurance. The platform supports major OSes including Windows Server, VMware ESXi, Red Hat, SUSE, and Ubuntu.
Key Highlights
- Processor: Intel Xeon 6507P 3.5GHz (P-core, up to 86 cores with R1S)
- Memory: 32GB DDR5 RDIMM (expandable to 4TB via 16 slots, 6400 MT/s)
- Storage: 480GB SSD + 8 x 2.5-inch SATA/SAS front drive bays
- Form Factor: 1U rack server (Height: 4.28 cm, Width: 48.2 cm, Depth: 81.69 cm with bezel)
- Power: Hot-swap redundant PSUs (options from 800W to 1500W Titanium)
- Management: iDRAC10 with Direct, RESTful API, Redfish, RACADM, Service Module
- Networking: 1Gb dedicated BMC port, up to two OCP NIC 3.0 slots, optional DPU
- Expansion: Up to 4 Gen5 PCIe slots (x16 connectors), GPU support up to 4x 75W
- Security: Silicon Root of Trust, TPM 2.0 FIPS, Secure Boot, Data at Rest Encryption
- OS Support: Windows Server, VMware ESXi, RHEL, SLES, Ubuntu Server LTS
Proudly sold by the Ringwood Digital Store.
Additional information
| Dimensions | 48.2 × 0.43 × 81.69 cm |
|---|---|
| Feature | Technical Specifications, Technical Specifications |
| Processor | One Intel Xeon 6 E-core processor with up to 144 cores per processor or, One Intel Xeon 6 P-core processor with up to 86 Cores with R1S option |
| Memory | 16 DDR5 DIMM slot, supports RDIMM 4TB max, speeds up to 6400 MT/s, Intel Xeon 6 E-core processor – supports 1 TB max, Intel Xeon 6 P-core processor with up to 86 cores with R1S option – supports 4 TB max, Supports registered ECC DDR5 DIMMs only, Note: The installed processor may reduce the operating speed of the DIMM |
| Storage controllers | Internal Controllers (RAID): PERC H365i DC-MHS, front PERC H965i DC-MHS, PERC H365i adapter, PERC H965i adapter, External Controllers: HBA465e, H965e(RAID), Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 xM.2 NVMe SSDs, M.2 interposer with upto 2 x M.2 NVMe SSDs or USB |
| Drive Bays | Front bays:, Up to 8 x EDSFF E3.S Gen5 NVMe max 491.52 TB, Up to 16 x EDSFF E3.S Gen5 NVMe max 983.04 TB, Up to 8 x 2.5-inch SATA/NVMe max 491.52 TB, Up to 10 x 2.5 – inch SATA/NVMe (with 4 x 2.5 -inch universal) max 614.4 TB, Up to 4 x 3.5 – inch SATA max 128 TB (only supported with rear 2 x E3.S drives , not supported as standalone front-only configuration), Rear bays:, Up to 2 x EDSFF E3.S Gen5 NVMe max 122.88 TB |
| Power Supplies | 800W Platinum/Titanium 100-240 VAC or 240 HVDC, hot swap redundant, 1100 W Platinum/Titanium 100-240 VAC or 240 HVDC, hot swap redundant, 1500 W Titanium 100-240 VAC or 240 HVDC, hot swap redundant, 1500 W 277 Vac and HVDC Titanium, hot swap redundant, 1400W -48v DC Titanium, hot swap redundant |
| Cooling Options | Air cooling |
| Fans | Up to 4 sets (dual fan module) hot swappable fans |
| Dimensions | Height – 42.8 mm (1.69 inches), Width – 482 mm (19.0 inches), Depth – 816.92 mm (32.16 inches) with bezel, Depth – 815.14 mm (32.09 inches) without bezel, Depth (Front I/O Configuration) – 829.44 mm (32.09 inches) without bezel, Note: Front I/O configuration will not have a bezel. |
| Form Factor | 1U rack server |
| Embedded Management | iDRAC, iDRAC Direct, iDRAC RESTfull API with redfish, RACADM CLI, iDRAC Service Module |
| Bezel | Optional security bezel |
| Security | Cryptographically signed firmware, Data at Rest Encryption (SEDs with local or external key mgmt), Secure Boot, Secured Component Verification (Hardware integrity check), Secure Erase, Silicon Root of Trust, System Lockdown (requires iDRAC10 Enterprise or Datacenter), TPM 2.0 FIPS, CC-TCG certified, Chassis Intrusion Detection |
| OCP network options | Up to two OCP NIC card 3.0: Two slots on the front or two slots on the rear (optional), Slot Numbers: 2,5,31,32 |
| Embedded NIC | 1 Gb dedicated BMC Ethernet port |
| GPU Options | Up to 4 x 75 W SW |
| DPU Options | NVIDIA BlueField-3 2 x 200 GbE B3220 |

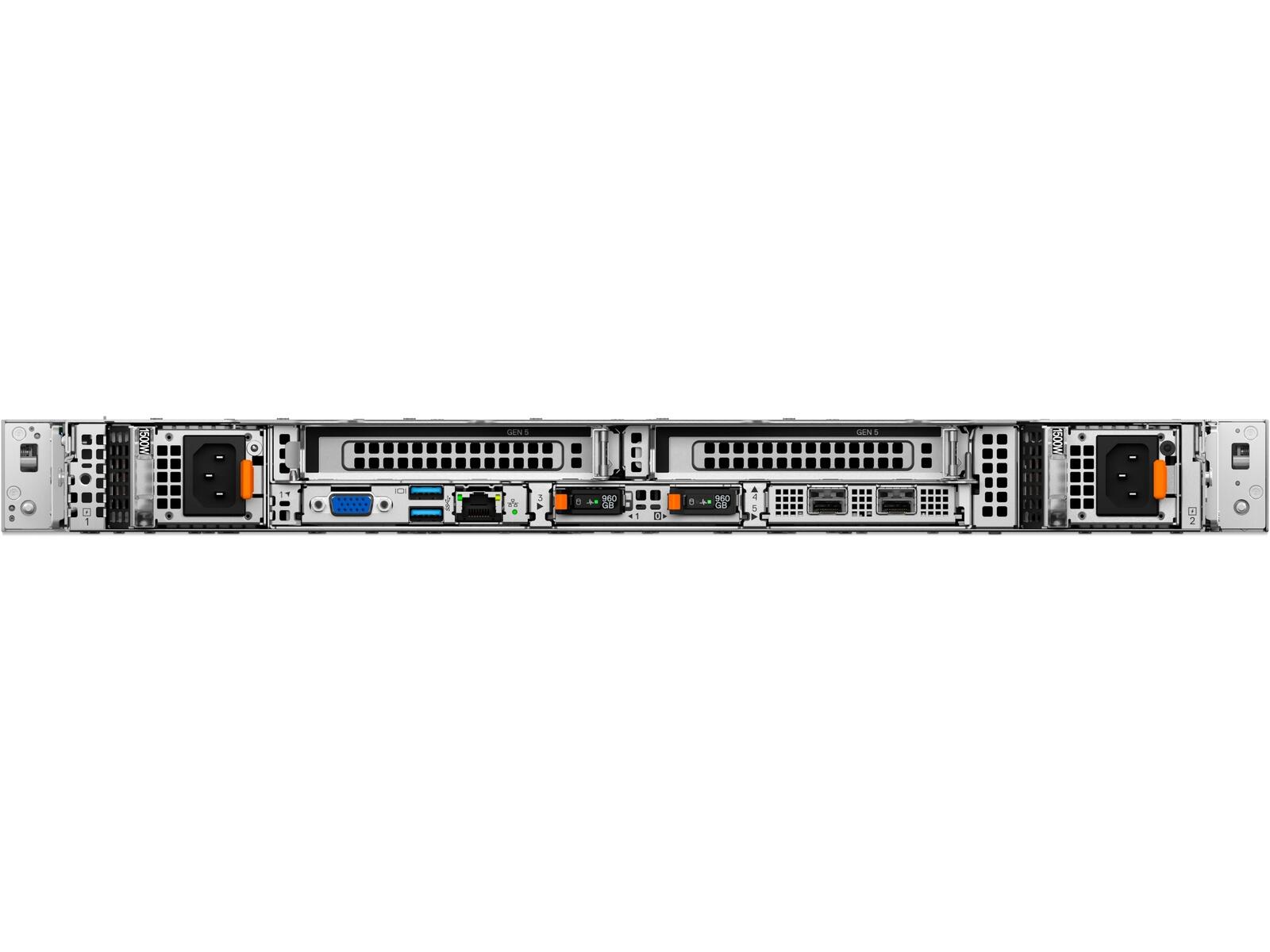

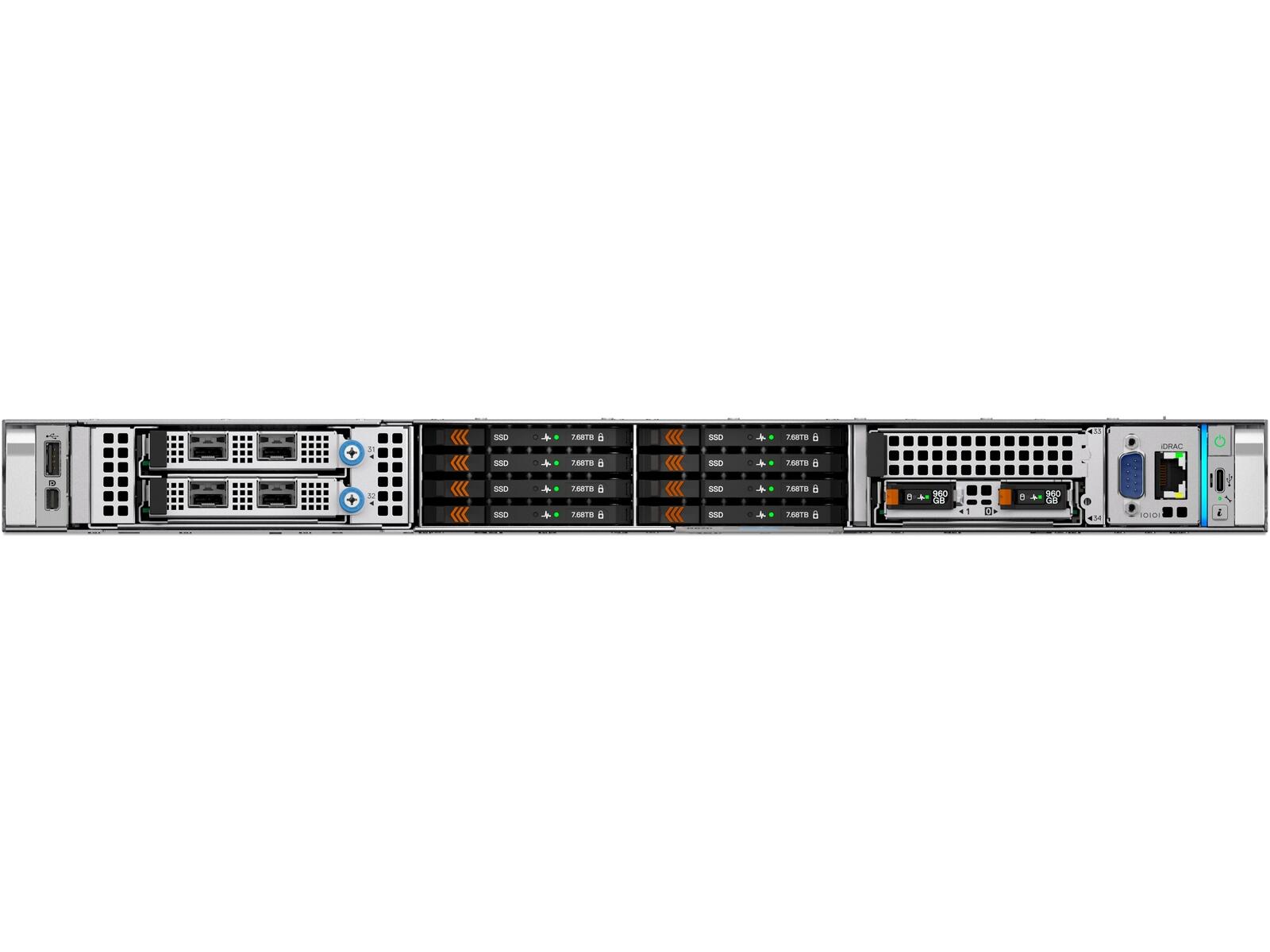

| Ports | Front Ports, 1 x USB 2.0 Type – C port, 1 x USB 2.0 Type A port (optional), 1 x Mini-DisplayPort (optional), 1 x DB9 Serial (with front I/O configuration), 1 x Dedicated BMC Ethernet port (with front I/O configuration), Rear Ports, 1 x Dedicated BMC Ethernet port, 2 x USB 3.1 Type A ports, 1 x VGA, Internal Ports, 1 x USB 3.1 Type A port |
| PCIe | Up to 4 Gen5 PCIe slots (x16 connectors), Slot 1 -1 x8 Gen5 Low Profile, Slot 1 -1 x16 Gen5 (x16 connector) full height, half length on rear riser, Slot 4 -1 x16 Gen5 (x16 connector) full height, half length on rear riser, Slot 31 -1 x16 Gen5 (x16 connector) full height, half length on rear riser, Slot 32 -1 x16 Gen5 (x16 connector) full height, half length on rear riser |
| Operating System and Hypervisors | Canonical Ubuntu Server LTS, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Windows Server, Windows Server Datacenter |
