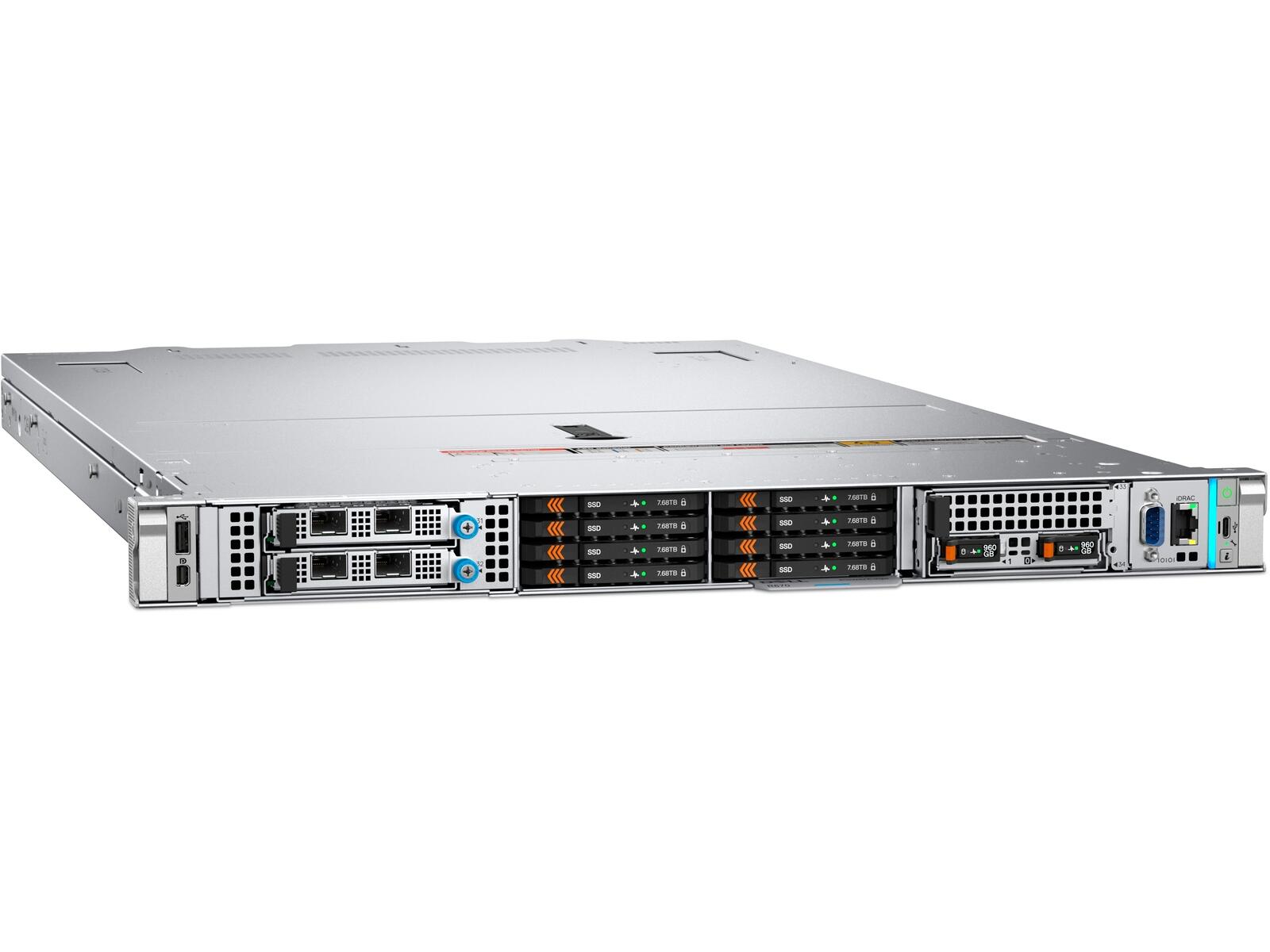

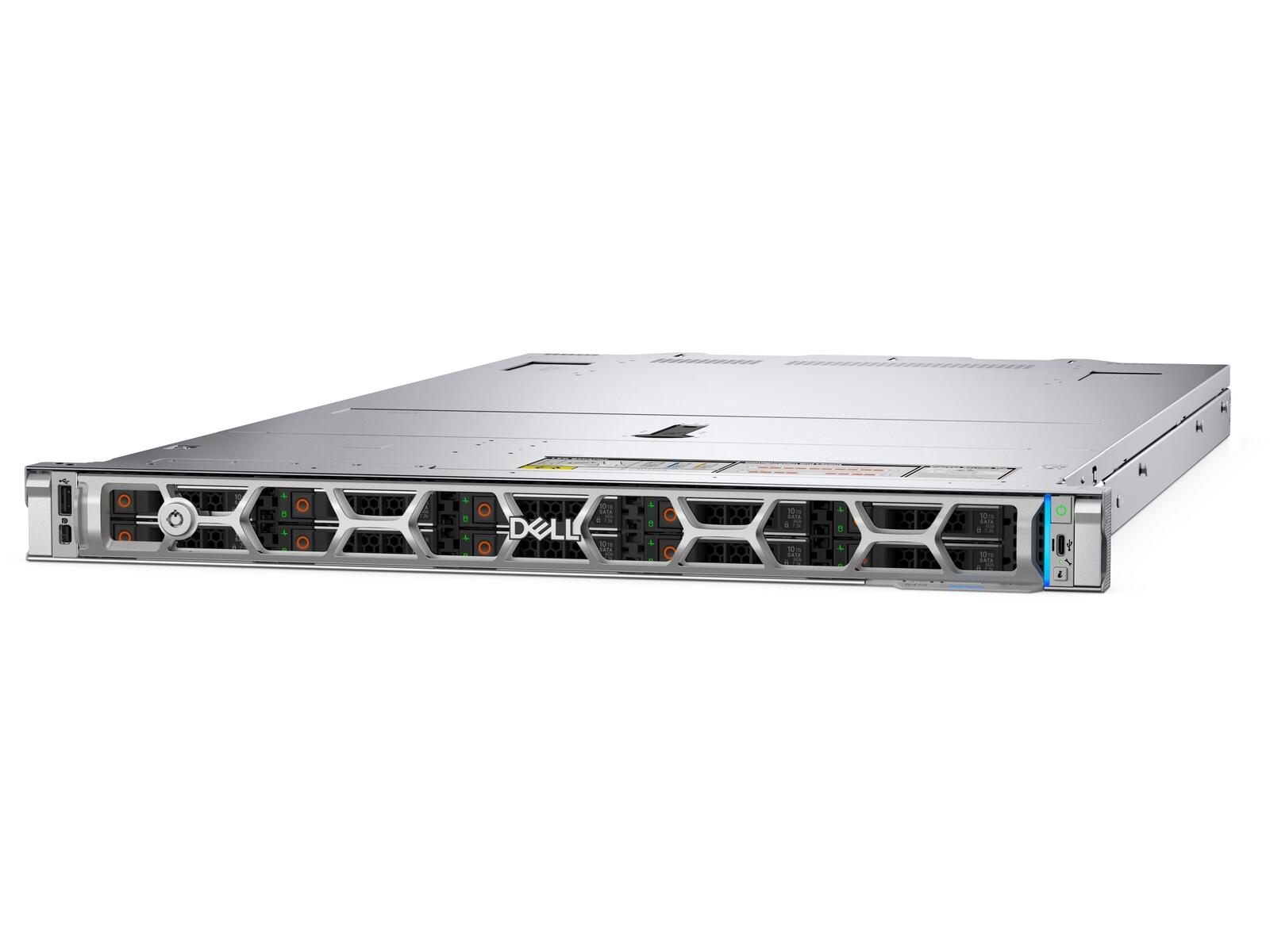

Dell EMC PowerEdge R470 1U (Intel Xeon 6517P 3.2GHz, 32GB RAM, 2x 480GB SSD, 8x 2.5″ SATA/SAS Bays) Server
R158,905.00 inc. VAT
The Dell EMC PowerEdge R470 is a high-performance 1U rack server featuring an Intel Xeon 6517P processor running at 3.2GHz with 32GB of RAM and dual 480GB SSD storage. This enterprise-grade server delivers scalable performance for demanding workloads. With support for up to 8x 2.5-inch drive bays, it offers flexible storage expansion capabilities.
In stock
Description
Powerful Processing Performance
The PowerEdge R470 is equipped with an Intel Xeon 6517P processor featuring 6 performance cores running at 3.2GHz, delivering exceptional compute performance for enterprise applications. Supporting up to 86 cores with R1S option, this server enables efficient workload handling and virtualization capabilities.
Memory and Storage Flexibility
With 16 DDR5 DIMM slots supporting up to 4TB of registered ECC memory at speeds up to 6400 MT/s, the R470 provides ample memory capacity for intensive applications. The server comes standard with 32GB RAM and dual 480GB SSD drives, while offering flexible internal storage controller options including PERC H365i and H965i RAID solutions.
Rack-Dense Design with Expandable Storage

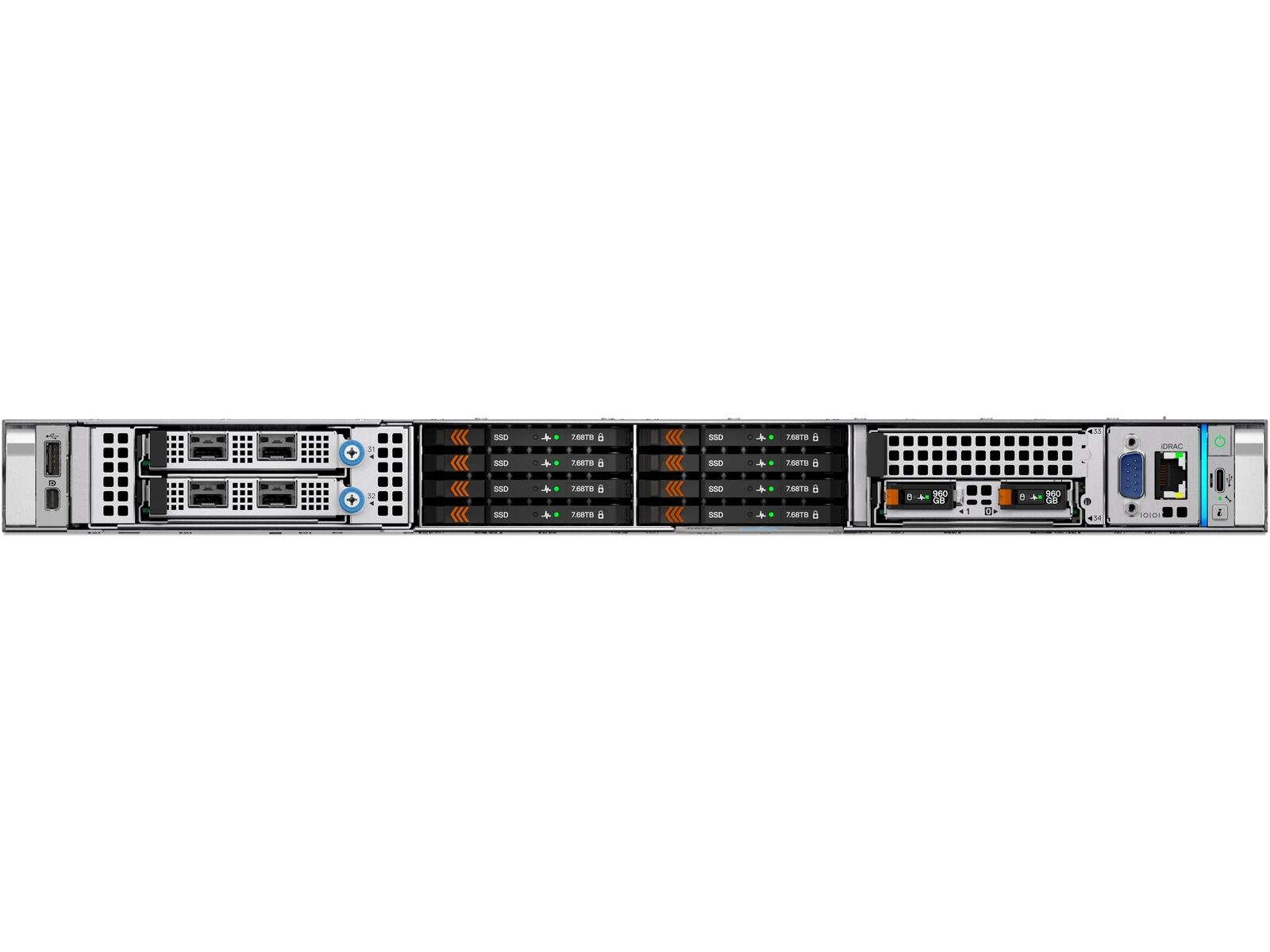

This 1U rack server maximizes data center efficiency with support for up to 8x 2.5-inch SATA/SAS drive bays, accommodating the included SSDs with room for additional storage expansion. The compact 42.8mm height with standard 19-inch width fits seamlessly into existing rack infrastructure while providing robust storage scalability.
Enterprise Management and Security
Built with comprehensive embedded management through iDRAC, including RESTful API with Redfish support and RACADM CLI for streamlined administration. Advanced security features include cryptographically signed firmware, secure boot, TPM 2.0 FIPS certification, and data at rest encryption for complete protection.
Key Highlights
- Intel Xeon 6517P 6-core processor at 3.2GHz
- 32GB DDR5 RAM with 4TB maximum capacity support
- Dual 480GB SSD storage drives
- Up to 8x 2.5-inch drive bays for storage expansion
- iDRAC embedded management with Redfish API support
- Comprehensive security suite including TPM 2.0 and Secure Boot
- Hot-swappable redundant power supply options
- 1U rack form factor with 19-inch standard width
- Support for multiple operating systems and hypervisors
- Up to 4x PCIe Gen5 expansion slots
Proudly sold by the Ringwood Digital Store.
Additional information
| Weight | 22.7 kg |
|---|---|
| Dimensions | 482 × 42.8 × 816.92 cm |
| Feature | Technical Specifications, Technical Specifications |
| Processor | One Intel Xeon 6 E-core processor with up to 144 cores per processor or, One Intel Xeon 6 P-core processor with up to 86 Cores with R1S option |
| Memory | 16 DDR5 DIMM slot, supports RDIMM 4TB max, speeds up to 6400 MT/s, Intel Xeon 6 E-core processor – supports 1 TB max, Intel Xeon 6 P-core processor with up to 86 cores with R1S option – supports 4 TB max, Supports registered ECC DDR5 DIMMs only, Note: The installed processor may reduce the operating speed of the DIMM |
| Storage controllers | Internal Controllers (RAID): PERC H365i DC-MHS, front PERC H965i DC-MHS, PERC H365i adapter, PERC H965i adapter, External Controllers: HBA465e, H965e(RAID), Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 xM.2 NVMe SSDs, M.2 interposer with upto 2 x M.2 NVMe SSDs or USB |
| Drive Bays | Front bays:, Up to 8 x EDSFF E3.S Gen5 NVMe max 491.52 TB, Up to 16 x EDSFF E3.S Gen5 NVMe max 983.04 TB, Up to 8 x 2.5-inch SATA/NVMe max 491.52 TB, Up to 10 x 2.5 – inch SATA/NVMe (with 4 x 2.5 -inch universal) max 614.4 TB, Up to 4 x 3.5 – inch SATA max 128 TB (only supported with rear 2 x E3.S drives , not supported as standalone front-only configuration), Rear bays:, Up to 2 x EDSFF E3.S Gen5 NVMe max 122.88 TB |
| Power Supplies | 800W Platinum/Titanium 100-240 VAC or 240 HVDC, hot swap redundant, 1100 W Platinum/Titanium 100-240 VAC or 240 HVDC, hot swap redundant, 1500 W Titanium 100-240 VAC or 240 HVDC, hot swap redundant, 1500 W 277 Vac and HVDC Titanium, hot swap redundant, 1400W -48v DC Titanium, hot swap redundant |
| Cooling Options | Air cooling |
| Fans | Up to 4 sets (dual fan module) hot swappable fans |
| Dimensions | Height – 42.8 mm (1.69 inches), Width – 482 mm (19.0 inches), Depth – 816.92 mm (32.16 inches) with bezel, Depth – 815.14 mm (32.09 inches) without bezel, Depth (Front I/O Configuration) – 829.44 mm (32.09 inches) without bezel, Note: Front I/O configuration will not have a bezel. |
| Form Factor | 1U rack server |
| Embedded Management | iDRAC, iDRAC Direct, iDRAC RESTfull API with redfish, RACADM CLI, iDRAC Service Module |
| Bezel | Optional security bezel |
| Security | Cryptographically signed firmware, Data at Rest Encryption (SEDs with local or external key mgmt), Secure Boot, Secured Component Verification (Hardware integrity check), Secure Erase, Silicon Root of Trust, System Lockdown (requires iDRAC10 Enterprise or Datacenter), TPM 2.0 FIPS, CC-TCG certified, Chassis Intrusion Detection |
| OCP network options | Up to two OCP NIC card 3.0: Two slots on the front or two slots on the rear (optional), Slot Numbers: 2,5,31,32 |
| Embedded NIC | 1 Gb dedicated BMC Ethernet port |
| GPU Options | Up to 4 x 75 W SW |
| DPU Options | NVIDIA BlueField-3 2 x 200 GbE B3220 |

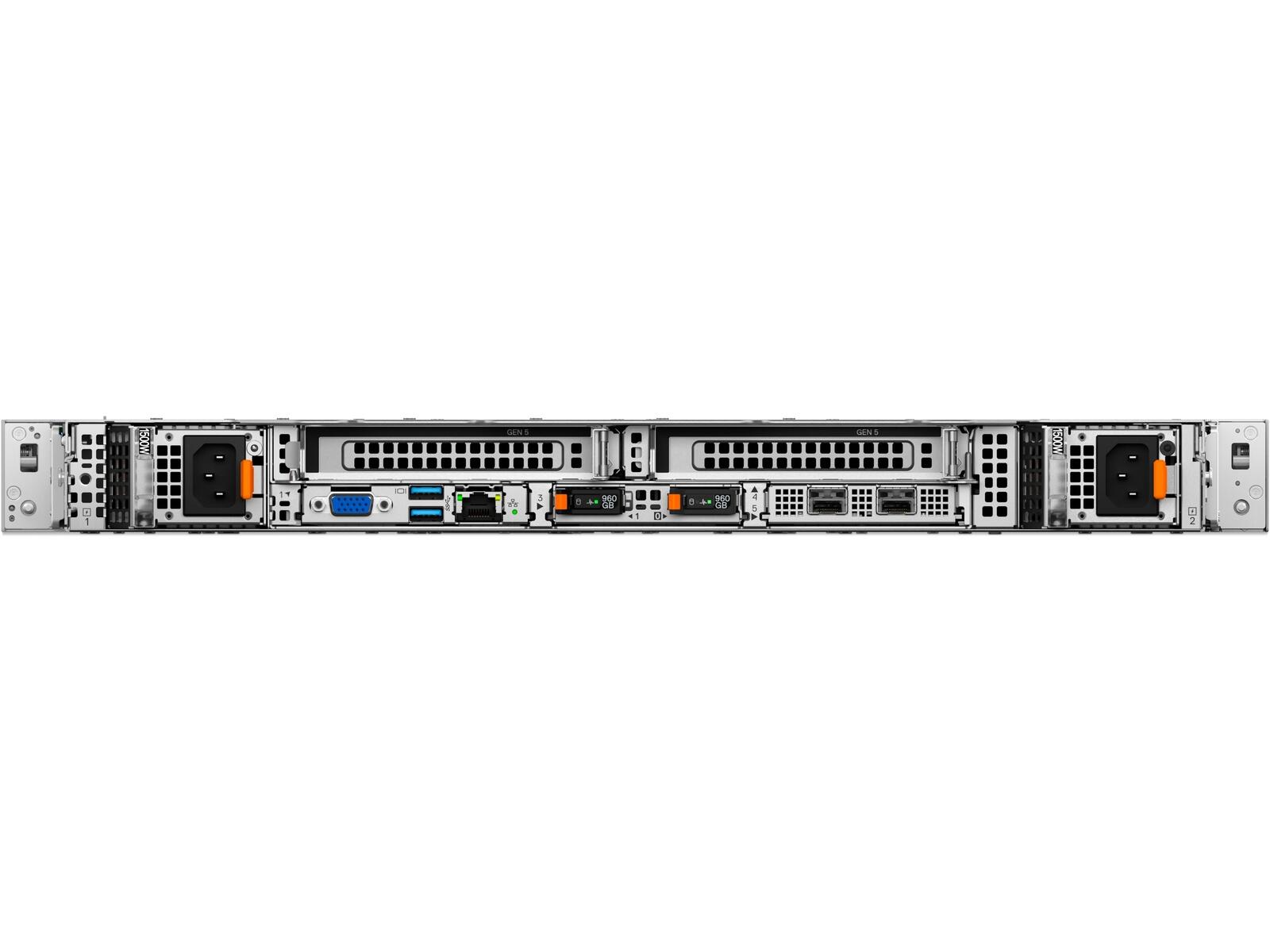

| Ports | Front Ports, 1 x USB 2.0 Type – C port, 1 x USB 2.0 Type A port (optional), 1 x Mini-DisplayPort (optional), 1 x DB9 Serial (with front I/O configuration), 1 x Dedicated BMC Ethernet port (with front I/O configuration), Rear Ports, 1 x Dedicated BMC Ethernet port, 2 x USB 3.1 Type A ports, 1 x VGA, Internal Ports, 1 x USB 3.1 Type A port |
| PCIe | Up to 4 Gen5 PCIe slots (x16 connectors), Slot 1 -1 x8 Gen5 Low Profile, Slot 1 -1 x16 Gen5 (x16 connector) full height, half length on rear riser, Slot 4 -1 x16 Gen5 (x16 connector) full height, half length on rear riser, Slot 31 -1 x16 Gen5 (x16 connector) full height, half length on rear riser, Slot 32 -1 x16 Gen5 (x16 connector) full height, half length on rear riser |
| Operating System and Hypervisors | Canonical Ubuntu Server LTS, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Windows Server, Windows Server Datacenter |
