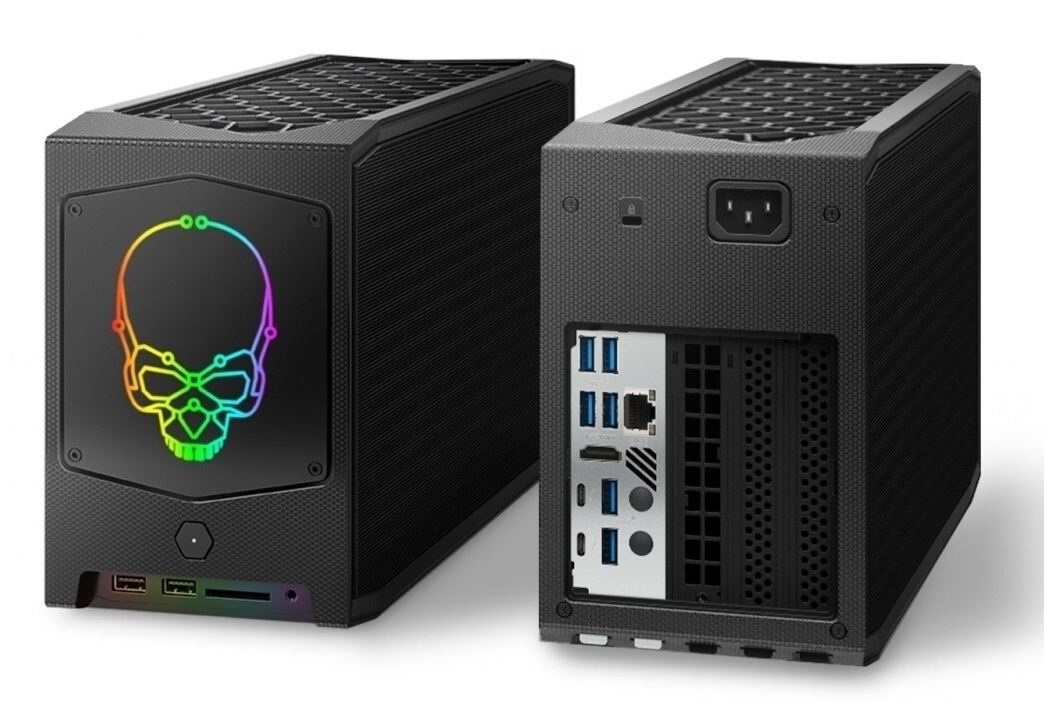

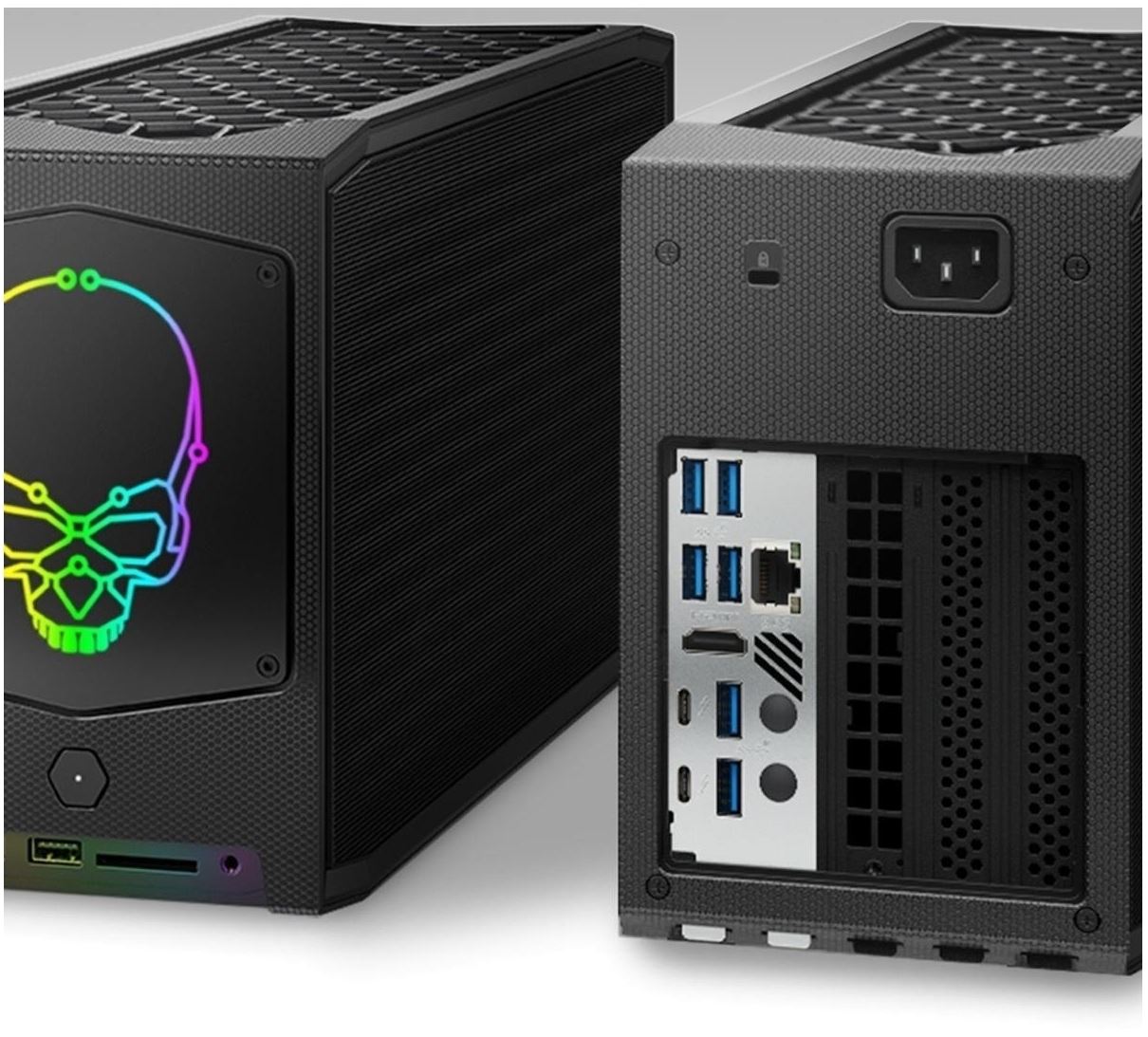

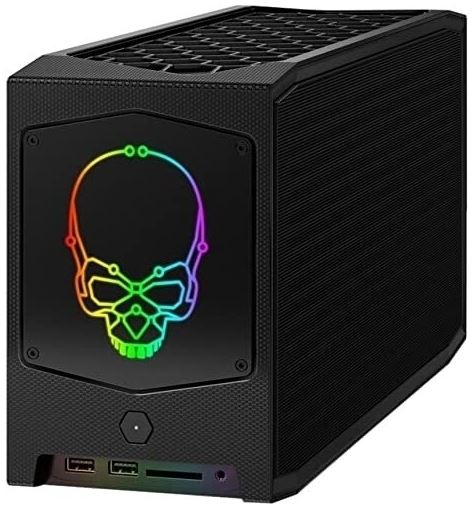

Intel NUC11 Extreme Kit (Intel Core i7) Mini PC

Description

Beast Canyon at a Lower Entry Price

The Intel NUC 11 Extreme i7 (BNUC11DBBi70000) is the more accessible variant of the Beast Canyon platform, substituting the i9-11900KB for the Intel Core i7-11700B — shaving approximately $200 from the i9 kit’s price while retaining the same 8-core, 16-thread Rocket Lake-S architecture, the same 65W TDP, the same full-size PCIe x16 GPU slot, and the same comprehensive connectivity stack. The practical performance delta between the i7 and i9 in gaming workloads is minimal — both are constrained by GPU performance in discrete GPU configurations, and the 100 MHz boost frequency difference (4.80 vs 4.90 GHz) is imperceptible in real-world use. For builders prioritising GPU budget over processor headroom, the i7 variant is the rational choice.

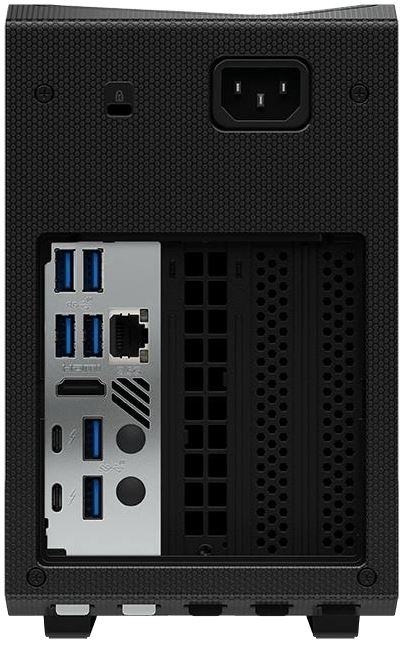

The Beast Canyon platform itself is unchanged: the same chassis accommodating full-size dual-slot discrete GPUs up to 343 mm in length, dual Thunderbolt 4 (USB4 / 40 Gbps) on the rear, Intel Wi-Fi 6E AX210, dual 2.5 GbE LAN ports, four M.2 slots for NVMe storage, a 650W 80 Plus Gold internal power supply, front-panel SD card reader, front USB 3.2 Gen2 Type-C, and the modular NUC Compute Element design that separates the processor board from the chassis.

⚠️ This is a barebone kit — no RAM, SSD, or GPU are included. DDR4-3200 SO-DIMMs (up to 64 GB / 2 slots), at least one M.2 NVMe SSD, and a compatible discrete GPU must be purchased separately before the system is functional.

⚠️ The i7-11700B does not support CPU overclocking, unlike the i9-11900KB which has an unlocked multiplier. For builders planning to push CPU clocks beyond stock, the i9 variant is required.

⚠️ The PCIe x16 GPU slot is electrically limited to PCIe 3.0 x4 bandwidth — identical to the i9 variant. This has no meaningful impact on mid-range GPU performance but constrains the ceiling for very high-end cards.

💡 The performance difference between the i7-11700B and i9-11900KB Beast Canyon kits in gaming is effectively zero when a discrete GPU bottlenecks the system — which it will in virtually all gaming scenarios. The i7 kit is the better value for gaming builds; the i9 is worth the premium only for sustained multi-core CPU workloads like rendering, simulation, or video encoding where the additional single-core frequency and overclocking headroom matter.

Technical Specifications

The i7-11700B uses Intel’s Rocket Lake-S architecture with 8 cores, 16 threads, a 3.20 GHz base clock, 4.80 GHz all-core turbo boost, 24 MB Smart Cache, and a 65W TDP. Memory: 2× SODIMM DDR4-3200, up to 64 GB. Storage: up to 4× M.2 slots (1× CPU PCIe 4.0 x4 NVMe, 2× chipset PCIe 3.0 x4 NVMe via Compute Element, 1× baseboard M.2). Display: 2× Thunderbolt 4 (DP alt-mode) + 1× HDMI 2.0b from integrated Intel UHD graphics. Rear USB: 6× USB 3.2 Gen2 Type-A + 2× Thunderbolt 4 Type-C. Front: 1× USB 3.2 Gen2 Type-C + 2× USB 2.0 + SD card reader. Networking: Dual 2.5 GbE (Gigabit Ethernet) + Intel Wi-Fi 6E AX210 (802.11ax, 2.4/5/6 GHz) + Bluetooth 5.2. PSU: 650W internal.

Key Highlights

• Intel Core i7-11700B — Rocket Lake-S, 8 cores / 16 threads, 3.20–4.80 GHz, 65W TDP
• No CPU overclocking support (i9-11900KB required for OC)
• Intel UHD Graphics (integrated — iGPU for display without discrete GPU)
• 2× DDR4-3200 SODIMM — up to 64 GB — RAM not included
• Up to 4× M.2 NVMe slots — SSD not included
• PCIe x16 slot (electrically PCIe 3.0 x4) for discrete GPU — max 343 mm / 2.5-slot — GPU not included
• 650W internal PSU (80 Plus Gold)
• 2× Thunderbolt 4 / USB4 Type-C (rear, 40 Gbps each) — DP alt-mode
• 1× HDMI 2.0b (rear)
• 6× USB 3.2 Gen2 Type-A (rear, 10 Gbps)
• Front: 1× USB 3.2 Gen2 Type-C (10 Gbps) + 2× USB 2.0 + SD card reader + audio jack
• Dual 2.5 GbE LAN (RJ-45)
• Intel Wi-Fi 6E AX210 (802.11ax, 2.4/5/6 GHz, MU-MIMO) + Bluetooth 5.2
• NUC Compute Element modular design
• Chassis: 357 × 189 × 120 mm
• Windows 10 / Windows 11 64-bit compatible
• Barebone kit — no OS, no RAM, no SSD, no GPU included
