Lenovo ThinkSystem SR250 V3 1U Rack Server (Intel Xeon 3.4GHz, 16GB RAM, 8x 2.5″ Bays)

R36,548.00 inc. VAT

The Lenovo ThinkSystem SR250 V3 is a compact and efficient 1U rack server, ideal for small to medium businesses needing reliable performance for essential workloads. No SSD or OS is included.

In stock

Description

Reliable Performance for Growing Businesses

The Lenovo ThinkSystem SR250 V3 is designed to deliver dependable server performance in a space-saving 1U form factor. Powered by the Intel Xeon E-2434 processor and 16GB of RAM, it is well-suited for small to medium business environments handling everyday workloads such as file services, web hosting, and light virtualization.

Efficient and Scalable Design

Built with efficiency in mind, the SR250 V3 offers a balance between performance and energy consumption, making it a practical choice for businesses looking to optimise their IT infrastructure. Its scalable architecture allows for future upgrades in memory and storage, ensuring it can grow alongside your business needs.

Enterprise Features in a Compact Form Factor

Despite its compact size, the SR250 V3 includes enterprise-grade features such as advanced system management and reliable hardware design. It’s an excellent entry-level rack server for organisations seeking stability, performance, and flexibility without the complexity of larger systems.

⚠️ Important:

  • This server is best suited for entry-level to moderate workloads rather than heavy enterprise virtualization.
  • No hard drives or operating system is included – storage and OS must be added separately.
  • Ensure compatibility when selecting drives and RAID configuration.

Key Highlights:

  • 1U rack server ideal for space-constrained environments
  • Powered by Intel Xeon E-2434 processor
  • Includes 16GB RAM for essential workloads
  • Suitable for SMB applications and light virtualization
  • Energy-efficient and cost-effective solution
  • Scalable for future upgrades

Proudly sold by the Ringwood Digital Store.

Additional information

Weight 12 kg
Dimensions 60.1 × 19.4 × 86.3 cm
Form Factor

1U Rack Mount

Size

434.4mm x 43mm x 561mm

Weight

11.44kg

Model

7DCLA00LEA

Processor

1x Intel Xeon E2434 3.4GHz, Max. Boost up to 5.0GHz (no iGPU)
4x Performance Cores, 8x Threads
12MB Cache
55W TDP

Chipset

Intel Raptor Lake PCH-S C266

Memory

16GB DDR ECC Server RAM (Max. 128GB)
4x DIMM supporting Lenovo TruDDR5 at 4400MHz.
Supports ECC UDIMMs.

Video

G200 Graphics with 16MB Memory integrated into the XCC2
Max. Resolution 1920×1200 @ 60Hz

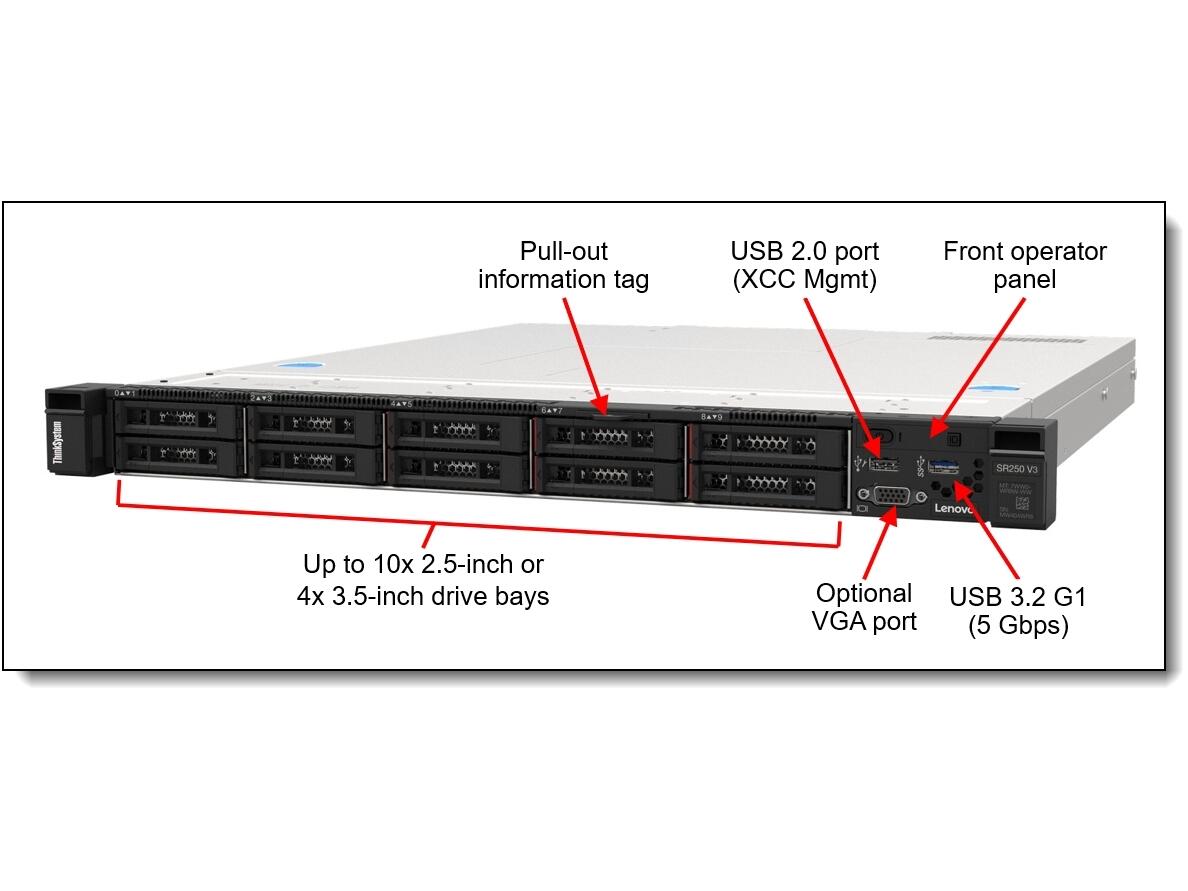

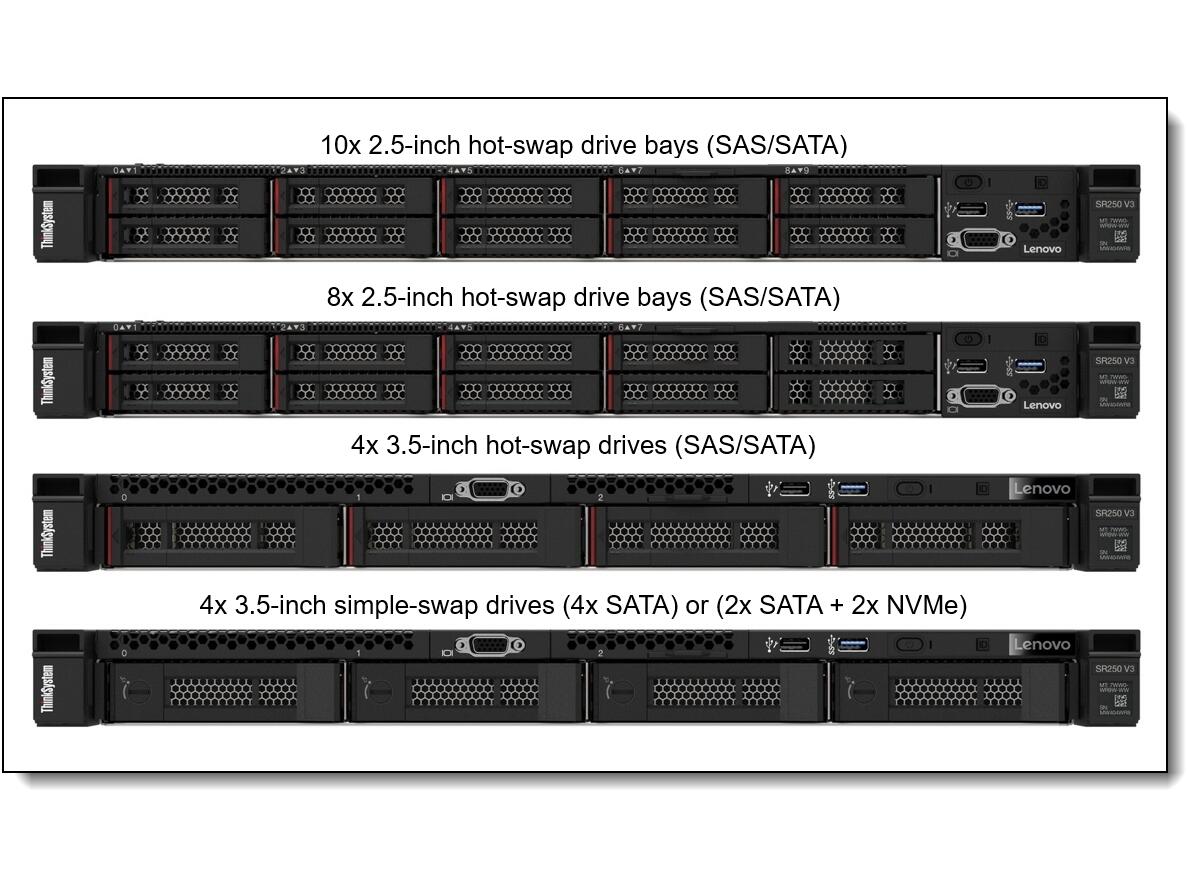

Drive Bays

8x 2.5" Hot-Swap SATA, or SAS/SATA drives
Supports 2x M.2 SSDs installed into PCIe slot.

Storage

None Included
Supports 2.5" Drives (10x 7.68TB SATA 6Gb HS SSDs)
Supports 2.5" Drives (10x 2.4TB 10K SAS HDDs)

Storage Controller

1x 5350-8i Internal RAID Controller
Software RAID (RAID 0, 1, 5, and 10): Intel VROC SATA RAID
12Gb SAS/SATA RAID Adapters
12Gb SAS/SATA Host Bus Adapters
CFF RAID Adapters

NIC

2x Gigabit Ethernet 1000BASE-T RJ45 Ports

PCIE

Riser with two x8 slots:
Slot 1: PCIe G4 x8 (x8 slot, open-ended) 25W, half-length, low-profile
Slot 2: PCIe G4 x8 (x16 slot, closed-ended) 50W, half-length, low-profile
Slimline x8 Internal Connector*:
PCIe G3 x4 (x8 slot, closed-ended) 25W, half-length, low-profile
Riser with 1 x16 slot:
Slot 1: Disconnected
Slot 2: PCIe G5 x16 (x16 slot, closed-ended) 75W, half-length, half-height to support PCIe x16 card
*Slimline x8 connector to support onboard NVMe (PCIe 4.0) or CFF-RAID card.

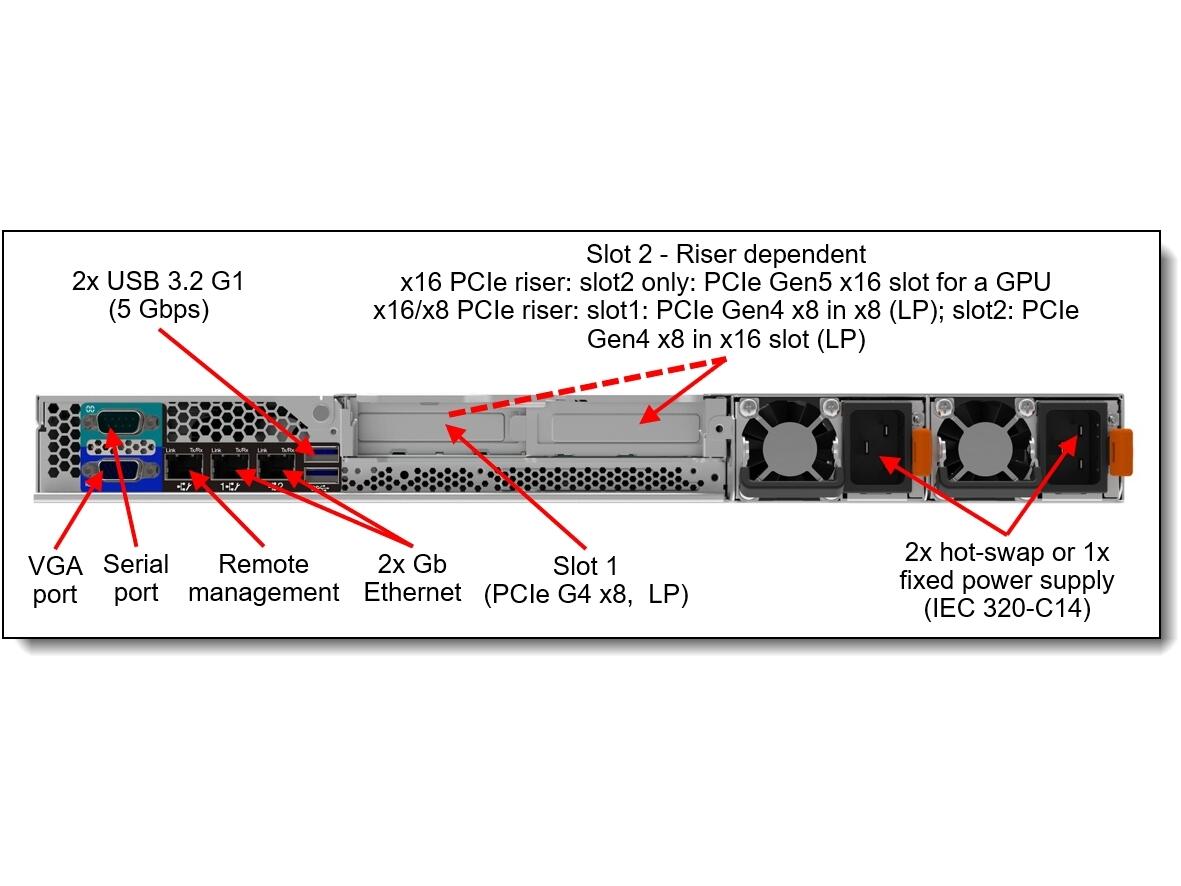

Ports

1x Front USB 3.2 Gen 1 (5Gb/s)
1x Front USB 2.0 (also for XClarity Mobile connectivity for local systems management)
2x Rear USB 3.2 Gen 1 (5Gb/s)
1x VGA
1x RJ-45 Systems Management Network Port
2x RJ-45 GbE network ports
1x Serial Port

Cooling

4x Cold-Swap System Fans

PSU

2x Hot-Swap 800W Redundant PSUs

Rails

Included

Systems Management

Operator panel with status LEDs.
XClarity Controller 2 (XCC2) embedded management.
XClarity Administrator centralized infrastructure delivery
XClarity Integrator plugins
XClarity Energy Manager centralized server power management

Security Features

Power-On Password
Administrator Password
TPM with TPM2.0

Warranty

3-year Lenovo Warranty
