MSI Pro DP10 13M (Intel Core i3) Mini PC

Description

A Business Mini PC That Means It

The MSI PRO DP10 13M isn’t positioned as a consumer compact desktop — it’s built for commercial and professional deployment, and the spec sheet reflects that. The chassis measures 178.82 × 179 × 34.48mm and displaces just 1.1 litres, making it one of the thinnest Mini PCs in its class. The i3 variant pairs Intel’s 13th Gen Core i3-1315U (6 cores, 8 threads, up to 4.5GHz) with 8GB of DDR4 and a 256GB M.2 PCIe SSD, running Windows 11 Pro out of the box — domain-join and Group Policy ready from day one, no licence upgrade required.

Four Display Outputs — Including VGA

Where most Mini PCs in this segment offer two HDMI ports and call it done, the PRO DP10 13M delivers a full rear I/O array: one HDMI 2.0b (4K@60Hz), one DisplayPort 1.4, one Thunderbolt 4 (up to 8K output, 40Gbps data), and one D-Sub VGA port — supporting up to four simultaneous monitors. The VGA output is a deliberate inclusion for business environments running legacy displays, industrial monitors, or older projector infrastructure. Front I/O adds one USB 3.2 Gen 2 Type-C and three USB 3.2 Gen 1 Type-A ports. Rear I/O completes the picture with two additional USB 3.2 Gen 1 Type-A ports and a 2.5GbE RJ45 LAN port.

Thunderbolt 4 and Business-Grade Connectivity

The rear Thunderbolt 4 port delivers 40Gbps bandwidth and supports docking stations, external NAS, high-speed storage, and 8K display output — a capability rarely found at this form factor and price tier. Wireless is handled by Intel Wi-Fi 6E (on AX211-equipped units) with Bluetooth 5.3, or Wi-Fi AC3168 with Bluetooth 4.2 depending on configuration. The 2.5GbE wired LAN ensures reliable, high-bandwidth network connectivity for office and server room deployments alike.

Upgradeable by Design

MSI built the PRO DP10 13M with serviceability in mind: both side covers remove easily to access two M.2 PCIe SSD slots, one 2.5″ HDD/SSD bay, and two DDR4 SO-DIMM slots — expandable up to 64GB RAM. An optional external power switch connector allows the power button to be relocated to a desk surface when the unit is mounted out of reach. MSI Center software provides system monitoring and mode management, while MSI Cloud Center supports mobile device backup.

⚠️ Intel UHD Graphics — Not Iris Xe: The i3-1315U variant uses Intel UHD integrated graphics. Iris Xe graphics are available only on the Core i5-1340P and i7-1360P variants of the PRO DP10 13M. For GPU-accelerated tasks or improved multi-display rendering performance, consider stepping up to the i5 variant.

⚠️ Wi-Fi 6E vs Wi-Fi AC — Varies by Unit: The PRO DP10 13M ships with either the Intel AX211 (Wi-Fi 6E, Bluetooth 5.3) or the AC3168 (Wi-Fi AC, Bluetooth 4.2) wireless card depending on configuration. Confirm with your specific unit if Wi-Fi 6E is a requirement for your deployment.

⚠️ VGA / COM Port — Factory Option: The rear D-Sub port is factory-configured as either VGA or a serial COM port. It cannot be switched by the end user after purchase. Confirm your requirement before ordering if the COM port option is needed for POS or industrial integration.

Key Highlights

• Processor: Intel Core i3-1315U, 13th Gen, 6 Cores / 8 Threads, up to 4.5GHz, 10MB Cache
• Core Configuration: 2 Performance Cores + 4 Efficient Cores
• Graphics: Intel UHD (integrated)
• RAM: 8GB DDR4-3200 SO-DIMM (2 slots, expandable to 64GB)
• Storage: 256GB M.2 PCIe SSD (2× M.2 slots total) + 1× 2.5″ HDD/SSD bay (open)
• Display Outputs: 1× HDMI 2.0b (4K@60Hz) | 1× DisplayPort 1.4 | 1× Thunderbolt 4 | 1× D-Sub VGA

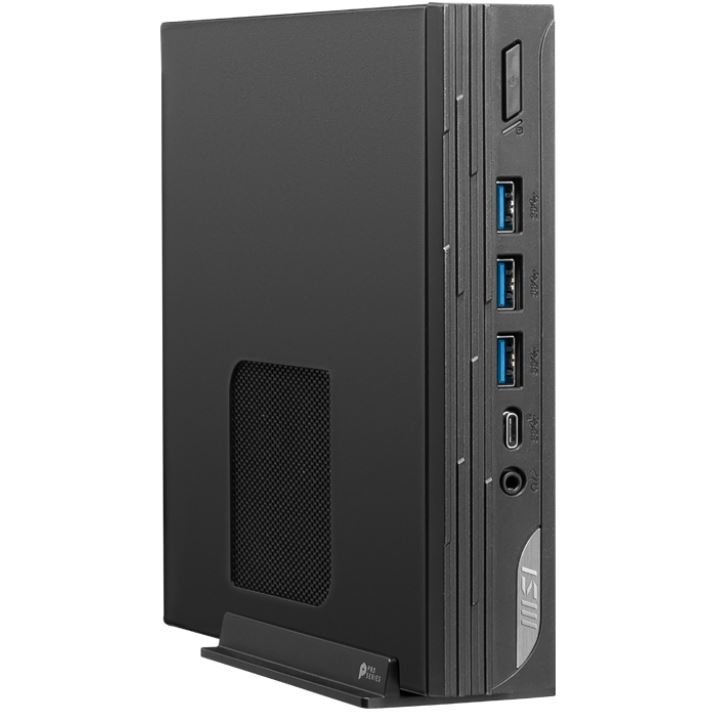

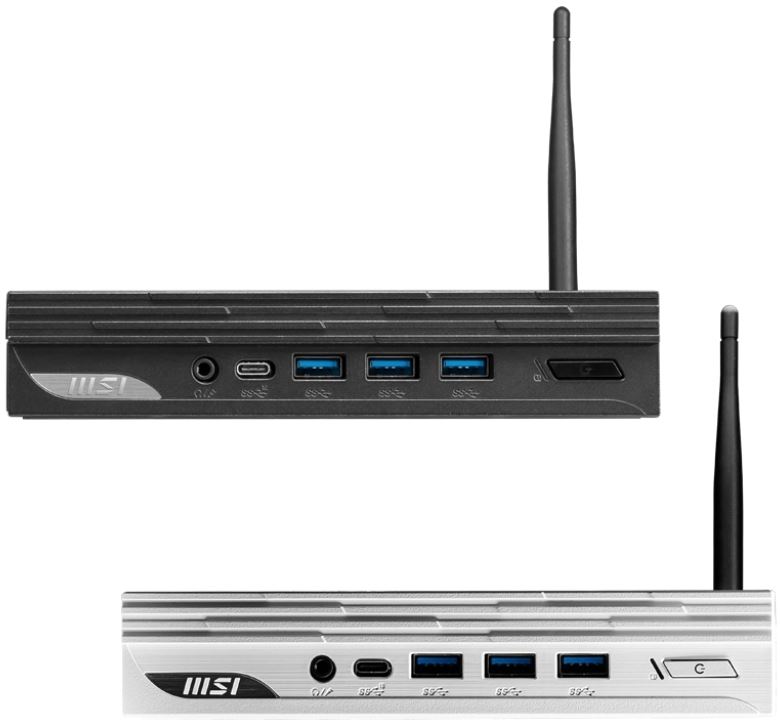

• Front I/O: 1× USB 3.2 Gen 2 Type-C | 3× USB 3.2 Gen 1 Type-A | 1× 3.5mm Combo Audio

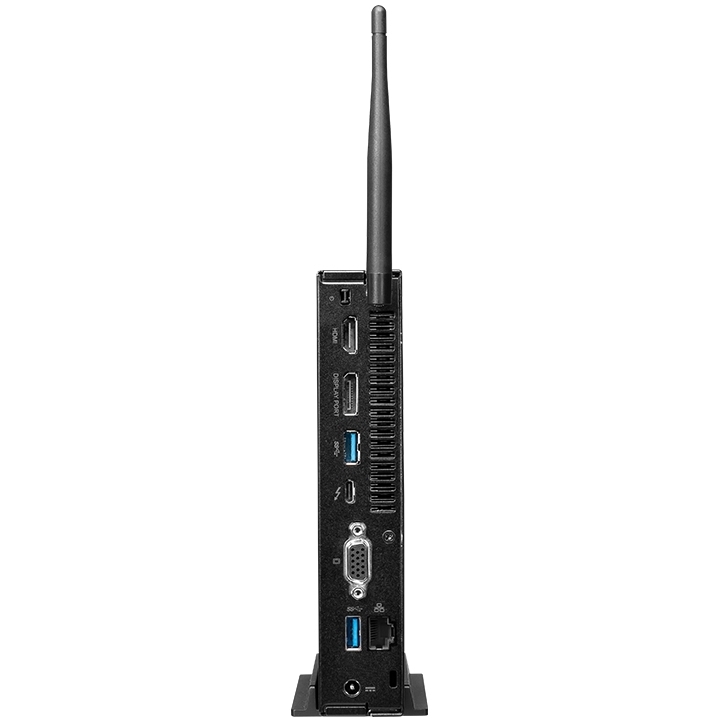

• Rear I/O: 1× Thunderbolt 4 | 2× USB 3.2 Gen 1 Type-A | 1× RJ45 2.5GbE | 1× HDMI 2.0b | 1× DisplayPort 1.4 | 1× D-Sub VGA
• Networking: Intel Wi-Fi 6E (AX211) or Wi-Fi AC3168 (varies) | Bluetooth 5.3 or 4.2 | 2.5GbE Ethernet
• VESA Mount: 75×75mm supported (bracket included)
• Power Adapter: 120W external
• Dimensions: 178.82 × 179 × 34.48mm | Volume: 1.1L |
• Weight: ~1.1kg
• Operating System: Windows 11 Pro (pre-installed)
• Warranty: MSI standard warranty
