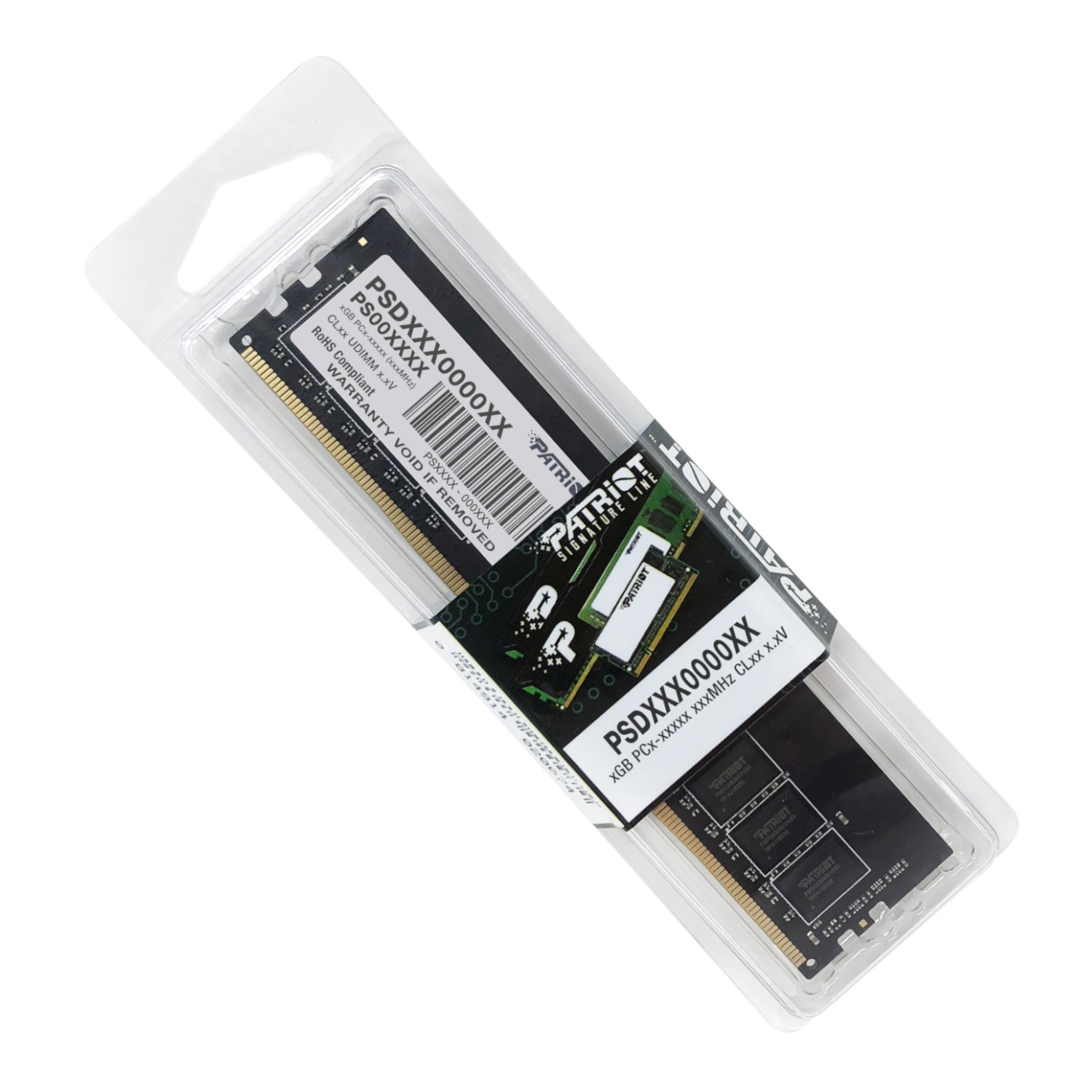

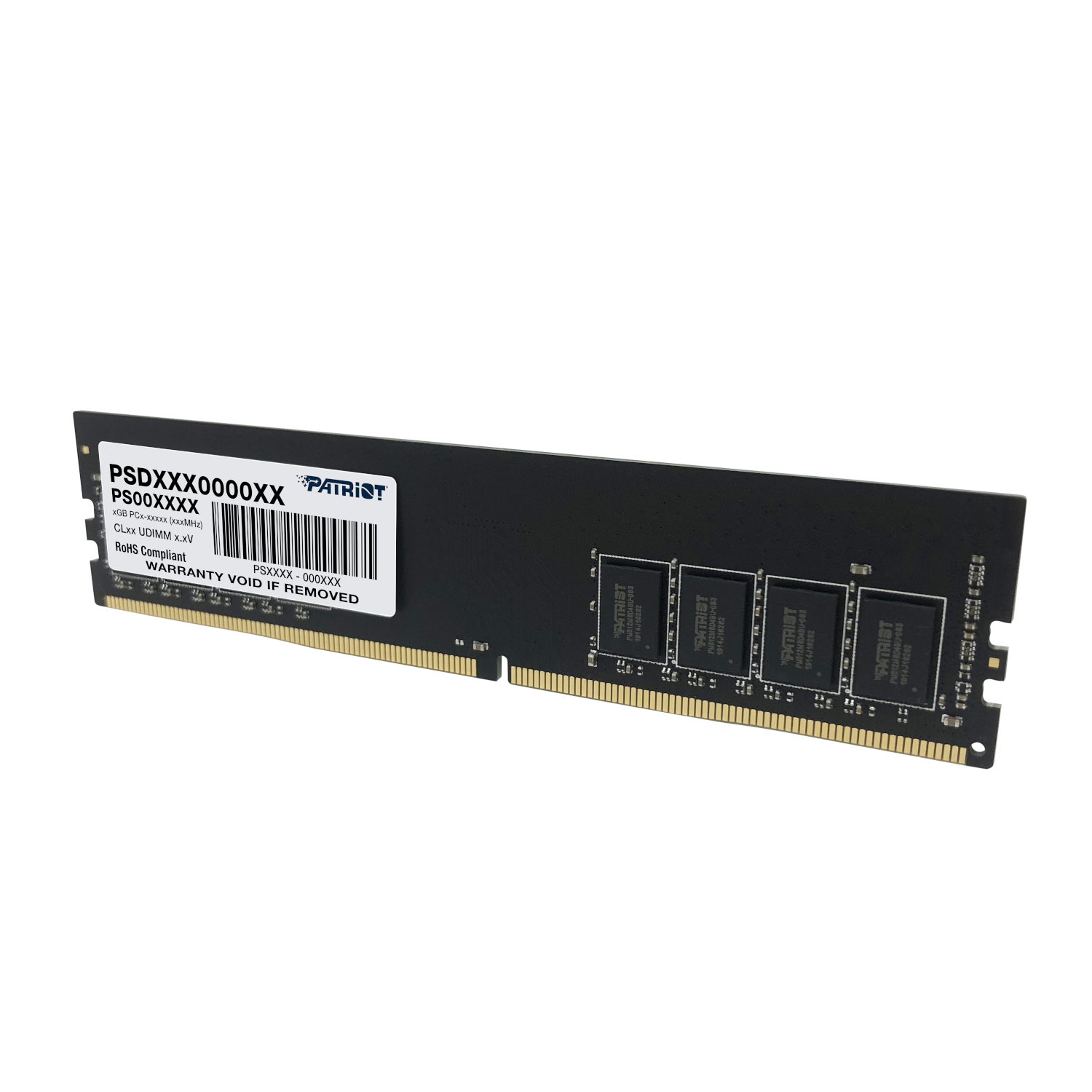

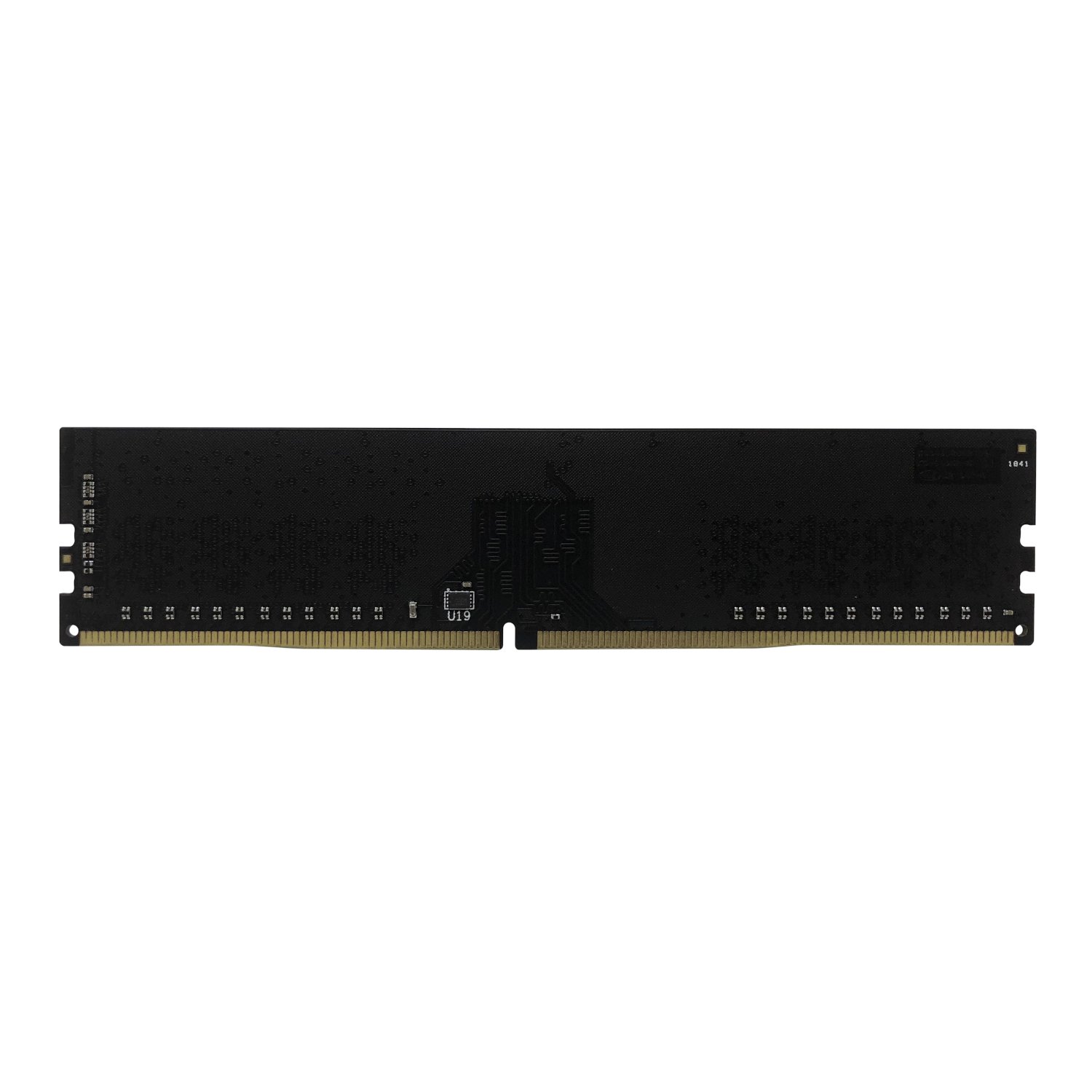

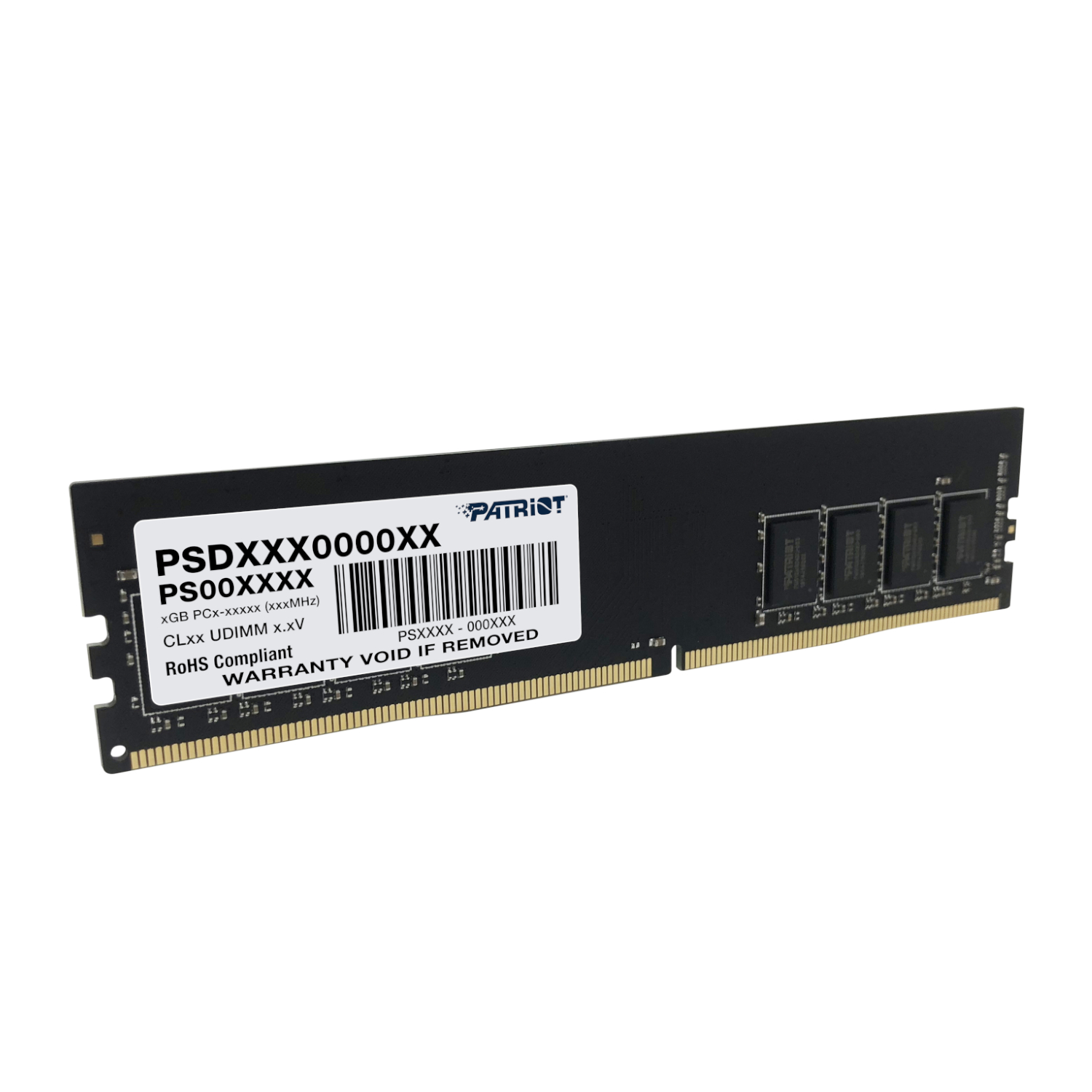

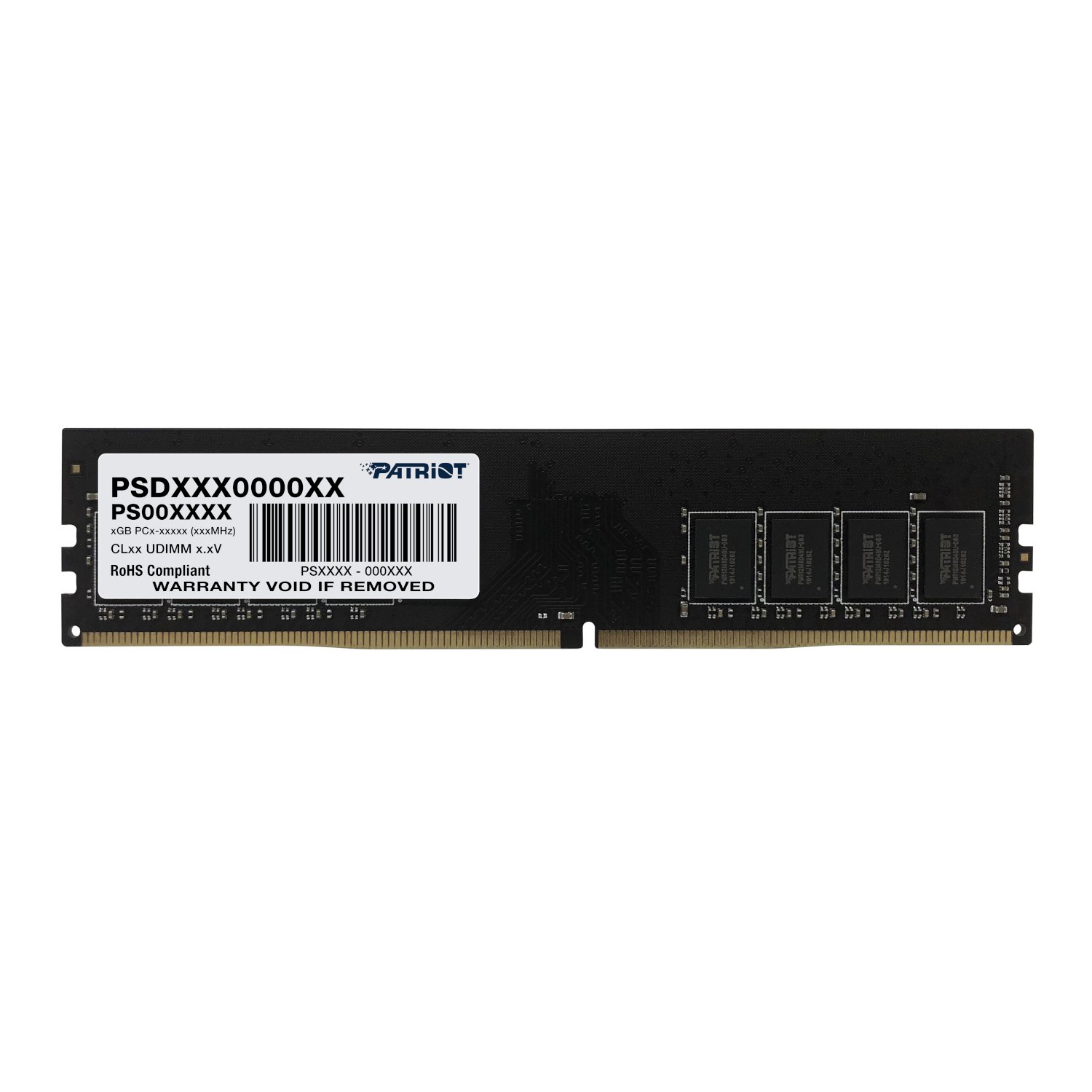

Patriot Signature 16GB (DDR4-3200, CL22) Desktop RAM
R3,529.00 inc. VAT
The Patriot Signature Line 16GB DDR4-3200 is a plug-and-play, JEDEC-standard desktop memory module offering double the capacity of the 8GB Signature Line in a single slot. This 16GB dual-rank DDR4 non-ECC unbuffered UDIMM runs at 3200MHz with 22-22-22-52 latency timings at 1.2V — the dual-rank (2Rx8) configuration providing better memory bus interleaving than single-rank alternatives at the same density. Compatible with Intel and AMD DDR4 desktop platforms, 100% factory tested, RoHS compliant, and backed by a lifetime warranty. A dependable, no-fuss upgrade for productivity desktops, office workstations, and everyday builds that need more memory headroom.
In stock
Description
Build & Dual-Rank Configuration
The Patriot Signature Line is Patriot’s entry-level desktop DDR4 range — standard black PCB, no heat spreader, no RGB, built around JEDEC compliance and broad compatibility. The PSD416G32002 is a 16GB (1×16GB) 2-rank double-sided module, meaning it uses DRAM chips on both sides of the PCB organised into two ranks. This allows the memory controller to interleave between ranks — effectively improving memory access efficiency compared to single-rank alternatives at the same 16GB capacity. For workloads that benefit from higher memory parallelism, the dual-rank topology is a genuine performance advantage at this price point.
Performance & Standards
The module runs at 3200MHz with 22-22-22-52 latency timings at 1.2V, as a non-ECC unbuffered DIMM, achieving its rated speed natively via JEDEC specification without any XMP profile or BIOS adjustment. The 1.2V operating voltage keeps power consumption and operating temperature low, consistent with mainstream DDR4 efficiency standards.
⚠️ No XMP on this module: DDR4-3200 is achieved natively via JEDEC — no BIOS tuning or profile activation required. The module will also auto-downclock on platforms that don’t reach DDR4-3200.
Quality Assurance & Warranty
The PSD416G32002 is 100% tested, RoHS compliant, and backed by Patriot’s limited lifetime warranty. Patriot is a California-based brand with a strong track record in consumer and value-tier memory, and the Signature Line delivers reliable everyday performance without compromise.
⚠️ Single stick = single channel: For dual-channel bandwidth, install a second PSD416G32002 in your motherboard’s recommended paired DIMM slots. Refer to your board’s manual for the correct slot configuration.
Key Highlights
- Capacity: 16GB (1×16GB)
- Type: DDR4 | 288-pin U-DIMM (Desktop)
- Speed: 3200MHz (PC4-25600)
- Timings: CL22-22-22-52
- Rank: Dual rank (2Rx8) — double-sided module
- Voltage: 1.2V
- Standard: JEDEC — no XMP
- ECC: Non-ECC
- Buffering: Unbuffered
- RGB: None
- Standards: RoHS compliant
- Testing: 100% factory tested
- Warranty: Limited Lifetime
