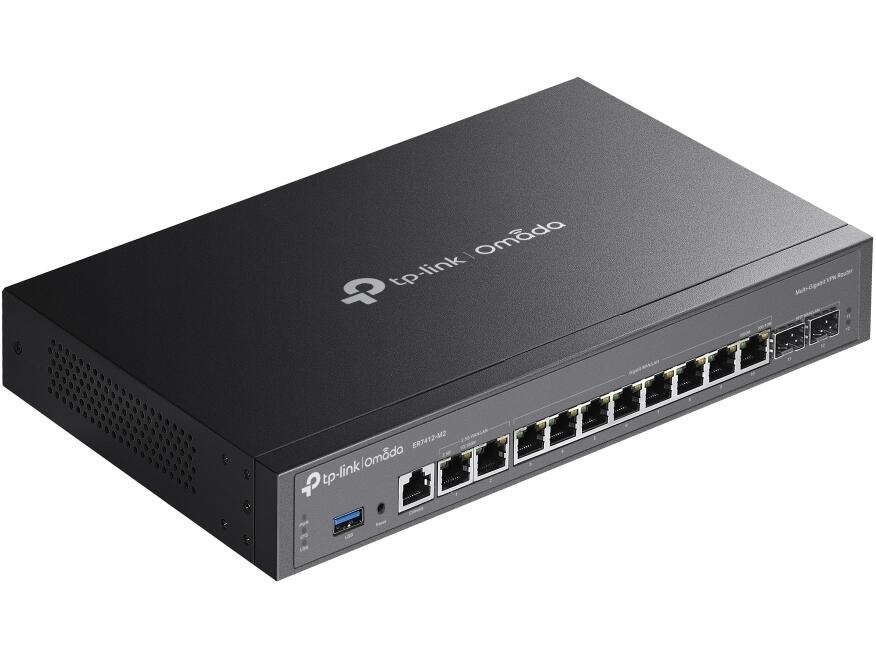

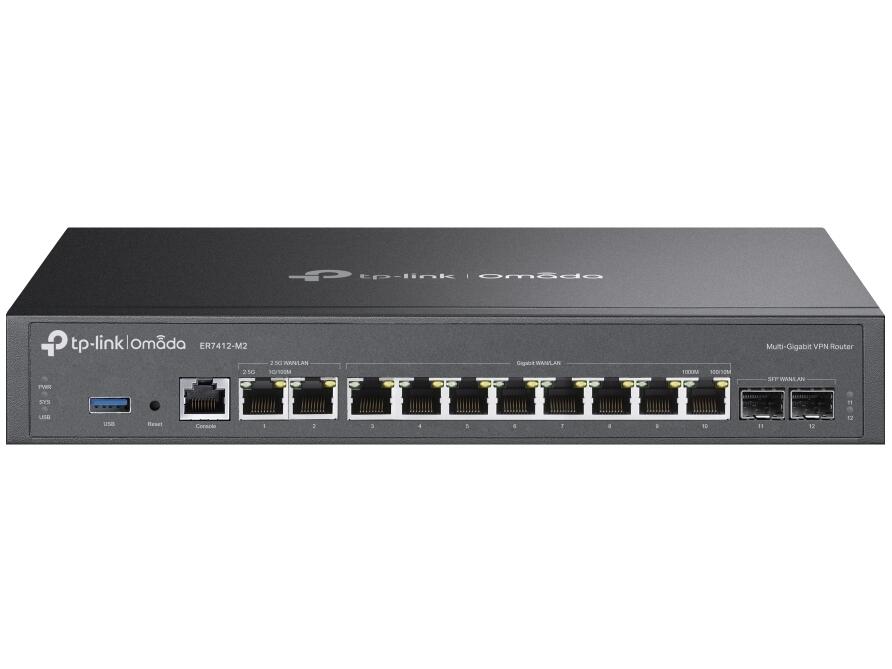

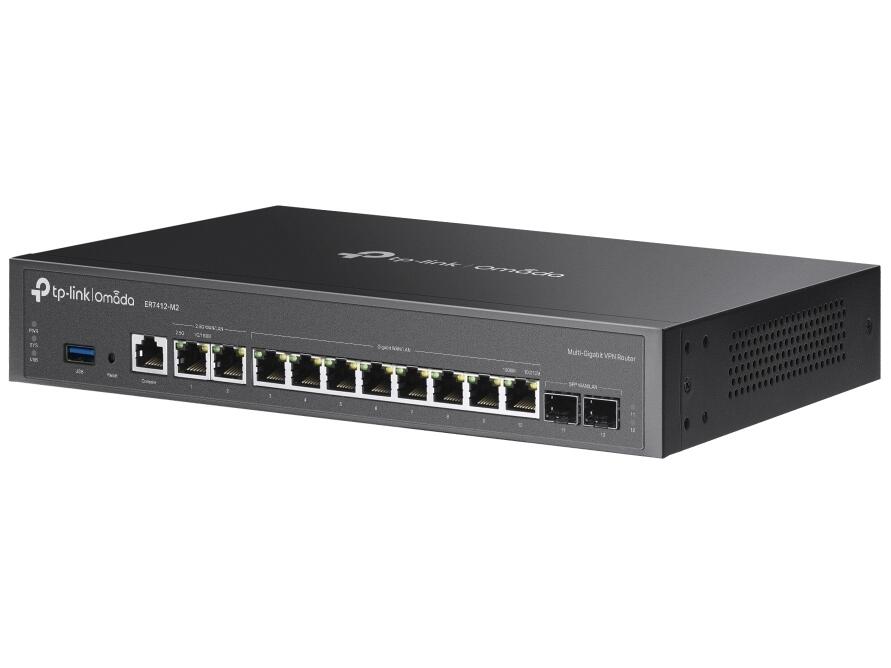

TP-Link Omada ER7412-M2 (2x WAN/LAN, 2x SFP WAN/LAN, 8x WAN/LAN) VPN Router

Description

Multi-Gigabit Performance for Modern Business Networks

The TP-Link Omada ER7412-M2 is a high-performance multi-gigabit VPN router designed for businesses, remote offices, and advanced network environments. Powered by dual 2.5Gbps ports and a Quad-Core 2.0GHz CPU, it delivers exceptional speed for building multi-gigabit networks capable of handling cloud computing, video conferencing, and large-scale data transfers without bottlenecks.

Key Highlights

• Quad-core 2.0GHz CPU with 1GB DDR4 SDRAM
• 2× 2.5G RJ45 WAN/LAN ports and 10× Gigabit WAN/LAN ports (2× SFP, 8× RJ45)
• 1× USB 3.0 port for USB storage and LTE backup via 4G/5G dongle
• Support for up to 1 million concurrent sessions



Multi-WAN Flexibility & LTE Backup

Up to 11 WAN ports with multi-WAN load balancing raise the utilisation rate of multi-line broadband, spreading traffic intelligently across available connections. The USB 3.0 port adds a further layer of resilience by supporting LTE WAN backup via a compatible 4G/5G dongle, ensuring the business stays online even when fixed-line connections are disrupted.

• Up to 11 configurable WAN ports for load balancing and failover
• USB WAN backup via LTE dongle for additional redundancy
• Multi-line broadband aggregation for maximised uplink utilisation
• Rack-mountable 1U form factor for structured deployments

Comprehensive VPN & Advanced Security

SSL, IPSec, GRE, WireGuard, PPTP, L2TP, and OpenVPN are all supported, enabling secure tunnels for internet browsing, inter-branch communication, and remote work. Beyond VPN, the ER7412-M2 includes a robust security stack suitable for environments where threat prevention is a priority.

• Full VPN protocol support: WireGuard, OpenVPN, IPSec, SSL, GRE, PPTP, L2TP
• Can work as a VPN client, connecting to up to 15 PPTP/L2TP VPN servers and 11 OpenVPN servers simultaneously
• Integrated IDS/IPS engine with a built-in attack prevention signature database of 7,000+ signature rules, updated regularly
• DPI (Deep Packet Inspection), IP/MAC/URL filtering, ACL, and automatic DoS/DDoS attack detection and blocking



Omada SDN Integration & Centralised Management

Fully integrated into the Omada SDN ecosystem, the ER7412-M2 supports Zero-Touch Provisioning for rapid remote deployment and can be managed centrally via the Omada web interface or mobile app alongside other Omada switches, access points, and gateways — all from a single dashboard.

• Full Omada SDN integration with Zero-Touch Provisioning
• Centralised cloud management via web or Omada mobile app
• Standalone management also available via web, CLI, SNMP, and RMON
• QoS, bandwidth control, and access control for traffic prioritisation
• Captive portal with multiple authentication methods in controller mode
