ADATA Legend 970 M.2 PCIe5x4 1TB SSD

Description

The Phison E26 and Micron TLC — A Proper Gen 5 Combination

The Legend 970 uses a Phison E26 controller paired with Micron 232-layer TLC NAND flash. The Phison PS5026-E26 is an 8-channel PCIe 5.0 controller — the reference silicon for the first generation of consumer Gen 5 drives, and well-understood at this point through extensive third-party testing. TLC NAND stores three bits per cell, giving the Legend 970 a meaningful endurance advantage over QLC-based Gen 5 alternatives. The 2GB of Hynix DDR4 DRAM running at DDR4-2666 supports the controller’s mapping table management — dedicated on-drive DRAM that delivers superior random performance and sustained speed consistency compared to HMB DRAM-less designs.

Active Cooling — A First in Consumer SSD Design

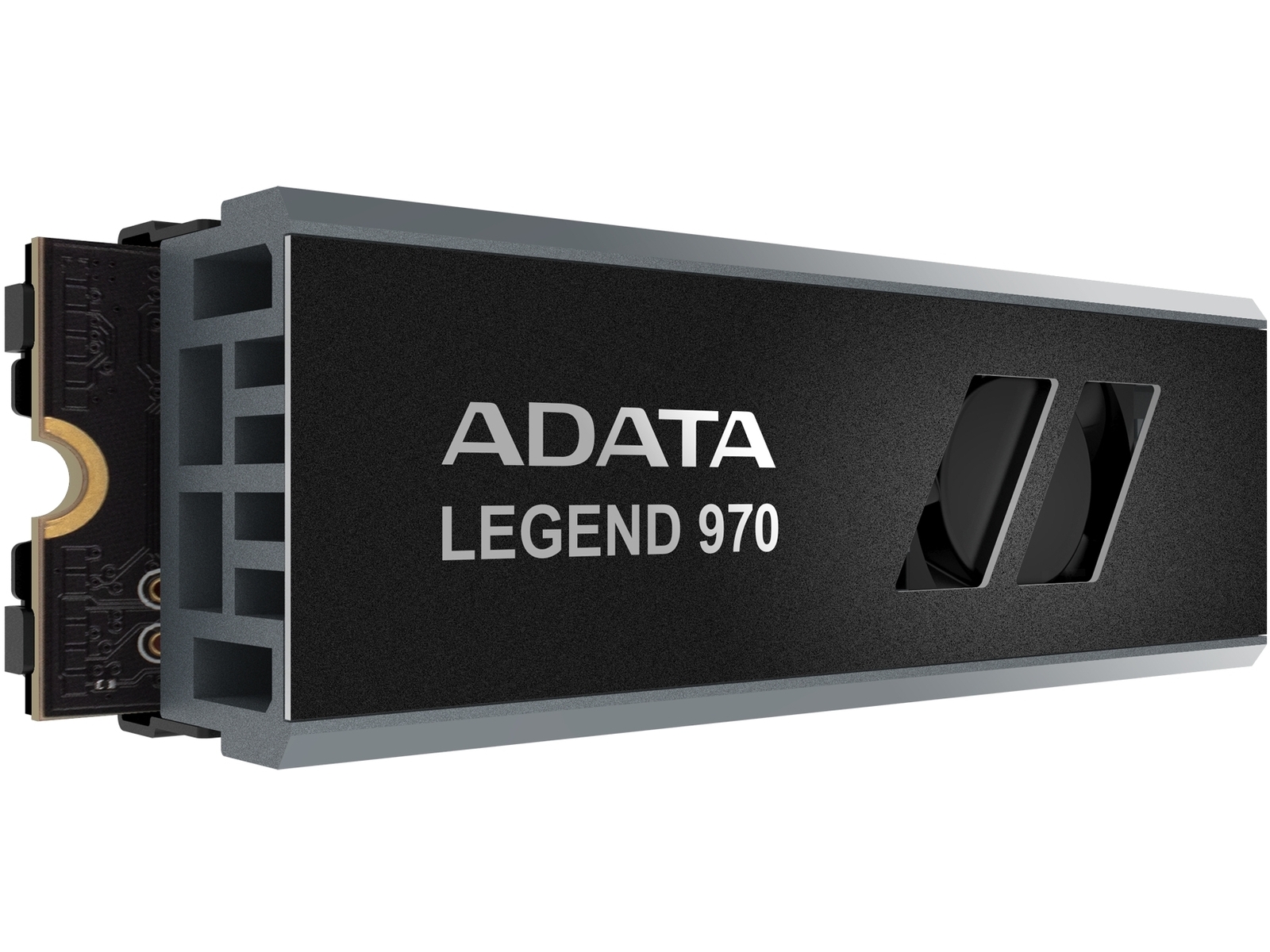

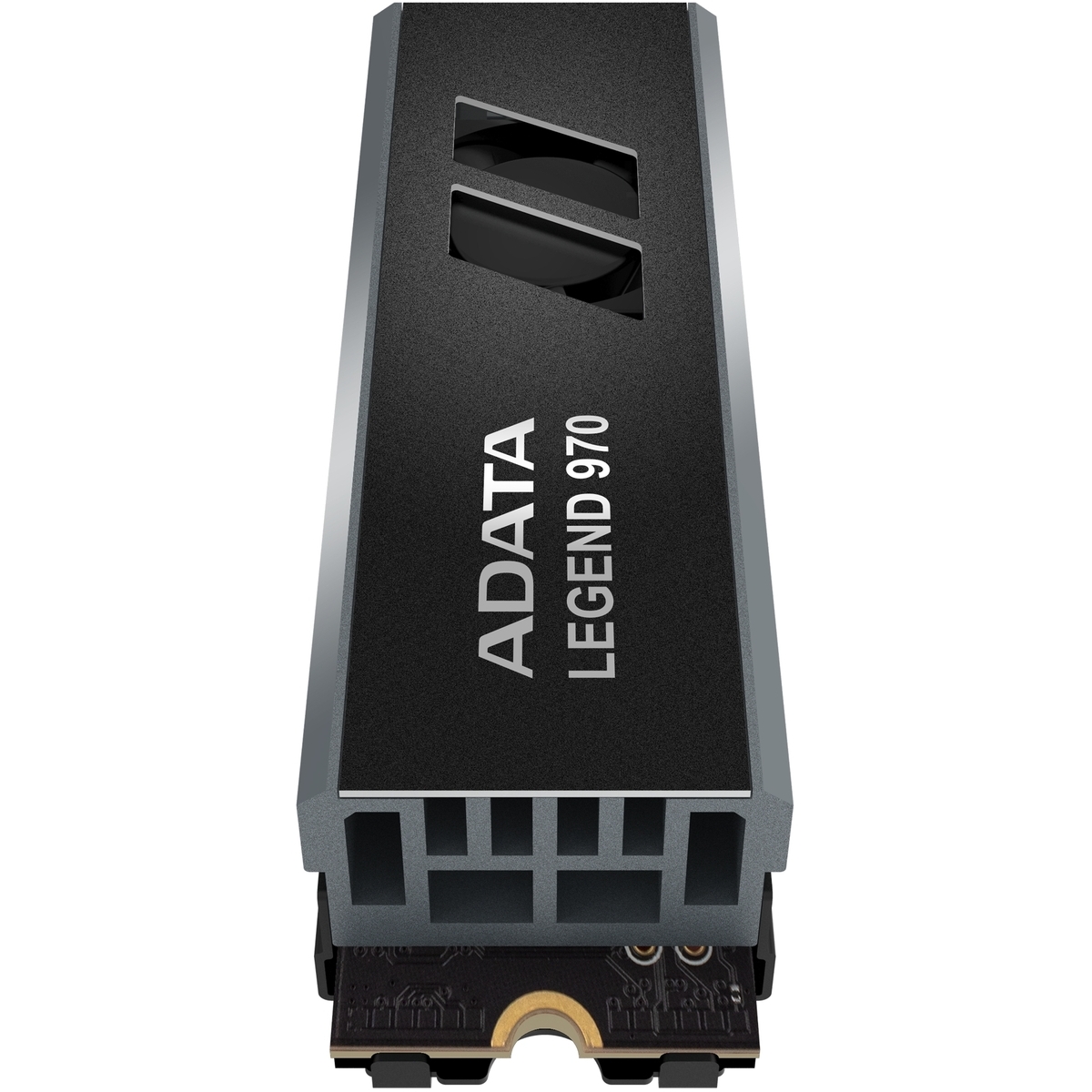

The Legend 970’s heatsink is the most distinctive hardware feature in our entire SSD range. The pre-installed dual-layer aluminium fins create a dense air duct to divert hot and cold air. A built-in micro fan draws cold air from openings in the nameplate and directs it towards the aluminium fins — expelling heat from both sides. This active heat dissipation design delivers significantly cooler temperatures than a fanless heatsink by approximately 10%. PCIe Gen 5 SSDs generate considerably more heat than Gen 4 under sustained load, and the Legend 970’s active cooling addresses this more directly than the thermal labels or passive heatsinks used by competing Gen 5 drives.

The correct perspective on the fan is that ADATA is simply making sure that your SSD gives its full performance at all times — thermal throttling under sustained Gen 5 loads is a real concern for passive designs, and the Legend 970 eliminates it with a purpose-built active cooling solution.

DRAM Cache, SLC Cache, and Real-World Performance

The Legend 970 leverages both a SLC cache algorithm and a DRAM cache buffer, featuring 4K random read/write IOPS up to 1,400K/1,400K. The SLC cache on the 1TB model covers approximately 150GB of incoming sequential writes at full speed — more than sufficient for typical gaming, content creation, and OS workloads. Beyond the SLC cache, sequential write speed settles at around 1,700MB/s — not bad, but a long way from the drive’s peak. For workloads that involve sustained sequential writes beyond 150GB at a stretch, this is worth knowing.

LDPC ECC, AES-256, and SSD Toolbox

The Legend 970 adopts LDPC error correction and AES 256-bit high-level encryption technology to ensure the accuracy of data transmission and the security of files. ADATA’s SSD Toolbox provides drive information, diagnostics, secure erase and firmware update utilities, TRIM settings, benchmarking, and drive cloning capability. ADATA also includes Backup ToGo for wider storage media backup functionality.

700TBW and 5-Year Warranty — Serious Long-Term Coverage

ADATA backs the Legend 970 with a 5-year warranty and a 700TBW endurance rating per TB of capacity. At 700TBW for the 1TB model, that’s the highest TBW figure in our entire NVMe range — over four times the ADATA Legend 800’s 210TBW at 512GB, and dramatically ahead of the budget Gen 4 tier. MTBF is rated at 1,600,000 hours.

⚠️ PCIe Gen 5 slot required — the Legend 970 requires a PCIe 5.0 M.2 slot for its full rated performance. It is backwards compatible with PCIe 4.0, where it operates at approximately half the rated speeds. PCIe Gen 5 M.2 is found on Intel 12th/13th/14th Gen and AMD Ryzen 7000-series platforms with appropriate Gen 5-capable motherboards — verify slot support before ordering.

⚠️ Active fan requires SATA power — the heatsink fan is connected via a SATA power cable, which requires an available SATA power connector from the PSU to activate the active cooling effect. Systems without SATA power available (e.g. all-NVMe builds without optical drives or SATA storage) may need an adaptor. The drive functions without fan power but with reduced thermal headroom under sustained loads.

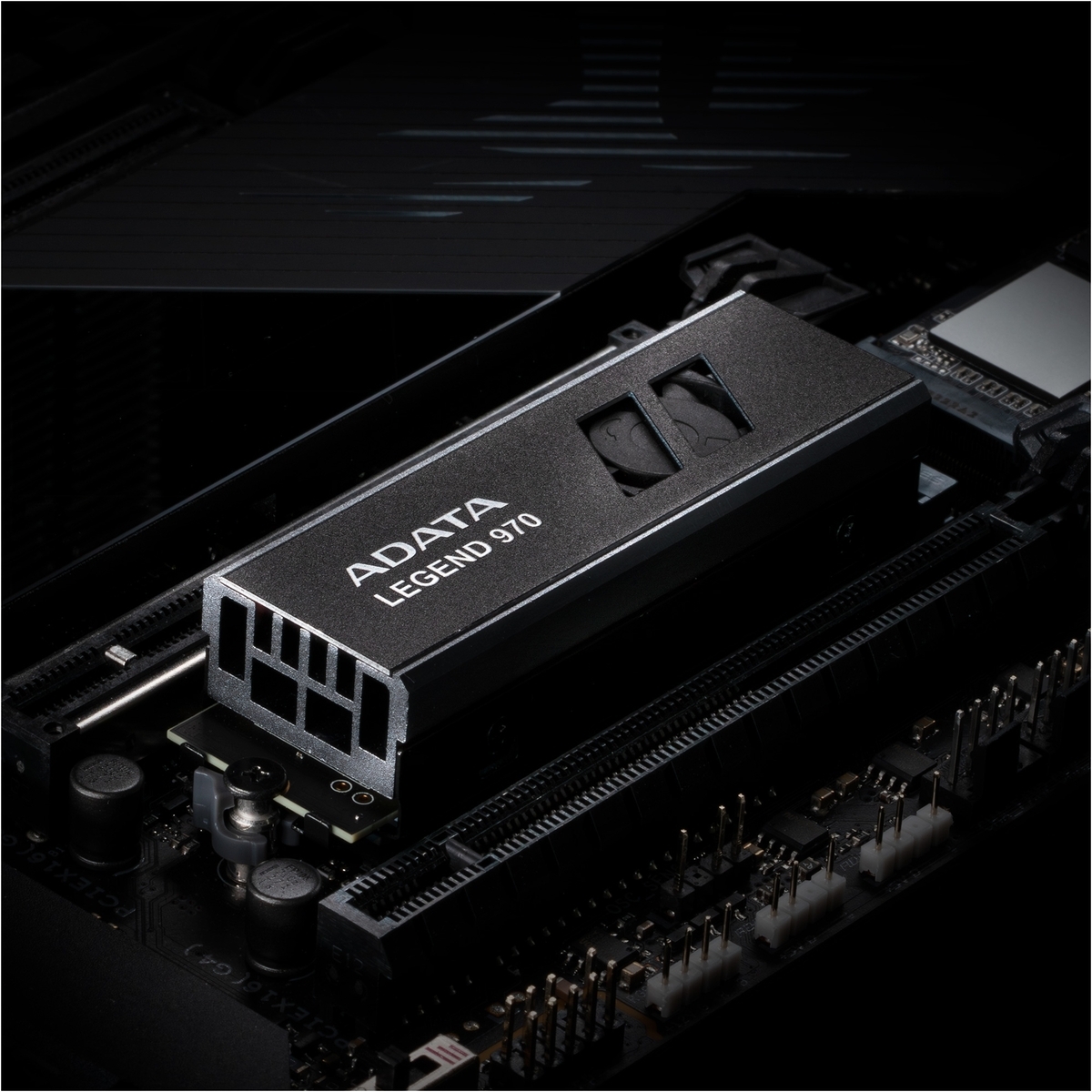

⚠️ Heatsink clearance — the pre-installed heatsink requires adequate installation space. If your motherboard has its own M.2 heatsink, remove it first before installing the Legend 970. The dual-layer fin stack is substantially taller than a typical M.2 heatsink — verify clearance against adjacent PCIe slots, RAM, and the CPU cooler.

ℹ️ 1TB vs 2TB speeds — the 10,000/10,000MB/s headline applies to the 2TB model. The 1TB is rated at 9,500/8,500MB/s — still the highest sequential figures in this range, but worth noting the distinction.

Key Highlights

• Capacity: 1TB
• Form Factor: M.2 2280
• Interface: PCIe Gen 5 x4 / NVMe 2.0 (backwards compatible with PCIe Gen 4)
• Sequential Read/Write: Up to 9,500 / 8,500 MB/s
• Random Read/Write IOPS: Up to 1,300,000 / 1,400,000
• NAND: Micron 232-layer 3D TLC
• Controller: Phison PS5026-E26 (8-channel PCIe 5.0)
• DRAM Cache: 2GB Hynix DDR4-2666 (dedicated on-drive)
• SLC Cache: ~150GB (1TB model)
• Heatsink: Pre-installed dual-layer extruded aluminium fins with active micro fan
• Fan Power: SATA power connector (included cable)
• Error Correction: LDPC ECC
• Encryption: AES-256-bit hardware
• MTBF: 1,600,000 hours
• TBW: 700TB
• Software: ADATA SSD Toolbox, Backup ToGo
• Warranty: 5-year limited
