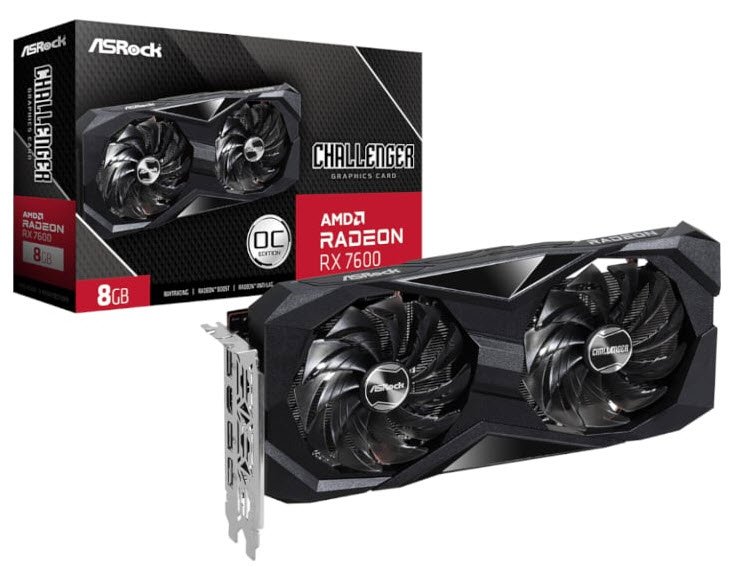

ASRock Challenger Radeon™ RX 7600 OC (8GB, GDDR6)

Description

Challenger-Grade 1080p Performance, Factory Overclocked

The ASRock Challenger Radeon RX 7600 OC brings AMD’s RDNA 3 architecture to a competitive mid-range price point, factory overclocked out of the box to 2695 MHz boost — 40 MHz above AMD’s reference specification. The Navi 33 XL GPU on TSMC’s 5nm node combines 32 unified RDNA 3 compute units with dual-issue ALUs for improved theoretical throughput, second-generation Ray Accelerators with larger caches for smoother hardware ray tracing, and dedicated AI acceleration units for FSR and upscaling workloads. The 32 MB on-die Infinity Cache reduces effective memory bandwidth pressure on the narrow 128-bit bus, and hardware AV1 encode and decode support makes this card well-suited for streamers using AV1-capable software.

The Challenger dual-fan cooler uses ASRock’s striped axial fan design with an ultra-fit heatpipe for compact but effective heat dissipation. The 0dB silent cooling mode stops both fans completely when GPU temperatures are low — during desktop use, video playback, or light workloads — providing completely silent operation when gaming performance isn’t needed. A metal backplate adds rigidity to the PCB and protects components from physical stress in tower installations. Super Alloy components (chokes, capacitors, and MOSFETs) contribute to power delivery stability and long-term reliability.

⚠️ The RX 7600 uses a PCIe 4.0 x8 electrical interface (8 lanes rather than the full x16). This has no meaningful real-world gaming performance impact in current titles on PCIe 4.0 motherboards, but on older PCIe 3.0 platforms the effective bandwidth is equivalent to PCIe 3.0 x4. Verify motherboard compatibility if pairing with a legacy PCIe 3.0 platform.

⚠️ The 128-bit memory bus and 8 GB frame buffer are appropriate for 1080p high and ultra settings. At 1440p with maximum quality settings and heavy ray tracing, VRAM and bandwidth constraints may become a limiting factor in some titles — FSR 3 is the recommended quality mode for 1440p use on this card.

💡 When paired with a compatible AMD Ryzen processor, AMD Smart Access Memory (SAM / Resizable BAR) unlocks additional performance by giving the CPU direct access to the full GPU frame buffer — a free performance uplift on Ryzen 5000 and newer platforms.

Technical Specifications

The RX 7600 uses AMD’s Navi 33 XL GPU on TSMC 5nm with 2048 stream processors (32 CUs), a 1770 MHz base clock, 2280 MHz game clock, and 2695 MHz boost clock. The 8 GB GDDR6 frame buffer runs at 18 Gbps on a 128-bit bus with 288 GB/s bandwidth, supplemented by 32 MB AMD Infinity Cache. Outputs are 3× DisplayPort 1.4a with DSC and 1× HDMI 2.1 VRR, supporting up to four simultaneous displays and a maximum resolution of 7680×4320@60Hz. The card connects via PCIe 4.0 x8 and draws 165W, requiring a single 8-pin PCIe power connector and a 550W system PSU.

Key Highlights

• AMD Radeon RX 7600 — RDNA 3 architecture (Navi 33 XL), TSMC 5nm
• 2048 stream processors (32 compute units), dual-issue ALUs
• 32 × 2nd-gen Ray Accelerators — hardware ray tracing
• 8 GB GDDR6, 128-bit bus, 18 Gbps, 288 GB/s bandwidth
• 32 MB AMD Infinity Cache
• 1770 MHz base / 2280 MHz game clock / 2695 MHz boost (factory OC)
• 165W TDP — 1× 8-pin PCIe power connector required
• 550W system PSU recommended
• PCIe 4.0 x8 (note: 8 lanes, not x16)
• 3× DisplayPort 1.4a with DSC + 1× HDMI 2.1 VRR
• Up to 4 simultaneous displays, max resolution 7680×4320@60Hz
• ASRock Challenger dual-fan cooler — striped axial fans, ultra-fit heatpipe
• 0dB silent cooling — fans stop at low temperatures
• Stylish metal backplate
• Super Alloy components
• AMD FidelityFX Super Resolution (FSR) 3 support
• AMD Radiance Display Engine
• Hardware AV1 encode and decode
• AMD Smart Access Memory (SAM / Resizable BAR) compatible
• AMD FreeSync Premium — VRR support
• DirectX 12 Ultimate, OpenGL 4.6, Vulkan 2.0
• AV1, H.264, H.265 hardware encode/decode
