Asus Dual GeForce RTX™ 2060 Evo OC (6GB, GDDR6)

Description

The Same Dual EVO, Clocked Higher Out of the Box

The ASUS Dual GeForce RTX 2060 EVO OC is the factory-overclocked variant of the Dual RTX 2060 EVO, raising the GPU Boost clock from 1680 MHz to 1785 MHz in OC mode for a consistent free performance uplift without any manual tuning required. The underlying platform is identical — NVIDIA’s TU106 Turing GPU with 1920 CUDA cores, 30 RT cores, 240 Tensor cores, and 6 GB GDDR6 on a 192-bit bus — so all the same gaming, ray tracing, and DLSS capabilities apply. The OC edition’s higher clocks are validated and stable from the factory, making this the straightforward choice for buyers who want maximum out-of-box performance without touching software overclocking utilities.

The 2.7-slot Axial-tech dual-fan cooler, 0dB fan stop technology, aluminium backplate, Super Alloy Power II components, and ASUS Auto-Extreme manufacturing all carry over directly from the standard EVO. GPU Tweak II software provides monitoring and tuning capabilities for those who want to push further within the card’s thermal headroom.

⚠️ The RTX 2060 supports DLSS 2 (Super Resolution) but does not support DLSS 3 Frame Generation — that feature is exclusive to RTX 40 Series cards.

⚠️ The 6 GB GDDR6 frame buffer is well-suited to 1080p gaming. At 1440p with maximum texture quality in VRAM-intensive titles, DLSS Quality mode is the recommended approach for maintaining smooth frame rates.

💡 The OC edition runs at 1785 MHz boost in OC mode and 1755 MHz in gaming (default) mode — both meaningfully above the reference RTX 2060 spec and the non-OC EVO’s 1680/1710 MHz respectively.

Technical Specifications

The RTX 2060 EVO OC uses NVIDIA’s TU106 Turing GPU on TSMC’s 12nm process with 1920 CUDA cores, 30 RT cores, and 240 Tensor cores. The 6 GB GDDR6 frame buffer runs at 14 Gbps on a 192-bit bus delivering 336 GB/s of bandwidth. OC Mode clocks are 1395 MHz base and 1785 MHz boost; Gaming Mode clocks are 1365 MHz base and 1755 MHz boost. Outputs are 1× DisplayPort 1.4, 2× HDMI 2.0b, and 1× DVI-D, supporting up to four simultaneous displays at up to 7680×4320. The card draws 160W and requires a single 8-pin PCIe power connector with a 500W system PSU.

Key Highlights

• NVIDIA GeForce RTX 2060 — Turing architecture (TU106), TSMC 12nm
• 1920 CUDA cores
• 30 × 1st-gen RT cores — hardware-accelerated ray tracing
• 240 × 2nd-gen Tensor cores — DLSS 2 AI upscaling
• 6 GB GDDR6, 192-bit bus, 14 Gbps, 336 GB/s bandwidth
• OC Mode: 1395 MHz base / 1785 MHz boost
• Gaming Mode: 1365 MHz base / 1755 MHz boost — GPU Boost 4.0
• Factory overclocked — no manual tuning required
• 160W TDP — 1× 8-pin PCIe power connector required
• 500W system PSU recommended
• PCIe 3.0 x16
• 1× DisplayPort 1.4 + 2× HDMI 2.0b + 1× DVI-D
• Up to 4 simultaneous displays, max resolution 7680×4320

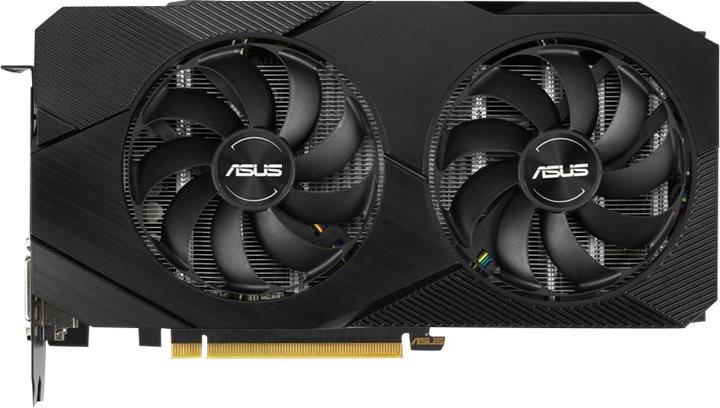

• Dual Axial-tech fans — 2.7-slot, barrier ring design
• 0dB Technology — fans stop at low temperatures

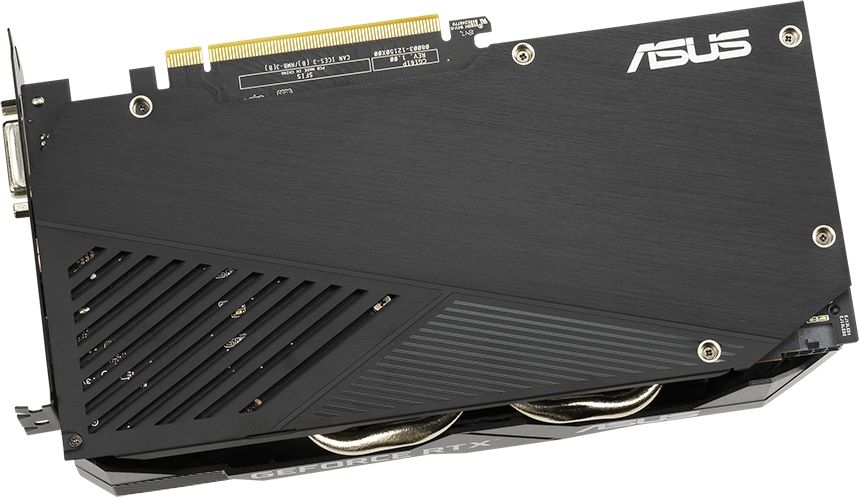

• Aluminium backplate — PCB reinforcement
• ASUS Super Alloy Power II — premium alloy chokes, solid polymer capacitors
• ASUS Auto-Extreme automated manufacturing
• DLSS 2 (Super Resolution) — no DLSS 3 Frame Generation
• NVIDIA G-SYNC Compatible, Adaptive V-Sync
• Real-time ray tracing with RTX
• NVIDIA Ansel, ShadowPlay, GameStream, GPU Boost 4.0
• VR Ready
• DirectX 12 Ultimate, OpenGL 4.6
• ASUS GPU Tweak II software
