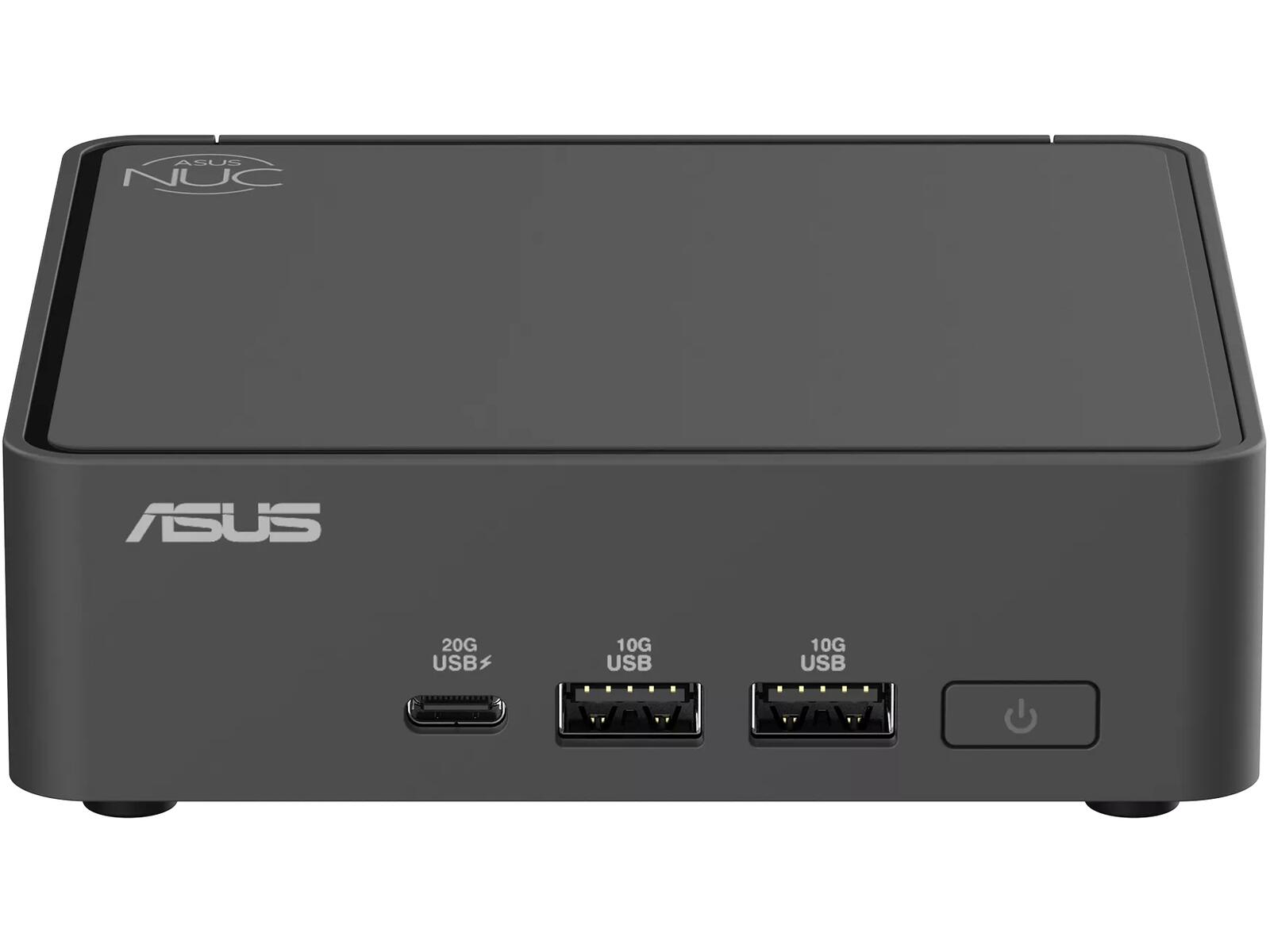

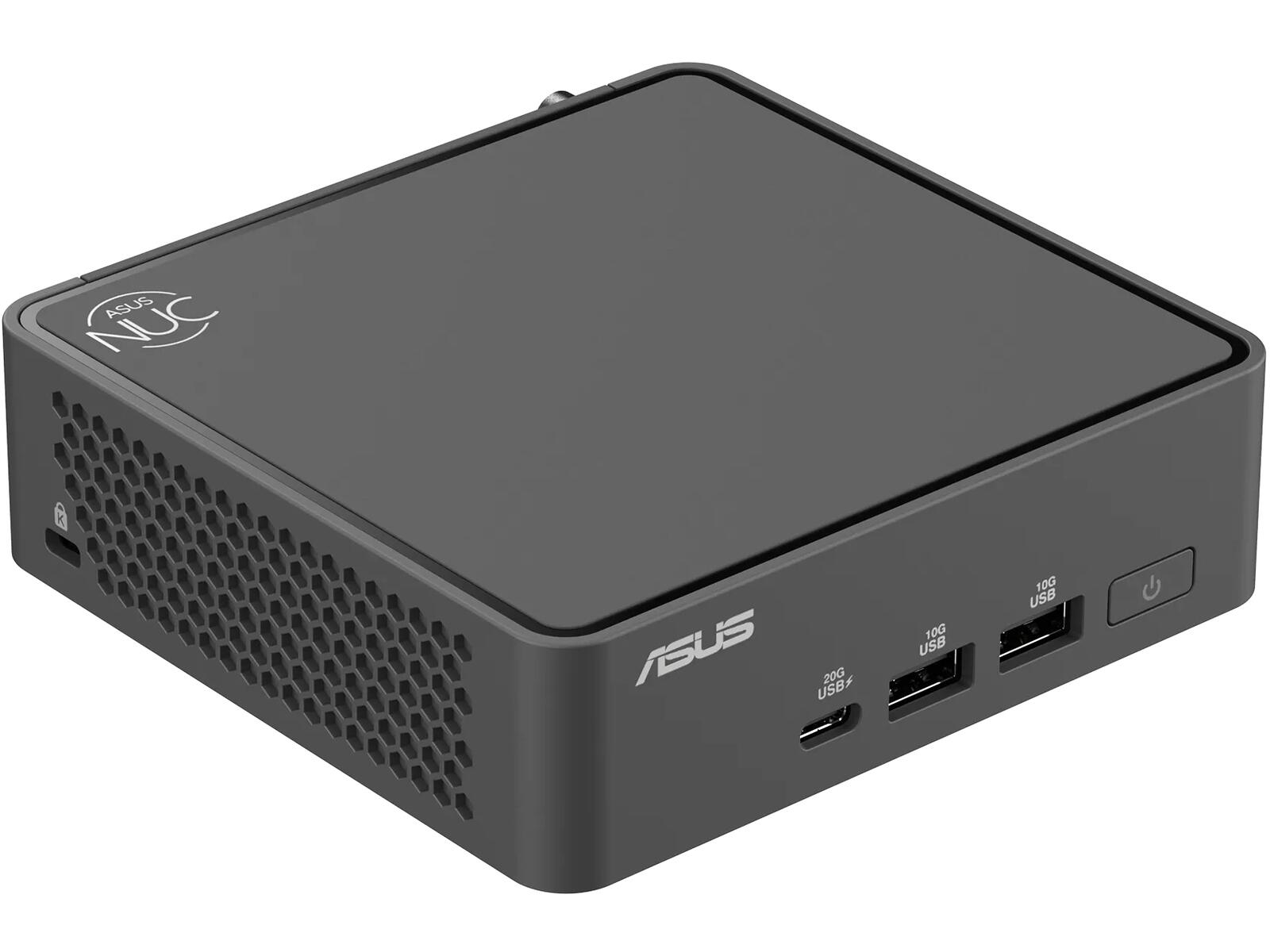

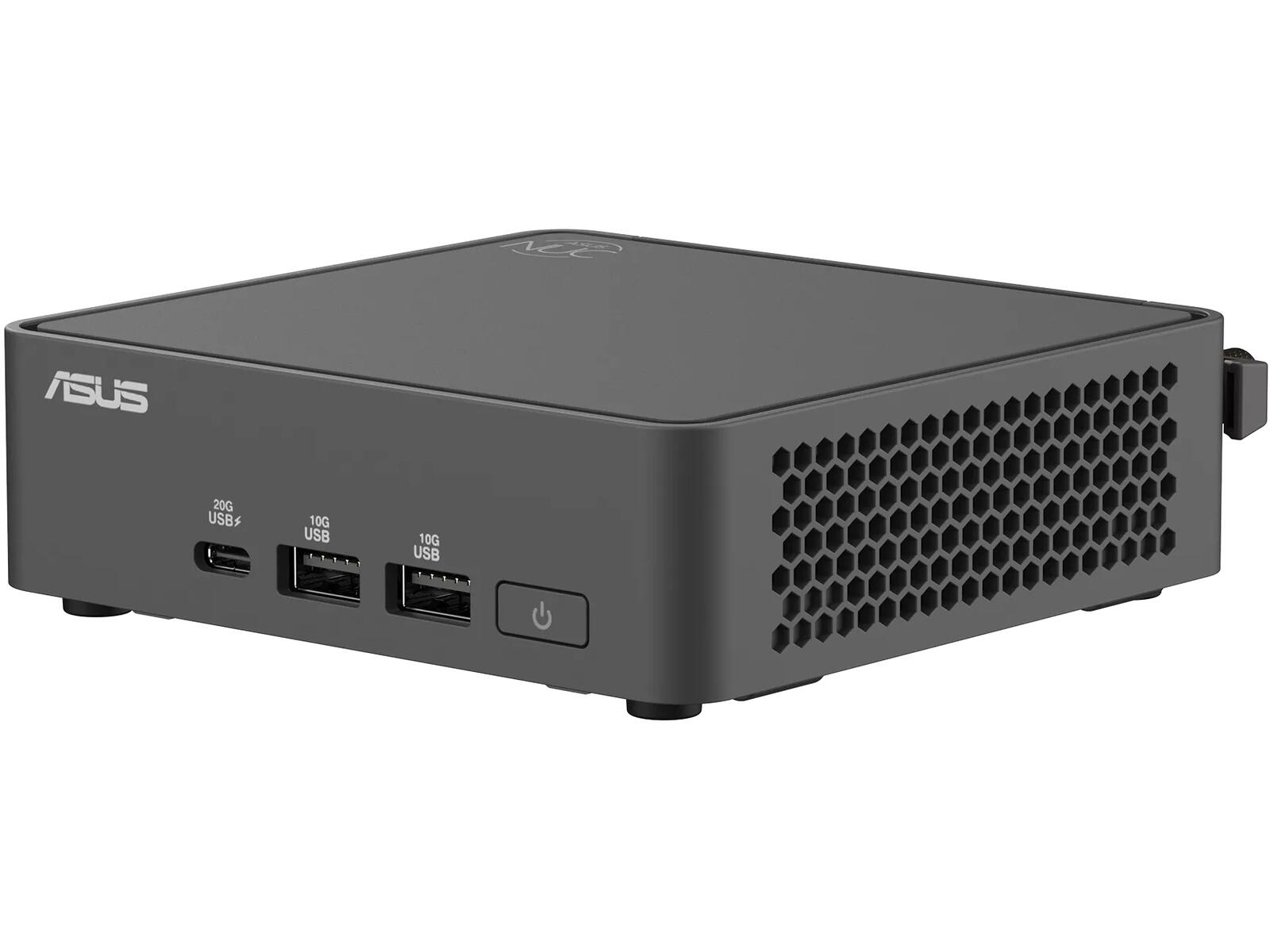

Asus NUC 15 Pro Slim L10 (512GB SSD) Mini PC

Description

NUC 15 Pro Slim L10 — 8 GB / 512 GB Configuration

The ASUS NUC 15 Pro Slim L10 (NUC15-C5S8512W11P) is a near-identical configuration to the NUC15-C5S8500W11P, differing only in the pre-installed SSD capacity — 512 GB rather than 500 GB — typically reflecting a different storage module vendor rather than any meaningful performance or capacity distinction. The full NUC15CRK platform is unchanged: Intel Core 5 210H (Raptor Lake, 4P+4E cores, 8 cores total, 4.8 GHz max turbo, 25W cTDP), Intel Graphics (Xe), dual HDMI 2.1, dual Thunderbolt 4 with DisplayPort 2.1, front USB Gen2x2 Type-C (20 Gbps), Wi-Fi 7, Bluetooth 5.4, Intel 2.5 GbE LAN, MIL-STD-810H certification, Windows 11 Pro, and the tool-less slim chassis with VESA mount.

For buyers comparing this unit to the 500 GB variant, the storage difference is negligible — both provide ample space for Windows 11 Pro, business applications, and working files at this capacity class. The 8 GB DDR5 SODIMM operates in single-channel and is user-upgradeable via the second SODIMM slot up to 48 GB total, and the second M.2 2242 slot supports an additional PCIe 4.0 x4 NVMe SSD for expanded storage without replacing the primary drive.

⚠️ The Intel Core 5 210H (Core Series CPU) provides PCIe 4.0 x4 on the primary M.2 slot — not PCIe 5.0 x4, which is available on NUC15 Pro variants with Core Ultra Series CPUs.

⚠️ 8 GB DDR5 in a single SODIMM operates in single-channel mode. Adding a second matched SODIMM enables dual-channel for improved Intel Iris Xe GPU and memory bandwidth performance.

⚠️ Wi-Fi 7 full features require Windows 11 24H2 and a Wi-Fi 7 compatible router. On earlier Windows versions or Wi-Fi 6E routers, the module operates at Wi-Fi 6E speeds.

💡 The 12 GB difference between this 512 GB and the 500 GB variant is vendor-driven and has no practical impact on usable storage capacity after Windows installation.

Technical Specifications

Intel Core 5 210H: Raptor Lake, 4P+4E cores (8 total), 16 threads, 4.8 GHz P-core max turbo, 25W cTDP, 12 MB L3. Intel Graphics (Xe). Memory: 8 GB DDR5 SODIMM (2 slots, max 48 GB). Storage: 512 GB M.2 PCIe 4.0 x4 NVMe SSD + second M.2 2242 slot available. Rear: 2× HDMI 2.1 + 2× Thunderbolt 4 Type-C (DP 2.1 alt-mode) + 1× USB 3.2 Gen2 Type-A (10 Gbps) + 1× USB 2.0 Type-A + 1× RJ-45 2.5 GbE. Front: 1× USB 3.2 Gen2x2 Type-C (20 Gbps) + 2× USB 3.2 Gen2 Type-A (10 Gbps). Wireless: Intel Wi-Fi 7 + Bluetooth 5.4. OS: Windows 11 Pro 64-bit. Dimensions: 117 × 112 × 37 mm.

Key Highlights

• Intel Core 5 210H — Raptor Lake, 8 cores (4P+4E) / 16 threads, up to 4.8 GHz, 25W cTDP
• Intel Graphics (Xe architecture)
• 8 GB DDR5 SODIMM — 2 slots, expandable to 48 GB (single-channel as shipped)
• 512 GB M.2 PCIe 4.0 x4 NVMe SSD + second M.2 2242 slot available
• 2× HDMI 2.1 (rear) + 2× Thunderbolt 4 / USB4 Type-C with DP 2.1 (rear) — up to 4× 4K

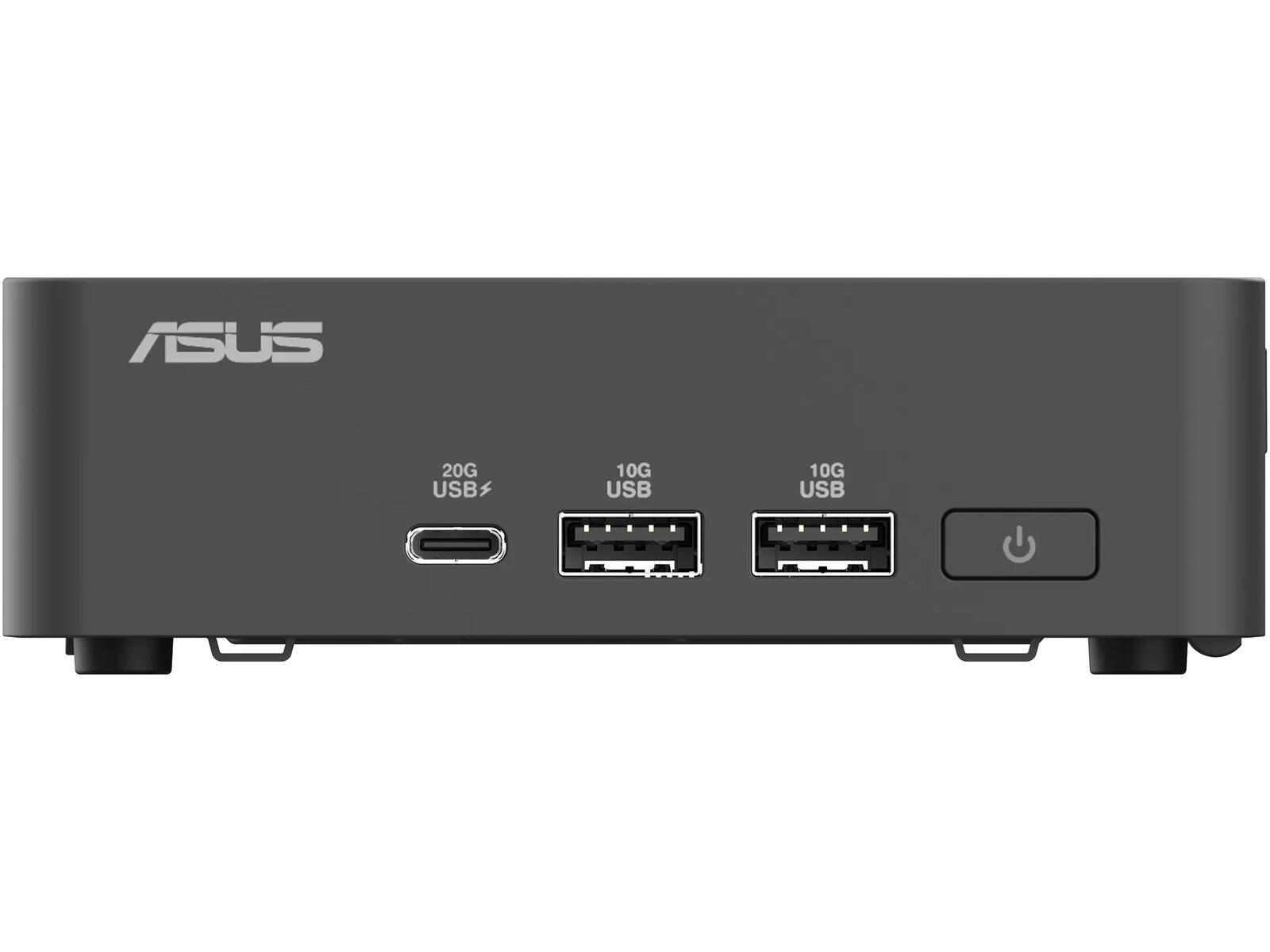

• Front: 1× USB 3.2 Gen2x2 Type-C (20 Gbps) + 2× USB 3.2 Gen2 Type-A (10 Gbps)

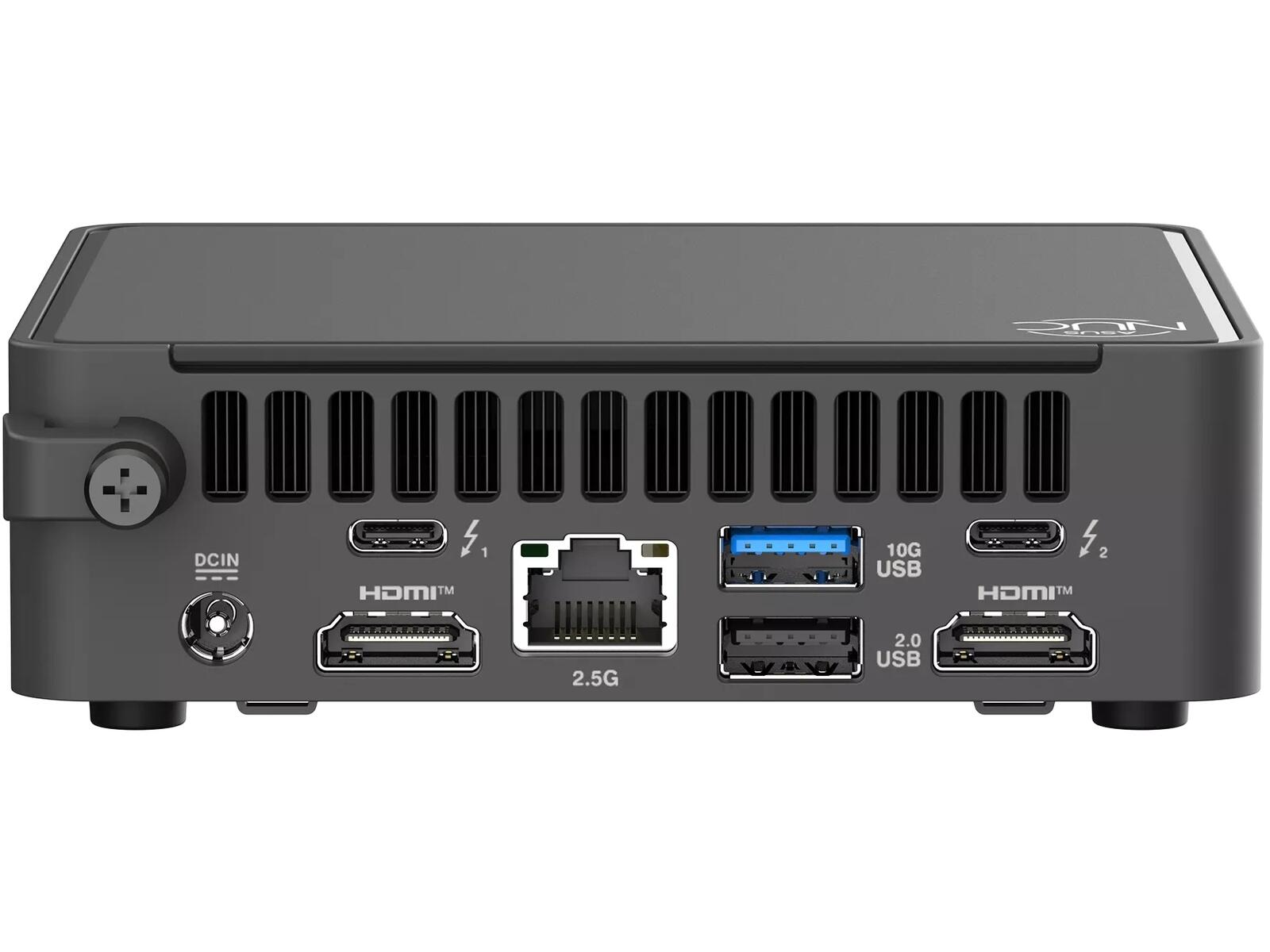

• Rear: 1× USB 3.2 Gen2 Type-A (10 Gbps) + 1× USB 2.0 Type-A
• Intel 2.5 GbE LAN (RJ-45)
• Intel Wi-Fi 7 (802.11be, 2.4/5/6 GHz, MLO) + Bluetooth 5.4
• MIL-STD-810H certified — 24/7 sustained operation validated
• ASUS OpenClaw AI framework support
• Tool-less chassis — quick internal access for upgrades
• VESA wall mount kit included
• Windows 11 Pro 64-bit pre-installed
• 117 × 112 × 37 mm slim chassis — Black
