Asus Prime B550M-K ARGB AMD AM4

Description

B550 Performance in a Compact, RGB-Ready Package

The ASUS Prime B550M-K ARGB brings the key advantages of the B550 platform — PCIe 4.0, dual M.2 storage, and CPU overclocking support — into a compact Micro-ATX footprint with Aura Sync ARGB aesthetics. It supports Ryzen 3000 through 5000 and 5000 G-Series processors, and the PCIe 4.0 primary M.2 slot means top-tier NVMe drives can operate at full bandwidth when paired with a compatible Ryzen 3000 or 5000 Series CPU. ASUS’s 5X Protection III suite covers voltage regulation, LAN surge protection, SafeSlot Core PCIe reinforcement, and overcurrent protection across USB ports and DRAM, keeping the build reliable beyond the warranty window.

Power Delivery and Cooling

The Digi+ VRM delivers precise digital voltage regulation with real-time efficiency adjustments, providing stable power for Ryzen AM4 CPUs across everyday and light overclocking workloads. A PCH heatsink keeps chipset temperatures in check under sustained use. Fan Xpert 2+ manages fan headers with hybrid PWM/DC auto-detection and temperature-based curve control. Q-LED Core provides onboard diagnostic LEDs — CPU, DRAM, VGA, and Boot — that light up sequentially during POST to quickly identify hardware issues without needing a debug display or POST card.

Memory and Storage

Two DDR4 DIMM slots support up to 64 GB of dual-channel unbuffered memory — ECC support is CPU-dependent — with OC profiles reaching DDR4-5100 for compatible kits. The primary M.2 slot (M.2_1) supports PCIe 4.0 x4 and SATA modes in 2242, 2260, and 2280 lengths when paired with Ryzen 5000 or 3000 Series CPUs, dropping to PCIe 3.0 x4 with 4000 G-Series APUs. The secondary M.2 slot (M.2_2, via the B550 chipset) supports PCIe 3.0 x4 and SATA in lengths up to 22110. Neither slot includes a thermal guard heatsink. Four SATA III ports complete the storage options.

Connectivity

A Realtek Gigabit LAN port with ASUS LANGuard hardware protection handles wired networking — standard 1 GbE rather than 2.5 GbE. No onboard WiFi is included. Rear display outputs cover DisplayPort and HDMI, suited to APU-based builds with modern monitor setups. A front panel USB 3.2 Gen 1 Type-C header is included for chassis with Type-C front I/O — a notable addition at this price point. Audio uses a dedicated codec with Audio Shielding and Japanese capacitors for clean output. Aura Sync Addressable Gen 2 headers enable per-LED RGB control and synchronisation with compatible ASUS and third-party peripherals. ASUS UEFI BIOS with EZ Mode and Armoury Crate software round out the platform management experience.

⚠️ Only two DIMM slots are present — maximum RAM is 64 GB across two sticks. If four slots are needed, look at the standard Prime B550M-K which offers four DIMMs up to 128 GB.

⚠️ PCIe 4.0 on the primary M.2 and GPU slot requires a Ryzen 3000 or 5000 Series CPU — Ryzen 4000 G-Series APUs are PCIe 3.0 only and will not unlock PCIe 4.0 on this board.

⚠️ Neither M.2 slot includes a thermal guard heatsink. An aftermarket M.2 heatsink is recommended for PCIe 4.0 NVMe drives under sustained workloads.

⚠️ Confirm your Ryzen 5000 Series CPU against ASUS’s AM4 compatibility list — a BIOS update may be required before 5000-series CPUs are recognised on earlier board revisions.

⚠️ The front USB Type-C header is USB 3.2 Gen 1 speed — confirm your chassis front panel spec if Gen 2 transfer rates are important.

Key Highlights

• AMD B550 chipset, Socket AM4
• Supports Ryzen 3000, 4000 G-Series, and 5000 / 5000 G-Series processors
• Micro-ATX form factor
• 2x DDR4 DIMM slots, dual-channel, up to 64 GB, DDR4-5100 (OC)
• Digi+ VRM with 5X Protection III
• 2x M.2 slots: M.2_1 PCIe 4.0 x4/SATA (2242–2280) + M.2_2 PCIe 3.0 x4/SATA (up to 22110)
• 4x SATA III ports
• 1x PCIe 4.0 x16 (SafeSlot Core) + 1x PCIe 3.0 x1 slots
• Realtek Gigabit LAN with LANGuard

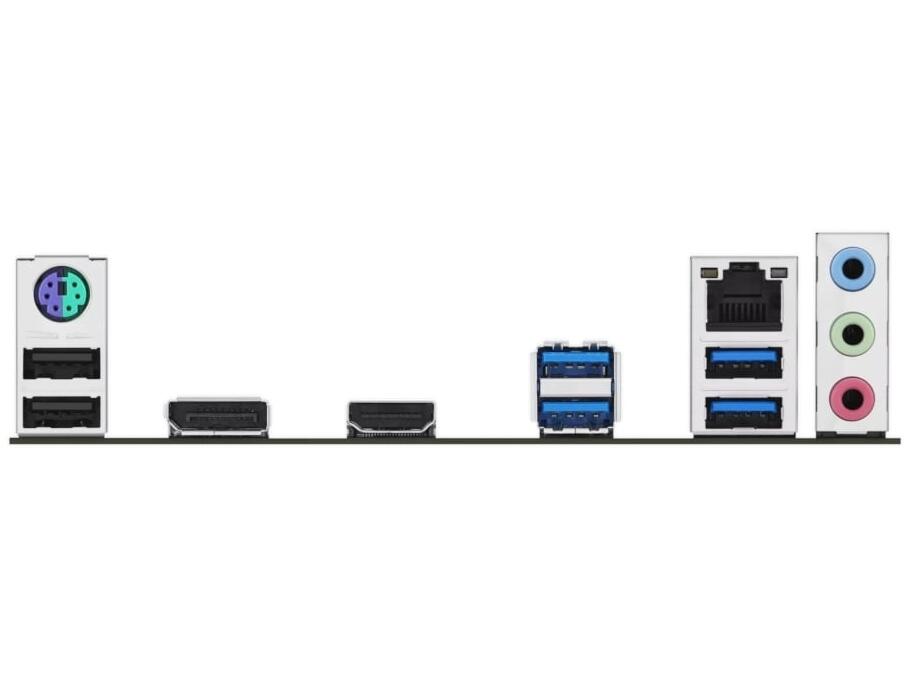

• DisplayPort + HDMI display outputs
• Front panel USB 3.2 Gen 1 Type-C header
• 4x USB 3.2 Gen 1 + 2x USB 2.0 rear ports
• Dedicated audio codec with Audio Shielding and Japanese capacitors
• Aura Sync Addressable Gen 2 ARGB headers
• Q-LED Core POST diagnostic LEDs
• PCH heatsink
• Fan Xpert 2+ with hybrid PWM/DC headers
• ASUS UEFI BIOS with EZ Mode
• No onboard WiFi
