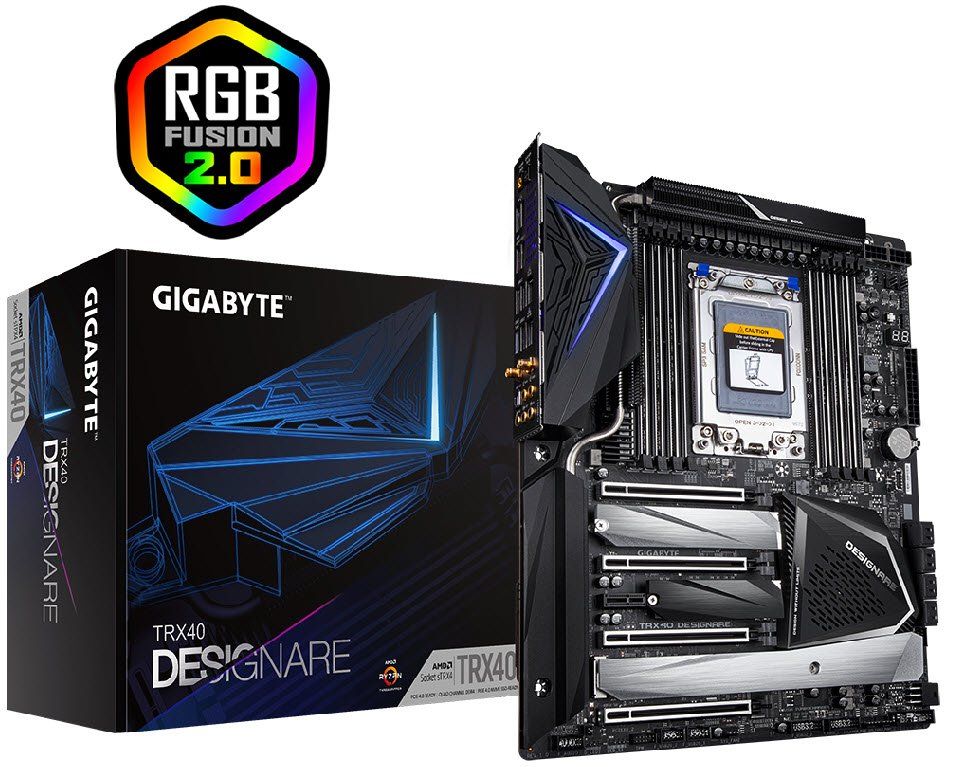

Gigabyte TRX40 Aorus Designare AMD TR4

Description

A Workstation Platform Built Without Compromise

The Gigabyte TRX40 Aorus Designare is designed for professionals who need more than a desktop CPU can offer. Built on the AMD TRX40 chipset for Socket sTRX4, it supports 3rd Gen AMD Ryzen Threadripper processors — giving access to up to 64 cores and massive PCIe lane counts suited to multi-GPU rendering, simulation, data science, and heavy media production workloads. The XL-ATX form factor accommodates the board’s extensive feature set, and the build quality throughout reflects its workstation positioning.

Power Delivery and Thermal Management

The board uses a 16+3 phase Infineon Digital VRM solution with 70A power stages, providing headroom to sustain high-core-count Threadripper CPUs under prolonged all-core loads without thermal throttling. Triple thermal protection via Fins-Array heatsinks and an 8mm Mega-Heatpipe keeps VRM temperatures in check even in sustained workstation workloads. Hybrid fan headers support both PWM and DC fans, with Smart Fan 5 enabling temperature-based profiles across all headers.

Memory, Storage, and Expansion

Eight DDR4 DIMM slots support quad-channel ECC and non-ECC unbuffered memory, with OC support up to DDR4-4400 for compatible kits — a meaningful advantage for memory-bandwidth-sensitive workloads. Four onboard M.2 slots run at PCIe 4.0 x4 speeds and are fitted with enlarged thermal guards to keep NVMe drives cool under sustained throughput. Eight SATA III ports provide additional storage capacity. Four full-length PCIe 4.0 x16 slots support up to four dual-slot cards simultaneously, making this board well suited to multi-GPU compute or professional visualisation setups. The bundled AORUS Gen4 AIC Adaptor adds a further four M.2 slots via PCIe, bringing total M.2 capacity to eight drives.

Connectivity

Dual Intel Gigabit LAN ports with cFosSpeed traffic shaping and onboard Intel WiFi 6 (802.11ax) with Bluetooth 5.0 cover both wired and wireless network needs. The bundled GC-Titan Ridge add-in card delivers Thunderbolt 3 connectivity at up to 40 Gb/s, useful for high-speed external storage, displays, or daisy-chaining peripherals. Audio is handled by a Realtek ALC1220-VB codec with WIMA capacitors, rated at 120dB SNR for clean output. RGB Fusion 2.0 with addressable LED headers rounds out the feature set for those who want visual customisation.

⚠️ This board uses Socket sTRX4 and is compatible only with 3rd Gen Ryzen Threadripper (3000-series). It is not compatible with 1st/2nd Gen Threadripper (TR4 socket) or Threadripper PRO processors.

⚠️ The XL-ATX form factor is larger than standard E-ATX — verify chassis compatibility before purchasing. Not all “XL-ATX compatible” cases accommodate this board’s full dimensions.

⚠️ ECC memory support depends on the installed CPU — confirm your Threadripper model’s ECC capability if this is a requirement for your workload.

⚠️ The board ships with the AORUS Gen4 AIC Adaptor and GC-Titan Ridge card included — confirm these are present if purchasing second-hand.

Key Highlights

• AMD TRX40 chipset, Socket sTRX4
• Supports 3rd Gen AMD Ryzen Threadripper processors
• XL-ATX form factor
• 8x DDR4 DIMM slots, quad-channel ECC/non-ECC, up to DDR4-4400 (OC)
• 16+3 phase Infineon Digital VRM, 70A per phase
• 4x onboard PCIe 4.0 x4 M.2 with thermal guards + 4x additional via bundled AORUS Gen4 AIC
• 4x PCIe 4.0 x16 expansion slots (x16/x8/x16/x8)
• 8x SATA III ports
• Dual Intel Gigabit LAN with cFosSpeed
• Intel WiFi 6 (802.11ax) + Bluetooth 5.0
• Bundled GC-Titan Ridge Thunderbolt 3 (40 Gb/s) add-in card
• Realtek ALC1220-VB, 120dB SNR audio
• RGB Fusion 2.0 with addressable LED headers
