Deep Cool CC560 MESH V2 ATX Gaming Case

Description

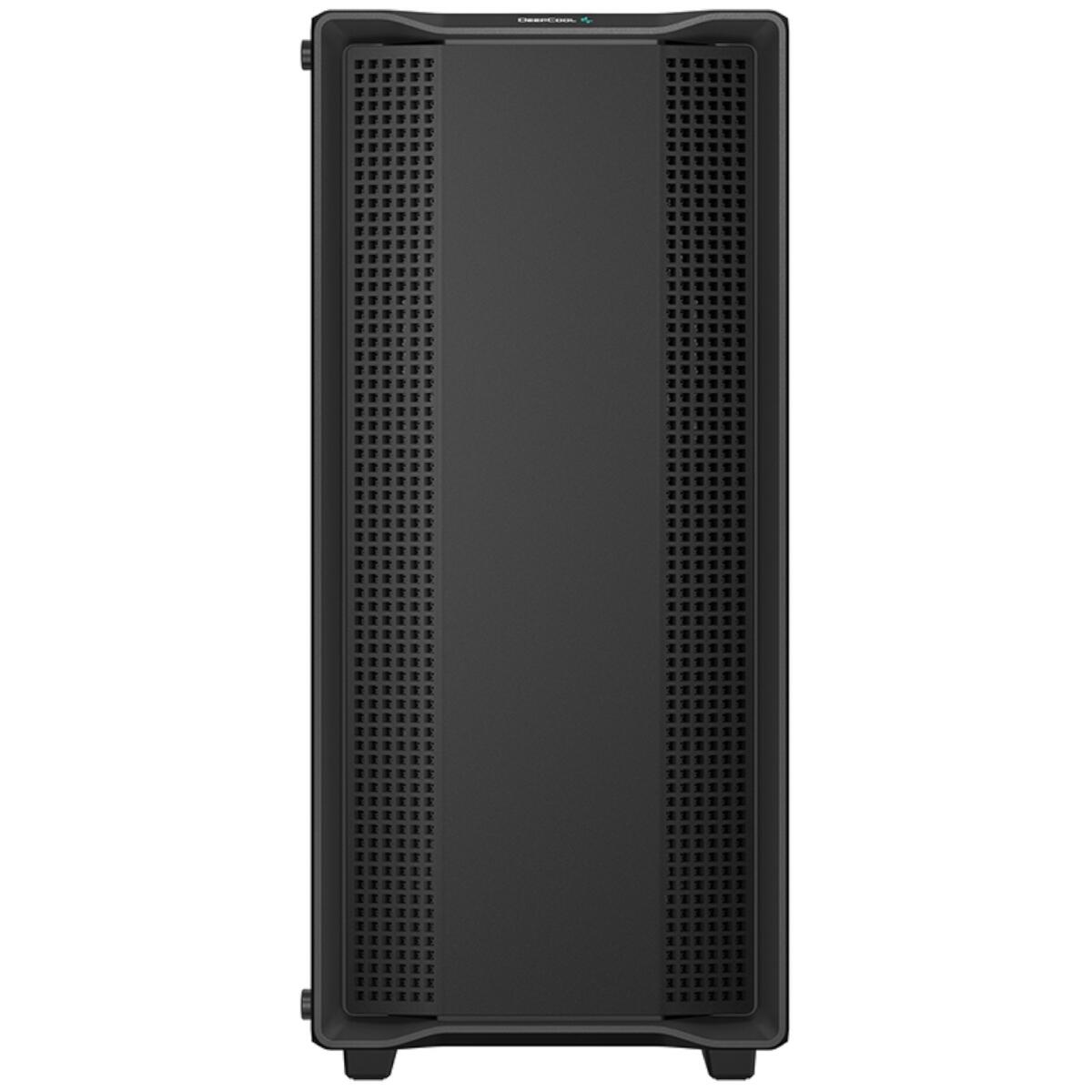

Fine Mesh Front Panel — Airflow First

The CC560 MESH V2 steps up from the standard CC560 V2 with an upgraded fine mesh front panel that opens up intake airflow significantly over the original slotted design. The mesh allows cool air to pass freely into the chassis across all three front-mounted fans, keeping intake resistance low and temperatures in check. A large mesh top panel reinforces the ventilation strategy, ensuring warm air has multiple exit paths. A magnetic top dust filter handles maintenance without tools — lift, tap, replace. It’s a chassis that takes airflow seriously from every angle without requiring any configuration effort from the builder.

Four ARGB Fans, PSU Shroud Support, One Button Control

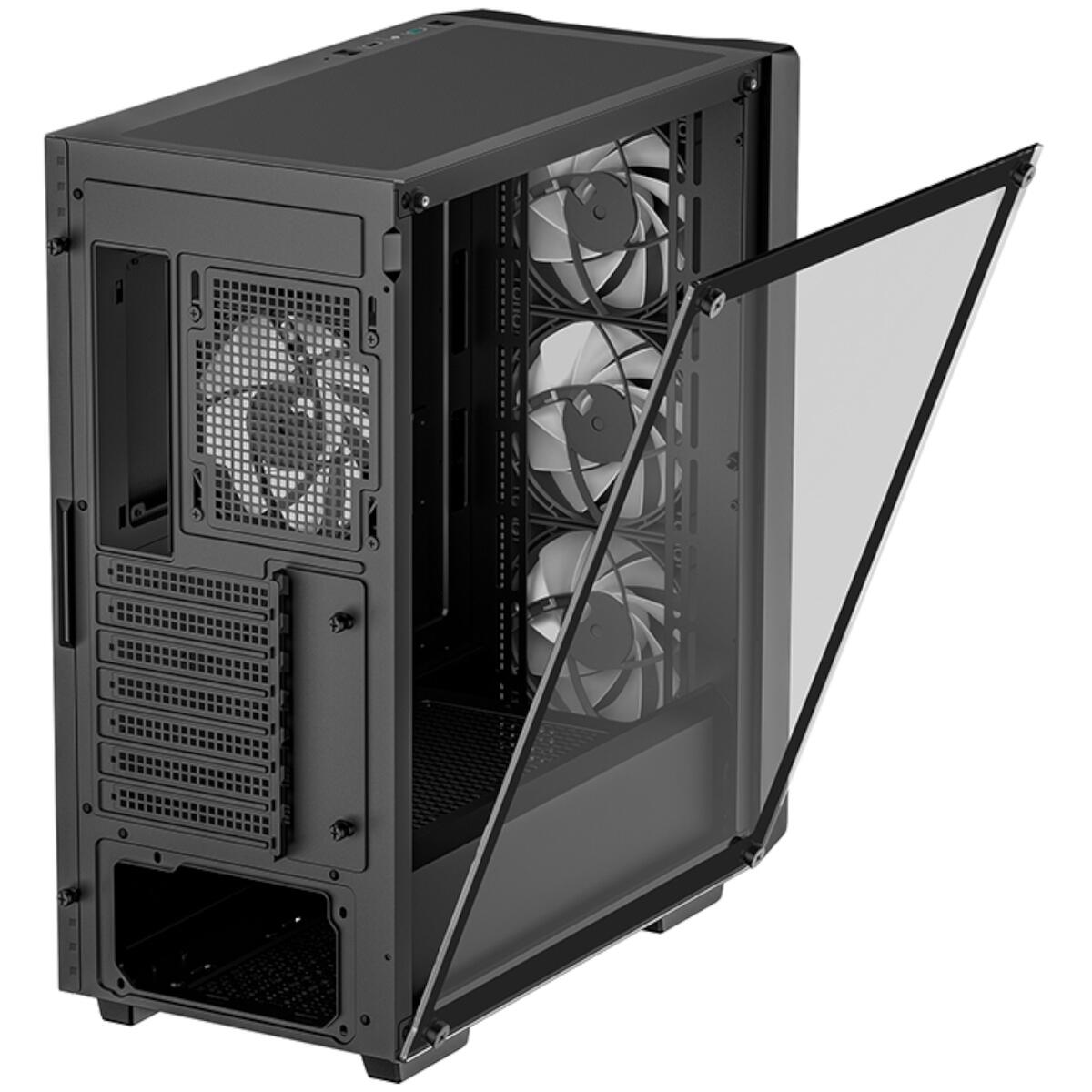

Four 120mm ARGB fans come pre-installed straight out of the box — three at the front for intake and one at the rear for exhaust — covering the primary airflow positions from the first boot. The fans are PWM-capable for speed control and ARGB-enabled for motherboard lighting sync. An LED control button on the front I/O lets you cycle through preset lighting effects independently if your motherboard doesn’t have an ARGB header. A standout V2 upgrade over the original CC560 is PSU shroud fan support — two additional 120mm fans can be mounted on the shroud to push fresh air directly across a power-hungry GPU, a meaningful thermal benefit for higher-wattage builds. Total fan support tops out at 8× 120mm or 5× 140mm simultaneously.

Broad Compatibility and Practical Storage

The CC560 MESH V2 comfortably accommodates the full spectrum of mainstream build configurations. E-ATX, ATX, Micro-ATX, and Mini-ITX motherboards all fit, and GPU clearance extends to 370mm — enough headroom for most current-generation cards including high-end AIB models. CPU tower coolers up to 165mm tall are supported, and PSUs up to 170mm in length fit without HDD tray removal. Storage is handled with two 3.5″ HDD bays (one of which can be converted to a 2.5″ SSD bay) and two dedicated 2.5″ SSD mounting positions on the motherboard backplate. Cable management clearance sits at 20mm behind the tray — tight but functional, and the reinforced chassis and glass panel give the build a more premium feel than the price suggests.

⚠️ Front I/O Note: The CC560 MESH V2 provides one USB 3.0 and one USB 2.0 port on the front panel. If your workflow relies on multiple front USB 3.0 connections simultaneously, factor this in against higher-tier options.

⚠️ GPU Clearance Note: With the 370mm GPU length limit, the vast majority of current-gen cards fit comfortably. If you’re running a particularly long flagship card, verify the exact length of your specific AIB model before building.

Key Highlights

• Form Factor: Mid Tower (E-ATX / ATX / Micro-ATX / Mini-ITX)
• GPU Clearance: Up to 370mm
• CPU Cooler Clearance: Up to 165mm
• Max PSU Length: Up to 170mm
• Pre-Installed Fans: 4× 120mm ARGB (3 Front, 1 Rear)
• Max Fan Support: Up to 8× 120mm or 5× 140mm simultaneously
• PSU Shroud Fan Support: 2× 120mm (additional)
• Radiator Support: Front: 120 / 140 / 240 / 280 / 360mm | Top: 120 / 140 / 240mm | Rear: 120mm
• Drive Bays: 2× 3.5″ HDD (1 convertible to 2.5″), 2× 2.5″ SSD (backplate mounted)
• Expansion Slots: 7
• Front I/O: 1× USB 3.0, 1× USB 2.0, HD Audio Combo Jack, LED Control
• Side Panel: Reinforced Tempered Glass
• Top Dust Filter: Magnetic, tool-free
• Cable Management: 20mm rear clearance
• Dimensions: 432 × 215 × 483mm (D × W × H)
• PSU: Not included (standard ATX)
• Colour: Black
