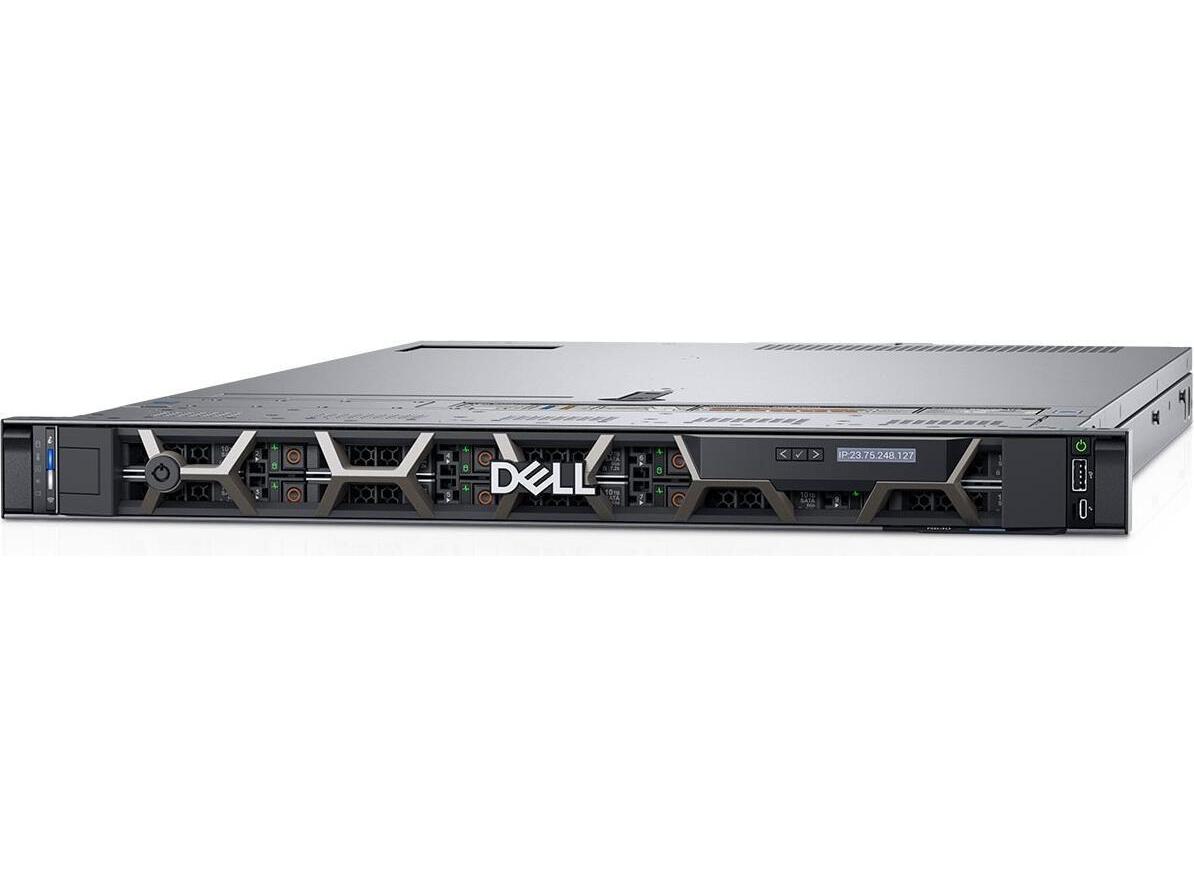

Dell EMC PowerEdge R640 1U (2x Intel Xeon Platinum 2.1GHz, 10x 2.5″ Bays) Server

Description

High-Core-Count 1U Performance, Ready to Configure

The PowerEdge R640 is Dell’s 14th-generation 1U two-socket rack server — the go-to platform for dense data centre deployments where performance per rack unit matters. This unit comes pre-fitted with two Intel Xeon Platinum 8176 processors: each is a 28-core, 56-thread Skylake-SP CPU running at 2.1GHz with a 3.8GHz Turbo Boost ceiling and a 38.5MB L3 cache. Combined, you’re working with 56 physical cores and 112 threads from the factory — a serious foundation for virtualisation hosts, HPC workloads, and large database deployments.

The 10 x 2.5″ SFF hot-swap backplane supports SAS, SATA, and — depending on the backplane variant fitted — NVMe drives, giving you flexibility in how you build out storage. Dual redundant 750W PSUs are installed, providing hot-swap power redundancy out of the box.

Memory and Storage — Your Choice

The R640 has 24 DDR4 memory slots — 12 per processor — supporting a maximum of 3TB of RAM. This unit ships with all 24 slots empty, so you select the capacity, speed, and DIMM type that suits your workload and budget. A RAID controller will be required to make use of the drive bays — compatible options include the PERC H330, H730P, and H740P.

Management

Remote management is handled by iDRAC9 with Lifecycle Controller, providing out-of-band access for remote console, power management, firmware updates, and server provisioning. QuickSync 2 is supported for mobile-based management access. The R640 integrates with Dell OpenManage Enterprise for centralised multi-server management.

⚠️ No RAM included — 24 x DDR4 DIMM slots (12 per CPU), max 3TB. ECC RDIMMs or LRDIMMs required.

⚠️ No drives included — 10 x 2.5″ hot-swap SFF bays. SAS/SATA supported; NVMe support depends on the backplane variant fitted — verify before purchasing NVMe drives.

⚠️ No OS included — compatible with Windows Server, RHEL, VMware ESXi, and other supported platforms.

⚠️ No bezel included — front bezel must be sourced separately if required.

⚠️ 165W TDP per processor — confirm your rack power budget and cooling capacity before deployment. Two CPUs at full load draw substantial power.

Key Highlights

• 1U dual-socket rack server (14th Gen Dell PowerEdge)
• 2x Intel Xeon Platinum 8176 installed — 28 cores / 56 threads each, 56 cores / 112 threads total
• 2.1GHz base, 3.8GHz Turbo Boost, 38.5MB L3 cache per CPU

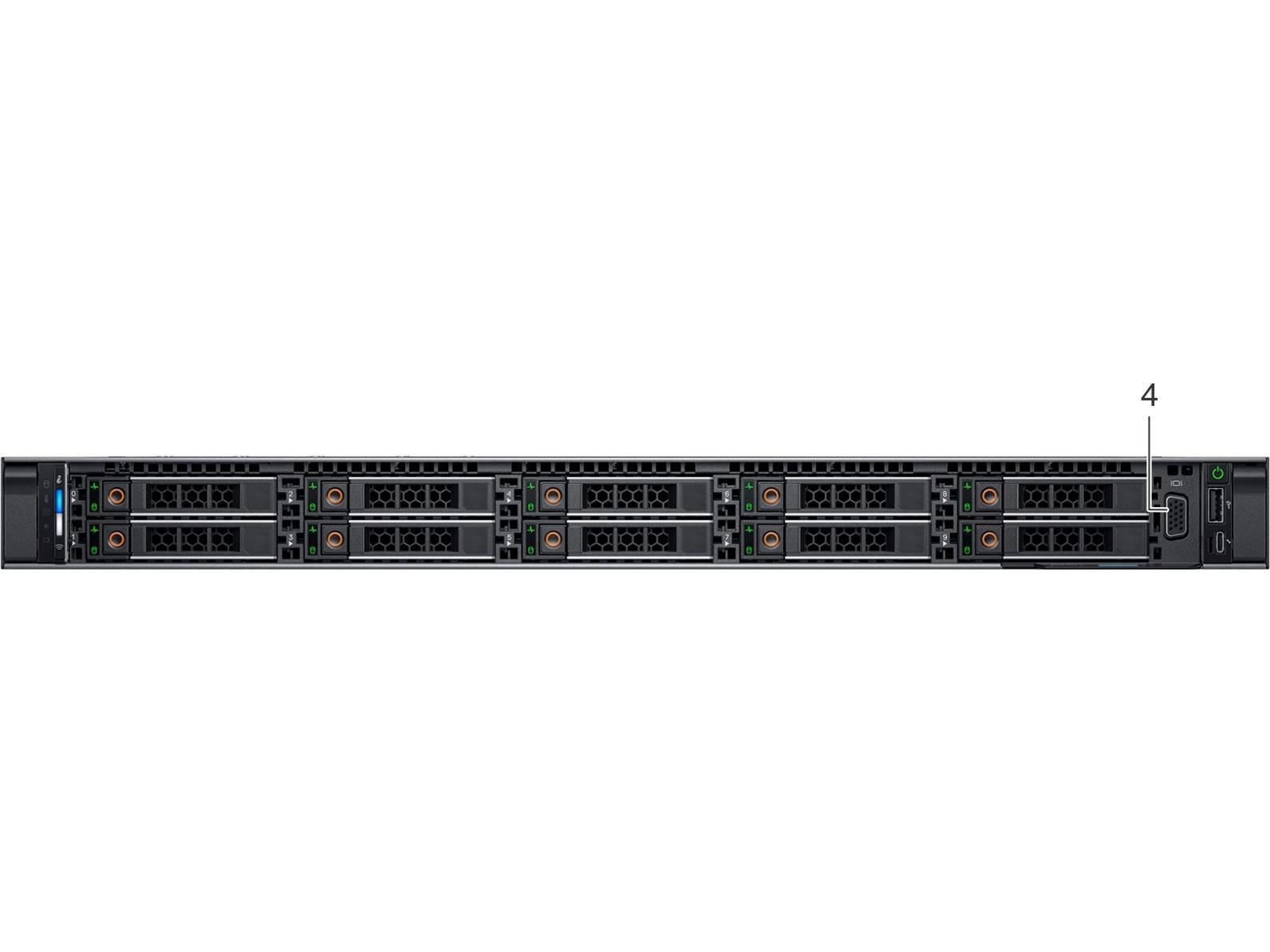

• 10 x 2.5″ hot-swap SFF bays — SAS/SATA (NVMe backplane variant dependent)
• 24 x DDR4 DIMM slots — empty, expandable to 3TB
• H730P Mini PERC RAID Controller
• Dell Intel I350 Quad-Port Gigabit Network Daughter Card
• Dell Mellanox ConnectX 4LX 25GbE Dual Port SFP PCIe Adapter
• Dual 750W hot-plug redundant PSUs included
• iDRAC9 with Lifecycle Controller
• No RAM, drives, bezel, or OS — configure to your requirements
