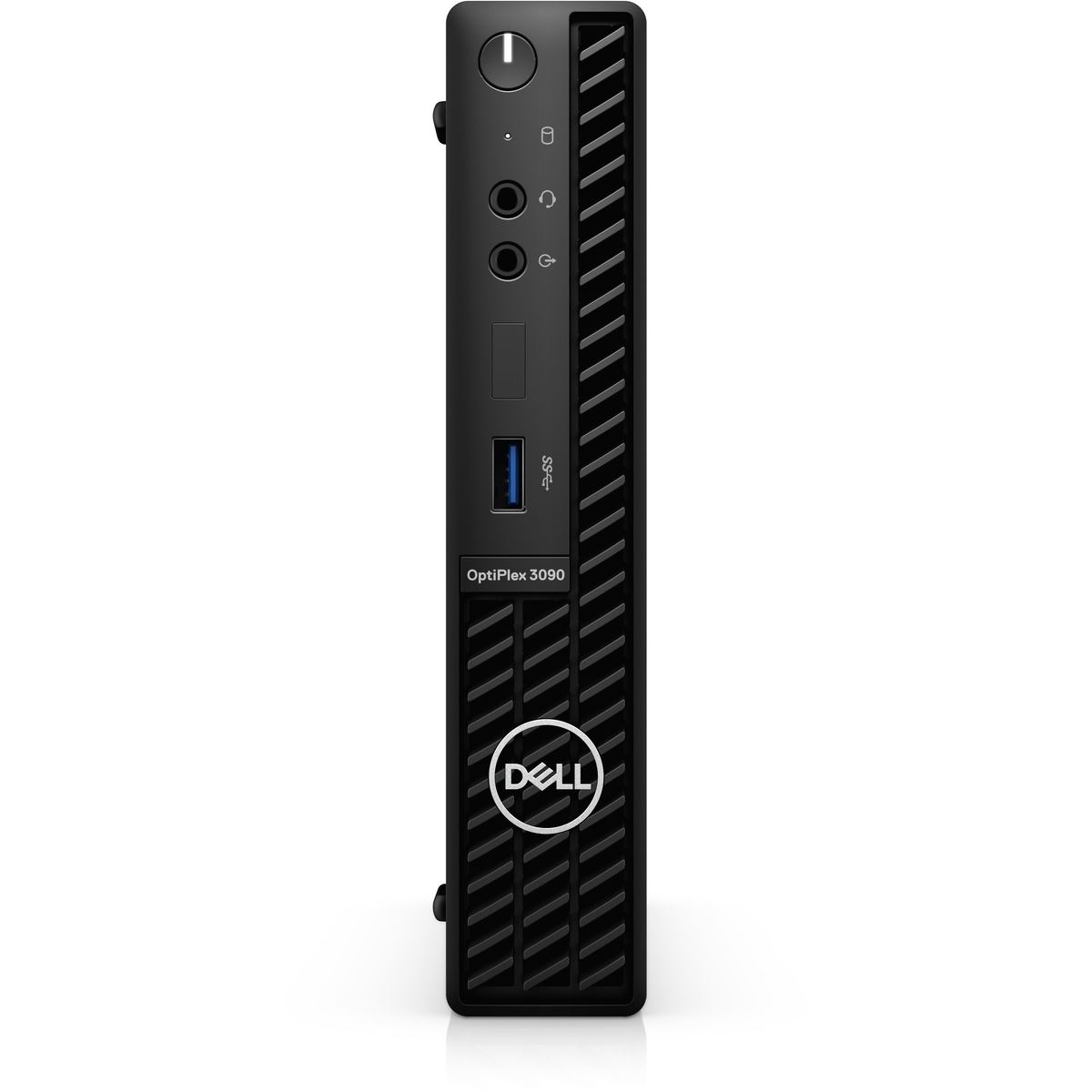

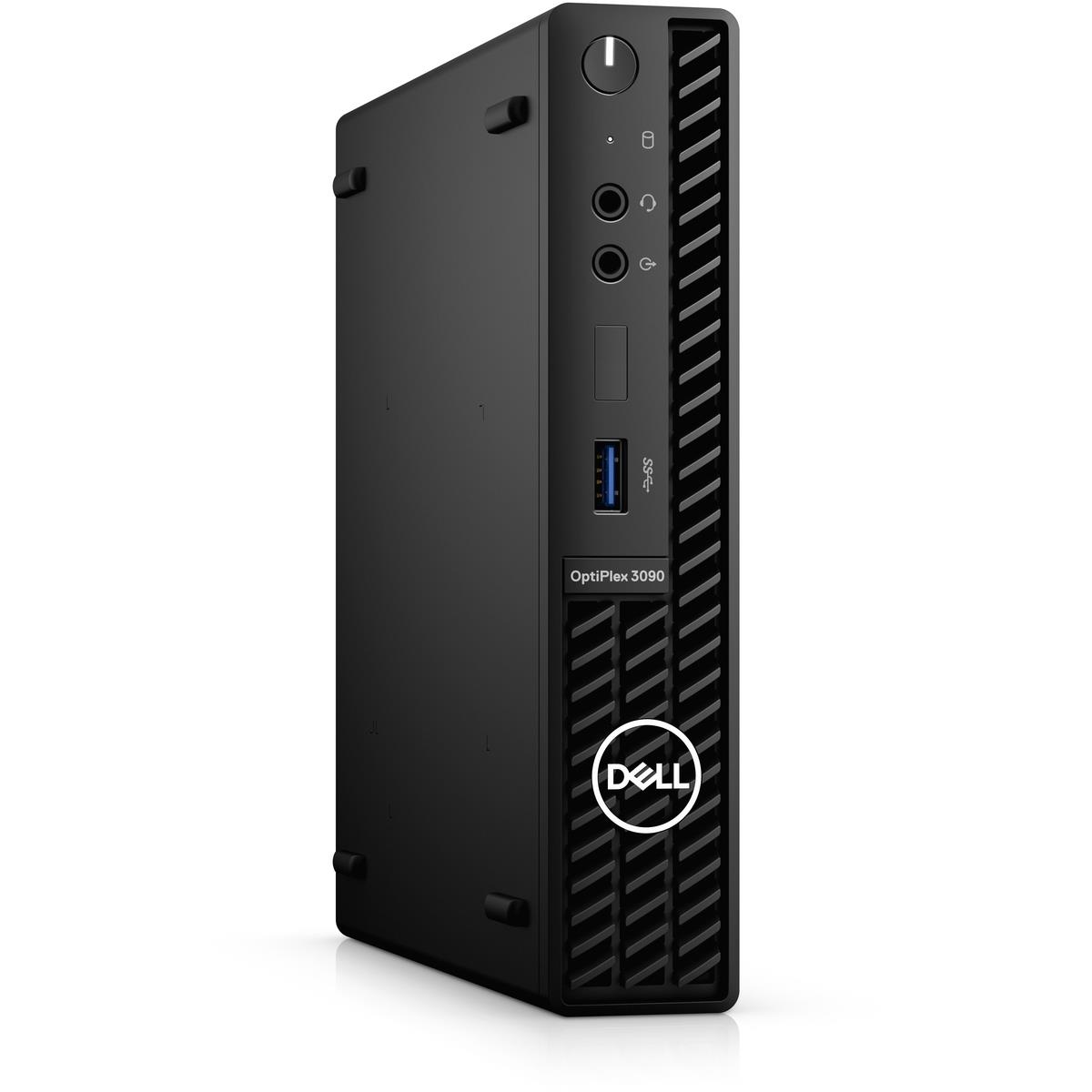

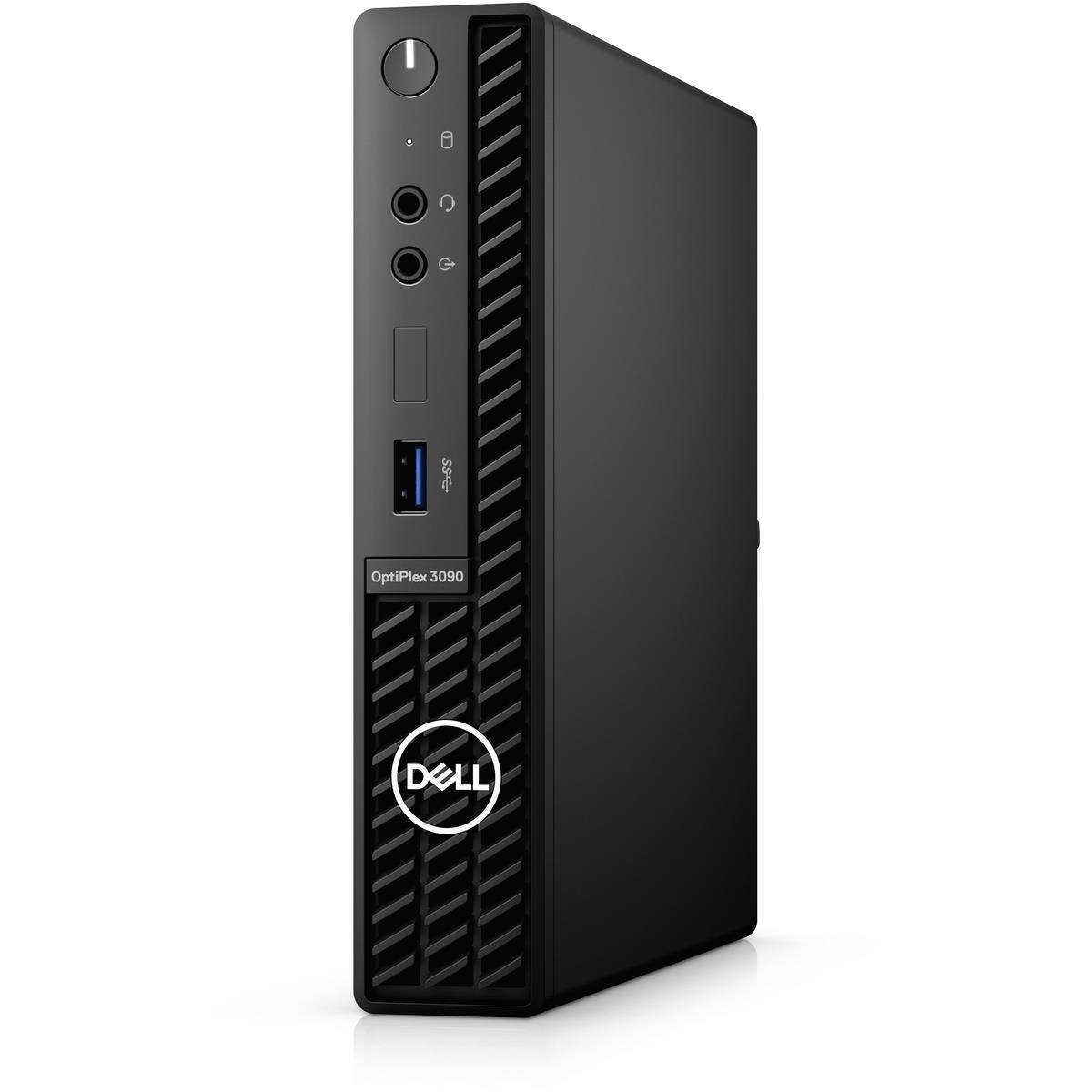

Dell Optiplex 3090 (Intel Core i3) MFF

Description

Full Business Desktop Performance in a Near-Invisible Footprint

The Dell OptiPlex 3090 Micro is Dell’s Micro Form Factor desktop — a complete business PC in a 36 × 178.56 × 182 mm chassis that weighs just over a kilogram and can be mounted directly to the back of a monitor via a VESA bracket, tucked behind a desk, or deployed in space-constrained environments where a conventional desktop simply won’t fit. Despite its size, it delivers genuine 10th Generation Intel Core i3-10100T performance (4 cores, 8 threads, 3.0 GHz base / 3.8 GHz boost) with full Windows 11 Pro compatibility, two DisplayPort 1.4 outputs for dual-monitor productivity, and a 256 GB M.2 SSD that boots and launches applications at SSD speeds rather than the sluggish pace of a spinning drive.

The Q470 chipset provides Intel’s commercial platform features including vPro manageability (where configured), TPM 2.0 hardware security, and Secure Boot support. The 65W external AC power adapter keeps the unit fanless-quiet in typical office loads and eliminates the need for an internal PSU, contributing to the chassis’s compact dimensions. Two SODIMM slots allow memory expansion up to 64 GB for more demanding workloads, and a SATA slot accommodates an optional 2.5″ HDD or SATA SSD for additional storage alongside the M.2 primary drive.

💡 With an optional VESA mount bracket, the OptiPlex 3090 Micro attaches directly to the back of a compatible monitor — effectively disappearing from the desk entirely. This makes it an excellent choice for reception counters, point-of-sale environments, hot desk deployments, digital signage, and any space where visible hardware is undesirable.

⚠️ No discrete GPU expansion is possible — the Micro form factor has no PCIe expansion slot. Display output relies entirely on Intel UHD 630 integrated graphics. This system is suited to productivity, web browsing, video conferencing, and office applications, but not gaming or GPU-accelerated workloads.

⚠️ Wi-Fi is not included by default. An M.2 2230 Wi-Fi card (optional Dell upgrade) is required for wireless connectivity. Confirm with your supplier whether the wireless module is included in this specific unit’s configuration.

⚠️ The 65W external power brick is proprietary to this platform. Standard ATX power supplies are not compatible.

Technical Specifications

The OptiPlex 3090 Micro uses an Intel Q470 chipset with two SODIMM slots supporting up to 64 GB of DDR4-2666 MHz memory. The 256 GB M.2 SSD occupies the 2230/2280 M.2 slot. Integrated Intel UHD 630 graphics drive dual DisplayPort 1.4 outputs on the rear. Front connectivity includes 1× USB 3.2 Gen1 Type-A, a universal audio jack, and a re-tasking line out/line-in audio port. Rear connectivity includes 1× USB 3.2 Gen1 Type-A with Smart Power On, 3× USB 3.2 Gen1 Type-A, 2× DisplayPort 1.4, and 1× RJ-45 Gigabit Ethernet. An optional third video port (VGA/DP 1.4/HDMI 2.0b) is available by configuration. The system ships with a wired USB keyboard and mouse.

Key Highlights

• Intel Core i3-10100T — 10th Gen Comet Lake, 4 cores / 8 threads, 3.0–3.8 GHz, 35W TDP
• Intel Q470 chipset
• 8 GB DDR4-2666 MHz SODIMM RAM — 2 slots, expandable to 64 GB
• 256 GB M.2 SSD (PCIe NVMe or SATA, 2230/2280 slot)
• Intel UHD 630 integrated graphics — no discrete GPU possible
• Micro Form Factor — 36 × 178.56 × 182 mm, 1.16 kg
• VESA mount compatible (optional bracket)
• 2× DisplayPort 1.4 (rear) — dual-monitor support out of the box
• Optional 3rd video port (VGA/DP 1.4/HDMI 2.0b, by configuration)

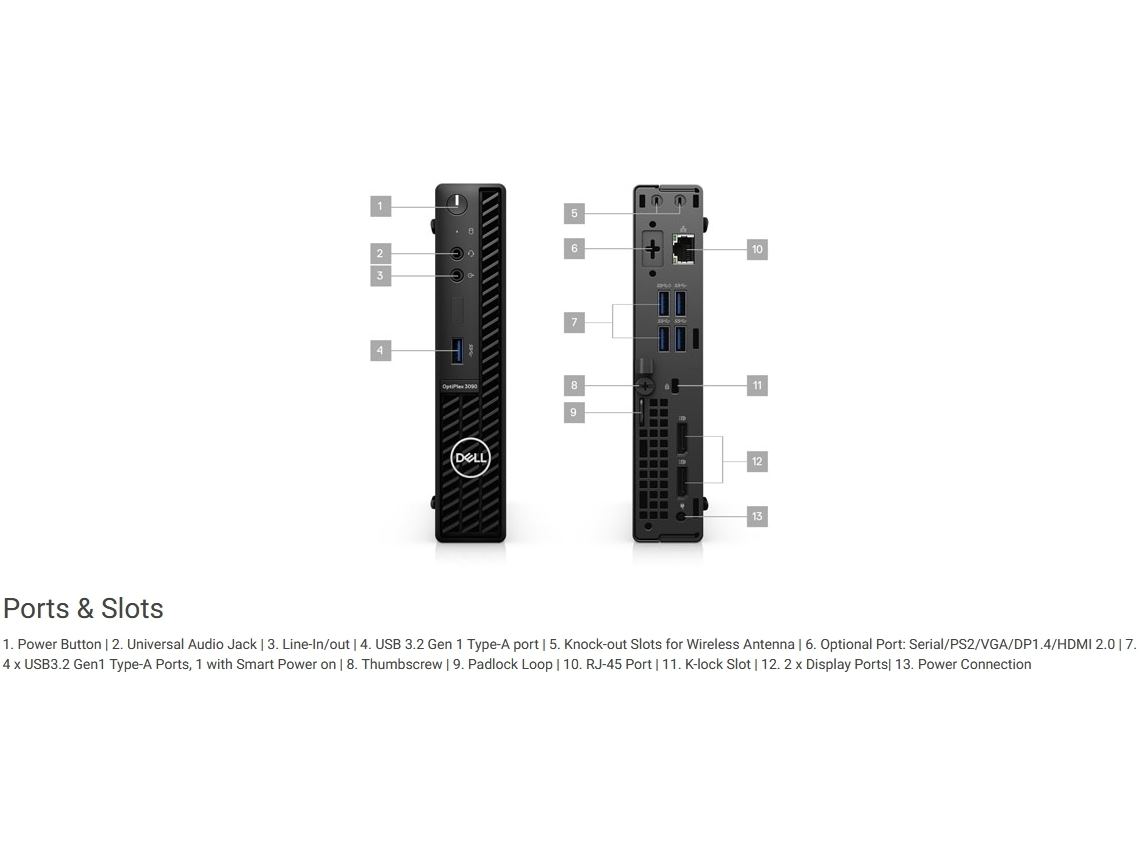

• Front: 1× USB 3.2 Gen1 Type-A + universal audio jack + re-tasking audio

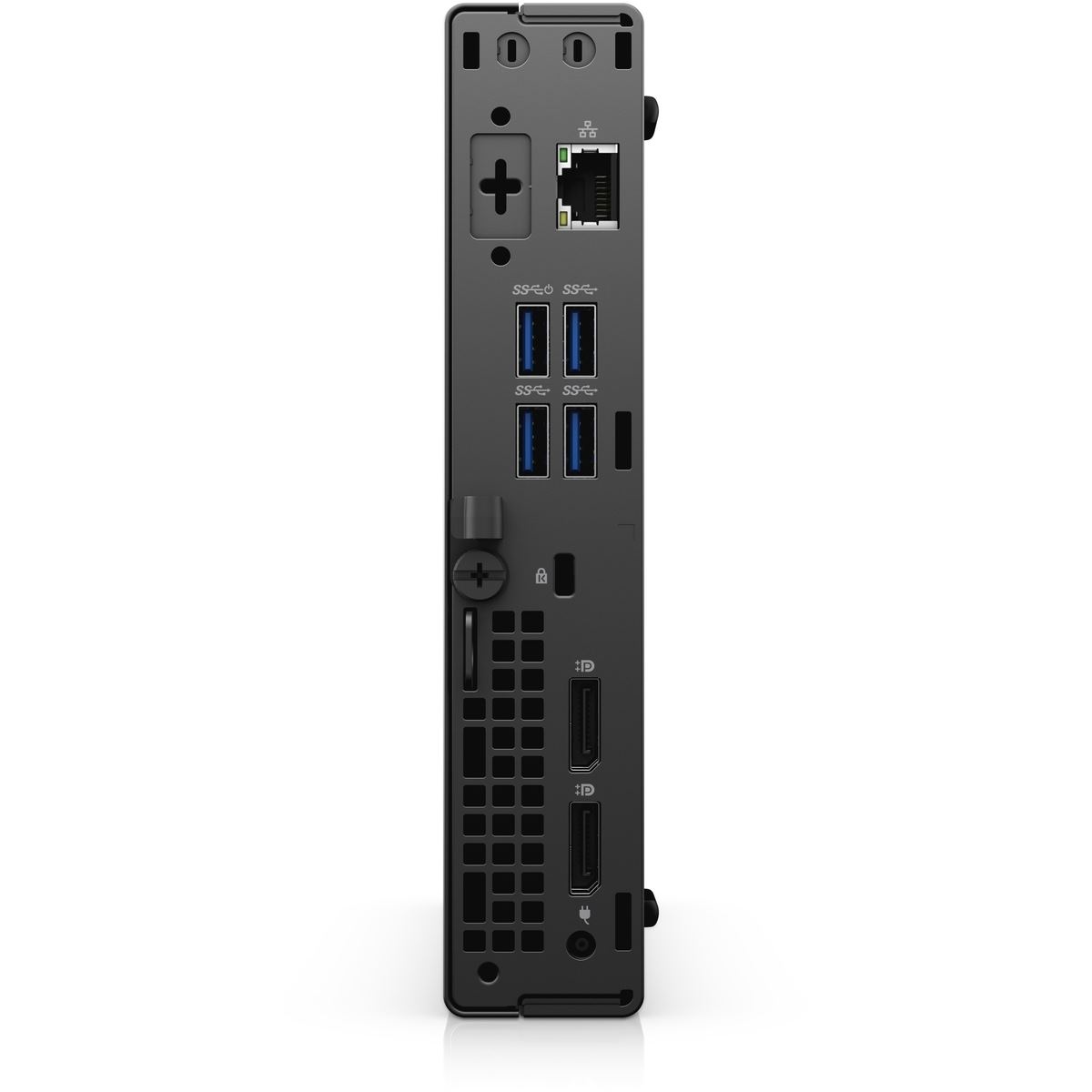

• Rear: 4× USB 3.2 Gen1 Type-A (1 with Smart Power On)
• 1× RJ-45 Gigabit Ethernet
• No onboard Wi-Fi — optional M.2 2230 Wi-Fi/BT card upgrade
• SATA slot for optional 2.5″ HDD/SSD (internal)
• 65W external AC power adapter (no internal PSU)
• Kensington cable-lock slot
• Windows 10 Pro / Windows 11 Pro
• Wired USB keyboard and mouse included
• Dell commercial-grade build, TPM 2.0, Secure Boot
• ENERGY STAR and EPEAT registered configurations available
