Gigabyte AORUS Radeon™ RX 9070 XT Elite (16GB GDDR6)

Description

AORUS Elite — Gigabyte’s Flagship Tier Over the Gaming OC

The AORUS Elite sits at the top of Gigabyte’s RX 9070 XT lineup, a clear step above the Gaming OC in cooling hardware, build quality, feature set, and warranty coverage. Where the Gaming OC uses a copper plate heatsink, the AORUS Elite uses a large vapour chamber — a higher-end thermal solution that spreads heat across the full heatsink surface simultaneously rather than relying on heatpipes to carry it progressively. Both cards share the same 3100 MHz factory boost clock ceiling, but the Elite sustains it more comfortably under prolonged load thanks to the more capable thermal foundation. Gigabyte backs the AORUS Elite with a 4-year warranty on online registration — the longest coverage of any RX 9070 XT in our range.

3100 MHz Factory OC — and Likely More in Practice

The AORUS Elite is factory overclocked to 3100 MHz boost and 2570 MHz game clock — 130 MHz above AMD’s reference boost and tied with the ASRock Taichi for the highest factory OC of any RX 9070 XT we stock. Real-world owner testing reports actual boost clocks reaching 3150 MHz out of the box, with hotspot temperatures remaining below 65°C under gaming load using a conservative fan curve where fans barely spin above 1000 RPM under typical conditions. There’s strong evidence from 3DMark leaderboard data that AORUS cards benefit from particularly aggressive silicon binning — Gigabyte AORUS models are significantly overrepresented in the top 10 Time Spy, Port Royal, and Steel Nomad scores for this GPU tier, which suggests the silicon selected for the AORUS line is consistently better quality than average. For overclockers and benchmark enthusiasts, that’s a meaningful differentiator beyond the spec sheet.

Vapour Chamber, Hawk Fans, Server-Grade Thermal Gel

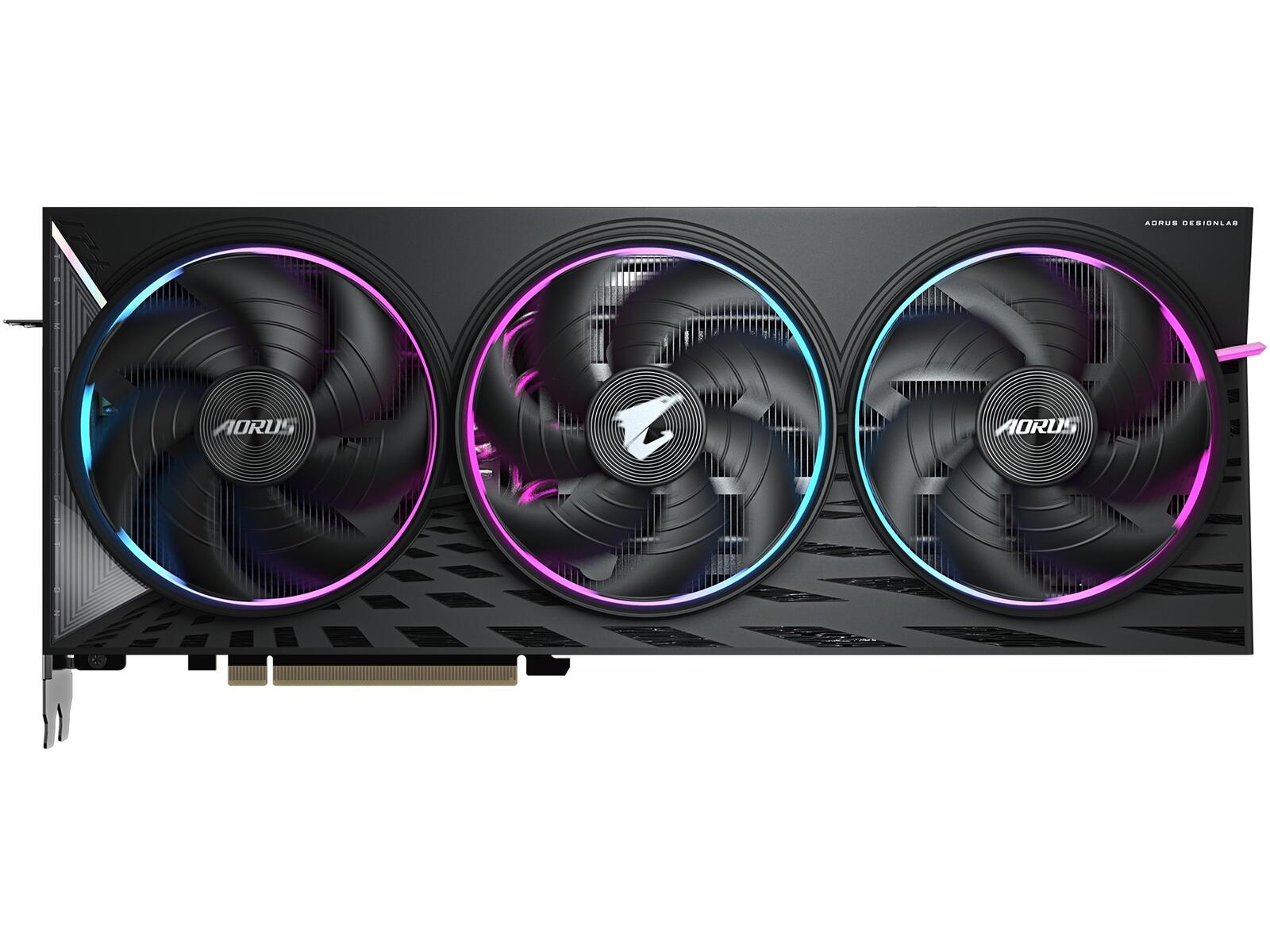

The WINDFORCE cooling system on the AORUS Elite combines a large vapour chamber, Hawk fans with alternate spin directions, composite copper heatpipes, server-grade thermal conductive gel, 3D active fan mode, and screen cooling. The Hawk fan blade design — aerodynamics derived from eagle wing profiles — delivers higher static pressure and airflow volume at equivalent noise levels compared to conventional fan designs. Server-grade thermal gel at the GPU die interface provides superior long-term thermal stability over standard paste. 3D active fan mode stops all fans entirely under light load. The result is one of the quietest and coolest-running RX 9070 XT designs available at this clock speed.

RGB Halo, Dual BIOS, Versatile VGA Holder

RGB Halo lighting runs around the fan shroud and AORUS logo, controllable via GIGABYTE Control Center (GCC) with full colour and effect customisation. The physical Dual BIOS switch toggles between Performance and Silent profiles without software. A reinforced card structure manages the 339mm length and triple-slot footprint, and a versatile VGA holder is included in the box to support the card’s weight in the PCIe slot. GCC handles overclocking, fan curves, RGB, and real-time system monitoring from a single interface.

⚠️ PSU requirement: Three 8-pin PCIe connectors and a genuine 850W PSU are required. Confirm your PSU has three available 8-pin PCIe outputs before purchasing. A quality unit from a reputable manufacturer is strongly recommended at this power level.

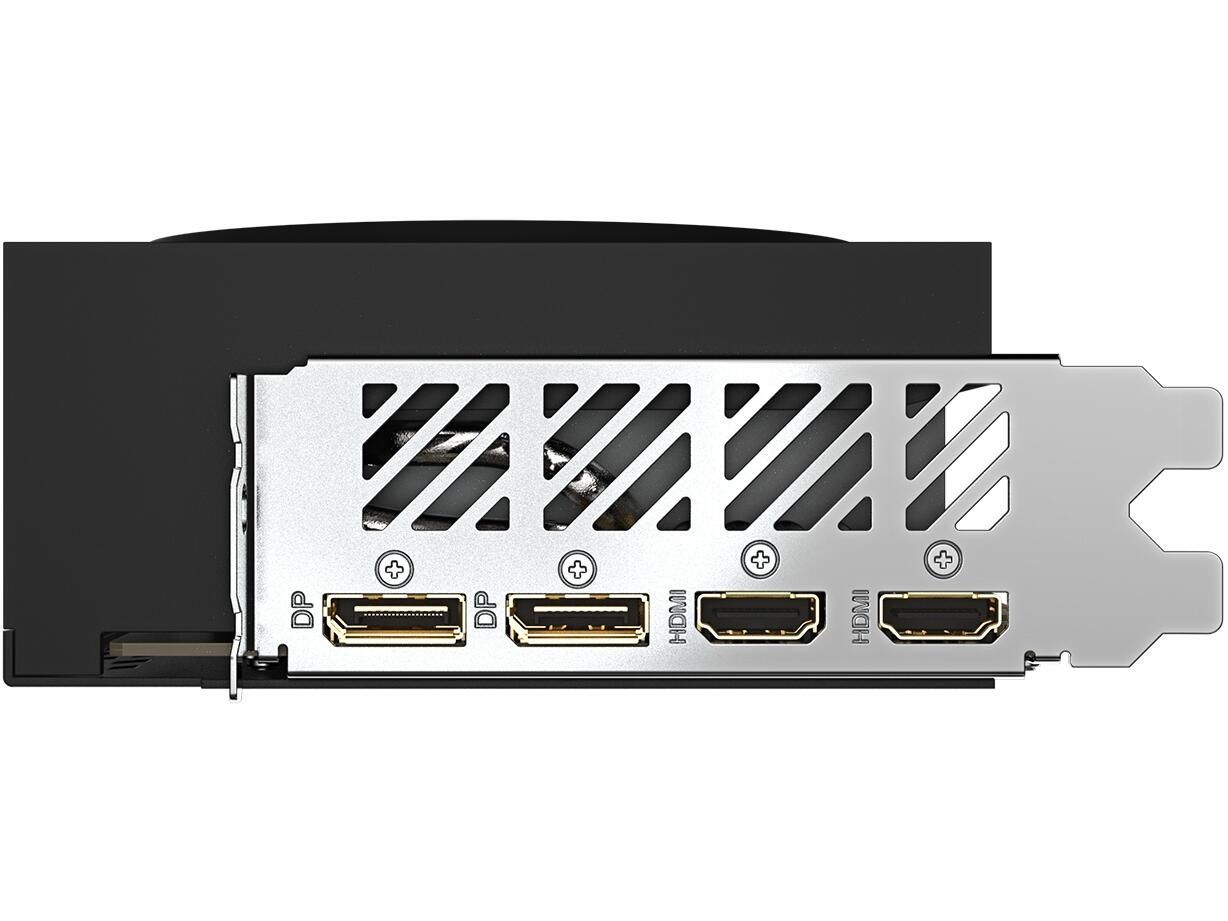

⚠️ Output layout: 2× DisplayPort 2.1a and 2× HDMI 2.1b — a 2+2 split. If your multi-monitor setup requires three DisplayPort outputs, consider the ASRock Steel Legend or Taichi which carry a 3+1 layout.

⚠️ Case clearance: At 339mm in length and 3 slots wide, this is among the largest cards in our RX 9070 XT range. Verify GPU clearance in your case before purchasing, particularly in mATX builds.

⚠️ 4-year warranty: Requires online registration with Gigabyte. Standard warranty applies without registration — register at time of purchase to secure the full coverage period.

Specs at a Glance

• GPU: AMD Radeon RX 9070 XT (RDNA 4, Navi 48, 4nm)
• Compute Units: 64 | Stream Processors: 4096
• Boost Clock (OC): Up to 3100 MHz | Game Clock: Up to 2570 MHz
• Memory: 16GB GDDR6, 256-bit, 20 Gbps | Bandwidth: 640 GB/s
• Cooling: Vapour chamber + WINDFORCE Hawk triple-fan + server-grade thermal gel
• Outputs: 2× DisplayPort 2.1a, 2× HDMI 2.1b (4 displays max)
• Power Connectors: 3× 8-pin PCIe | Recommended PSU: 850W
• Dimensions: 339 × 136 × 59mm (3-slot)
• PCIe: 5.0 | DirectX: 12 Ultimate | OpenGL: 4.6
• Warranty: 4 years (online registration required)

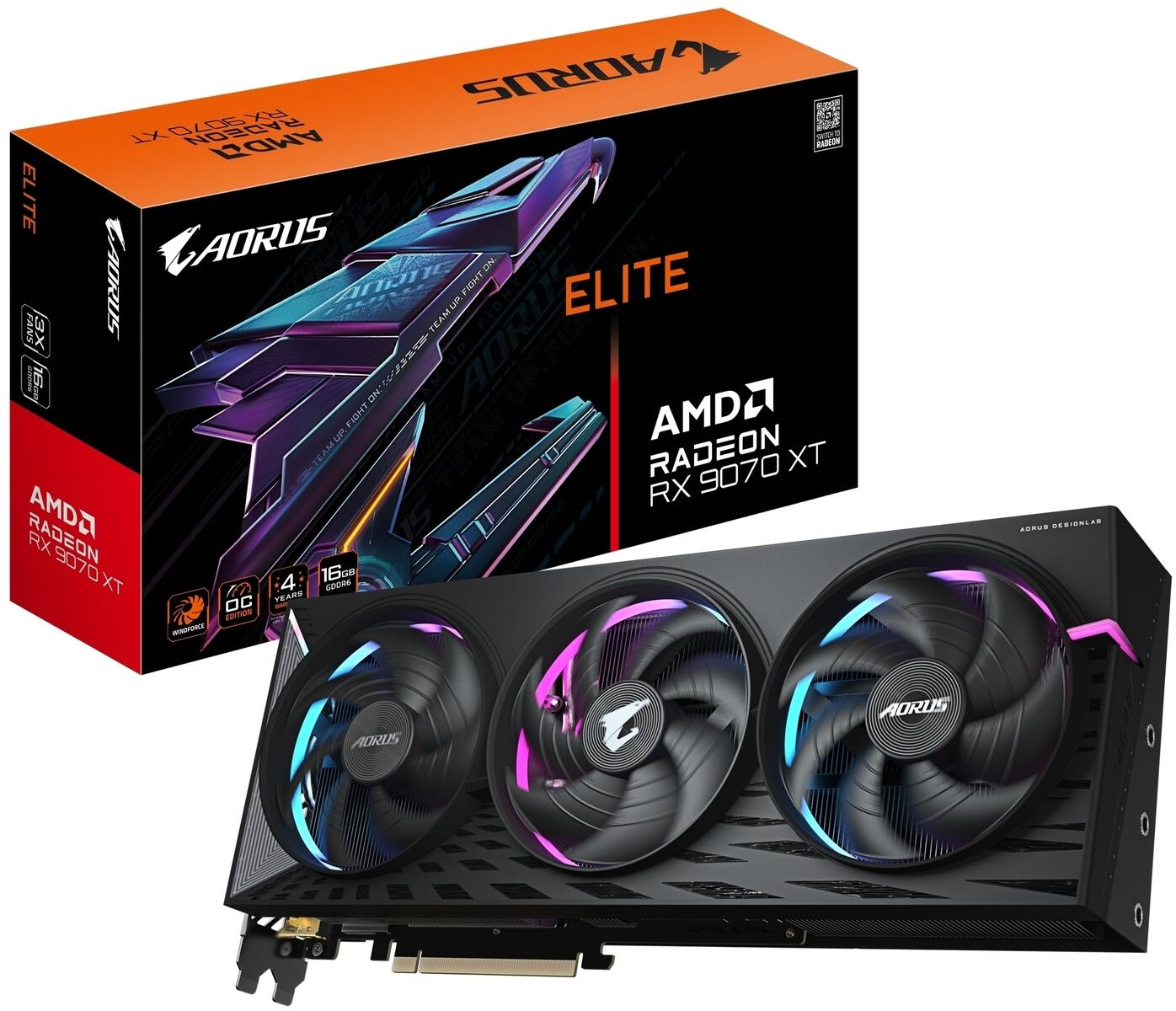

• Includes: VGA holder, AORUS metal sticker, warranty registration card
• Features: Dual BIOS (Performance/Silent), RGB Halo, FSR 4, HYPR-RX, Fluid Motion Frames, AV1 encoding
