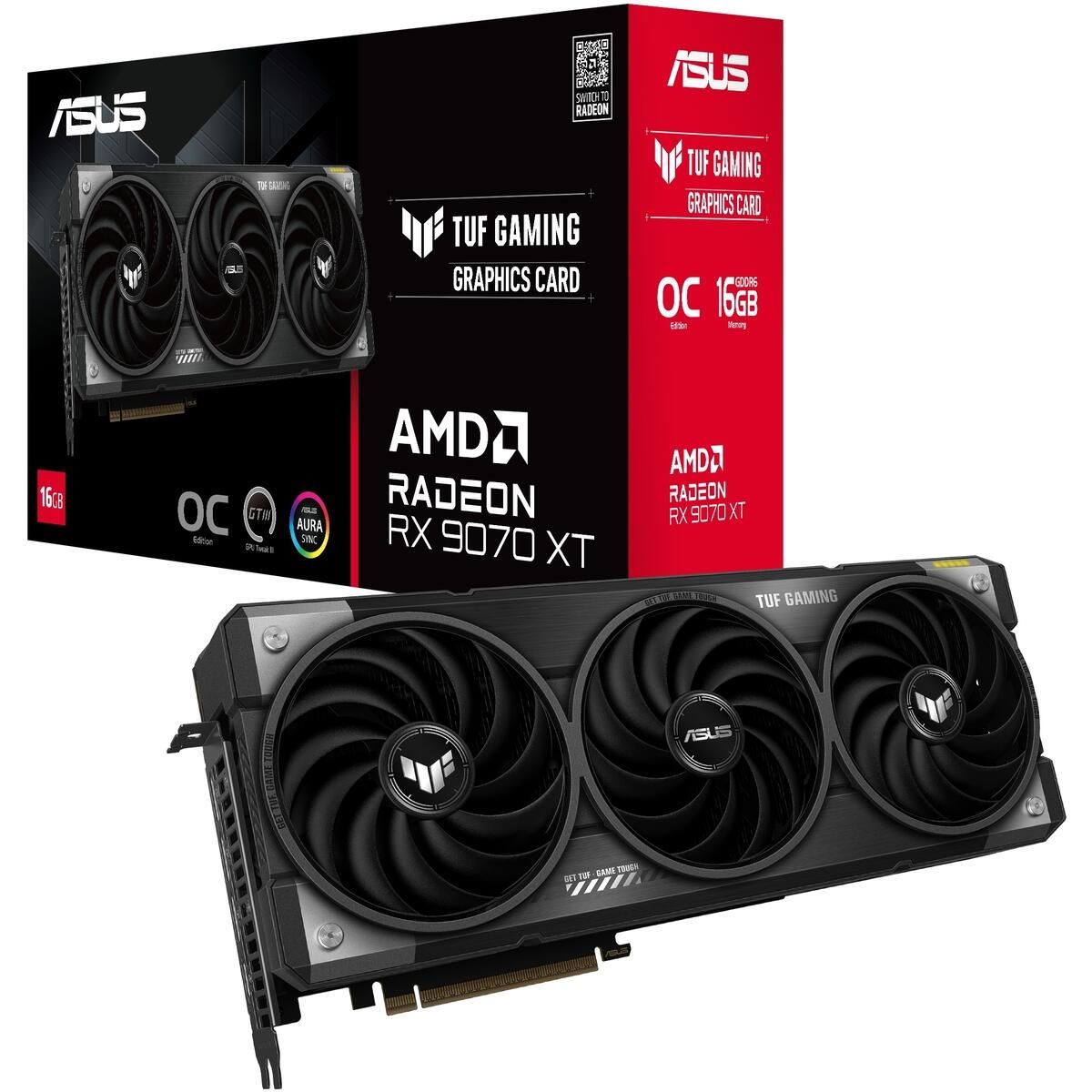

Asus TUF Radeon™ RX 9070 XT Gaming OC (16GB GDDR6)

Description

ASUS’s Flagship RX 9070 XT — Full Die, Full Feature Set

The TUF Gaming is ASUS’s highest-tier Radeon RX 9070 XT offering, sitting above the Prime in build quality, cooling capability, and feature set. The full Navi 48 die runs at 64 compute units and 4096 stream processors — the complete RDNA 4 package, with 3rd-generation RT accelerators delivering approximately 2× the ray intersection performance of RDNA 3, and 2nd-generation AI accelerators enabling FSR 4’s machine-learning upscaling. The factory OC pushes the boost clock to 3080 MHz in OC mode and 3060 MHz in Default mode — both meaningfully above AMD’s reference 2970 MHz, with game clocks of 2540 MHz and 2520 MHz respectively. This places the TUF XT between the Prime XT (3030 MHz) and the ASRock Taichi OC (3100 MHz) in our range. FSR 4, HYPR-RX, Fluid Motion Frames, Anti-Lag 2, and hardware AV1 encoding are fully supported.

The Strongest Cooler in Its Class

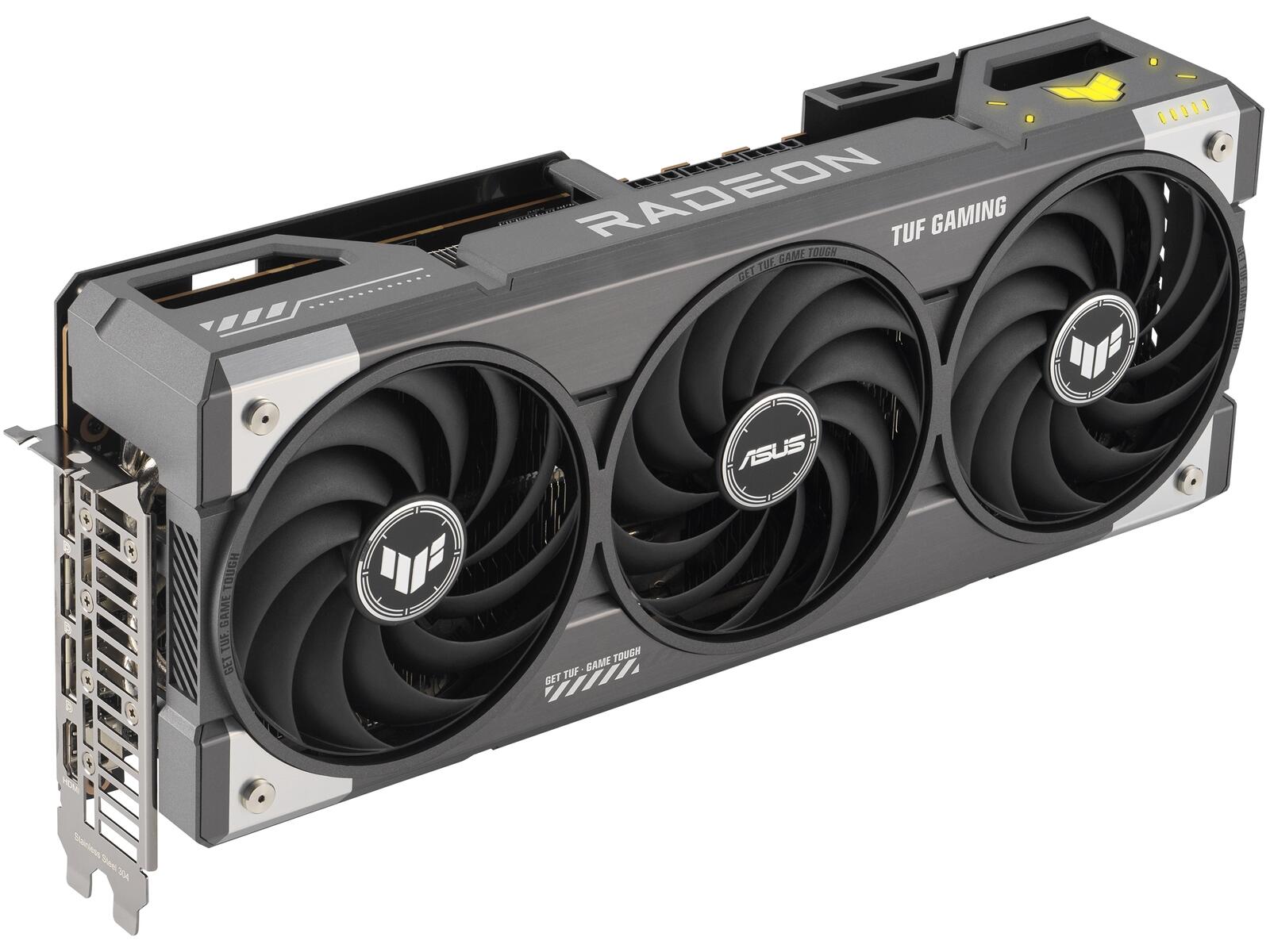

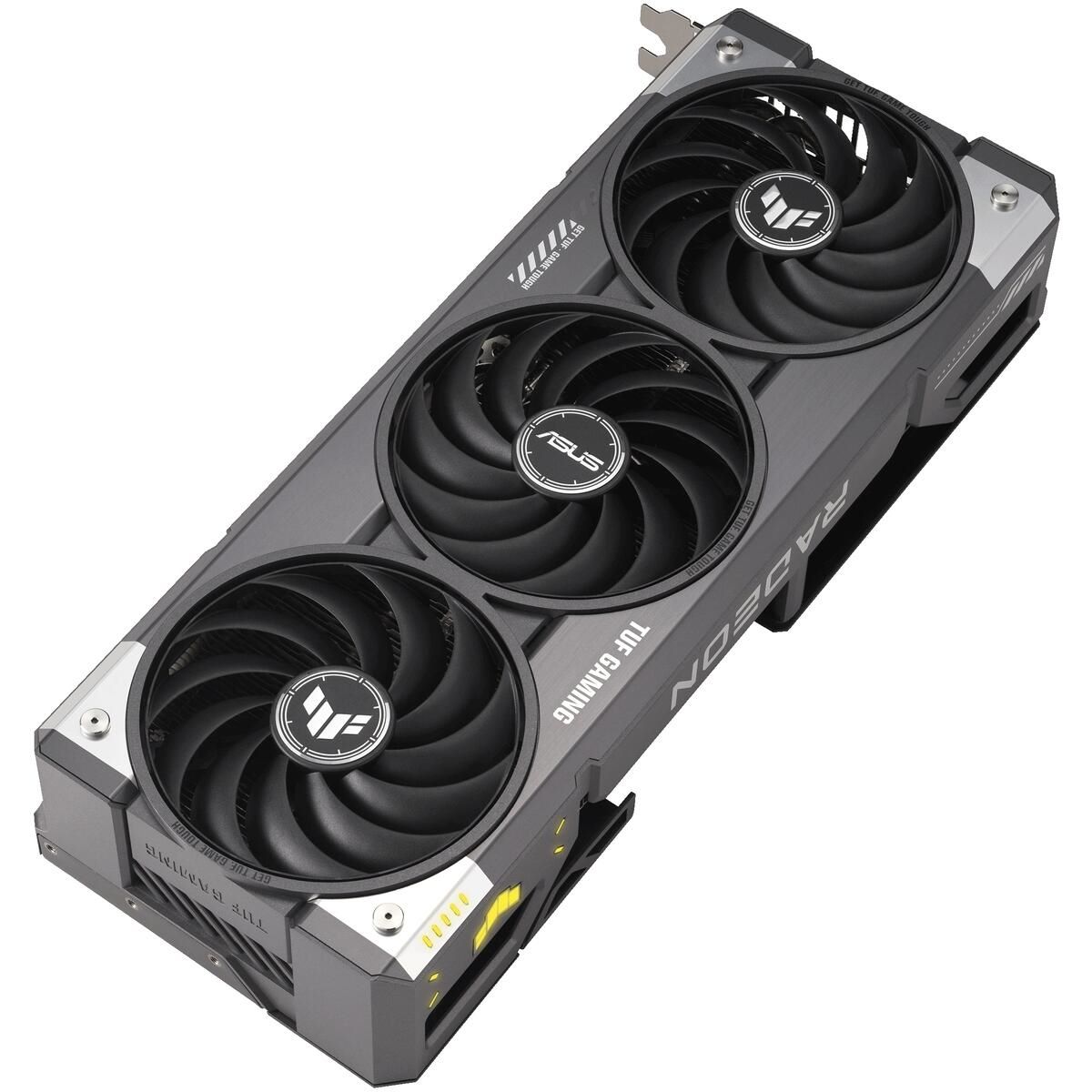

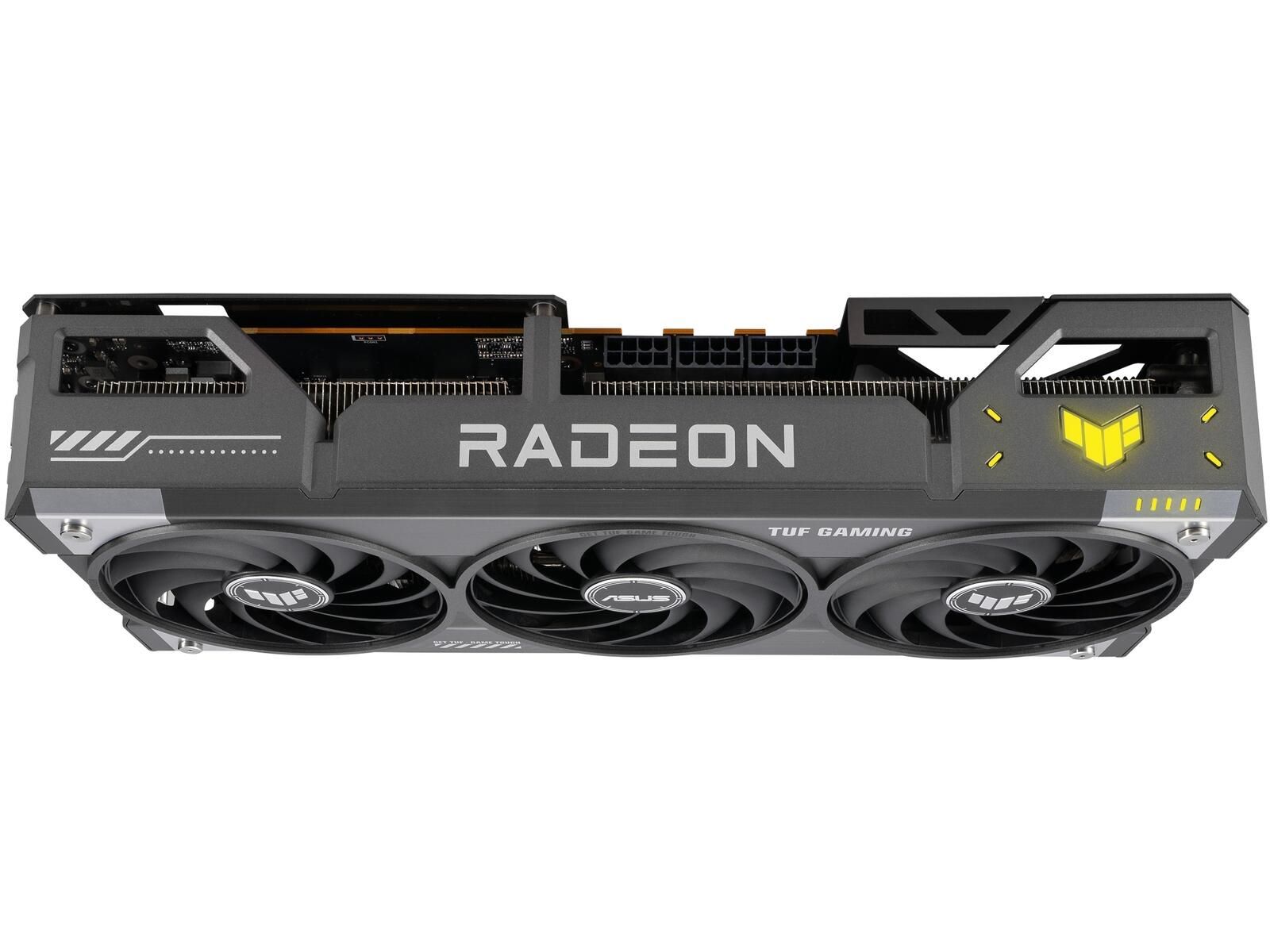

TechPowerUp confirmed the ASUS TUF Gaming RX 9070 XT OC as the most powerful cooler of all RX 9070 XT cards they tested, with excellent noise levels on the quiet BIOS. The cooling stack builds on every element from the non-XT TUF: MaxContact expands the heat spreader surface area by 5% for up to 2°C temperature improvement at the die interface, paired with a phase-change GPU thermal pad that liquefies at operating temperature for near-perfect contact. Three Axial-tech fans spin on dual ball bearings delivering up to 31% more airflow than standard fans, with the two outer fans counterclockwise to reduce turbulence. The vented exoskeleton — a diecast aluminium shroud and aluminium backplate with large cutouts — actively channels heat out of the card rather than trapping it. All fans stop below 55°C and resume above 60°C on a thermal curve tuned for balanced acoustics.

Military-Grade Components, Conformal Coating, Auto-Extreme

TUF chokes and MOSFETs are certified military-grade, backed by TUF 5K black metallic capacitors offering 52% wider temperature tolerance and 2.5× longer operational lifespan than standard capacitors. The entire PCB is coated with a conformal protective layer against moisture, dust, debris, vibration, and humidity — a meaningful differentiator for South African coastal and industrial environments where standard PCBs are more vulnerable. Auto-Extreme automated single-pass soldering reduces thermal strain on components during manufacturing and eliminates harsh cleaning chemicals, resulting in more consistent joint quality across production runs. GPU Guard adhesive corner protection and a GPU bracket ensure uniform PCIe slot mounting pressure and reduce PCB crack risk under the card’s weight.

Dual BIOS, Aura Sync ARGB, What’s in the Box

A Performance/Quiet BIOS mode switch on the card edge toggles between the two fan profiles, with the quiet profile meaningfully reducing fan speeds at the cost of slightly higher temperatures — consistent with what we saw on the non-XT TUF. Aura Sync ARGB covers the shroud and is synchronisable with other Aura Sync-compatible ASUS components via GPU Tweak III. The box includes a TUF Certificate of Reliability, TUF Gaming card holder, TUF velcro hook and loop, TUF fridge magnet, and speed setup manual — more comprehensive than the Prime’s bare-minimum accessory bundle.

⚠️ PSU requirement: Three 8-pin PCIe connectors and a genuine 850W PSU are required — one more connector and 100W more than the non-XT TUF RX 9070. Confirm your PSU has three available 8-pin outputs before purchasing.

⚠️ Coil whine: Some review units exhibited coil whine under certain gaming workloads. This varies between individual units and is typically less noticeable with headphones.

⚠️ Case clearance: 330 × 140 × 62.5mm at 3.125 slots — verify GPU clearance in your case, particularly in mATX and compact mid-tower builds. A TUF Gaming card holder is included for anti-sag support.

⚠️ vs TUF RX 9070 (non-XT): The XT adds 8 CUs (3584 → 4096 SPs), a third 8-pin connector, an 850W PSU requirement (vs 750W), and higher clock targets. The physical build, dimensions, and cooling stack are identical. Choose based on your target resolution and power delivery headroom.

⚠️ vs Prime RX 9070 XT: The TUF adds military-grade components, MaxContact, conformal PCB coating, Auto-Extreme manufacturing, GPU Guard, Aura Sync ARGB, a higher factory OC (3080 vs 3030 MHz), and a larger 3.125-slot cooler vs the Prime’s compact 2.5-slot design.

Specs at a Glance

• GPU: AMD Radeon RX 9070 XT (RDNA 4, Navi 48, 4nm)
• Compute Units: 64 | Stream Processors: 4096
• Boost Clock (OC mode): Up to 3080 MHz | Game Clock: 2540 MHz
• Boost Clock (Default mode): Up to 3060 MHz | Game Clock: 2520 MHz
• Memory: 16GB GDDR6, 256-bit, 20 Gbps | Bandwidth: 640 GB/s

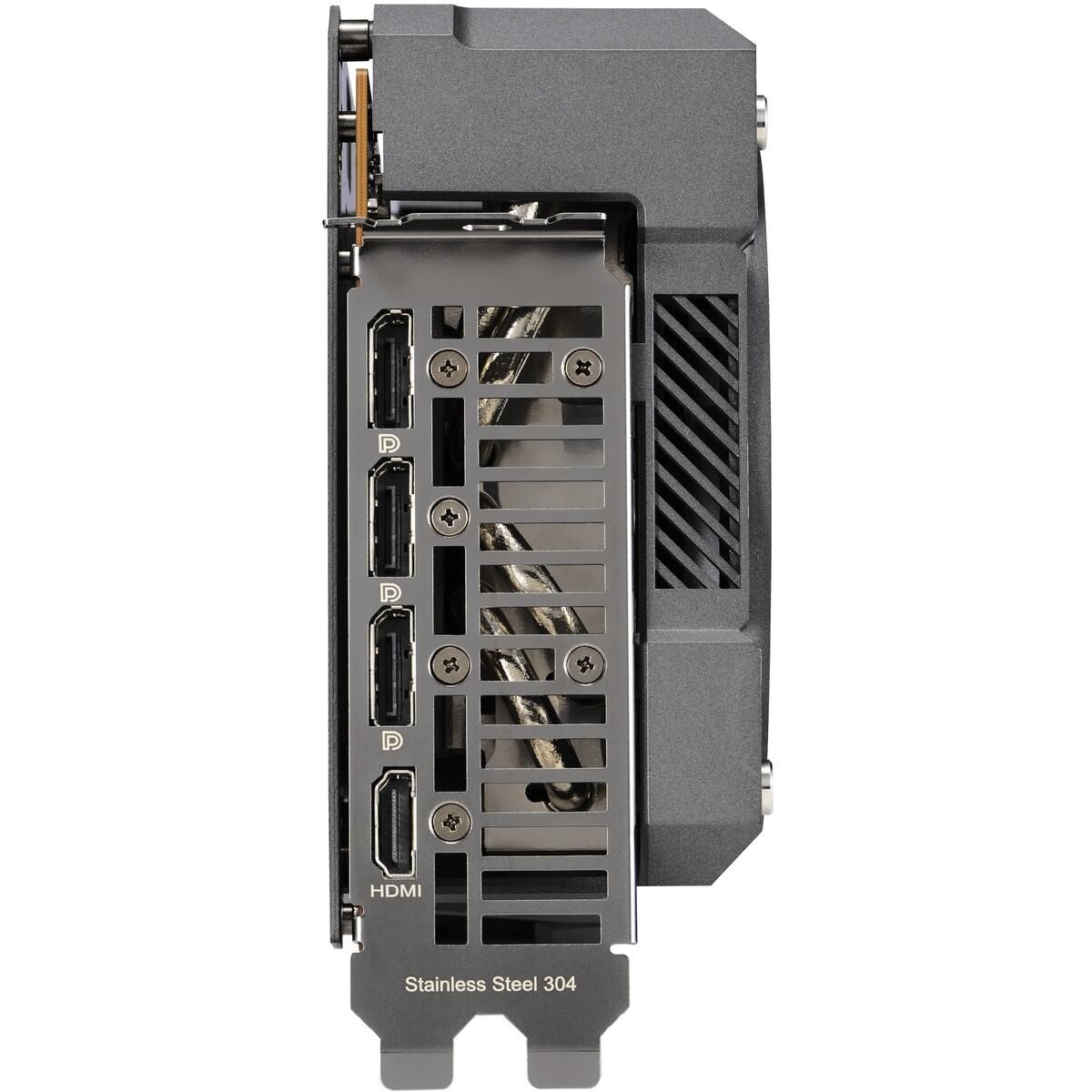

• Outputs: 3× DisplayPort 2.1a, 1× HDMI 2.1b (4 displays max)
• Power Connectors: 3× 8-pin PCIe | Recommended PSU: 850W
• Dimensions: 330 × 140 × 62.5mm (3.125 slots)
• PCIe: 5.0 x16 | DirectX: 12 Ultimate | OpenGL: 4.6
• Features: Dual BIOS (P/Q mode), Aura Sync ARGB, MaxContact, phase-change thermal pad, Axial-tech fans, dual ball bearings, vented exoskeleton, conformal PCB coating, military-grade components, GPU Guard, TUF card holder included, FSR 4, HYPR-RX, Fluid Motion Frames, Anti-Lag 2, AV1 encoding
