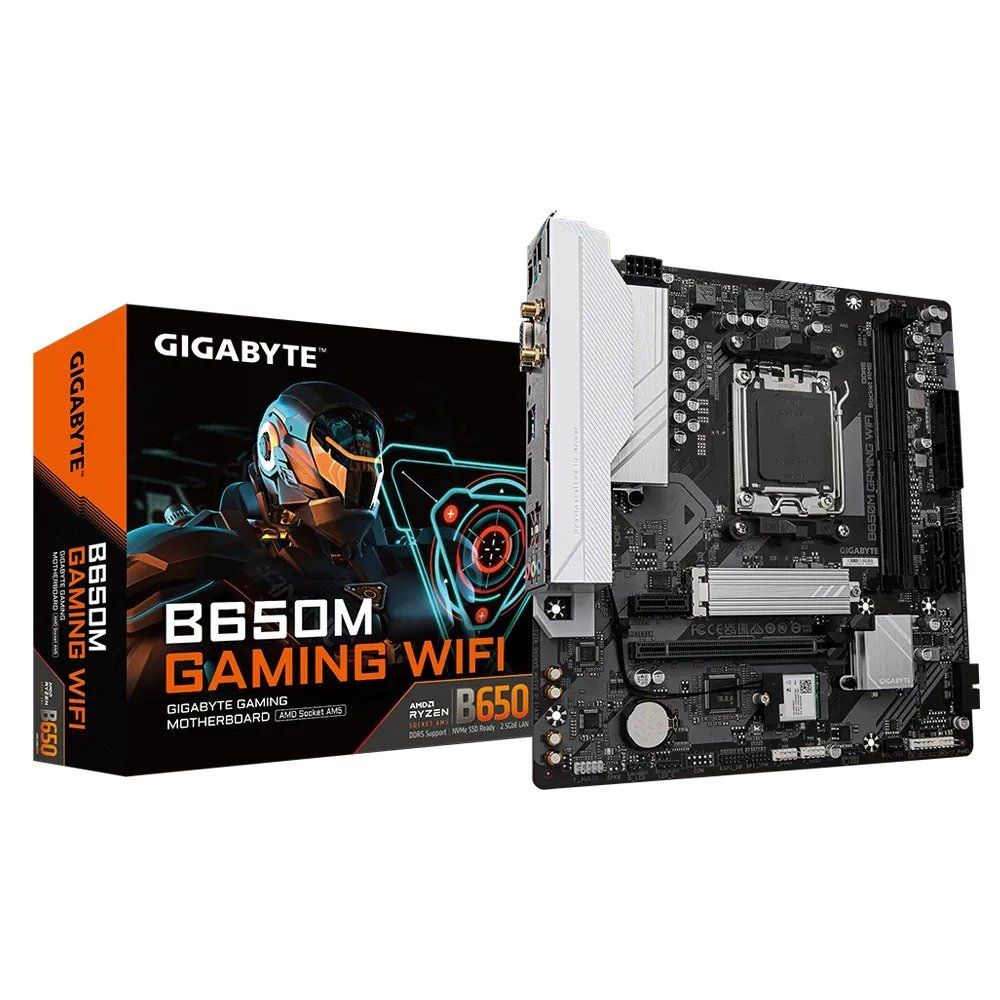

Gigabyte B650M Gaming WiFi AMD AM5

Description

B650 Gaming on a Tight Budget

The B650M Gaming WiFi is Gigabyte’s most accessible B650 Micro-ATX offering, positioning the AM5 platform and B650’s CPU overclocking capability at an entry-level price with the convenience of built-in wireless. The 5+2+2 phase digital VRM with Low RDS(on) MOSFETs handles mainstream Ryzen builds cleanly within its limits, and the inclusion of Realtek 2.5GbE LAN alongside Wi-Fi means wired and wireless networking are both covered out of the box. EZ-Latch on the primary PCIe x16 slot makes graphics card removal tool-free, and Q-Flash Plus allows BIOS updates without any CPU or RAM installed — practical for first-time AM5 builders needing to update firmware ahead of a Ryzen 9000 installation.

⚠️ B650 supports CPU overclocking, but the 5+2+2 VRM is best suited to 65W TDP processors for sustained workloads. 105W CPUs run at stock without issue, but sustained high-TDP loads push this power stage to its limits. For Ryzen 9 builds or heavier overclocking, step up to the B650M Aorus Elite.

⚠️ The onboard wireless is Wi-Fi 5 (802.11ac) — not Wi-Fi 6 or 6E. The 6 GHz band, Wi-Fi 6’s OFDMA, and MU-MIMO enhancements are not available on this board. If Wi-Fi 6E is a requirement, the B650M Gaming WiFi6E or B650M D3HP AX are the appropriate alternatives.

Memory and Storage

Two DDR5 DIMM slots support dual-channel operation up to 128 GB, with AMD EXPO and XMP profiles reaching DDR5-7600 (OC). A single CPU-connected M.2 slot supports PCIe 4.0 x4 (64 Gb/s) across all supported CPU generations and accepts up to the extended 2580 form factor as well as standard 2280. Four SATA 6Gb/s ports handle additional drives, and RAID 0/1/10 is supported for both SATA and NVMe storage.

⚠️ Only one M.2 slot is present — there is no second or chipset M.2 slot. Additional NVMe drives cannot be installed; extra storage must use the SATA ports.

⚠️ Only two DIMM slots are present, with a maximum of 128 GB across two matched sticks for dual-channel operation. Builders who need four DIMM slots or more capacity should look at the B650M D3HP (4× DIMM, 256 GB) instead.

⚠️ Memory OC ceiling is DDR5-7600 (OC) — lower than most other B650 boards in this comparison. Verify kit compatibility with Gigabyte’s QVL if high-speed memory is planned.

Connectivity and I/O

Rear I/O is modest but covers the essentials: two USB 3.2 Gen1 Type-A (5 Gbps, CPU), three USB 2.0 Type-A (chipset), and a PS/2 keyboard/mouse combo port. Display outputs are HDMI 2.1 (4K 60Hz) and D-Sub/VGA (up to 1920×1200 60Hz) — there is no DisplayPort on this board. Front panel connectivity includes a USB 3.2 Gen1 header and two USB 2.0 headers. Wi-Fi 5 (802.11ac) and Bluetooth are onboard alongside Realtek 2.5GbE LAN. Fan headers consist of one CPU fan and two system fan headers — three total, all 4-pin PWM/DC with Smart Fan 6 control and FAN STOP. RGB is provided via two Addressable Gen2 (ARGB) headers and one standard RGB LED header via RGB Fusion 2.0.

⚠️ No USB Type-C is present anywhere on this board — neither rear panel nor as a front panel header. If USB-C connectivity is needed, a USB adapter or PCIe add-in card is required.

⚠️ No DisplayPort output — the two display options are HDMI 2.1 and D-Sub/VGA only. Monitors requiring DisplayPort input will need a discrete GPU.

⚠️ Integrated display output (HDMI/D-Sub) requires a Ryzen processor with integrated Radeon graphics. Non-G Ryzen 7000/9000 CPUs require a discrete GPU.

Key Highlights

• AMD B650 chipset, Socket AM5 — CPU overclocking supported
• Supports Ryzen 7000, 8000, and 9000 Series (BIOS update may be required for 9000)
• Micro-ATX form factor
• 5+2+2 phase digital VRM, Low RDS(on) MOSFETs
• Single 8-pin ATX12V CPU power connector
• 2× DDR5 DIMM slots, dual-channel, up to 128 GB, DDR5-7600 (OC)
• AMD EXPO and XMP memory profile support
• 1× M.2 PCIe 4.0 x4 (CPU, 64 Gb/s, 2580/2280) — single M.2 slot only
• 4× SATA 6Gb/s ports
• RAID 0/1/10 for SATA and NVMe
• 1× PCIe 4.0 x16 (EZ-Latch) + 1× PCIe 3.0 x1 (chipset)
• HDMI 2.1 (4K 60Hz) + D-Sub/VGA (1920×1200) — no DisplayPort
• Realtek 2.5GbE LAN
• Wi-Fi 5 (802.11ac) + Bluetooth — not Wi-Fi 6 or 6E
• 5× rear USB: 2× Gen1 Type-A (5 Gbps) + 3× USB 2.0 Type-A
• No USB Type-C — rear or front panel
• PS/2 keyboard/mouse combo port — rear
• Front USB 3.2 Gen1 header (2 ports) + 2× USB 2.0 headers (4 ports)
• 1× CPU fan + 2× system fan headers — Smart Fan 6, FAN STOP
• 2× Addressable Gen2 (ARGB) headers + 1× RGB LED header — RGB Fusion 2.0
• EZ-Latch on PCIe x16 slot
• Q-Flash Plus (BIOS update without CPU/RAM)
• SPI TPM header
• Realtek ALC897 HD Audio, audio noise guard, high-end audio capacitors
