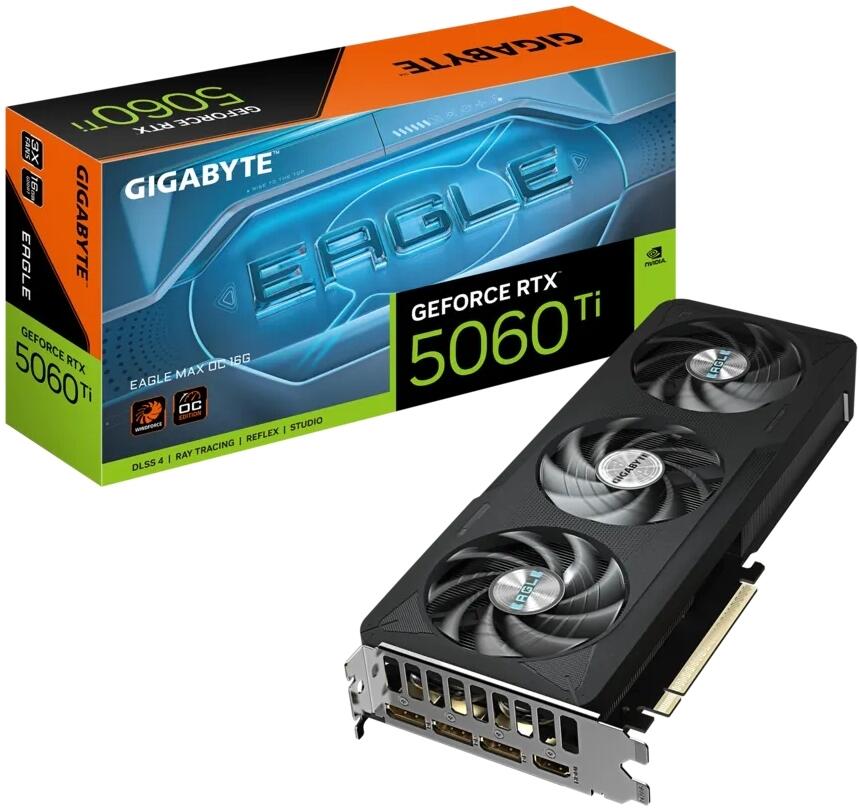

Gigabyte GeForce RTX™ 5060 Ti Eagle Max OC (16GB GDDR7)

Description

RTX 5060 Ti 16GB: More Cores, More VRAM

The GB206-300 die carries 4,608 CUDA cores, 36 fourth-generation RT Cores, and 144 fifth-generation Tensor Cores, manufactured on TSMC’s 4nm N4P process. The Eagle MAX OC boosts to 2617 MHz, 45 MHz above the 2572 MHz reference, with 16GB of GDDR7 at 28 Gbps across a 128-bit bus delivering 448 GB/s of memory bandwidth. That 16GB VRAM buffer is the defining advantage of the RTX 5060 Ti 16G over every 8GB card in our range: high-texture AAA titles, 1440p gaming with ray tracing and quality presets, GPU-accelerated video editing, 3D rendering, and multi-application creative workflows all benefit meaningfully from the additional headroom. DLSS 4 with Multi Frame Generation, NVIDIA Reflex 2 with Frame Warp, and NVIDIA Studio creative acceleration are all fully supported.

Eagle MAX OC vs Eagle OC — The Cooler Makes the Difference

Both the Eagle MAX OC and the standard Eagle OC share the same 2617 MHz boost clock on identical silicon. The Eagle MAX OC steps up to a triple Hawk fan configuration across a physically larger 281 mm heatsink, compared to the standard Eagle OC’s dual-fan 215 mm design. The additional fan and extended heatsink provide more sustained thermal headroom during prolonged gaming sessions and creative workloads — at the cost of more chassis length. If your case can accommodate 281 mm, the MAX offers better long-duration cooling for the same peak clock.

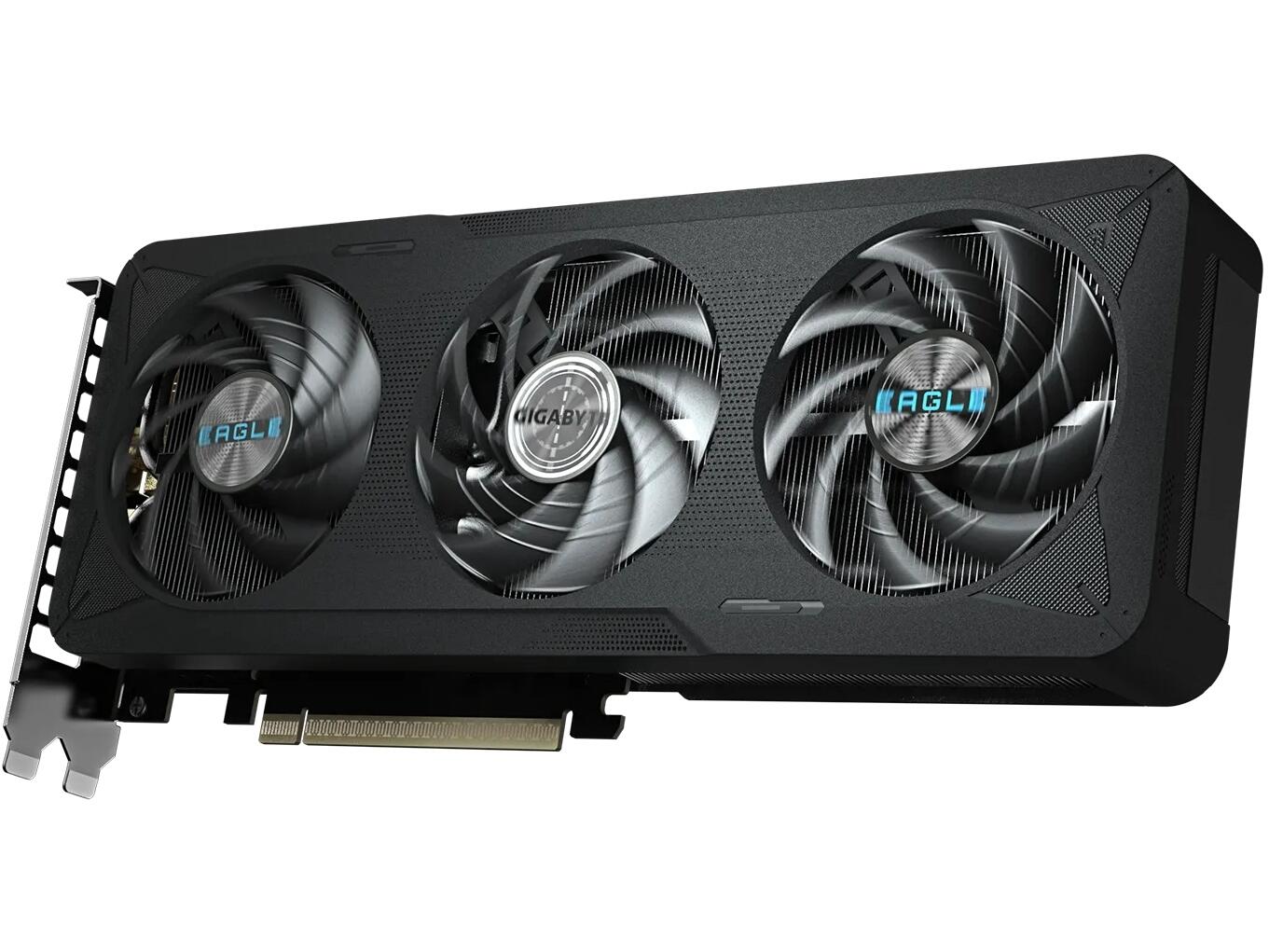

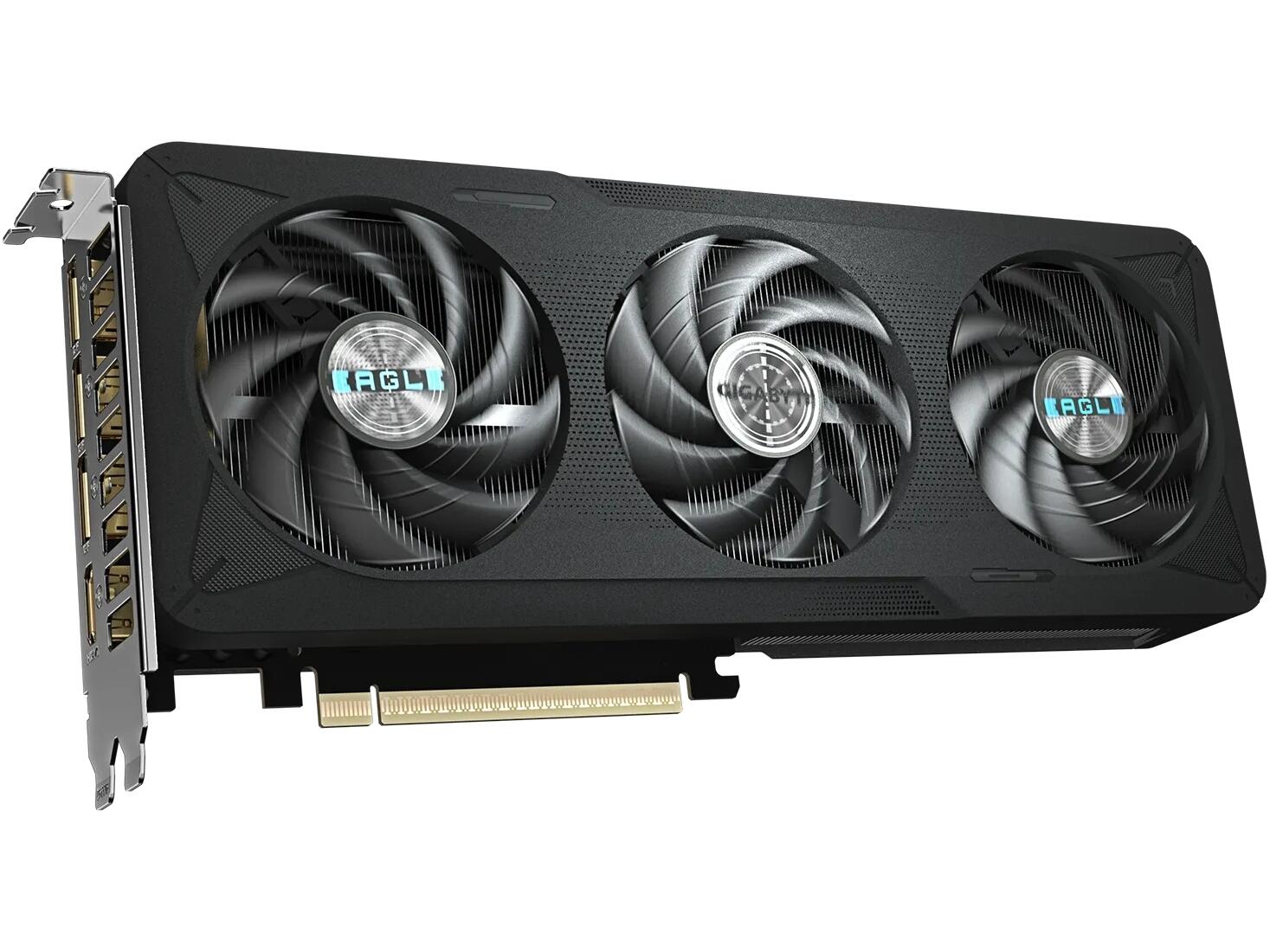

Triple WINDFORCE Hawk Fan Cooling

The WINDFORCE MAX cooling system uses Hawk fans with server-grade thermal conductive gel and a reinforced PCB structure. Hawk fans deliver 53.6% higher air pressure than conventional axial designs, with graphene nano lubricant extending sleeve bearing life by 2.1× while reducing noise. The complete WINDFORCE system adds alternate fan spinning to reduce turbulence, composite copper heat pipes, a copper plate with direct GPU contact, 3D active fan semi-passive idle, and screen cooling fins, all contributing to efficient heat transfer to the extended triple-fan heatsink. No RGB on this variant.

Power and Connectivity

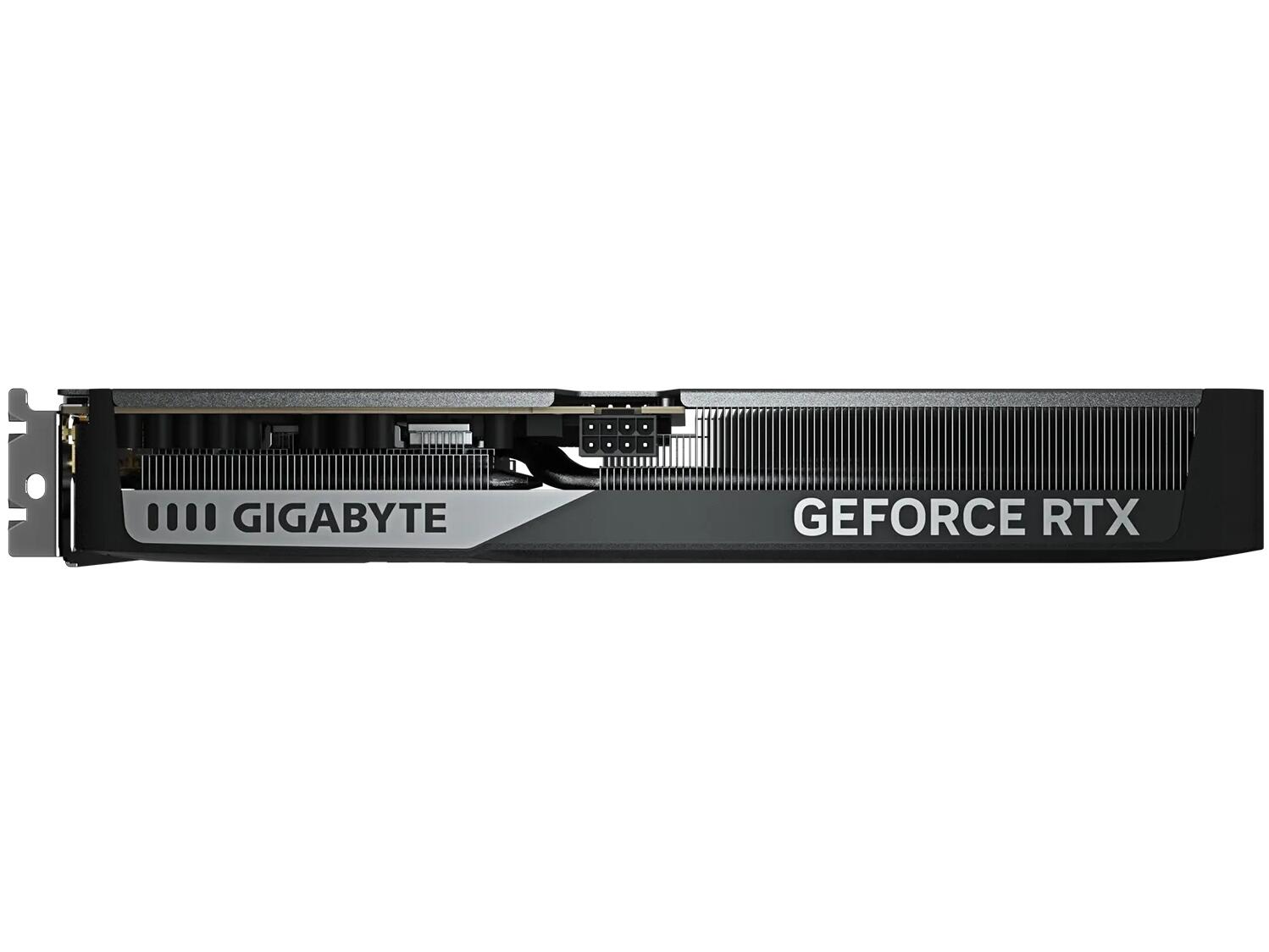

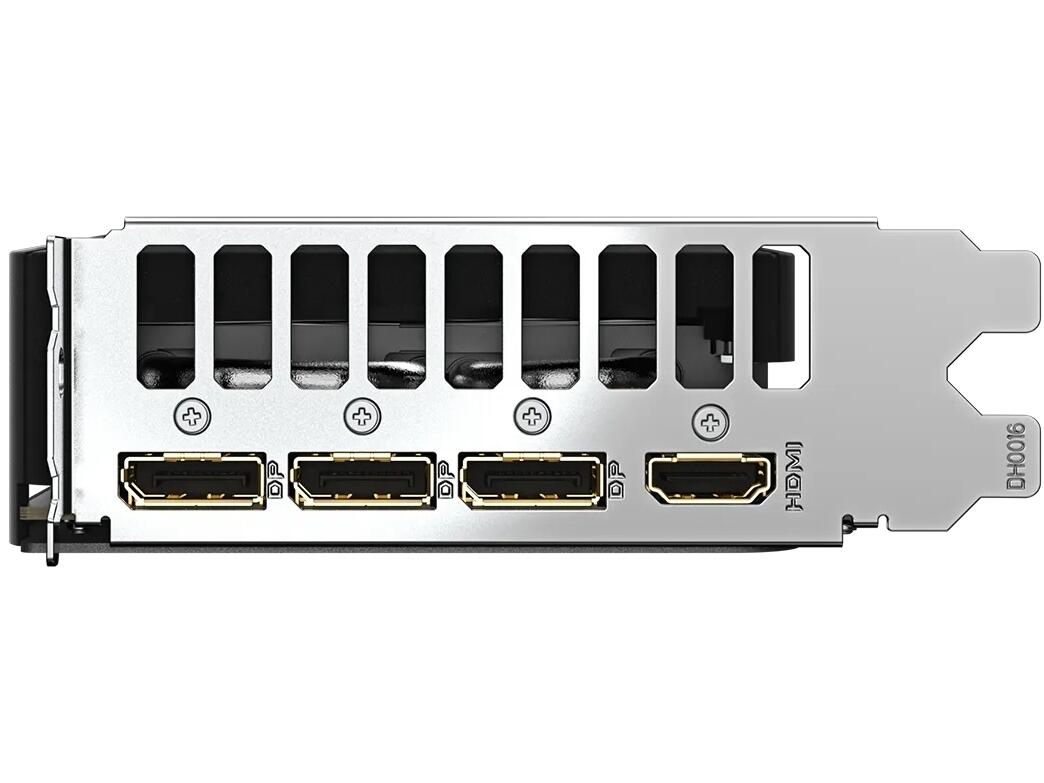

A single 8-pin PCIe power connector and a 650W PSU are recommended. Display outputs include 3× DisplayPort 2.1b and 1× HDMI 2.1b, supporting up to 4 simultaneous displays at 7680×4320. The card connects via PCIe 5.0 x16 at x8 electrical, fully backwards compatible with PCIe 4.0 and 3.0. GIGABYTE Control Center handles monitoring, fan curves, and overclocking.

⚠️ Card length: At 281 mm this is a long card, requiring significantly more chassis clearance than the standard 215 mm Eagle OC. Verify GPU length clearance before purchasing.

⚠️ 650W PSU required: The RTX 5060 Ti’s higher TDP requires 650W — up from the 450–550W typical for RTX 5060 cards. Confirm your PSU before upgrading.

⚠️ 128-bit bus with 16GB: The VRAM capacity benefit is real and meaningful for texture-heavy and creative workloads. Memory bandwidth (448 GB/s) is unchanged from the 8GB variants.

⚠️ PCIe compatibility: PCIe 5.0 at x8 electrical. Fully backwards compatible with PCIe 4.0 and 3.0 with no performance penalty at this tier.

Key Highlights

• NVIDIA Blackwell architecture — 4,608 CUDA cores (GB206-300, TSMC 4nm)
• 16GB GDDR7, 128-bit bus, 28 Gbps, 448 GB/s bandwidth
• 2617 MHz boost clock (factory OC over 2572 MHz reference)
• 36 RT Cores (4th Gen) + 144 Tensor Cores (5th Gen)
• Triple WINDFORCE Hawk fans — alternate spinning, 53.6% higher air pressure
• Graphene nano lubricant bearings — 2.1× lifespan, quieter operation
• Composite copper heat pipes + copper plate + 3D active fan + screen cooling fins
• Server-grade thermal conductive gel on GPU, VRAM and MOSFETs
• Reinforced PCB structure — no RGB
• DLSS 4 with Multi Frame Generation + NVIDIA Reflex 2 with Frame Warp
• NVIDIA Studio creative acceleration support
• 3× DisplayPort 2.1b, 1× HDMI 2.1b — up to 4 displays / 8K output
• PCIe 5.0 x16 slot (x8 electrical), backwards compatible
• 281 mm length, 2-slot design
• Single 8-pin PCIe power connector
• 650W PSU recommended
• GIGABYTE Control Center software
