Gigabyte X870E AERO X3D WOOD AMD AM5

Description

A Motherboard Unlike Any Other

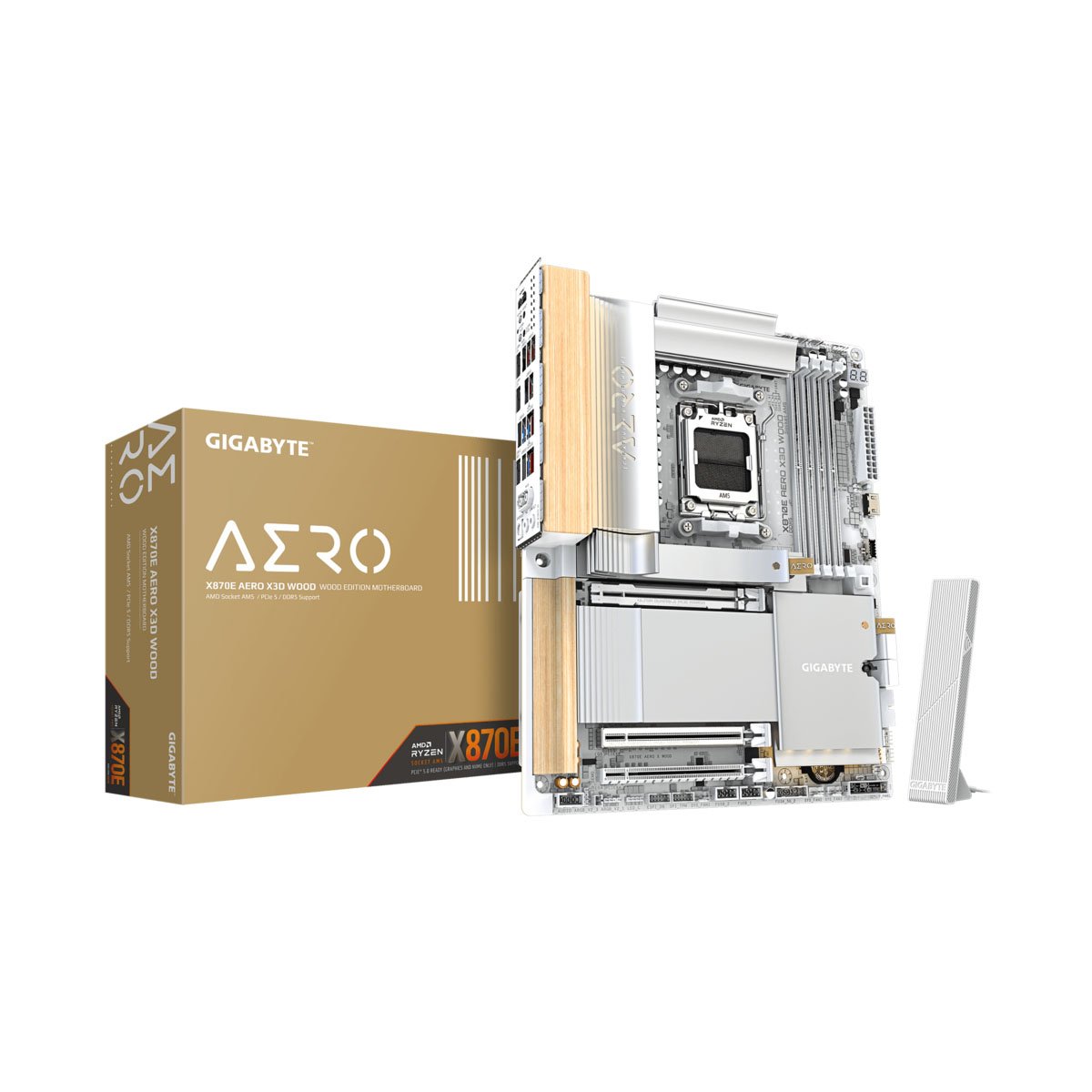

The Gigabyte X870E AERO X3D WOOD is one of the most unique motherboards on the market — it features wood-grain textures and leather pull tabs on the M.2 heatsinks, transforming what is typically a cold, industrial component into something warm, inviting, and worthy of display. Gigabyte describes the AERO series as crafted for the connoisseur, harmonising organic aesthetics with uncompromising performance. It demands to be shown off in a windowed case. This is a board that makes as strong a statement about your taste as it does about your hardware.

Power Delivery & Platform

The board is built on the AMD X870E chipset with AM5 socket support for AMD Ryzen 9000, 8000, and 7000 Series processors, backed by a digital twin 16+2+2 power phase design on an 8-layer PCB with premium chokes and capacitors. Newegg The 20-phase VRM — with 16 dedicated to Vcore in a parallel power design — is paired with advanced VRM heatsinks that perform brilliantly under sustained load. The integrated I/O shield and full-coverage backplate round out the build quality.

Storage: Four M.2 Slots, Two at PCIe 5.0

Four M.2 slots are available — two running at PCIe 5.0 x4 and two at PCIe 4.0 x4 — alongside four SATA 6Gb/s ports. All M.2 slots are fitted with thermal guards, and Gigabyte’s M.2 EZ-Latch Click and EZ-Latch Plus mechanisms make drive installation and removal tool-free. GIGABYTE’s own testing indicates the M.2 cooling design can reduce SSD temperatures by up to 12°C, keeping fast NVMe drives running at full speed under sustained workloads.

Memory Performance

Four DDR5 DIMM slots support memory speeds up to DDR5-9000 via overclocking, with AMD EXPO profile support for compatible kits. Advanced shielding inside the PCB keeps memory signals clean and interference-free, while server-grade PCB material minimises signal loss for ultra-fast DDR5 data transmission.

X3D Turbo Mode 2.0

X3D Turbo Mode 2.0 is an AI-powered performance enhancement designed to extract greater performance from AMD Ryzen X3D processors in real time, with Gigabyte claiming performance uplifts of up to 25% under specific workloads. Two distinct modes — Gamer Mode and Creator Mode — let users switch based on their current task for optimal results. Activation is a single click via the BIOS or Gigabyte Control Center software.

Connectivity

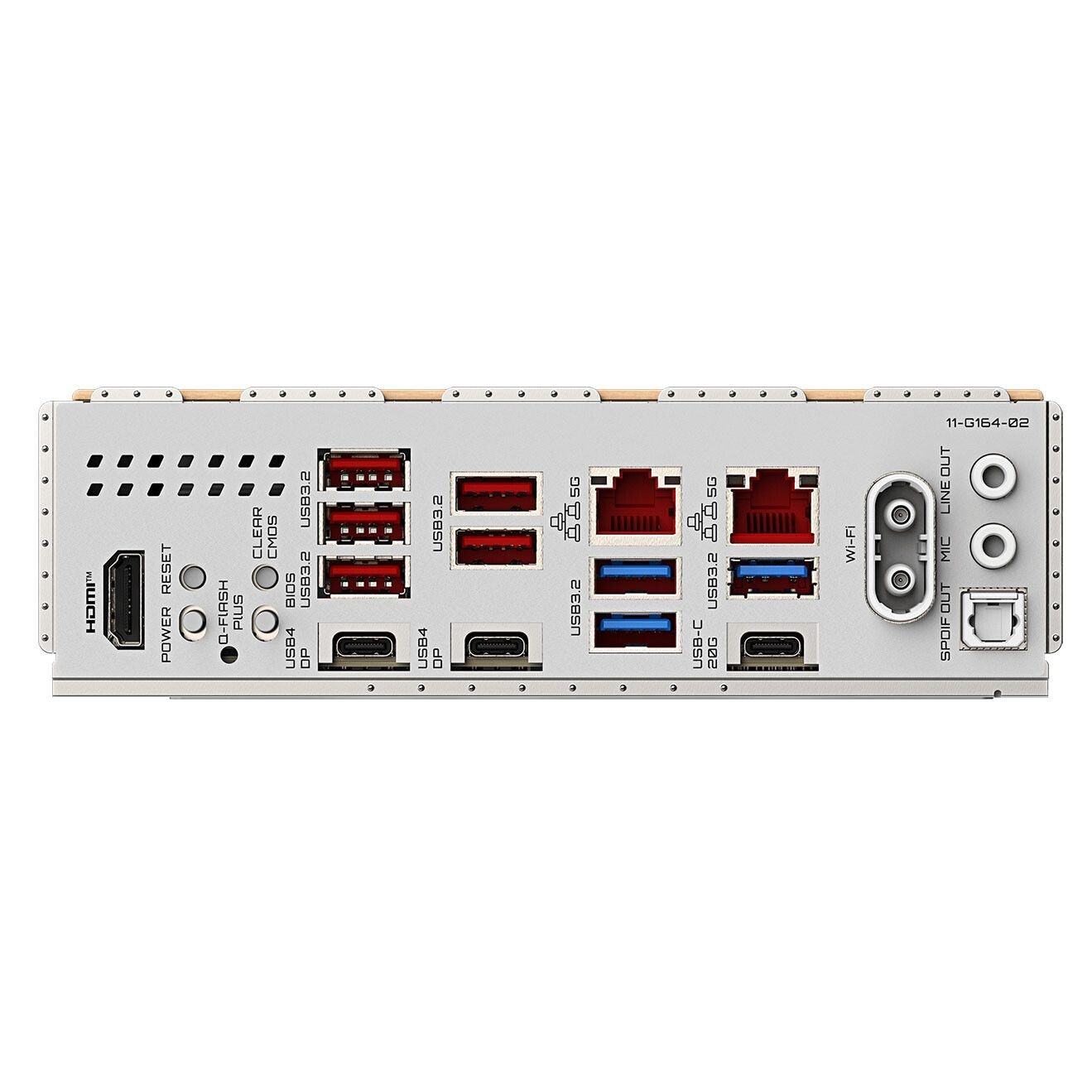

The rear I/O is well-equipped: three USB Type-C ports (two at 40Gbps USB4 and one at 20Gbps), eight USB Type-A ports (four at 10Gbps, three at 5Gbps), dual Realtek 5GbE LAN ports, MediaTek Wi-Fi 7 (802.11be, up to 5.8Gbps), HDMI 2.1, and an SPDIF audio output alongside 3.5mm jacks for 7.1-channel HD audio. Rear I/O buttons for power, reset, clear CMOS, and Q-Flash Plus are also present for convenient diagnostics and BIOS recovery without needing a full system boot.

Build Quality & Software

The board is very well built with a solid backplate, and the VRM heatsinks perform brilliantly. The Gigabyte User-Centred (UC) BIOS carries the wood aesthetic through into the firmware interface itself, with wood-textured buttons for a cohesive experience. Gigabyte Control Center (GCC) handles fan control via Smart Fan 6, RGB Fusion lighting, system monitoring, and overclocking from a unified software platform.

Key Highlights

• AMD X870E chipset, AM5 socket — supports Ryzen 9000, 8000, and 7000 Series
• Unique wood-grain texture finish with leather pull tabs — a one-of-a-kind aesthetic
• 16+2+2 digital twin VRM (20-phase Vcore) on an 8-layer PCB
• 4x DDR5 DIMM slots, up to 256GB, DDR5-9000 OC, AMD EXPO support
• 4x M.2 slots (2x PCIe 5.0 + 2x PCIe 4.0), all with thermal cooling
• 1x PCIe 5.0 x16 (reinforced PCIe UD Slot X) + 4x SATA 6Gb/s
• Dual Realtek 5GbE LAN + Wi-Fi 7 (802.11be), Bluetooth 5.4
• Dual USB4 40Gbps Type-C + 8x USB Type-A rear I/O
• X3D Turbo Mode 2.0 with Gamer Mode & Creator Mode
• M.2 EZ-Latch Click & EZ-Latch Plus, Q-Flash Plus
• 7.1-channel HD audio, SPDIF out
• 5-year manufacturer warranty
