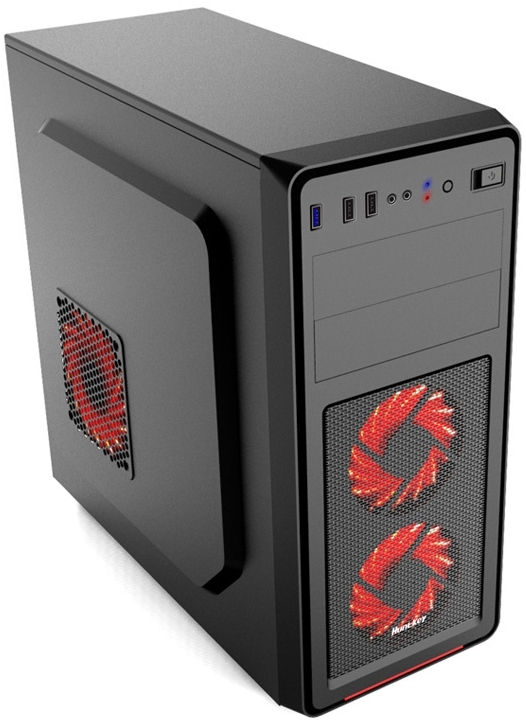

HuntKey BU560 Gaming Case

Description

Broad Hardware Compatibility with Generous Clearances

The BU560 is a practical full-size ATX Mid Tower that doesn’t cut corners on hardware headroom. With GPU clearance up to 350mm and CPU cooler support up to 165mm, it accommodates most mainstream and enthusiast-tier components without compatibility concerns. Seven PCIe expansion slots provide ample room for add-in cards alongside a dedicated graphics card, and a single 5.25″ optical bay is retained for builders who still need disc access. ATX, Micro-ATX, and Mini-ITX motherboards are all supported, making the BU560 a flexible chassis across different build configurations.

Blackened SPCC Steel Construction — Built to Last

The BU560 is constructed from 0.6mm SPCC steel with a blackened finish — a step up in panel thickness from some comparable budget cases. This added rigidity reduces flex during transport and assembly, and gives the chassis a more substantial feel overall. The clean, understated aesthetic with its solid steel panels suits home and office environments where a subtle profile is preferred over RGB lighting or tempered glass windows.

Multi-Position Fan Support for Expandable Airflow

While the BU560 ships without fans installed, it supports up to five 120mm fans across three mounting positions — three at the front, one at the rear, and one on the left side panel. This gives builders the flexibility to dial in their airflow configuration based on their components and thermal requirements, whether that’s a simple single-exhaust setup or a more comprehensive push-pull intake arrangement. The bottom-mount PSU placement also helps keep airflow separation between the power supply and the main chamber.

⚠️ Buyer Tip: The BU560 ships with no fans included. At minimum, a 120mm rear exhaust fan is strongly recommended for adequate airflow. Budget for at least one or two fans alongside this case if you’re building a new system.

⚠️ Note: Front I/O USB speeds vary by unit — some listings indicate USB 2.0 ports while others list USB 1.1. Verify with us before purchase if front-panel USB speed is important to your use case. No PSU is included; a standard ATX power supply is required separately.

Key Highlights

• Form Factor: Mid Tower (ATX / Micro-ATX / Mini-ITX)
• GPU Clearance: Up to 350mm
• CPU Cooler Clearance: Up to 165mm
• Drive Bays: 2× 5.25″, 2× 3.5″ HDD, 2× 2.5″ SSD (vertically mounted)
• Expansion Slots: 7
• Fan Support: Front: 3× 120mm | Rear: 1× 120mm | Side: 1× 120mm (none included)
• Front I/O: 1× USB 3.0, 2× USB 2.0, HD Audio
• Material: 0.6mm SPCC Blackened Steel
• PSU Mount: Bottom
• Dimensions: 440 × 205 × 435mm
• Colour: Black
• PSU: Not included (standard ATX)
