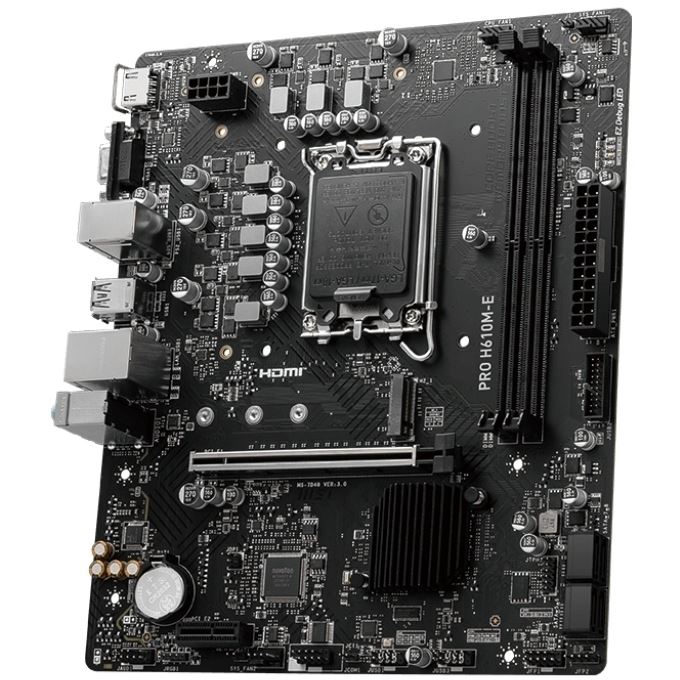

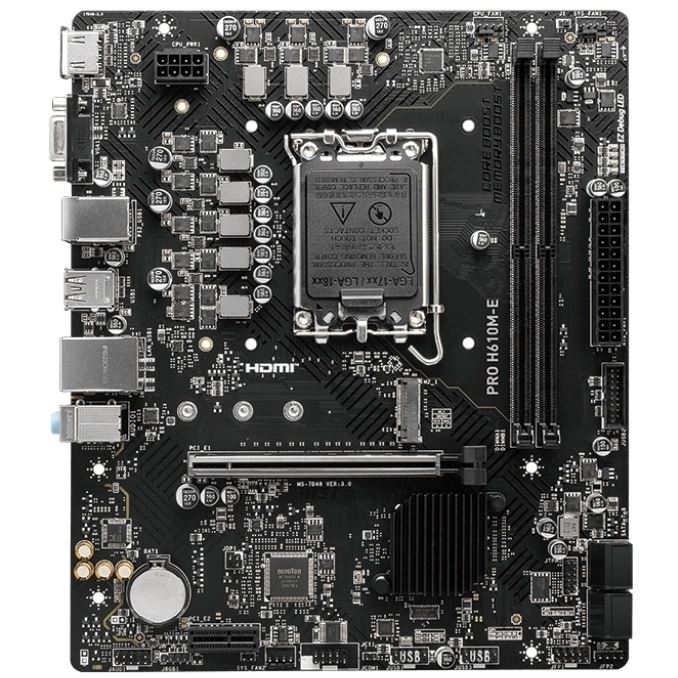

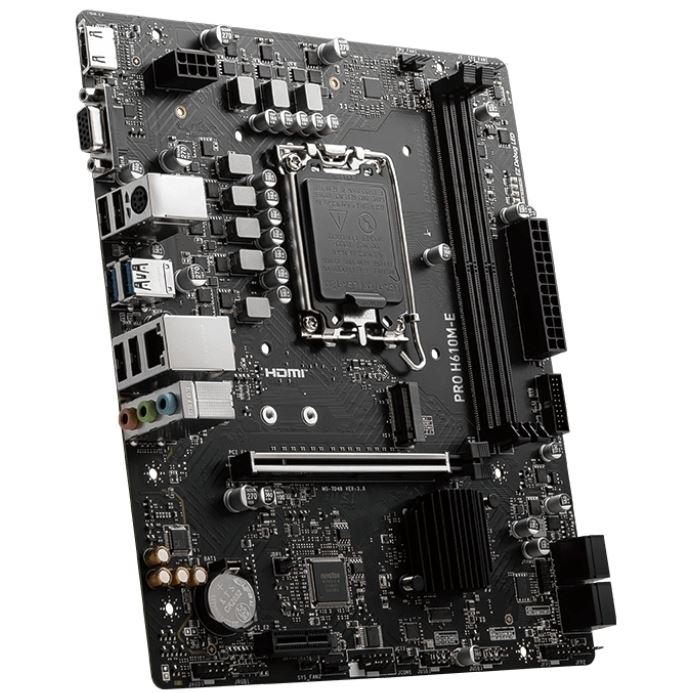

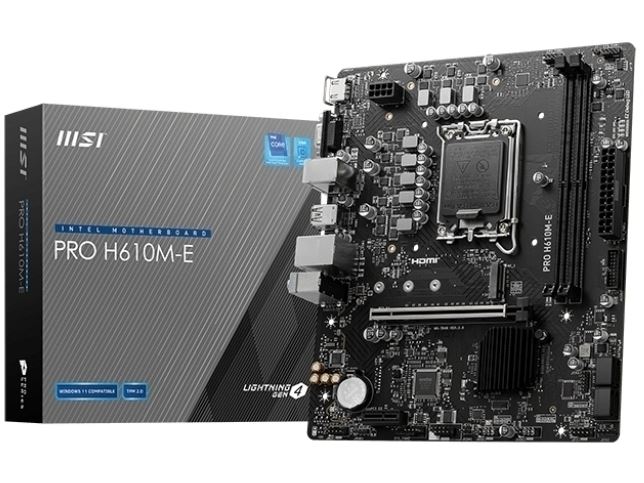

MSI Pro H610M-E DDR5 (LGA1700)

Description

Pro Series Dependability on a Budget

The MSI PRO series helps users work smarter by delivering an efficient and productive experience, providing not only optimised professional workflows but also less troubleshooting and longevity. The H610M-E is the most accessible entry point into the PRO series — a straightforward board for builders who want Intel 12th–14th gen capability with DDR4 memory support.

Intel Core Boost & Steel Armor

Core Boost technology combines MSI’s premium layout and optimised power design for faster and undistorted current delivery to the CPU at pin-point precision. MSI PCI Express Steel Armor slots are secured with extra solder points to support the weight of heavy graphics cards while shielding against electromagnetic interference.

Fan Control & Stability

MSI Frozr AI Cooling detects CPU and GPU temperatures and automatically adjusts fan duty to an optimal value, while Total Fan Control allows users to set up to four temperature targets for CPU and motherboard fans.

⚠️ Notes: This board uses DDR4, not DDR5. The M.2 slot supports PCIe 3.0 (not 4.0). No Wi-Fi is included. The HDMI port is 1.4 (4K@30Hz only).

Key Highlights:

• Intel H610 Chipset | LGA1700 | Micro-ATX | Supports 12th/13th/14th Gen Intel Core
• 2x DDR4 DIMM Slots | Up to 64GB | DDR4-3200
• 1x PCIe 4.0 x16 GPU Slot (Steel Armor) | 1x PCIe 3.0 x1 Slot
• 1x M.2 Slot (PCIe 3.0 x4) | 4x SATA 6Gb/s
• Realtek 1Gb Ethernet | No Wi-Fi

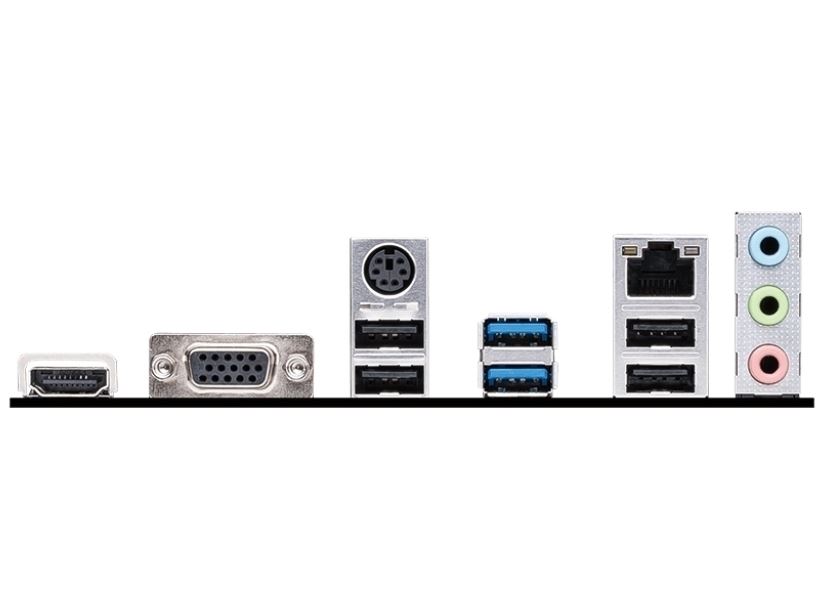

• Rear: 1x HDMI 1.4 (4K@30Hz) | 1x VGA | 2x USB 3.2 Gen 1 | 4x USB 2.0
• Realtek ALC897 7.1 HD Audio
• MSI Frozr AI Cooling | Core Boost | Total Fan Control
• 3-Year Warranty
