Grandstream GWN7002 (2x SFP, 4x GbE) VPN Router

Description

Multi-WAN Gigabit Routing with Fibre & PoE Support

The Grandstream GWN7002 is a multi-WAN Gigabit VPN router with a built-in firewall, allowing businesses to build comprehensive wired, wireless, and VPN networks for one or many locations. Its key differentiator over the GWN7001 is the addition of dual SFP fibre ports and built-in PoE output, making it well-suited to environments where fibre uplinks or direct device powering are a requirement.

Key Highlights

• 2.2Gbps NAT throughput and 530Mbps IPsec VPN throughput

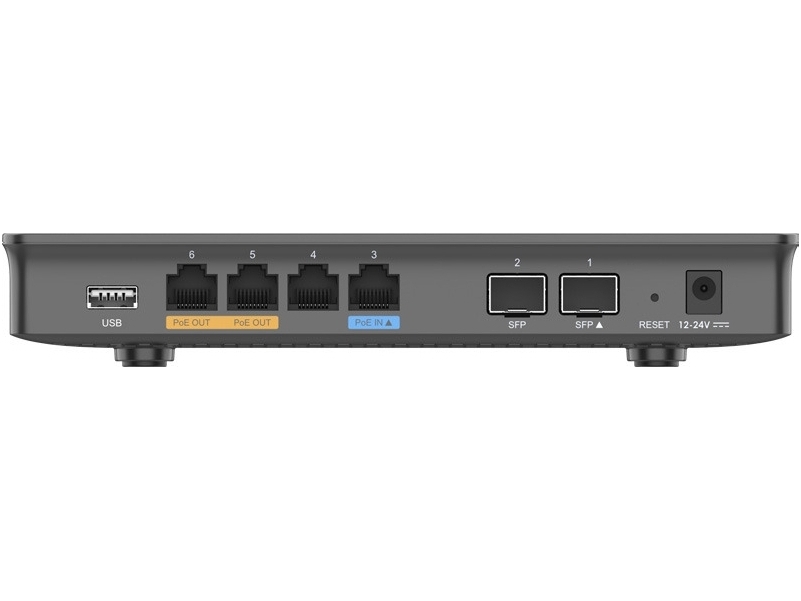

• 2× 2.5 Gigabit SFP ports and 4× Gigabit Ethernet RJ45 ports — all WAN/LAN configurable
• 2× 48V passive PoE output RJ45 ports to power connected endpoints
• 1× GbE RJ45 port with IEEE 802.3af/at PoE input — can be powered via Ethernet



Flexible Multi-WAN Connectivity & PoE

All ports on the GWN7002 are freely configurable as WAN or LAN, giving network administrators full flexibility to define the topology that best suits their environment. Traffic load balancing, failover, and bandwidth management capabilities maximise network reliability, ensuring continuous connectivity even when a primary WAN link goes down. The built-in PoE output ports allow the GWN7002 to directly power IP phones, access points, or other 48V passive PoE-compatible devices without a separate injector.

• All ports freely assignable as WAN or LAN
• Multi-WAN load balancing and automatic failover
• 2× PoE output ports for powering endpoints directly
• Bandwidth management for traffic shaping across WAN links
• Advanced QoS with VoIP prioritisation, DSCP, VLAN, and per-IP/port policing



Comprehensive VPN Support

Multiple VPN protocols are supported including IPsec, PPTP, L2TP, OpenVPN, and WireGuard, with support for up to 50 concurrent VPN tunnels — covering both remote worker access and persistent site-to-site inter-branch connectivity. Both client and server modes are supported, providing maximum flexibility for varied deployment scenarios.

• IPsec, OpenVPN, WireGuard, PPTP, L2TP — client and server modes
• Up to 50 concurrent VPN tunnels
• Site-to-site IPsec VPN for secure inter-branch connections
• Secure remote access for employees working off-site



Enterprise-Grade Firewall & Security

The built-in firewall delivers advanced content security, filtering, threat detection, and attack prevention at the network perimeter. Deep Packet Inspection gives administrators visibility into application-level traffic, while content and URL filtering block access to unwanted or malicious destinations.

• Rich firewall features: DDNS, port forwarding, DMZ, UPnP, Anti-DoS, traffic rules, NAT, and ALG
• Deep Packet Inspection (DPI) for application/protocol monitoring and traffic statistics
• Application, URL, DNS, and web content filtering
• Anti-hacking secure boot with unique per-device security certificates and randomised default passwords



Embedded AP Controller & Cloud Management

The GWN7002 includes an embedded controller that can manage itself and up to 150 Grandstream GWN Series Wi-Fi access points via the product’s web user interface. It can also be managed via GWN.Cloud and GWN Manager, Grandstream’s free cloud and on-premise network management tools, making it equally suited to centralised multi-site operations and standalone single-site deployments.

• Embedded AP controller — manages up to 150 GWN Series Wi-Fi APs
• GWN.Cloud — free cloud management for unlimited routers and APs
• GWN Manager — free on-premise management alternative
  GDMS (Grandstream Device Management System) for full fleet management
• Centralised multi-site management from a single interface
