MSI PRO X870E-P WiFi AMD AM5

Description

Professional Performance, Accessible Price

The MSI PRO X870E-P WiFi is a well-rounded sub-$300 option on the X870E platform, offering a distinctive blocky silver-and-black design, strong connectivity, and performance that meets expectations for productivity-based builds. MSI describes it as a creation-oriented board with a harmonious silver colour scheme that complements both white and black PC builds. It’s the X870E platform’s sweet spot for builders who want flagship chipset features without flagship pricing.

Power Delivery & Platform

The PRO X870E-P WiFi is built around the AMD X870E chipset with AM5 socket support for Ryzen 9000, 8000, and 7000 Series processors, powered by a 14+2+1 Duet Rail Power System using 60A SPS stages with dual 8-pin CPU power connectors. The board uses an 8-layer PCB constructed from server-grade material with 2oz thickened copper and all-new Surface Mount Technology (SMT) solder welding for improved signal clarity. MSI’s Core Boost and EZ OC Tuning allow the board to sustain heavy CPU power loads without instability.

Storage

Three M.2 slots are available — one at PCIe 5.0 and two at PCIe 4.0 — alongside four SATA 6Gb/s ports. The PCIe 5.0 M.2 slot is covered by MSI’s EZ M.2 Shield Frozr II heatsink, which combines 7W/mK MOSFET thermal pads with an extended heatsink design for effective SSD thermal management. EZ M.2 Clip II makes SSD installation tool-free — insert the drive and press down to lock, with a simple clip release for removal.

Memory

Four DDR5 DIMM slots support up to 256GB with DDR5-8200+ MT/s overclocking capability. MSI’s Memory Boost technology uses a fully isolated DDR circuit to deliver clean data signals for stable high-speed operation, while High-Efficiency Mode in the BIOS further improves memory bandwidth and reduces latency for demanding workloads.

Connectivity

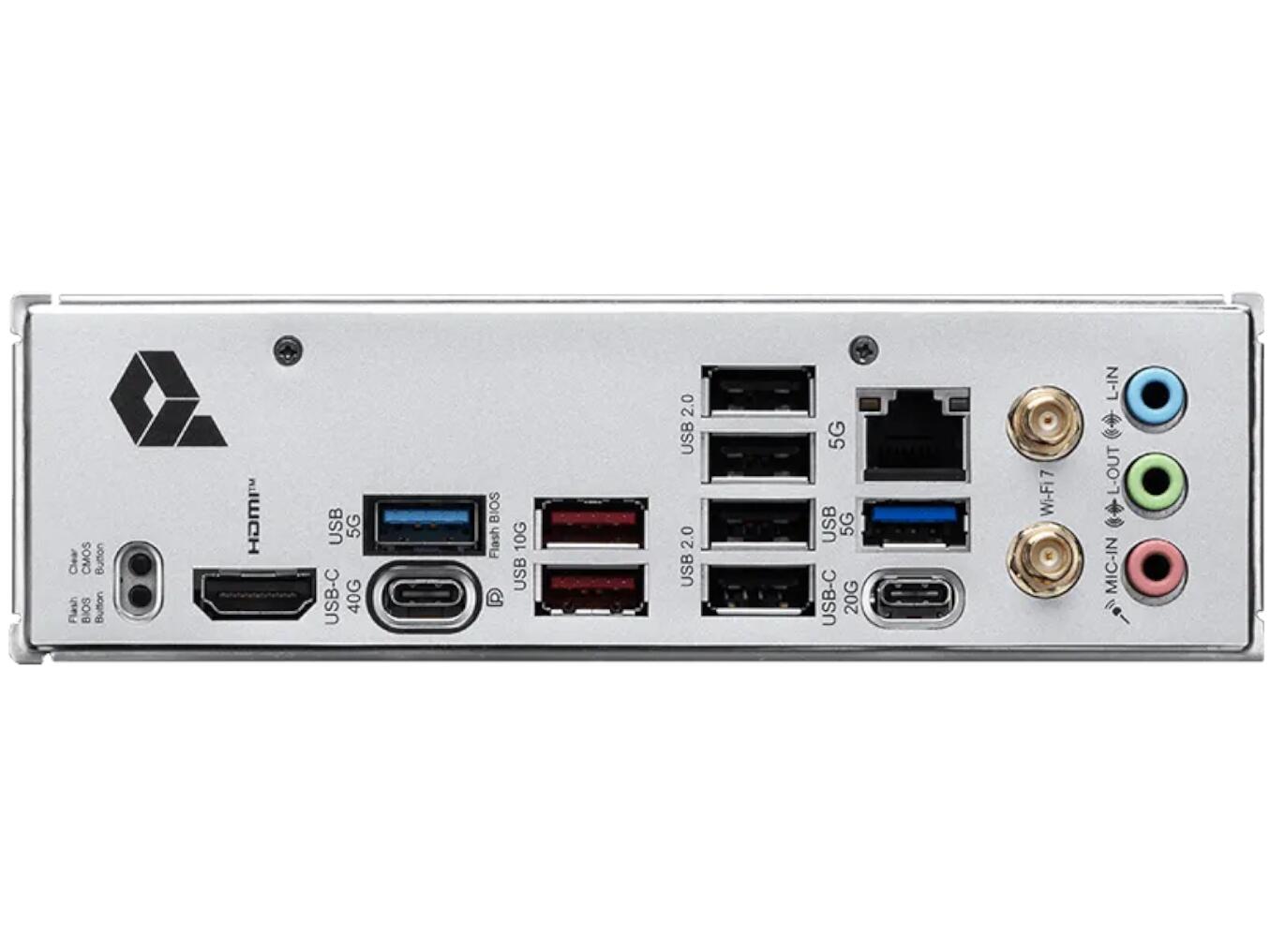

The board features Realtek 5GbE LAN, full-speed Wi-Fi 7 (802.11be) with Bluetooth 5.4, and a USB4 Type-C port at 40Gbps with 4K/60Hz display support. MSI’s EZ Antenna uses a magnetic design for flexible placement, making router line-of-sight adjustments quick and easy. The rear I/O and internal headers cover USB 3.2 Gen 2×2, Gen 2, Gen 1, and USB 2.0 across both Type-A and Type-C. A Realtek 7.1-channel HD audio codec handles onboard audio.

EZ DIY & Thermal Features

The EZ PCIe Clip II on the primary GPU slot uses a rebounding force mechanism for one-finger GPU removal, even in cramped case environments. Frozr AI Cooling in MSI Center monitors CPU and GPU temperatures and automatically adjusts fan speeds across all connected headers. Flash BIOS allows BIOS updates using only a USB drive and power connection — no CPU or memory required. A dedicated Clear CMOS button is also present for fast recovery.

Transient Voltage Suppressors (TVS) are built into all power rails, providing protection against voltage spikes and surges — a welcome touch on a board positioned for professional and productivity use.

Key Highlights

• AMD X870E chipset, AM5 socket — supports Ryzen 9000, 8000, and 7000 Series
• Clean silver-and-black design — suits white and black build aesthetics
• 14+2+1 Duet Rail Power System, 60A SPS, dual 8-pin CPU power
• 8-layer server-grade PCB with 2oz copper and SMT welding
• 4x DDR5 DIMM slots, up to 256GB, DDR5-8200+ OC
• 3x M.2 slots (1x PCIe 5.0 + 2x PCIe 4.0) + 4x SATA 6Gb/s
• 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 expansion slots
• Realtek 5GbE LAN, Wi-Fi 7 (802.11be), Bluetooth 5.4
• USB4 40Gbps Type-C with 4K/60Hz display output
• EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II, EZ Antenna
• Frozr AI Cooling, Flash BIOS, Clear CMOS button
• TVS overvoltage protection, 7.1-channel HD audio
• Full ATX form factor
