Patriot Viper Gaming VP4000 Mini M.2 PCIe4x4 500GB SSD

Description

Built for Handhelds — M.2 2230 With Gen 4 Speeds

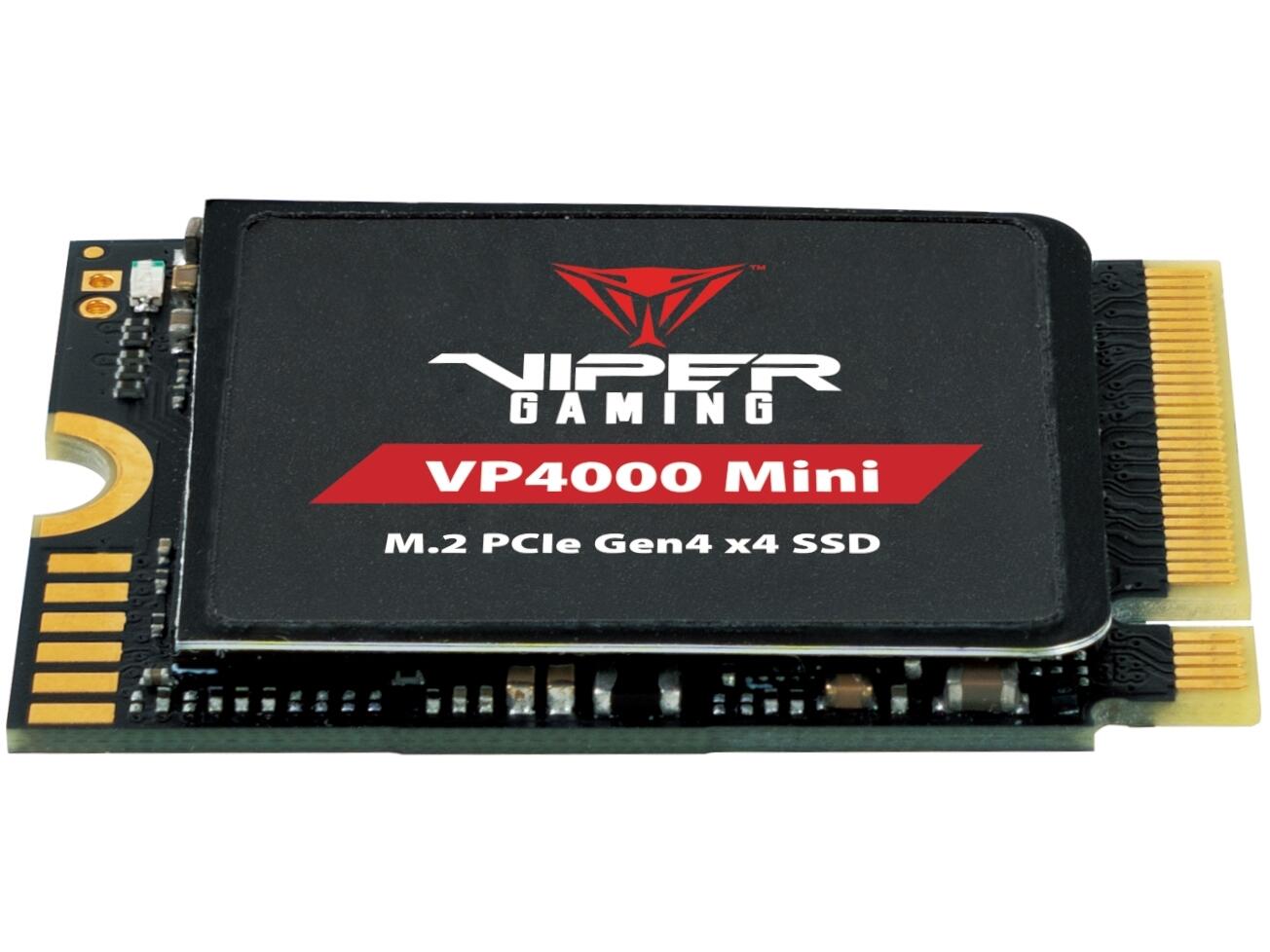

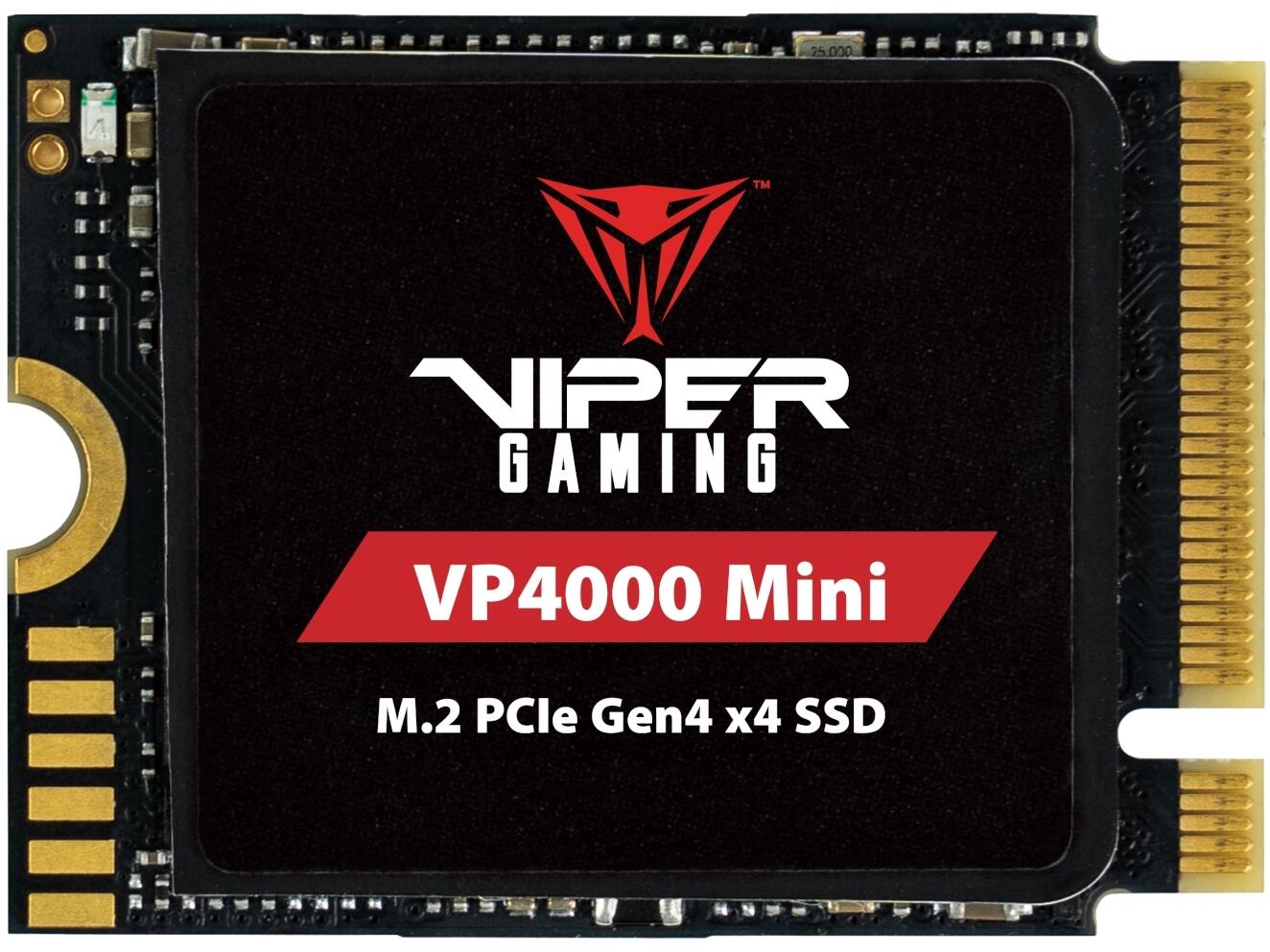

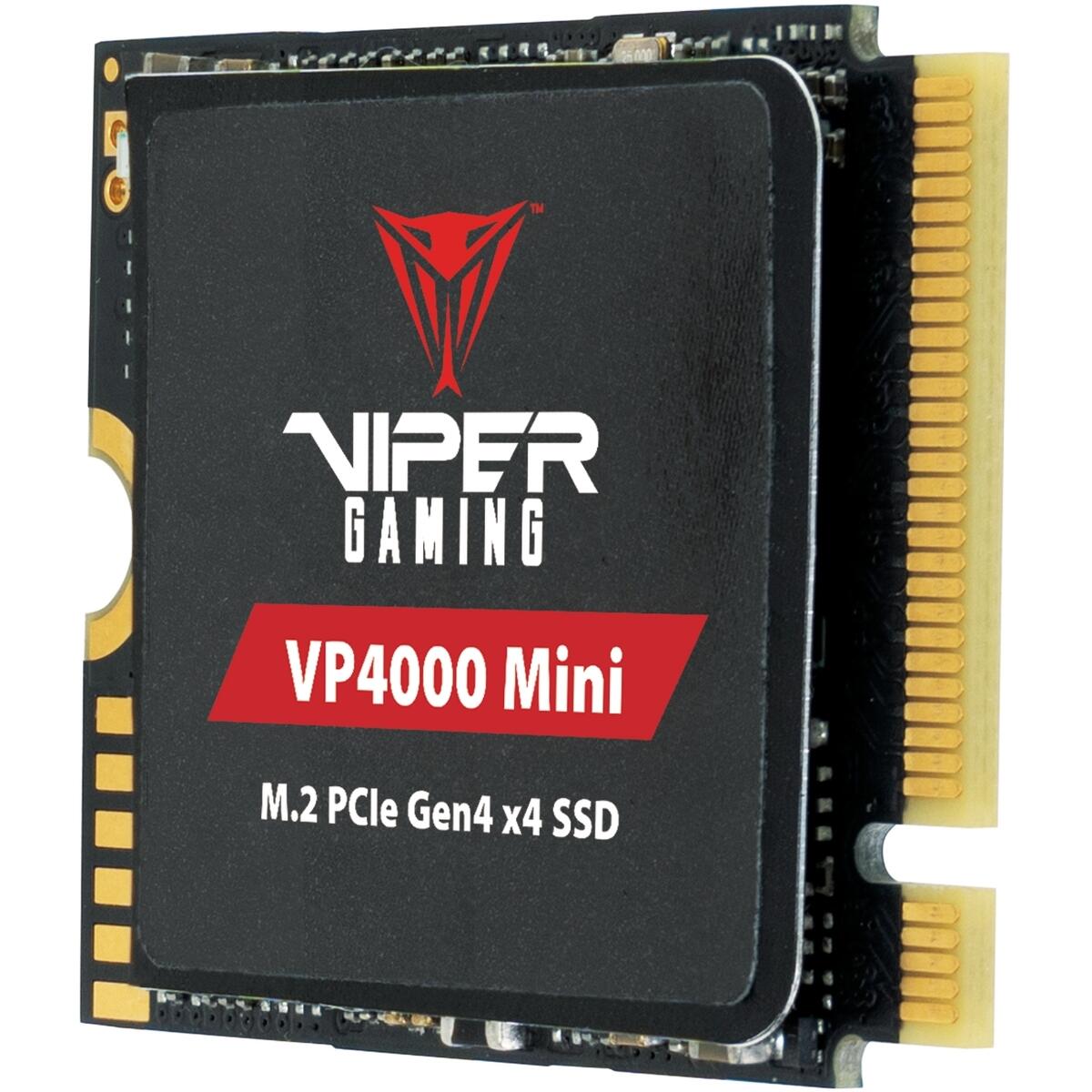

The defining characteristic of the Viper VP4000 Mini is its M.2 2230 form factor — a significantly smaller footprint compared to standard M.2 2280 drives, making it the ideal storage solution for devices with limited internal space. At just 30mm long versus the standard 80mm, the VP4000 Mini fits the internal M.2 slots of the Steam Deck, ASUS ROG Ally, select ultrabooks, and compact mini-PCs that cannot accommodate a full-length 2280 drive. The Silicon Motion SM2269XT controller paired with 176-layer 3D TLC NAND delivers genuine PCIe Gen 4 performance in that compact package — a combination not always available at this form factor.

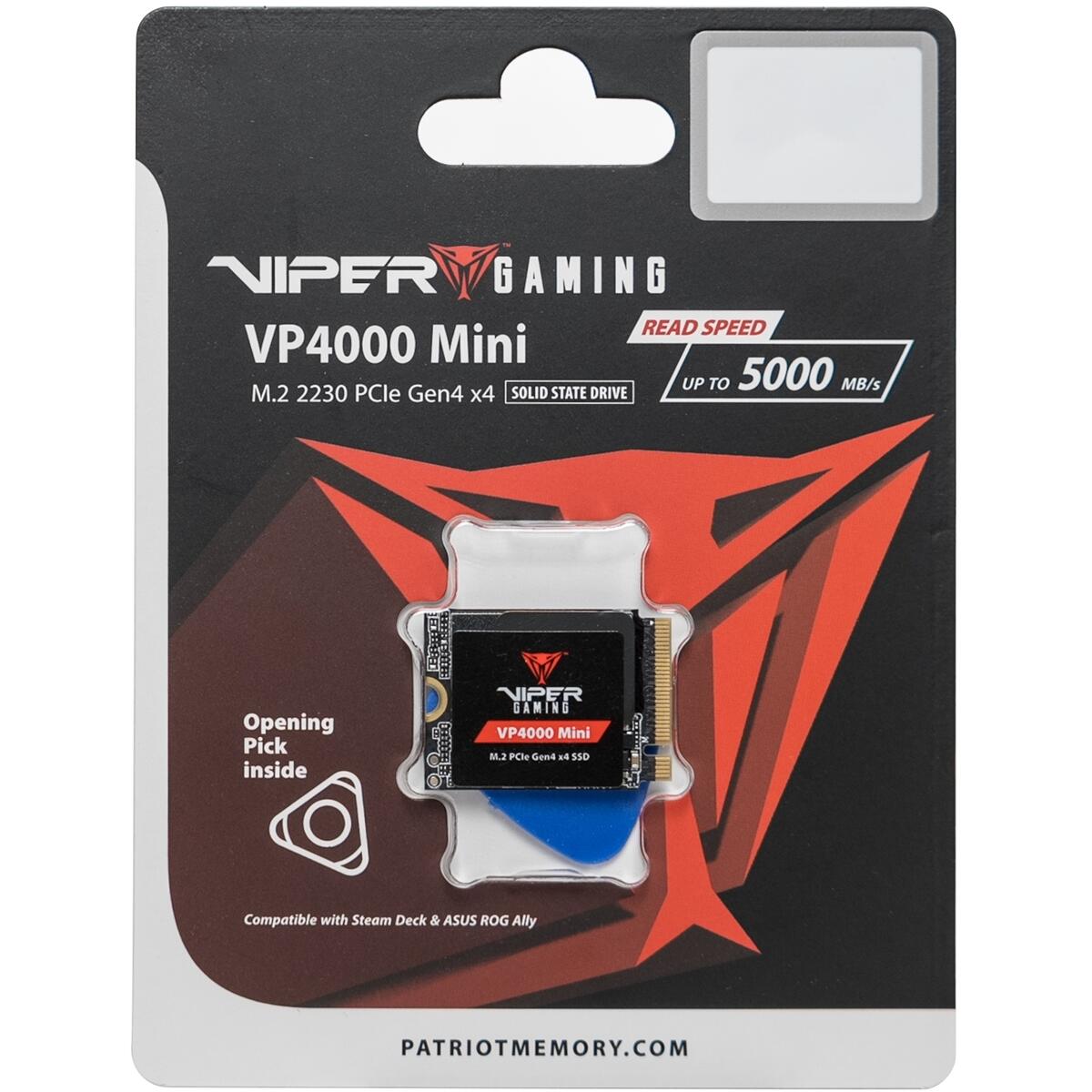

What’s in the Box — Including an Opening Pick

Patriot includes a slim graphene heatshield fitted to the drive and an opening pick for chassis disassembly. The high-efficiency slim graphene heatshield combined with an embedded thermal sensor for throttling means the VP4000 Mini is built to sustain performance through long gaming sessions. The opening pick is a practical inclusion — handheld gaming devices like the Steam Deck and ROG Ally require careful chassis opening to access the M.2 slot, and having the right tool in the box saves a separate purchase.

SmartECC, HMB, and Thermal Throttling

The VP4000 Mini utilises SmartECC technology, thermal throttling, and support for SMART and TRIM commands, combined with Host Memory Buffer and ONFi 4.2 mode flash support of up to 1,600MT/s. SmartECC is Patriot’s LDPC-based error correction implementation — detecting and correcting bit errors to protect data integrity over the drive’s lifetime. HMB allocates a portion of system RAM to supplement the DRAM-less controller, improving mapping table performance on Windows 10/11 and supported handheld OS environments.

500GB Write Speed — Know What to Expect

The 500GB VP4000 Mini is rated at 4,700MB/s read and 1,700MB/s write. The 5,000MB/s read and 3,500MB/s write figures apply to the 1TB and 2TB variants, which benefit from more NAND dies available for parallel write operations. For a handheld gaming device used primarily for game storage and OS, 1,700MB/s write is more than adequate — significantly faster than any previous storage tier and well-suited to this use case.

5-Year Warranty — Rare at This Form Factor

A 5-year warranty on an M.2 2230 drive is uncommon. Most competing 2230 SSDs in this tier carry 3-year coverage; the VP4000 Mini’s 5-year warranty reflects Patriot’s confidence in the 176-layer TLC NAND and thermal management design. TBW for the 500GB model is 110TB — adequate for gaming device storage where the primary workload is sequential reads rather than sustained writes.

⚠️ M.2 2230 form factor — not 2280 — the VP4000 Mini is 30mm long, not the standard 80mm. It is designed for devices with M.2 2230 slots: Steam Deck, ASUS ROG Ally, select ultrabooks, and compact mini-PCs. It will not seat correctly in a standard desktop motherboard M.2 2280 slot without an adapter bracket.

ℹ️ PCIe Gen 4 slot recommended — full 4,700MB/s read performance requires a PCIe Gen 4 M.2 slot. The drive is backwards compatible with Gen 3 at approximately half the rated speeds.

ℹ️ 500GB write speed — the 500GB model is rated at 1,700MB/s write versus 3,500MB/s on the 1TB and 2TB variants. For game storage and OS workloads on a handheld device this is not a practical limitation.

ℹ️ DRAM-less design — the VP4000 Mini uses HMB rather than on-drive DRAM. Full HMB benefit requires Windows 10/11 or a compatible NVMe driver.

Key Highlights

• Capacity: 500GB

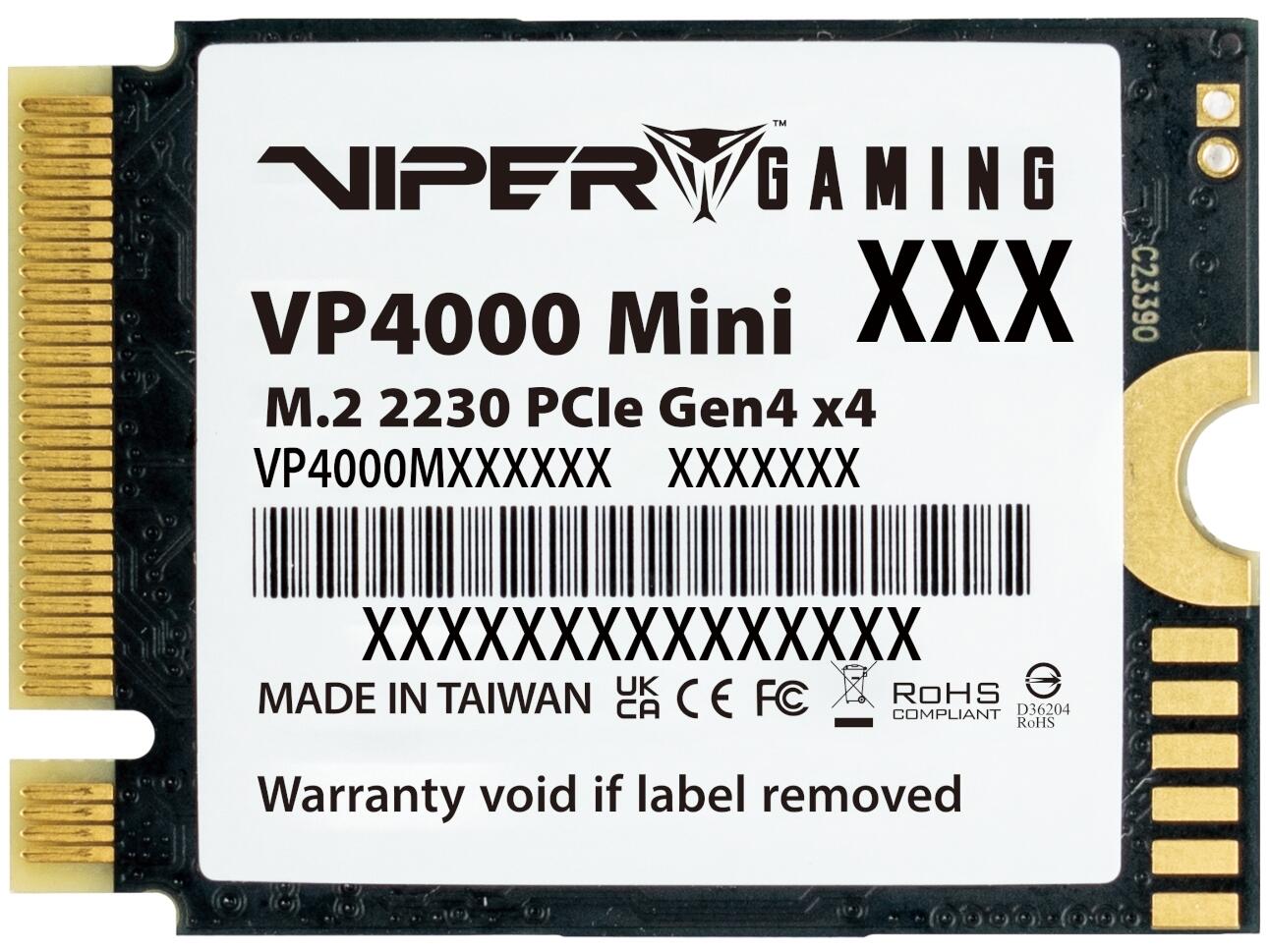

• Form Factor: M.2 2230 (30mm; single-sided)
• Interface: PCIe Gen 4 x4 / NVMe 1.4 (backwards compatible with Gen 3)
• Sequential Read/Write: Up to 4,700 / 1,700 MB/s
• NAND: 176-layer 3D TLC
• Controller: Silicon Motion SM2269XT (DRAM-less)
• DRAM Cache: None (HMB supported)
• Flash Support: ONFi 4.2, up to 1,600MT/s
• Error Correction: SmartECC (LDPC-based)
• Features: HMB, SmartECC, SMART, TRIM, Thermal Throttling, Embedded Thermal Sensor
• Heatsink: Slim graphene heatshield (included)
• Accessories: Chassis opening pick (included)
• Compatible Devices: Steam Deck, ASUS ROG Ally, M.2 2230-compatible ultrabooks and mini-PCs
• PS5 Compatible: No (PS5 requires M.2 2280)
• Operating Temp: 0°C – 70°C
• TBW: 110TB
• Warranty: 5-year limited
