PCBuilder AMD Upgrade Kit (AMD Ryzen 5 5500)

Description

Zen 3 Performance on a Budget AM4 Platform

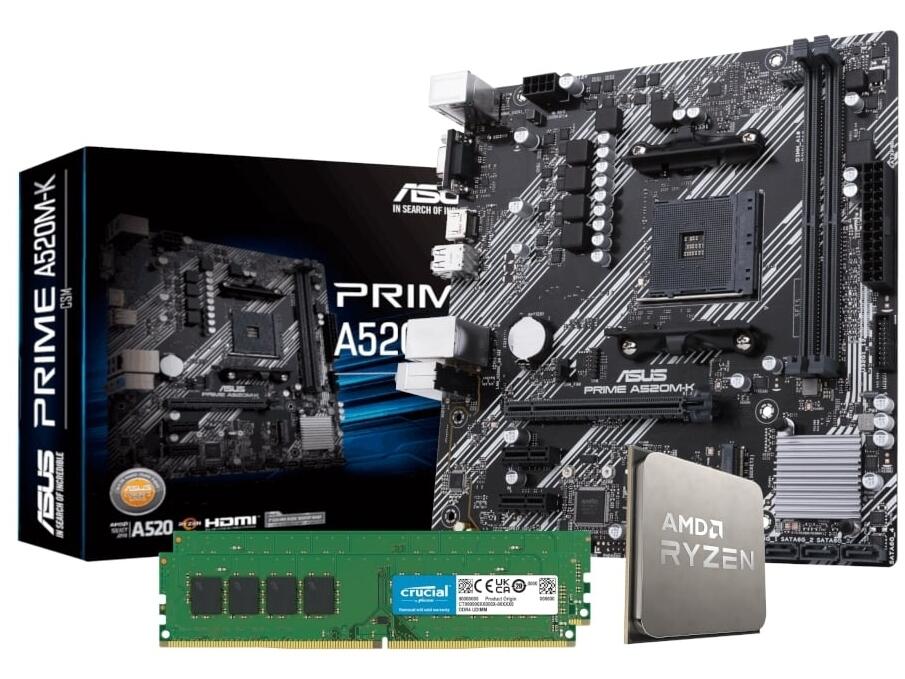

The PCBuilder AMD Upgrade Kit combines three compatible AM4 components into a single bundle, giving builders a straightforward path to a capable desktop without individually sourcing and cross-checking parts: the AMD Ryzen 5 5500 processor, 16 GB of Crucial DDR4 memory, and an ASUS Prime A520M motherboard. The Ryzen 5 5500’s Zen 3 architecture delivers meaningful generational improvements over Zen+ and Zen 2 platforms in both IPC (instructions per clock) and single-threaded performance, making this kit a practical upgrade starting point for everyday productivity, web browsing, office applications, and light gaming when paired with a discrete GPU.

💡 This kit covers the three core platform components — processor, memory, and motherboard. To complete the build, add a case, power supply, storage (M.2 NVMe or SATA SSD), and a discrete GPU. A 550W PSU provides comfortable headroom for a mid-range GPU alongside this platform.

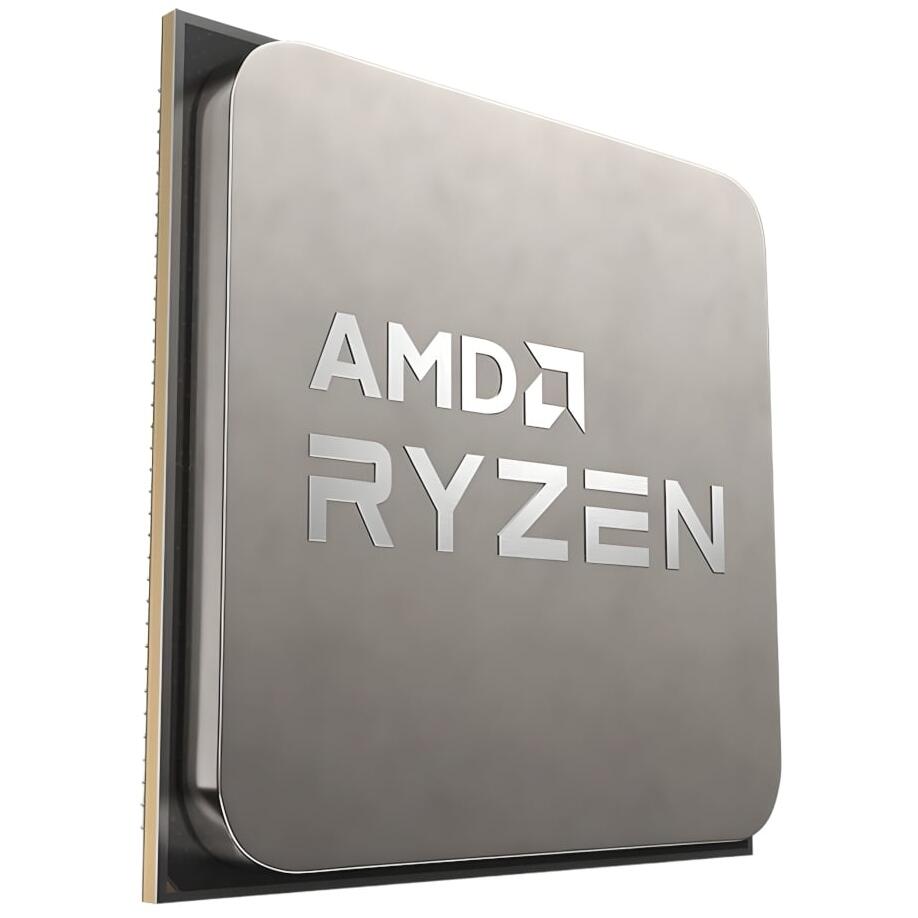

AMD Ryzen 5 5500

The Ryzen 5 5500 (Zen 3 / Cezanne, 7nm TSMC) is a six-core, twelve-thread AM4 processor with a 3.6 GHz base clock and 4.2 GHz boost clock, 16 MB L3 cache, and a 65W TDP. It ships with AMD’s Wraith Stealth cooler, keeping installation simple without additional cooler spend at this platform tier. While the Ryzen 5 5500 uses PCIe 3.0 rather than the PCIe 4.0 found on Ryzen 5000 desktop (Vermeer) chips, this has no meaningful real-world impact on current discrete GPU performance — PCIe 3.0 x16 provides ample bandwidth for all current mid-range graphics cards.

⚠️ The Ryzen 5 5500 has no integrated graphics — a discrete GPU is required to obtain any display output. This kit does not include a GPU. If integrated graphics are needed, consider the PCB_UPK_21 kit (Ryzen 5 3400G) instead.

⚠️ The Ryzen 5 5500 is an AM4 processor and is not compatible with AM5 motherboards. This kit is a standalone AM4 platform and cannot be combined with AM5 components.

💡 The Ryzen 5 5500 is unlocked for overclocking, but the A520M chipset does not support CPU frequency overclocking. Memory overclocking via XMP profiles is supported on the A520 platform. If CPU OC headroom is a priority, a B550 or X570 board is required.

Memory and Motherboard

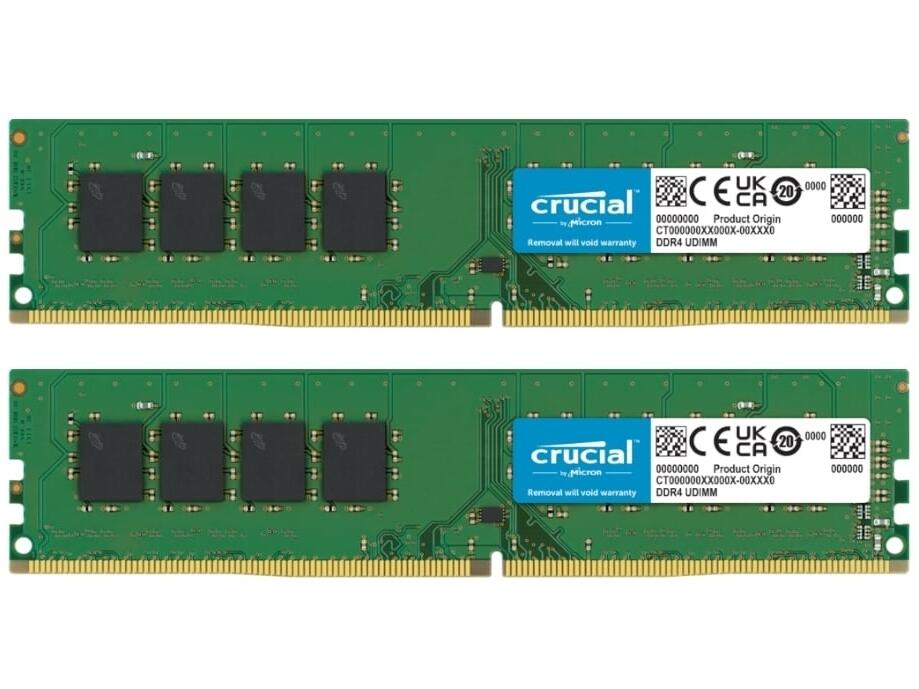

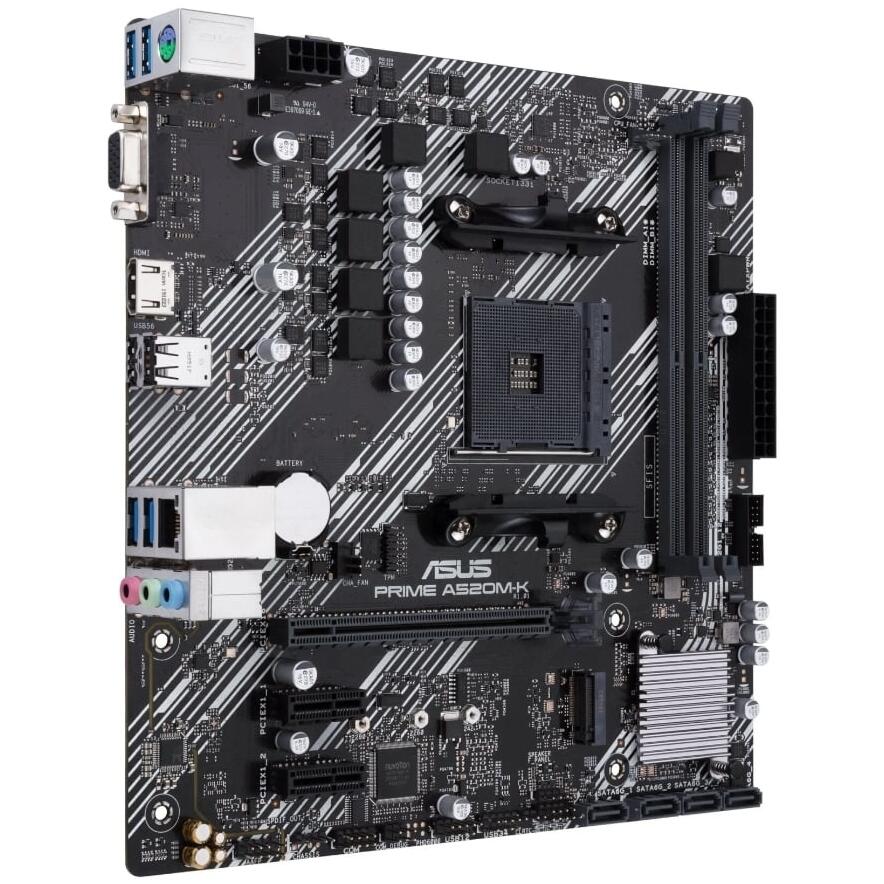

The 16 GB Crucial DDR4 module provides comfortable memory capacity for gaming, multitasking, and general productivity at this platform tier. The ASUS Prime A520M provides a reliable, no-frills AM4 foundation with PCIe 3.0, M.2 NVMe storage support, SATA ports, USB 3.2 Gen1, HDMI and D-Sub display outputs, and ASUS’s pre-mounted I/O shield for straightforward installation. The A520 chipset is well-suited to this build tier — stable, proven, and compatible with the full Ryzen 5000 lineup including the Ryzen 5 5500.

⚠️ This kit uses DDR4 memory — DDR5 is not supported on the AM4 platform. Do not use DDR5 modules with this kit.

Key Highlights

• AMD Ryzen 5 5500 — 6 cores, 12 threads, 3.6 GHz base / 4.2 GHz boost
• Zen 3 (Cezanne) architecture, 7nm, 65W TDP, AM4 socket
• 16 MB L3 cache, PCIe 3.0
• No integrated graphics — discrete GPU required
• Wraith Stealth cooler included (boxed retail)
• Windows 11 compatible
• 16 GB Crucial DDR4 — dual-channel capable
• ASUS Prime A520M motherboard — AM4, M.2 NVMe support, SATA
• A520 chipset — no CPU OC (CPU is unlocked but chipset restricts it)
• Ready-to-build bundle — add case, PSU, storage, and GPU to complete
• Suited for budget gaming, home office, and light productivity builds
