TP-Link Omada ER706W WiFi6 (1x SFP WAN/LAN, 1x WAN, 4x LAN/WAN) VPN Router

Description

WiFi 6 and Wired Routing in One Business-Grade Device

The TP-Link Omada ER706W is purpose-built for businesses that want a capable VPN gateway and high-speed wireless access point rolled into a single unit. A dual-core ARM Cortex-A53 processor paired with 512MB DDR4 memory delivers the performance headroom needed to handle simultaneous routing, VPN, and wireless duties without compromise.

Key Highlights

• AX3000 dual-band WiFi 6: 2402 Mbps on 5GHz and 574 Mbps on 2.4GHz

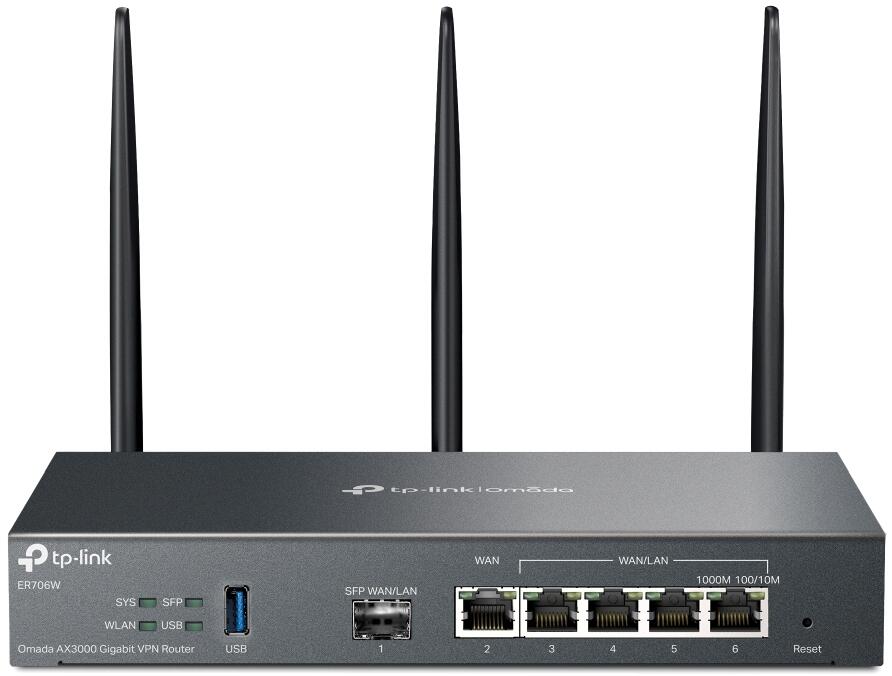

• 1× Gigabit SFP WAN/LAN port, 1× Gigabit RJ45 WAN port, and 4× Gigabit RJ45 WAN/LAN ports
• 3 external antennas for extended, focused wireless coverage
• Professional 4 kV lightning protection

Multi-WAN Connectivity & LTE Backup

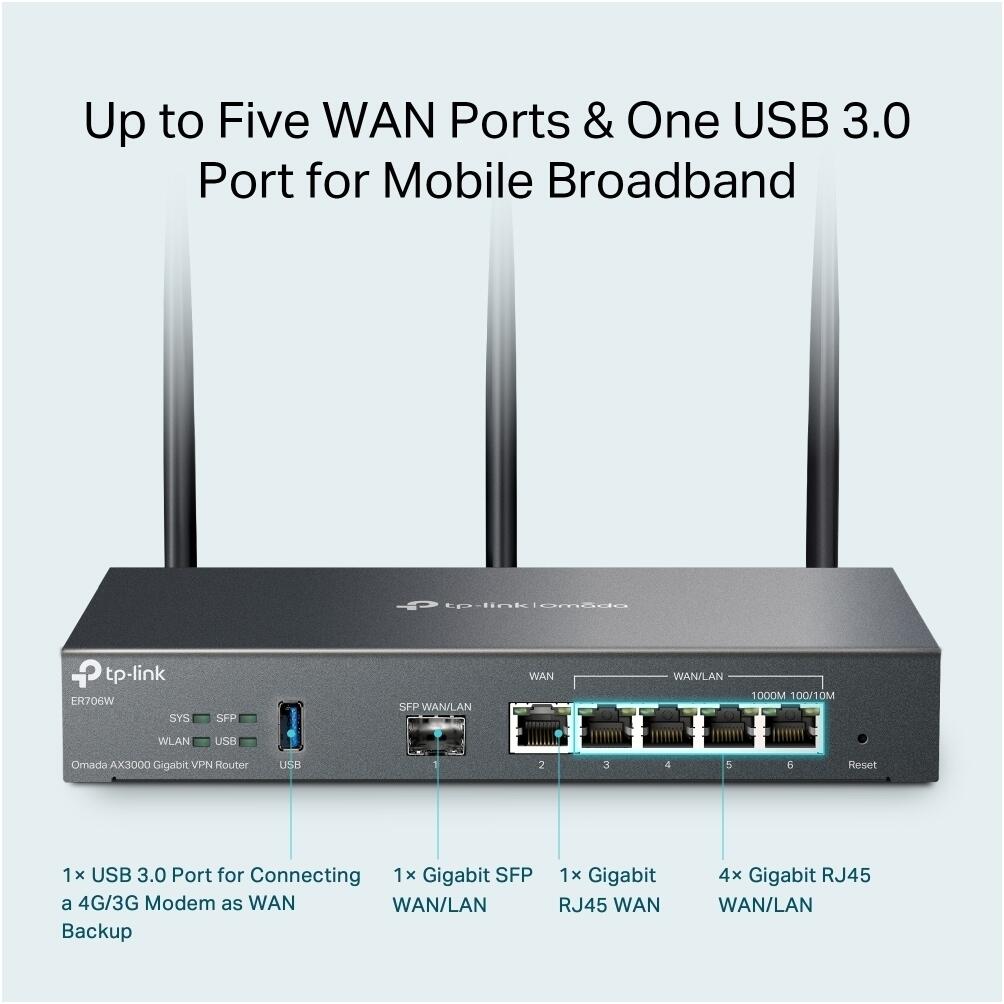

With up to 6 configurable WAN ports and a USB 3.0 port for LTE dongle support, the ER706W offers solid redundancy for business-critical connections. The USB 3.0 port supports both USB storage sharing and LTE backup via compatible LTE dongles, keeping the network online even during fixed-line outages.

• Up to 6 WAN ports with multi-WAN load balancing and failover
• USB 3.0 WAN backup via 4G/5G LTE dongle
• USB storage sharing over the network
• Multi-line broadband load balancing for maximum uplink utilisation



Comprehensive VPN Support

Multiple VPN protocols are supported including SSL, WireGuard, OpenVPN, GRE, IPSec, PPTP, L2TP, and L2TP over IPSec, giving businesses flexible options for secure remote access, site-to-site connections, and work-from-home deployments.

• Full VPN protocol support: WireGuard, OpenVPN, IPSec, SSL, GRE, PPTP, L2TP, L2TP over IPSec
• VPN client and server modes supported
• Captive portal for convenient guest network authentication
• Load balancing, bandwidth control, and access control included



WiFi 6 & Omada Mesh for Scalable Wireless Coverage

WiFi 6 delivers up to 3× faster speeds, higher capacity, and lower latency compared to WiFi 5 — with OFDMA and 1024-QAM supporting denser client environments more efficiently. Omada Mesh Technology seamlessly connects with Omada EAPs that support mesh, optimising network coverage in larger environments without the need for additional cabling.

• WiFi 6 (802.11ax) with OFDMA and 1024-QAM for high-density environments
• Omada Mesh support for seamless wireless expansion with compatible EAPs
• Dual-band simultaneous 2.4GHz and 5GHz operation
• Centrally managed alongside Omada switches and access points via Omada SDN



Omada SDN Integration & Centralised Management

Fully integrated into the Omada SDN platform, the ER706W supports Zero-Touch Provisioning and can be monitored and configured remotely via the Omada web interface or mobile app. Standalone management via the local web UI is also available for simpler deployments without a controller.

• Full Omada SDN integration with Zero-Touch Provisioning

• Cloud access and Omada app management from anywhere

• Standalone web UI for controller-free deployments
• Firewall with DoS defence, IP/MAC/URL filtering, and ACL
