Cattex 27U 600×800 Glass Server Cabinet

Description

Floor-Standing, Ready for Business

When your rack requirements have outgrown anything wall-mountable, the Cattex 27U 600×800 is where you step up. Twenty-seven rack units gives you the space to properly separate structured cabling from active networking from compute — with room remaining for PDUs, UPS infrastructure, and future expansion. Built in South Africa to international 19-inch rack standards using precision computerised machinery, the bolted easy-assembly frame is constructed from 1.2mm cold-rolled mild steel (CRMS), phosphated and powder-coated to 50–70 microns for a durable, corrosion-resistant black finish that holds up in real-world server room conditions.

Glass Front, Mesh Rear, Removable Sides

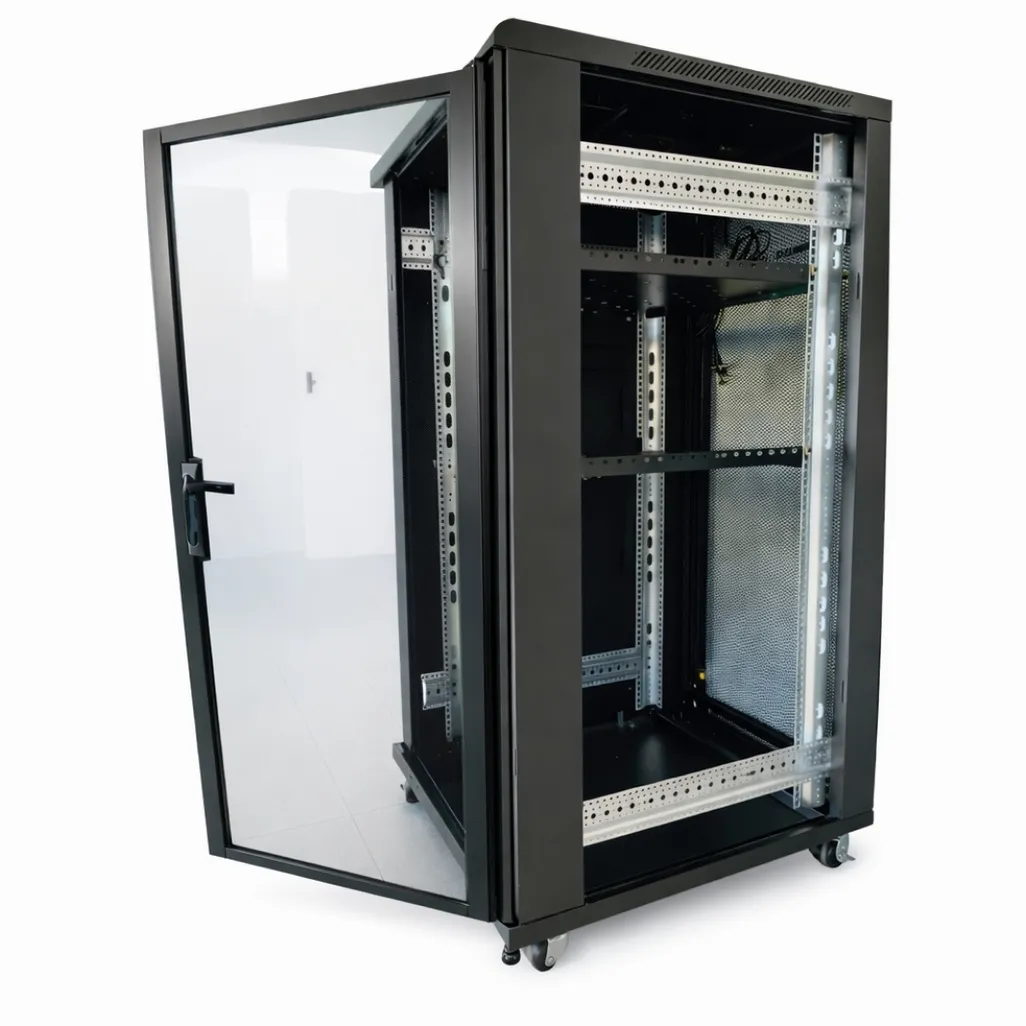

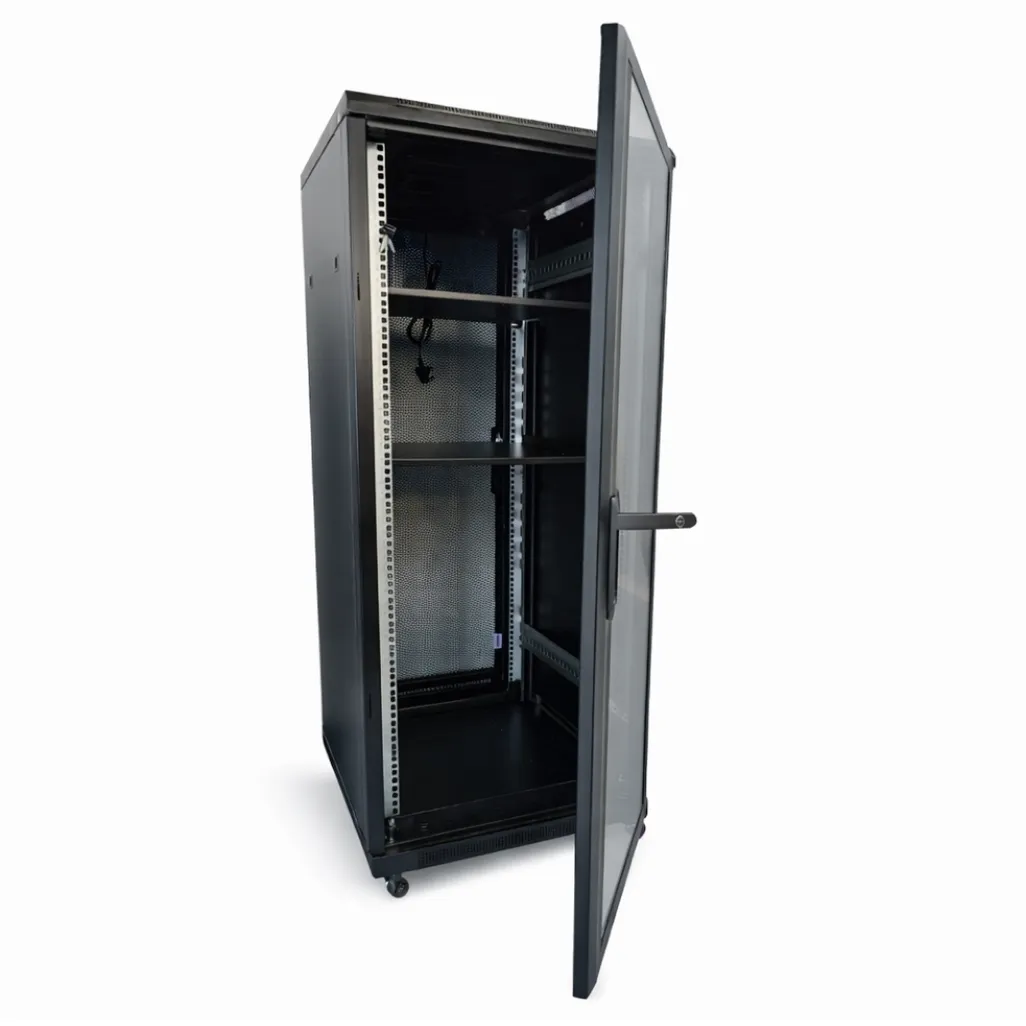

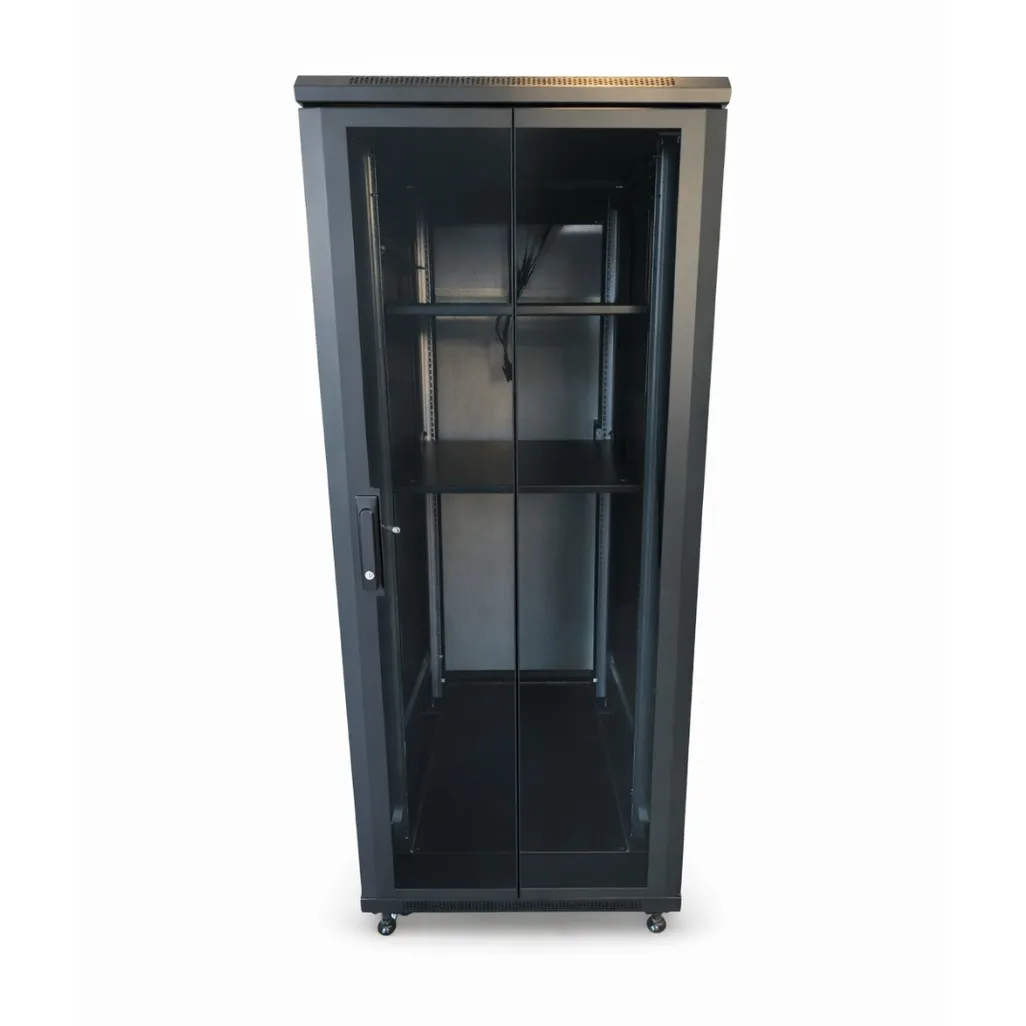

The lockable glass front door keeps installed equipment clearly visible while maintaining a clean, professional appearance — equally at home in a dedicated server room or a client-visible environment. At the rear, double mesh doors deliver the ventilation a populated cabinet demands, maintaining adequate airflow across switches, servers, and UPS equipment under sustained load. Removable side panels complete the access picture, making cabling runs, equipment swaps, and ongoing maintenance straightforward without having to work around fixed enclosures.

Fully Adjustable, Built to Last

Internal mounting rails are fully adjustable both vertically and horizontally, accommodating a wide range of equipment depths and configurations within the 800mm internal clearance. The bolted frame construction means the cabinet arrives ready to assemble cleanly on-site, without compromising on structural rigidity once installed.

⚠️ Delivery and Installation Note: Floor-standing cabinets are heavy items. Ensure adequate manpower is available on-site for delivery and installation. Verify that the cabinet will fit through all doorways and access passages to its intended location before ordering — external dimensions should be checked against your site’s access constraints prior to purchase.

Key Highlights

• 27U rackmount capacity in a floor-standing form factor
• 600mm wide × 800mm deep internal dimensions
• International 19-inch rack standard
• Lockable glass front door
• Mesh double rear doors for improved ventilation
• Removable side panels for full access
• Fully adjustable internal mounting rails (vertical and horizontal)
• 1.2mm CRMS steel construction — phosphated and powder-coated black (50–70 micron)
• Bolted easy-assembly frame
• Locally manufactured by Cattex in South Africa
• SKU: SS.6827.GLA.B
