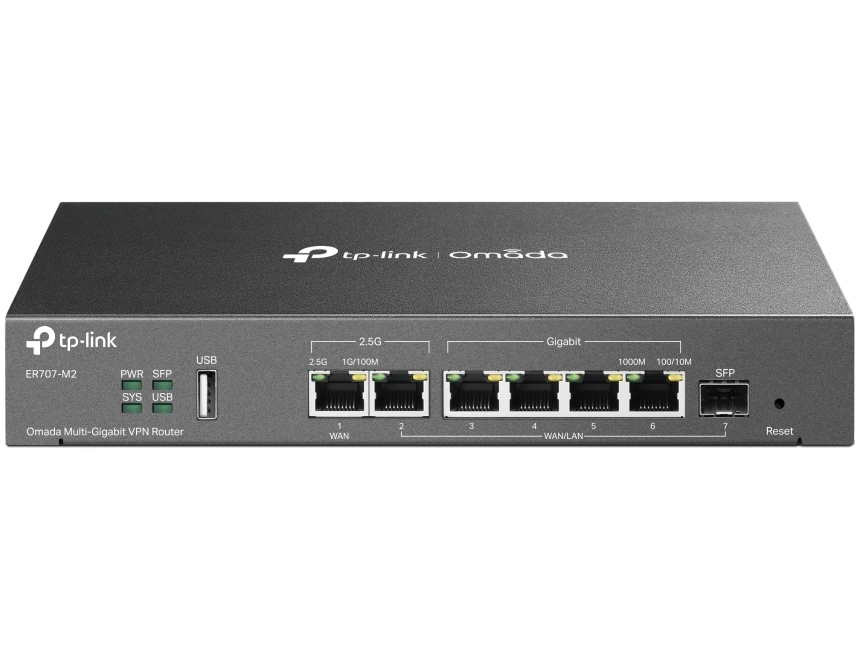

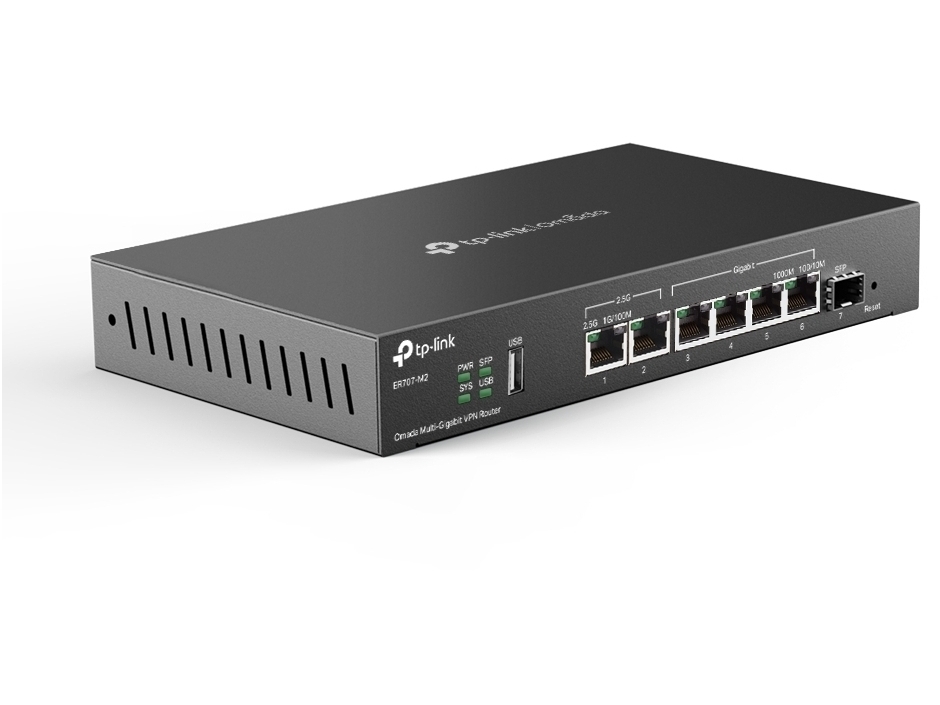

TP-Link Omada ER707-M2 (1x 2.5G WAN, 1x 2.5G WAN/LAN, 1x SFP WAN/LAN, 4x WAN/LAN) VPN Router

Description

Multi-Gigabit Connectivity for Growing Business Networks

Delivering high-speed transmissions through dual 2.5Gbps ports, the ER707-M2 is designed for multi-person environments such as retail stores, hotels, and offices. Its flexible port configuration means it can adapt to a wide range of network topologies, from simple single-WAN setups to complex multi-link deployments with failover and load balancing across mixed connection types.

Key Highlights

• 1× 2.5G RJ45 WAN port and 1× 2.5G RJ45 WAN/LAN port for high-bandwidth uplink connectivity
• 1× Gigabit SFP WAN/LAN port and 4× Gigabit RJ45 WAN/LAN ports for flexible port assignment
• Up to 6 WAN ports spanning 2.5G RJ45, Gigabit fibre, and Gigabit RJ45
• Compact desktop/rack-mountable form factor suited to office environments



Multi-WAN Load Balancing & LTE Backup

Multi-WAN load balancing distributes data streams based on the bandwidth proportion of every WAN port to increase the utilisation rate of multi-line broadband. A USB port supports 4G/3G modem connectivity for LTE WAN backup, providing an additional safety net when primary connections are disrupted.

• Up to 6 configurable WAN ports with load balancing and failover
• USB WAN backup via 4G/5G LTE modem
• USB storage sharing over the network
• Multi-line broadband aggregation for maximised uplink availability



Comprehensive VPN Support

Multiple VPN protocols are supported including SSL VPN, GRE VPN, OpenVPN, IPSec, PPTP, L2TP, and L2TP over IPSec, giving businesses versatile options for securing remote worker connections and inter-branch site-to-site tunnels. One-click auto IPSec VPN simplifies VPN configuration and deployment for teams without dedicated network engineers.

• Full VPN protocol support: SSL, GRE, OpenVPN, IPSec, PPTP, L2TP, L2TP over IPSec
• Supports up to 100× LAN-to-LAN IPsec, 66× OpenVPN, 60× L2TP, and 60× PPTP VPN connections
• Can operate as a VPN client, connecting to up to 6 OpenVPN servers simultaneously
• One-click auto IPSec VPN for simplified deployment



Advanced Security Features

The ER707-M2 includes a full complement of enterprise-grade security tools to protect both the network perimeter and internal traffic. Advanced firewall policies, DoS defence, IP/MAC/URL filtering, and additional security functions provide layered protection suitable for business-critical environments.

• SPI firewall with DoS/DDoS attack defence
• IP/MAC/URL filtering and Access Control List (ACL)
• IP-MAC binding and One-Click ALG activation
• Captive portal for guest network authentication



Omada SDN Integration & Centralised Management

Full Omada SDN integration supports Zero-Touch Provisioning, centralised cloud management, and intelligent monitoring — enabling the ER707-M2 to be deployed and managed remotely as part of a larger Omada ecosystem alongside switches and access points.

• Full Omada SDN integration with Zero-Touch Provisioning
• Cloud access and Omada app for remote management
• Standalone web UI and CLI management also available
• Real-time network status dashboard and topology view
