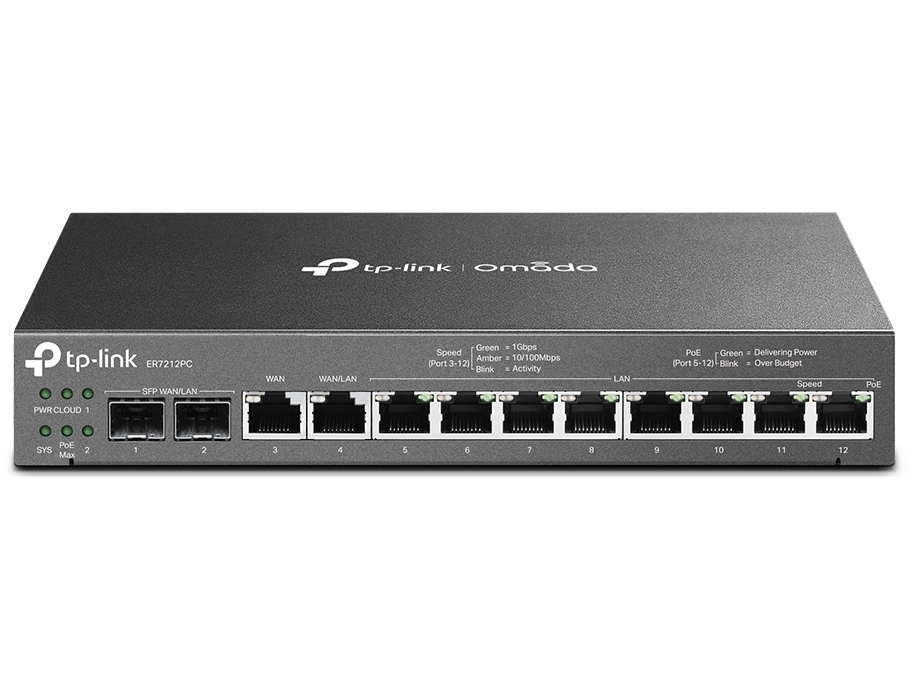

TP-Link Omada ER7212PC 3-in-1 Gateway/Controller/PoE+ VPN Router

Description

Router, PoE Switch, and Controller — All in One

The TP-Link Omada ER7212PC consolidates a router, PoE+ output, and Omada centralised management into a single compact device, making it a highly cost-effective solution for small businesses, retail environments, and branch offices that want enterprise-grade networking without the overhead of multiple devices. Its fanless design and compact footprint mean it can be deployed quietly on a desk or mounted on a wall with minimal fuss.

Key Highlights

• Dual-Core 1.2GHz CPU and 1GB DDR3 memory for reliable multi-port performance
• 2× Gigabit SFP WAN/LAN ports, 1× Gigabit RJ45 WAN port, 1× Gigabit RJ45 WAN/LAN port, and 8× Gigabit RJ45 LAN ports
• 8× 802.3af/at PoE+ ports with a 110W total power budget
• Fanless and compact enclosure for desktop or wall mounting

Multi-WAN Connectivity & PoE+ Output

Up to 4 WAN ports spanning Gigabit SFP and RJ45 interfaces support load balancing and failover across multiple internet connections, keeping the business online even when a primary link goes down. The 8 built-in PoE+ LAN ports can directly power access points, IP cameras, and VoIP phones — removing the need for a separate PoE switch in smaller deployments.

• Up to 4 configurable WAN ports for load balancing and failover
• 8× PoE+ LAN ports (802.3af/at) — 110W combined budget
  Powers Omada EAPs, IP cameras, VoIP phones, and other PoE devices directly
• 4 kV professional lightning protection

VPN Support for Secure Remote Access

Multiple VPN protocols are supported including OpenVPN, IPSec, PPTP, L2TP, and L2TP over IPSec, giving businesses flexibility in how they connect remote workers, branch offices, and partner networks. One-click auto IPSec VPN simplifies VPN configuration and deployment, reducing the technical burden on smaller IT teams.

• OpenVPN, IPSec, PPTP, L2TP, and L2TP over IPSec — client and server modes
• One-click auto IPSec VPN via Omada SDN
• Can work as a VPN client and connect with up to 10 VPN servers simultaneously
• Captive portal for convenient guest network authentication

Embedded Omada Controller — No Extra Hardware Needed

The ER7212PC includes an embedded Omada SDN controller, meaning no additional hardware or software server is required to centrally manage the network. It can centrally manage up to 22 Omada devices — 2 gateways, 20 switches and EAPs in total — from a single interface, accessible via the cloud or Omada mobile app from anywhere.

• Embedded Omada SDN controller — no separate controller device required
• Centrally manage up to 22 Omada devices (gateways, switches, EAPs)
• Cloud access and Omada app for remote monitoring and management
• Load balancing, bandwidth control, and access control included
• Dimensions: 226 × 131 × 35 mm — compact enough for desk or wall install
