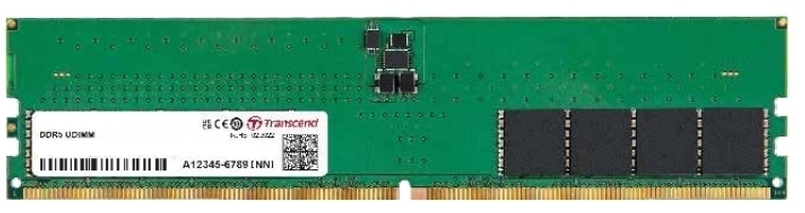

Transcend JetRam 16GB (DDR5-4800, CL40) Desktop RAM

Description

ETT-Grade Quality in DDR5

Transcend’s DDR5 JetRam line carries forward the defining quality differentiator of the DDR4 JetRam already listed in this range. Compliant with JEDEC international standards, Transcend’s new-gen DDR5 JetRam memory modules are manufactured with true ETT grade, brand-name DRAM chips that have passed Transcend’s strict screening process and rigorous environmental testing. The module ships on a standard green PCB with no heat spreader and no RGB — Transcend’s focus, as with DDR4 JetRam, is on component quality and long-term reliability over aesthetics. PCB height is 1.23 inches, fitting virtually all desktop cases and CPU cooler configurations.

DDR5 Architecture & Dual Subchannel Design

The DDR5 generation introduces a meaningful internal architectural change over DDR4 that directly benefits performance. DDR5 features two independent 32-bit channels that bring speeds to 4,800MT/s. Each DDR5 module effectively presents two independent 32-bit memory channels to the memory controller rather than DDR4’s single 64-bit channel — improving memory access parallelism and burst efficiency. The 1.1V low working voltage and PMIC effectively reduce signal interruption while cutting down power consumption, and on-die ECC automatically spots and corrects data errors, enhancing data integrity and system stability.

Single-Rank (1Rx8) Configuration

The JM4800ALE-16G uses a 1Rx8 single-rank configuration with a (2Gx8)×8 component composition — eight 2Gx8 chips in a single-rank arrangement. This contrasts with the dual-rank (2Rx8) configuration found on the ADATA Value and Premier DDR5-4800 16GB modules in this range. For most everyday workloads the practical performance difference between single-rank and dual-rank at 16GB is negligible; single-rank typically offers slightly better signal integrity in multi-slot populated boards, while dual-rank provides marginally better memory bus interleaving in memory-intensive workloads.

Performance Profile

The JM4800ALE-16G runs at DDR5-4800 (PC5-38400) with CL40 timings at 1.1V via JEDEC specification — no XMP profile, no BIOS configuration required. Operating temperature is 0°C to 85°C. The module will run at rated DDR5-4800 speed on any compatible platform straight out of the box.

⚠️ No XMP on this module: DDR5-4800 is achieved via JEDEC specification natively — no BIOS tuning required.

DDR5 Platform Requirements

DDR5 is not compatible with DDR4 motherboards or slots. A DDR5-capable motherboard and CPU is required — Intel 12th generation Alder Lake or later on a DDR5-compatible board, or AMD Ryzen 7000 series (AM5) or later.

⚠️ DDR5 is not compatible with DDR4 slots: Verify that both your motherboard and CPU support DDR5 before purchasing. Many Intel 12th and 13th gen boards were available in both DDR4 and DDR5 variants — confirm your specific board’s memory type before ordering.

⚠️ Single stick = single channel: For dual-channel bandwidth, install a second JM4800ALE-16G in your motherboard’s recommended paired DIMM slots. Refer to your board’s manual for the correct slot configuration.

Key Highlights

• Capacity: 16GB (1×16GB)
• Type: DDR5 | 288-pin U-DIMM (Desktop)
• Speed: 4800MT/s (PC5-38400)
• Timings: CL40
• Rank / IC: 1Rx8 single rank, (2Gx8)×8
• Voltage: 1.1V
• Standard: JEDEC — no XMP
• On-Die ECC: Yes
• PMIC: Yes — on-module power management IC
• Dual Subchannel: Yes — two independent 32-bit channels
• DRAM: ETT grade, brand-name chips
• PCB Height: 1.23 inches
• Operating Temp: 0°C to 85°C
• RGB: None
• ECC: Non-ECC unbuffered
• Platform: Intel 12th gen+ (DDR5 boards) & AMD Ryzen 7000 (AM5)+
• Warranty: Limited Lifetime
