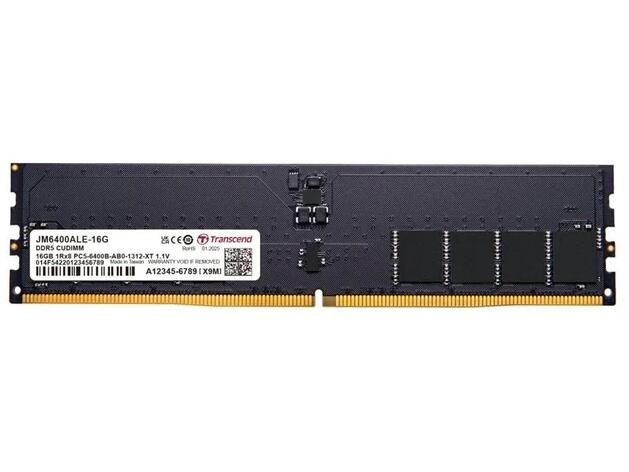

Transcend JetRam 16GB (DDR5-6400, CL52) Desktop RAM

Description

CUDIMM — Platform Requirements Apply

The JM6400ALE-16G is a CUDIMM (Clocked Unbuffered DIMM), not a standard UDIMM. Like the Kingston ValueRAM CUDIMMs (KVR64A52BS6-8 and KVR64A52BS8-16) listed elsewhere in this range, the JM6400ALE-16G uses a 1Rx8 single-rank (2Gx8)×8 component composition with an integrated Clock Driver (CKD) that regenerates the DDR5 clock signal on-module for improved signal integrity at 6400MT/s. CUDIMMs are not universally compatible with all DDR5 motherboards — they require a CUDIMM-capable platform, primarily Intel Arrow Lake (Z890/B860) and later.

⚠️ CUDIMM requires CUDIMM-compatible motherboard and CPU: This module will not function in all DDR5 motherboards. Verify that your specific board and processor explicitly support CUDIMM before purchasing. CUDIMM support is primarily found on Intel Arrow Lake (Z890/B860) and later platforms — most existing Z690/Z790/X670E boards support standard UDIMM only.

JetRam DDR5-6400 vs DDR5-4800

The JM6400ALE-16G steps up significantly from the JM4800ALE-16G listed elsewhere in this range. Both are JetRam DDR5 desktop modules built on ETT-grade brand-name DRAM chips with the same Transcend quality screening process — but the 6400MT/s variant delivers 51.2GB/s bandwidth vs 38.4GB/s at 4800MT/s, a 33% bandwidth increase. The 6400MT/s module is also a CUDIMM rather than a standard UDIMM, requiring platform verification before purchase.

Performance Profile

At 6400MT/s, this module significantly reduces data bottlenecks, providing smooth performance for competitive gaming and high-resolution content creation. CAS latency is CL52 at 1.1V via JEDEC specification — no XMP or EXPO profile is present, consistent with the ValueRAM approach to CUDIMM DDR5-6400. Rated 6400MT/s speed is achieved natively via JEDEC on any compatible CUDIMM platform without BIOS configuration.

⚠️ No XMP on this module: DDR5-6400 is achieved via JEDEC specification natively on compatible CUDIMM platforms — no BIOS tuning required.

Power Efficiency & DDR5 Features

The integrated PMIC ensures precise power distribution at a low 1.1V, maintaining extreme energy efficiency and signal integrity even at high speeds. On-die ECC automatically detects and fixes bit errors, ensuring superior stability and preventing system crashes during high-frequency operation. PCB height is 1.23 inches — the same compact profile as the JM4800ALE-16G, fitting virtually all desktop cases and CPU cooler configurations without clearance concerns.

Transcend JetRam Quality

The module features a 288-pin design and is strictly factory-screened through rigorous environmental testing to ensure cross-platform compatibility, backed by Transcend’s limited lifetime warranty. Transcend’s ETT-grade DRAM screening process — the same quality framework applied across the entire JetRam DDR4 and DDR5 lineup — ensures consistent performance and compatibility across the CUDIMM-compatible platform ecosystem.

⚠️ Single stick = single channel: For dual-channel bandwidth, install a second JM6400ALE-16G in your motherboard’s recommended paired DIMM slots. Refer to your board’s manual for the correct slot configuration.

Key Highlights

• Capacity: 16GB (1×16GB)
• Type: DDR5 CUDIMM | 288-pin (Desktop) — CUDIMM, not UDIMM
• Speed: 6400MT/s (PC5-51200)
• Timings: CL52
• Rank / IC: 1Rx8 single rank, (2Gx8)×8 + Clock Driver (CKD)
• Voltage: 1.1V
• Standard: JEDEC — no XMP, no EXPO
• On-Die ECC: Yes
• PMIC: Yes — integrated, precise power distribution
• Bandwidth: 51.2GB/s
• PCB Height: 1.23 inches
• Operating Temp: 0°C to 85°C
• RGB: None
• ECC: Non-ECC unbuffered
• Platform: CUDIMM-compatible DDR5 platforms only (Intel Arrow Lake Z890/B860 and later)
• Warranty: Limited Lifetime
