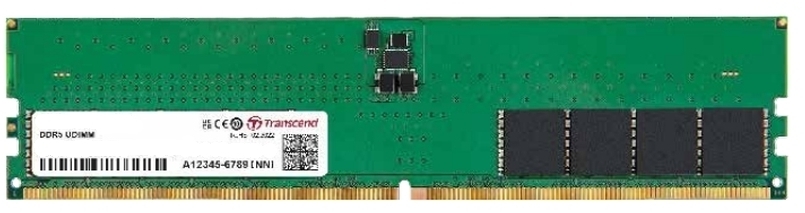

Transcend JetRam 32GB (DDR5-4800, CL40) Desktop RAM

Description

ETT-Grade Quality at Maximum JetRam DDR5 Capacity

The JM4800ALE-32G brings Transcend’s ETT-grade DRAM quality assurance to 32GB single-stick capacity — the largest module in the JetRam DDR5-4800 desktop lineup. DDR5 features two independent 32-bit channels that bring speeds to 4,800MT/s. 1.1V low working voltage and PMIC effectively reduce signal interruption while cutting down power consumption for your computer. On-die ECC automatically spots and corrects data errors, enhancing data integrity and system stability. The module ships on a standard green PCB at 1.23 inches height — fitting virtually all desktop cases and CPU cooler configurations — with no heat spreader and no RGB.

Dual-Rank (2Rx8) Configuration

The JM4800ALE-32G uses a 2Rx8 dual-rank (2Gx8)×8 configuration — the same IC topology as the 16GB JM4800ALE-16G but with dual-rank arrangement to achieve the doubled 32GB capacity. The dual-rank configuration allows the memory controller to interleave between ranks, delivering improved effective memory bandwidth compared to single-rank alternatives at the same capacity, particularly in memory-intensive workloads such as virtualisation, large dataset processing, and multi-threaded productivity applications.

16GB vs 32GB JetRam DDR5-4800

Both the JM4800ALE-16G and JM4800ALE-32G use the same (2Gx8)×8 IC composition, but the 32GB module uses dual-rank (2Rx8) while the 16GB uses single-rank (1Rx8). For systems targeting 32GB total in a single slot — or a foundation for a future 64GB dual-channel configuration — the 32GB variant is the appropriate choice. For 32GB dual-channel configurations, two JM4800ALE-16G sticks may provide better memory bus utilisation depending on the specific platform.

Performance Profile

The JM4800ALE-32G runs at DDR5-4800 (PC5-38400) with CL40 timings at 1.1V via JEDEC specification — no XMP profile, no BIOS configuration required. Operating temperature is 0°C to 85°C, consistent with the 16GB JetRam DDR5 variant.

⚠️ No XMP on this module: DDR5-4800 is achieved via JEDEC specification natively — no BIOS tuning required.

DDR5 Platform Requirements & Capacity Verification

DDR5 is not compatible with DDR4 motherboards or slots. A DDR5-capable motherboard and CPU is required. At 32GB single-module capacity, it is essential to verify your motherboard’s maximum per-slot memory capacity before purchasing — not all DDR5 motherboards support 32GB single modules. Consult your motherboard’s specifications or QVL before ordering.

⚠️ Verify 32GB per-slot support: Not all DDR5 motherboards support 32GB single modules. Check your motherboard’s specifications or QVL before purchasing.

⚠️ DDR5 is not compatible with DDR4 slots: Verify that both your motherboard and CPU support DDR5. Many Intel 12th and 13th gen boards were available in both DDR4 and DDR5 variants — confirm your specific board’s memory type before ordering.

⚠️ Single stick = single channel: For dual-channel bandwidth, install a second JM4800ALE-32G in your motherboard’s recommended paired DIMM slots — enabling 64GB dual-channel. Refer to your board’s manual for the correct slot configuration.

Key Highlights

• Capacity: 32GB (1×32GB)
• Type: DDR5 | 288-pin U-DIMM (Desktop)
• Speed: 4800MT/s (PC5-38400)
• Timings: CL40
• Rank / IC: 2Rx8 dual rank, (2Gx8)×8
• Voltage: 1.1V
• Standard: JEDEC — no XMP
• On-Die ECC: Yes
• PMIC: Yes — on-module power management IC
• Dual Subchannel: Yes — two independent 32-bit channels
• DRAM: ETT grade, brand-name chips
• PCB Height: 1.23 inches
• Operating Temp: 0°C to 85°C
• RGB: None
• ECC: Non-ECC unbuffered
• Platform: Intel 12th gen+ (DDR5 boards) & AMD Ryzen 7000 (AM5)+
• Warranty: Limited Lifetime
