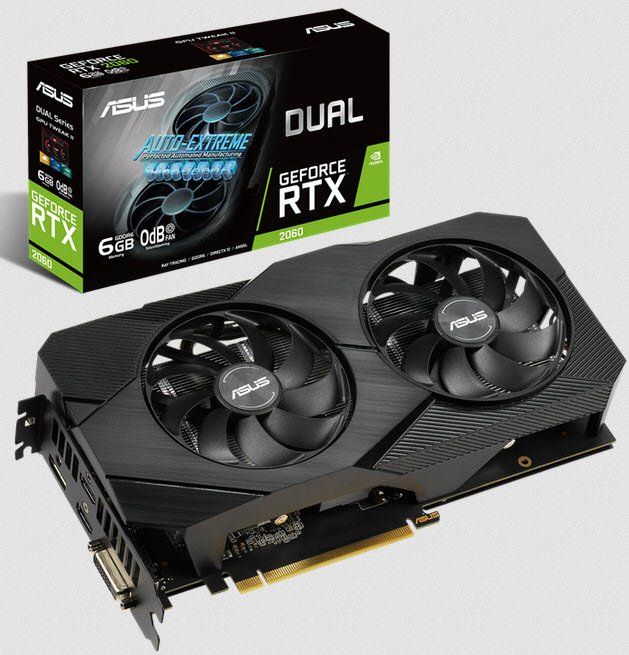

Asus Dual GeForce RTX™ 2060 Evo (6GB, GDDR6)

Description

Turing Performance, Dual-Fan Cooling, No Compromises

The ASUS Dual GeForce RTX 2060 EVO brings NVIDIA’s Turing architecture to a dual-fan platform with cooling technologies derived from ASUS’s flagship ROG lineup. The 2.7-slot Axial-tech fan design features a smaller hub that facilitates longer fan blades and a barrier ring to increase downward air pressure — more effective thermal performance than conventional fan designs of the same diameter. The 0dB Technology mode stops both fans completely when GPU temperatures drop below a threshold during light workloads, providing silent operation for desktop use, video playback, and undemanding games.

Super Alloy Power II (premium alloy chokes, solid polymer capacitors, and high-current MOSFETs) contributes to stable power delivery under sustained gaming loads, while ASUS’s Auto-Extreme manufacturing process uses automation throughout PCB assembly to reduce the risk of flux contamination and solder joint inconsistency. The aluminium backplate reinforces the PCB against flex and trace damage, and provides a clean rear finish in windowed chassis builds.

⚠️ The RTX 2060 supports DLSS 2 (Super Resolution) but does not support DLSS 3 Frame Generation — that feature is exclusive to RTX 40 Series. For DLSS 3 Frame Generation, an RTX 4060 or higher is required.

⚠️ The 6 GB GDDR6 frame buffer is well-suited to 1080p gaming. At 1440p with maximum texture quality settings, some VRAM-intensive titles may approach or exceed the available buffer in 2024 and beyond. DLSS Quality mode is the recommended approach for extending 1440p viability on this card.

💡 The RTX 2060 is an excellent entry into hardware ray tracing and DLSS-supported titles for builds on a budget. Real-time ray tracing is best enjoyed at 1080p with ray tracing settings at medium, supplemented by DLSS for frame rate recovery.

Technical Specifications

The RTX 2060 uses NVIDIA’s TU106 Turing GPU on TSMC’s 12nm process with 1920 CUDA cores, 30 RT cores, and 240 Tensor cores. The 6 GB GDDR6 frame buffer runs at 14 Gbps on a 192-bit bus with 336 GB/s bandwidth. Clocks are 1365 MHz base and 1680 MHz boost in gaming (default) mode. Outputs are 1× DisplayPort 1.4, 2× HDMI 2.0b, and 1× DVI-D, supporting up to four simultaneous displays with a maximum resolution of 7680×4320. The card draws 160W and requires a single 8-pin PCIe power connector with a 500W system PSU.

Key Highlights

• NVIDIA GeForce RTX 2060 — Turing architecture (TU106), TSMC 12nm
• 1920 CUDA cores
• 30 × 1st-gen RT cores — hardware-accelerated ray tracing
• 240 × 2nd-gen Tensor cores — DLSS 2 AI upscaling
• 6 GB GDDR6, 192-bit bus, 14 Gbps, 336 GB/s bandwidth
• 1365 MHz base / 1680 MHz boost (gaming mode), GPU Boost 4.0
• 160W TDP — 1× 8-pin PCIe power connector required
• 500W system PSU recommended
• PCIe 3.0 x16
• 1× DisplayPort 1.4 + 2× HDMI 2.0b + 1× DVI-D
• Up to 4 simultaneous displays, max resolution 7680×4320
• Dual Axial-tech fans — 2.7-slot, barrier ring design
• 0dB Technology — fans stop at low temperatures
• Aluminium backplate — PCB reinforcement
• ASUS Super Alloy Power II — premium alloy chokes, solid polymer capacitors
• ASUS Auto-Extreme automated manufacturing
• DLSS 2 (Super Resolution) — no DLSS 3 Frame Generation
• NVIDIA G-SYNC Compatible, Adaptive V-Sync
• Real-time ray tracing with RTX
• NVIDIA Ansel, ShadowPlay, GameStream, GPU Boost 4.0
• VR Ready (Variable Rate Shading, Multi-View Rendering, VRWorks Audio)
• DirectX 12 Ultimate, OpenGL 4.6
• ASUS GPU Tweak II software
