ASUS ROG Crosshair X870E Hero BTF AMD AM5

Description

The Clean Build Revolution: BTF Hidden-Connector Design

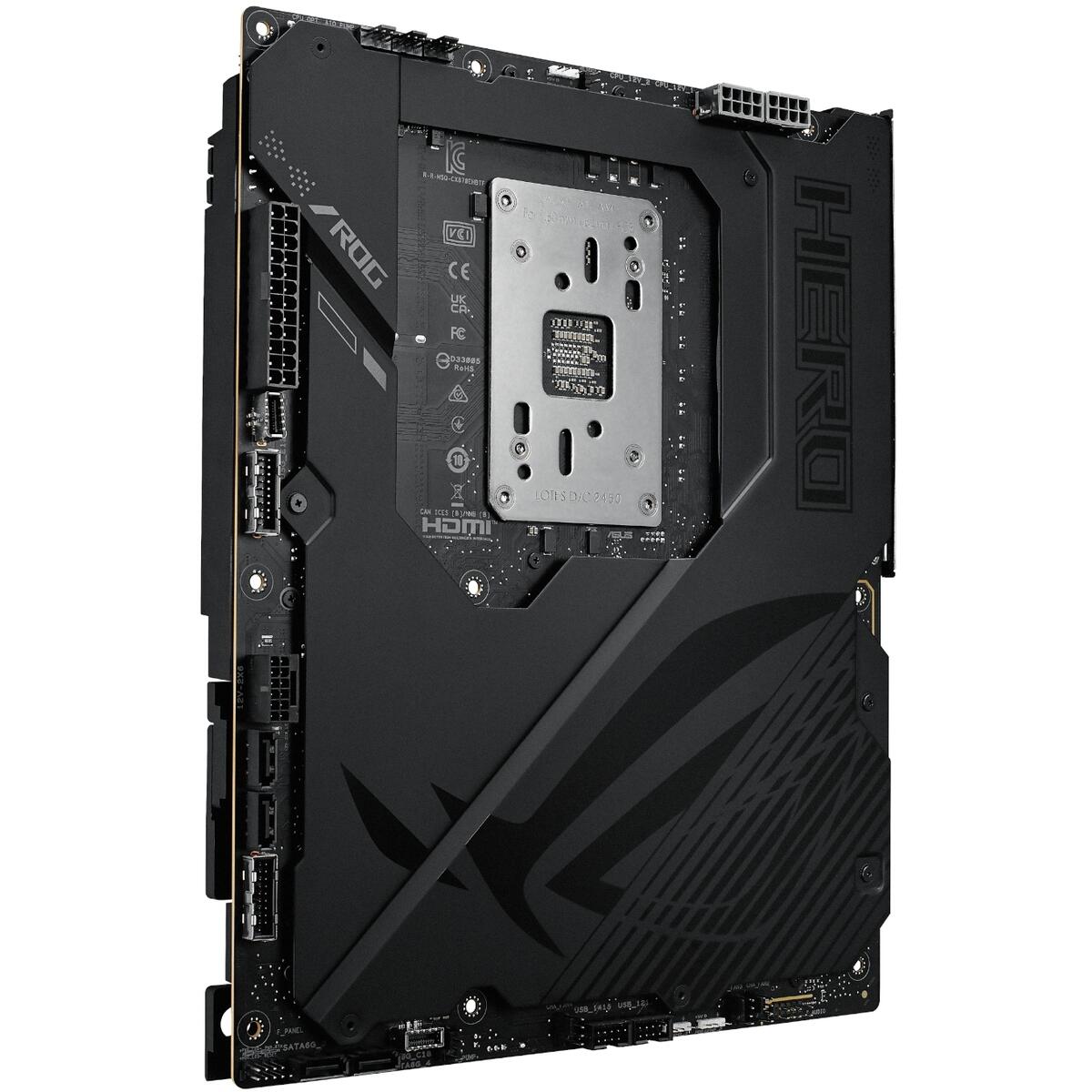

The ROG Crosshair X870E Hero BTF redefines what a high-end build looks like. The BTF design hides connectors for motherboard and GPU power, USB, and fan cables, delivering an ultra-clean aesthetic for AMD Ryzen 9000 builds. When paired with a compatible BTF graphics card and chassis, the high-power GPU slot delivers up to 600 watts to the graphics card directly through the motherboard, eliminating the need for external PCIe power cables entirely. For builders who want a showpiece rig with no visible wiring, this is the platform to build on.

Power Delivery Built for Extremes

The board’s robust power solution features 18(110A)+2(110A)+2 power stages with ProCool II power connectors, MicroFine alloy chokes, and premium metallic capacitors. This is backed by massive heatsinks integrated with the I/O cover, joined by an L-shaped heatpipe and connected to the power stages with high-conductivity thermal pads — ensuring the VRM stays cool even under sustained, multi-core workloads on top-tier Ryzen 9000 processors.

Storage: Five M.2 Slots, Three at PCIe 5.0

Five M.2 slots are on offer — three CPU-connected slots supporting PCIe 5.0 x4 with Ryzen 9000/7000 processors, and two chipset-side PCIe 4.0 x4 slots — alongside four SATA 6Gb/s ports. All M.2 slots include cooling solutions, and ASUS’s tool-free Q-Latch and Q-Slide mechanisms make SSD installation and swapping quick and painless. RAID 0/1/5/10 is supported across both NVMe and SATA with Ryzen 9000 Series CPUs.

Memory & AI-Enhanced Performance

Four DDR5 DIMM slots support up to 256GB with NitroPath DRAM Technology and AEMP (AMD EXtended Memory Profiles), enabling enthusiast-grade memory kits to be driven well beyond the 8 GT/s mark. ASUS’s AI Overclocking, AI Cooling II, and AI Networking II features intelligently tune the system automatically, while ROG-exclusive tools like Dynamic OC Switcher, Core Flex, and Asynchronous Clock give manual overclockers granular control over CPU, memory, and BCLK domains independently.

Connectivity: Wi-Fi 7, USB4, and More

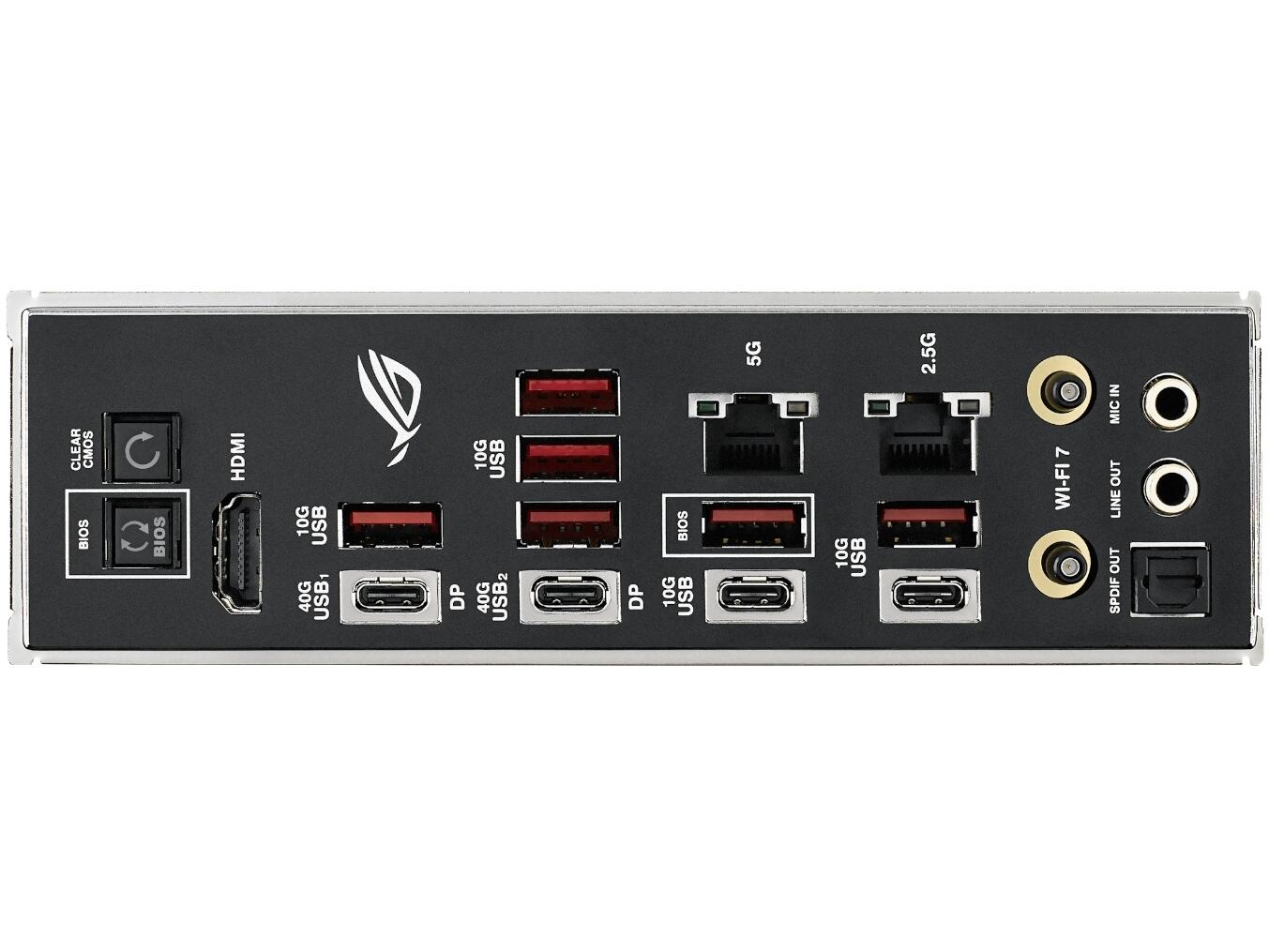

Networking is handled by dual LAN controllers — Intel 2.5GbE and Realtek 5GbE — alongside Wi-Fi 7 (802.11be) with Bluetooth 5.4. Dual USB4 ports and a 20Gbps front-panel USB-C header put this board at the cutting edge of peripheral and storage connectivity. The rear I/O and internal headers cover USB 3.2 Gen 2×2, Gen 2, Gen 1, and USB 2.0 across both Type-A and Type-C form factors.

Aesthetics & Software

Polymo Lighting II, built into the I/O shroud, delivers dynamic RGB illumination for the signature ROG logo, complemented by nickel-plated surfaces, premium metallic textures, and a deep dark finish. Armoury Crate software ties RGB, fan control, overclocking, and system monitoring into a single interface. The AI Cache Boost BIOS feature optimises CPU cache and memory pathways for local LLM workloads, delivering up to 29% faster performance with high-speed memory tuning.

Key Highlights

• AMD X870E chipset, AM5 socket — supports Ryzen 9000, 8000, and 7000 Series
• BTF hidden-connector design for a completely cable-free build aesthetic
• GPU high-power slot delivers up to 600W to compatible BTF graphics cards
• 18+2+2 power stages (110A each), ProCool II connectors
• 4x DDR5 DIMM slots, up to 256GB, NitroPath DRAM + AEMP support
• 5x M.2 slots (3x PCIe 5.0 + 2x PCIe 4.0) + 4x SATA 6Gb/s
• 1x PCIe 5.0 x16 slot with Q-Release Slim
• Dual LAN: Intel 2.5GbE + Realtek 5GbE
• Wi-Fi 7 (802.11be), Bluetooth 5.4
• Dual USB4 ports, 20Gbps front-panel USB-C
• AI Overclocking, AI Cooling II, Dynamic OC Switcher, PBO Enhancement
• Polymo Lighting II RGB, full ATX form factor
