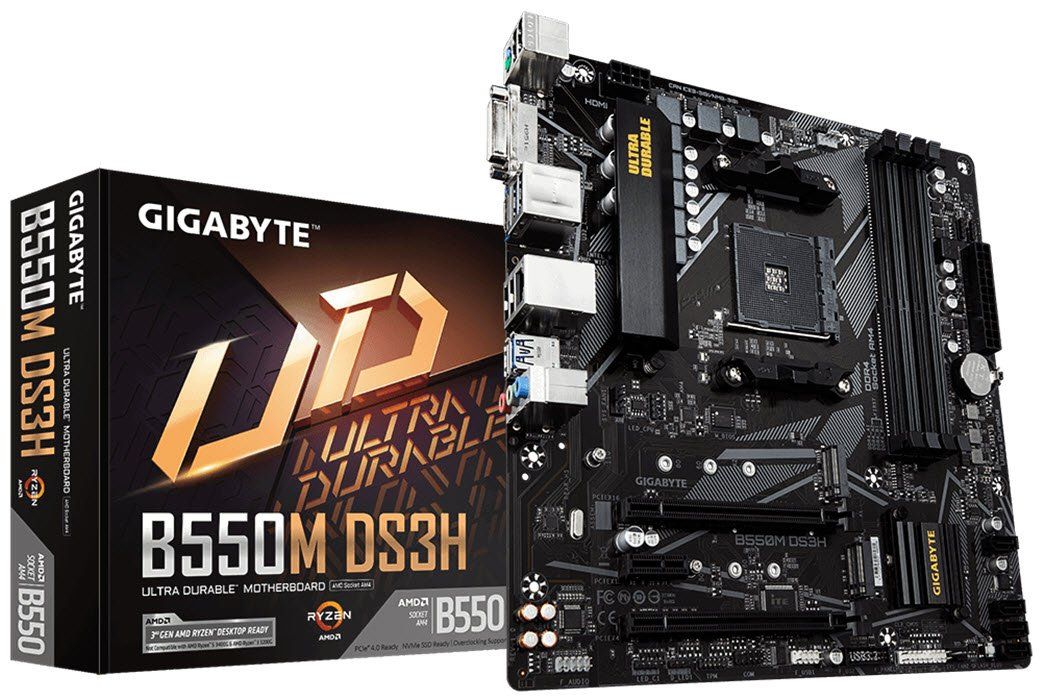

Gigabyte B550M DS3H AMD AM4

Description

Compact B550 for Practical, No-Nonsense Builds

The Gigabyte B550M DS3H is Gigabyte’s entry point into the B550 chipset at Micro-ATX size, positioned squarely at builders who want PCIe 4.0 platform capability without paying for features they won’t use. It fits into the Ultra Durable product family rather than the gaming-focused Gaming or premium Aorus ranges, with a design philosophy centred on reliability and straightforward functionality. The Micro-ATX form factor suits compact mid-towers and smaller chassis while still accommodating four DIMM slots and dual M.2 storage — more flexible than many competing Mini-ITX options at a similar price.

Power Delivery and Thermal Management

The 5+3 phase pure digital VRM with low RDS(on) MOSFETs handles power delivery for Ryzen CPUs across the AM4 TDP range. While more modest than the 12+2 phase designs found on Aorus-tier boards, it is well-suited to the majority of mainstream and mid-range Ryzen processors this board is paired with. Gigabyte’s Ultra Durable construction — including ICs with up to 3x standard ESD resistance and anti-sulfur resistors — focuses on long-term board reliability. Smart Fan 5 manages fan headers with hybrid PWM/DC detection and configurable profiles including FAN STOP.

Memory and Storage

Four DDR4 DIMM slots support up to 128 GB of dual-channel ECC/non-ECC unbuffered memory, with OC support extending to DDR4-4733 for compatible kits. Two M.2 connectors handle NVMe storage: the primary slot runs at PCIe 4.0 x4 from the CPU and accepts drives up to 22110 length, while the secondary slot supports PCIe 3.0 x4 or SATA from the chipset. Neither slot includes a thermal guard heatsink. Four SATA III ports provide conventional storage capacity, with AMD StoreMI support for tiered SSD and HDD configurations.

Connectivity

A Realtek Gigabit LAN port with bandwidth management software handles wired networking — standard 1 GbE rather than 2.5 GbE, which is the primary networking trade-off compared to Aorus-tier boards. No onboard WiFi is included. Rear display outputs include HDMI and DVI-D on earlier revisions, with DisplayPort added on Rev 1.5 and later — useful for APU-based builds or office setups requiring dual monitors. Audio uses high-quality capacitors with an audio noise guard for clean 7.1-channel output. RGB Fusion 2.0 is present on Rev 1.0–1.3 with addressable LED header support; later revisions remove the RGB features in favour of a cleaner, more office-appropriate aesthetic. Q-Flash Plus supports BIOS updates from USB without needing a CPU, RAM, or GPU installed.

⚠️ Neither M.2 slot includes a thermal guard heatsink. For PCIe 4.0 NVMe drives under sustained workloads, an aftermarket M.2 heatsink is recommended to avoid thermal throttling.

⚠️ This board uses standard Gigabit LAN, not 2.5 GbE. For faster wired throughput, step up to the B550 Aorus Elite or Gaming X tier.

⚠️ No onboard WiFi is included. If wireless connectivity is needed, the B550M DS3H AC variant adds Intel 802.11ac WiFi at a modest premium.

⚠️ Display output configuration varies by revision — Rev 1.0–1.3 offer HDMI + DVI-D, while Rev 1.5+ adds DisplayPort. Verify your board revision if a specific output is required.

⚠️ PCIe 4.0 on the primary GPU and M.2 slot requires a Ryzen 3000 or 5000 series CPU — Ryzen 4000 G-Series APUs are PCIe 3.0 only.

⚠️ Confirm Ryzen 5000 Series CPU compatibility against Gigabyte’s AM4 support list, as early BIOS versions may require an update before 5000-series CPUs are recognised.

Key Highlights

• AMD B550 chipset, Socket AM4
• Supports Ryzen 3000, 4000 G-Series, and 5000 / 5000 G-Series processors
• Micro-ATX form factor
• 4x DDR4 DIMM slots, dual-channel ECC/non-ECC, up to 128 GB, DDR4-4733 (OC)
• 5+3 phase pure digital VRM with low RDS(on) MOSFETs
• 2x M.2 (PCIe 4.0 x4 primary + PCIe 3.0/SATA secondary, no thermal guards)
• 4x SATA III ports
• 1x PCIe 4.0 x16 + 1x PCIe 3.0 x16 slots
• Realtek Gigabit LAN with bandwidth management
• HDMI + DVI-D outputs (Rev 1.0–1.3); HDMI + DVI-D + DisplayPort (Rev 1.5+)
• High-quality audio capacitors with audio noise guard
• RGB Fusion 2.0 with addressable LED header (Rev 1.0–1.3 only)
• Anti-sulfur resistor design
• Q-Flash Plus (BIOS update without CPU/RAM/GPU)
• No onboard WiFi
