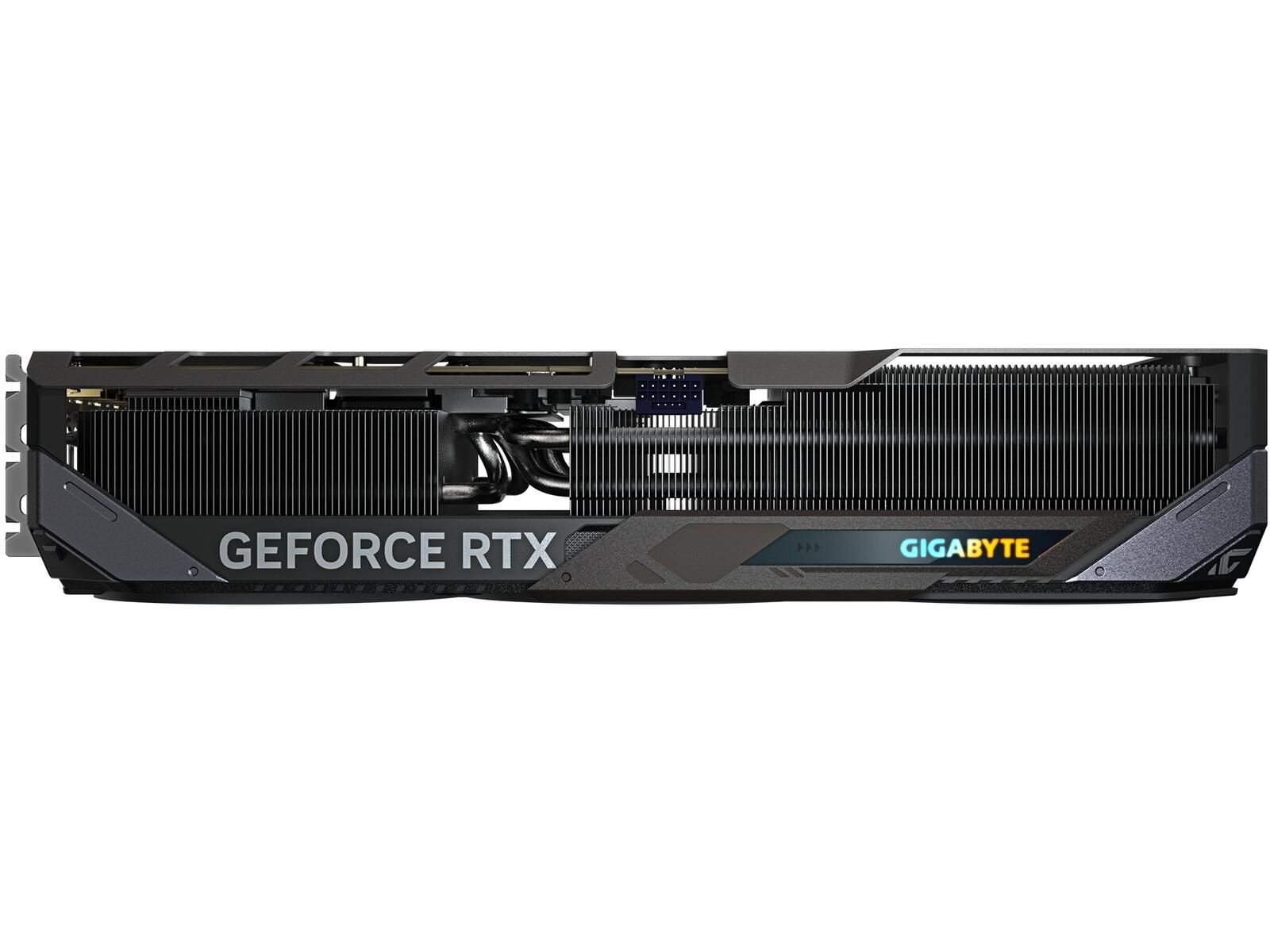

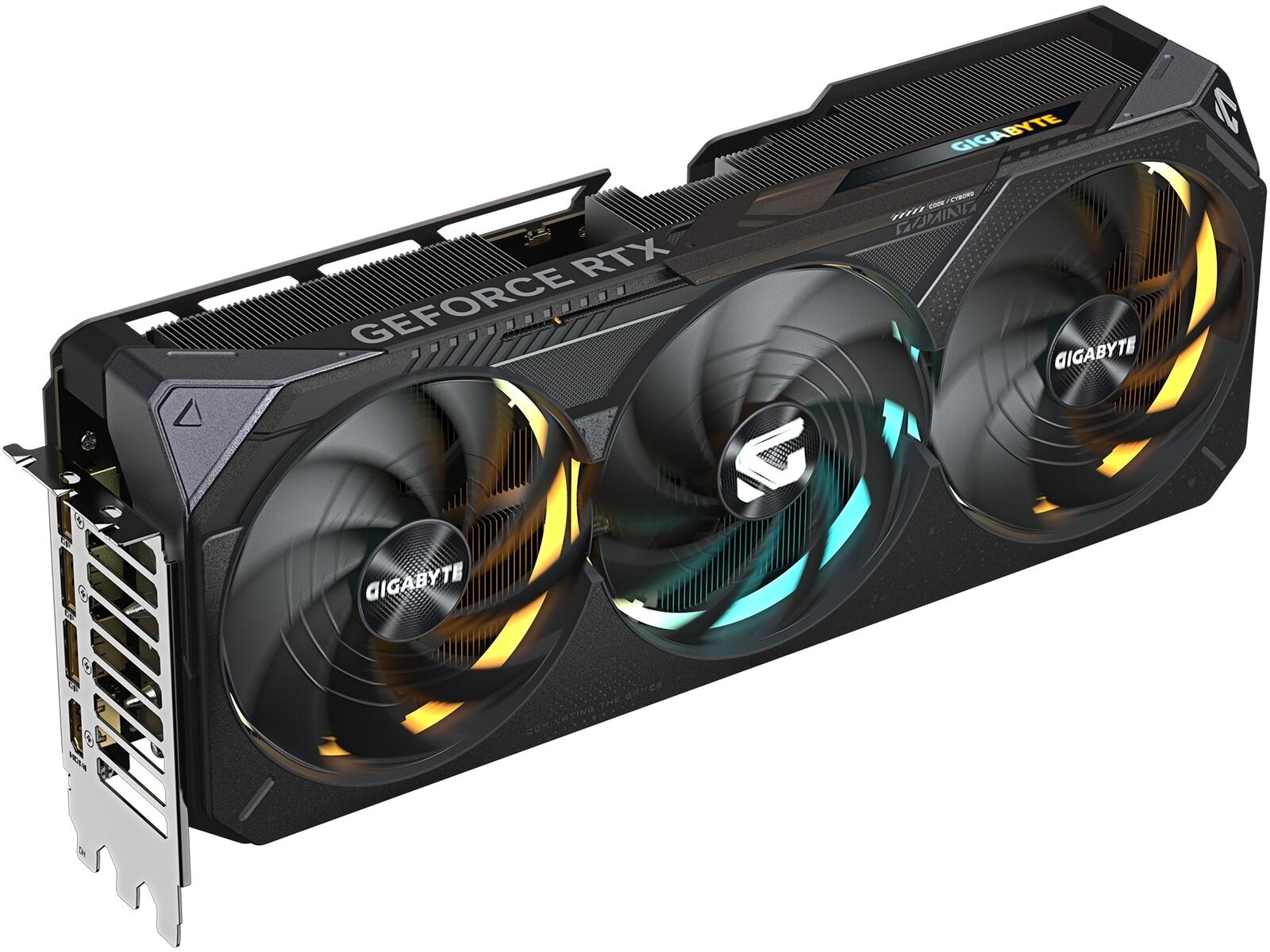

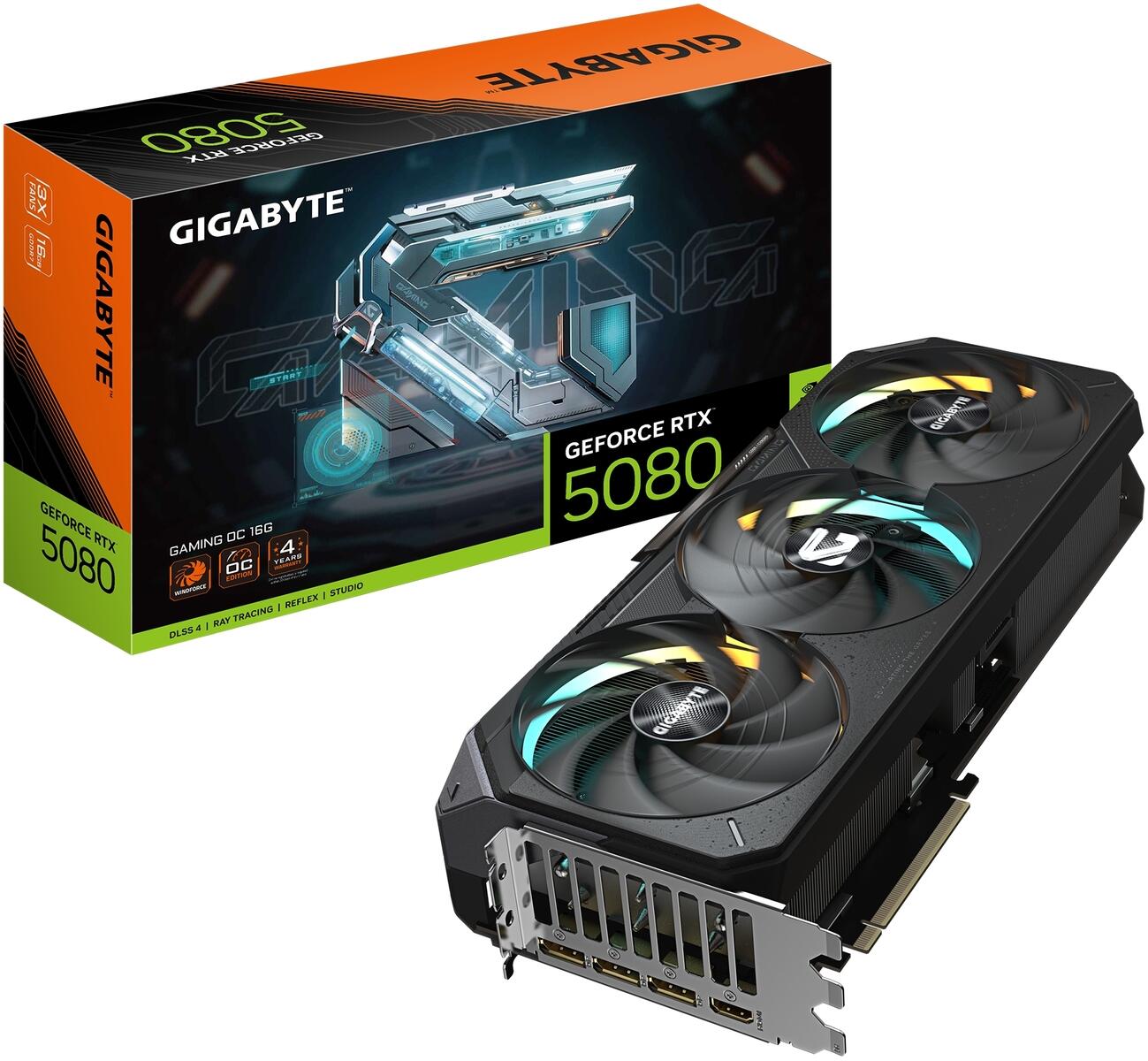

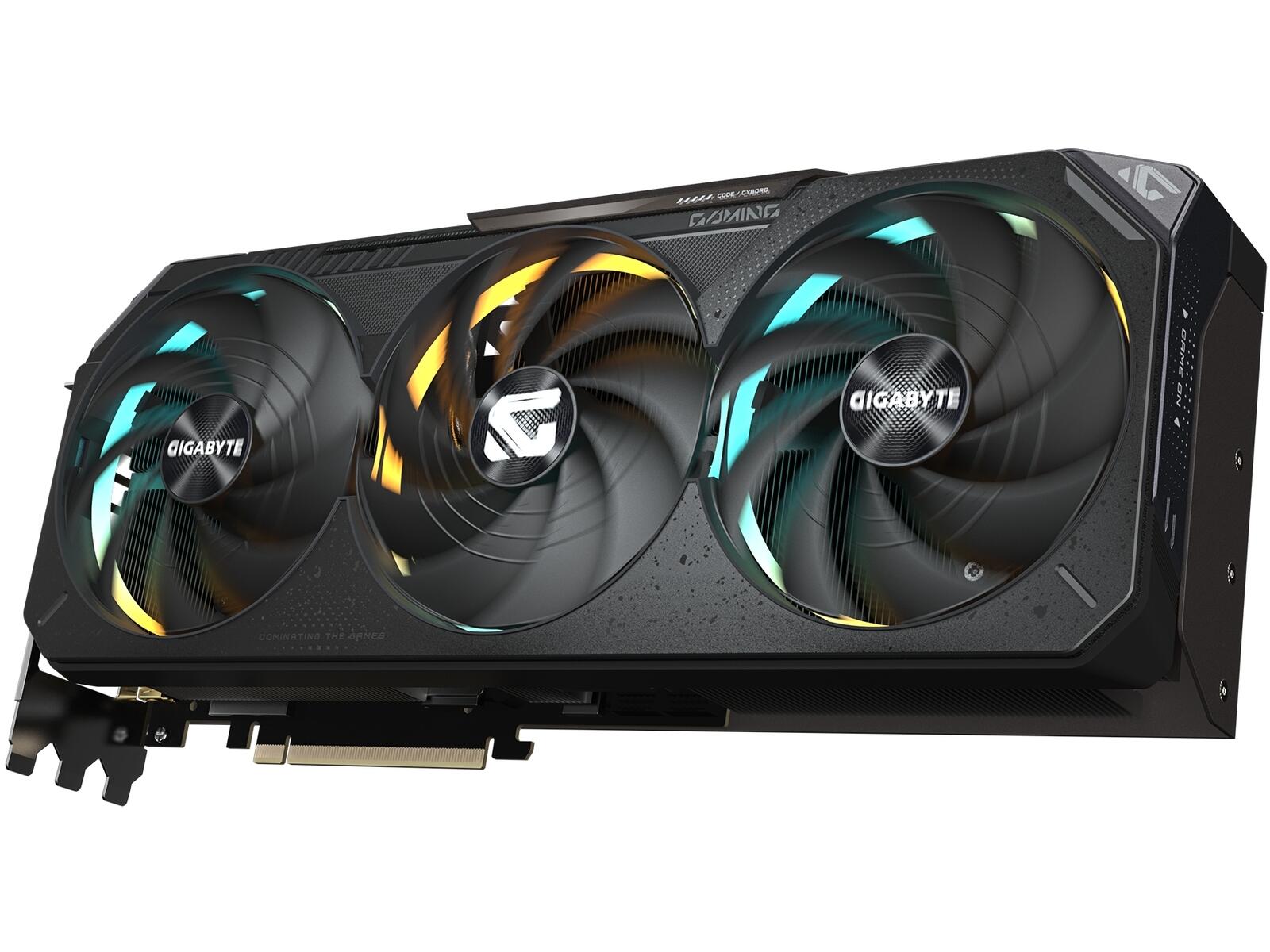

Gigabyte GeForce RTX™ 5080 Gaming OC (16GB GDDR7)

Description

Blackwell Performance, Factory Overclocked

The RTX 5080 Gaming OC ships with a 2730 MHz boost clock — up from the 2617 MHz reference spec — across 10,752 CUDA cores. NVIDIA’s Blackwell architecture brings fourth-generation RT Cores, fifth-generation Tensor Cores, FP4 compute, and DLSS 4 with Multi Frame Generation, delivering generational gains in both rasterisation and ray-traced workloads. NVIDIA Reflex 2 with Frame Warp further reduces system latency for competitive titles.

WINDFORCE Cooling System

Gigabyte’s WINDFORCE system on this card combines three Hawk fans with alternate-spin technology to reduce turbulence, a large vapour chamber for base heat spreading, composite copper heat pipes, 3D active fans, and screen cooling fins. Server-grade thermal conductive gel replaces standard paste between the die and heatspreader. The result is sustained boost clocks under extended gaming sessions without thermal throttling.

RGB, BIOS, and Build Quality

RGB Halo lighting runs along the card’s shroud and is addressable via GIGABYTE’s RGB Fusion 2.0 software. A Dual BIOS switch lets you choose between Performance and Silent fan profiles without software. The PCB features a reinforced structure, and a versatile VGA holder is included in the box — useful given the card’s 340 mm length and triple-slot footprint. Power is supplied via a single 16-pin 12VHPWR connector with a 360 W TDP.

Connectivity and Display Support

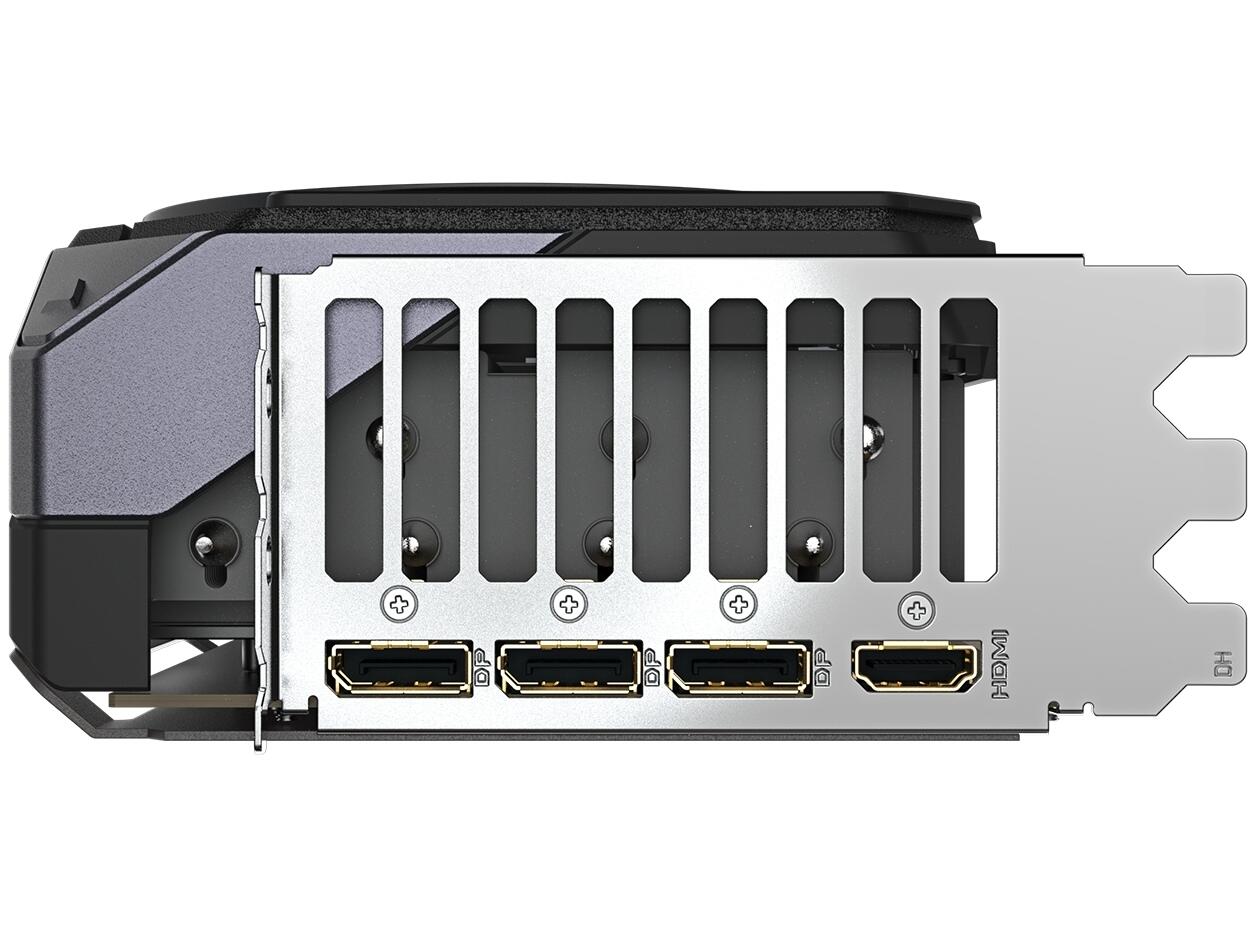

Three DisplayPort 2.1a ports and one HDMI 2.1b port support up to four simultaneous displays at resolutions up to 7680×4320 (8K). PCIe 5.0 x16 ensures no interface-side bottleneck on current-generation platforms. NVIDIA G-SYNC compatibility is supported across all outputs.

⚠️ Size warning: This card measures 340 mm in length and occupies 3 slots. Confirm your chassis has adequate GPU clearance and a minimum of 360 W of available PCIe power before purchasing.

⚠️ Power connector: Requires a single 16-pin 12VHPWR connector. Ensure your PSU includes a native 12VHPWR cable or a compatible adapter — do not use daisy-chained adapters without confirming your PSU’s rating.

Key Highlights

• NVIDIA Blackwell architecture — 10,752 CUDA cores
• 16 GB GDDR7, 256-bit bus, 960 GB/s memory bandwidth
• 2730 MHz boost clock (factory OC over 2617 MHz reference)
• WINDFORCE triple-fan cooling with Hawk fans and vapour chamber
• DLSS 4 with Multi Frame Generation + NVIDIA Reflex 2
• Dual BIOS (Performance / Silent)
• RGB Halo lighting (RGB Fusion 2.0)
• 3× DisplayPort 2.1a, 1× HDMI 2.1b — up to 4 displays / 8K output
• PCIe 5.0 x16 interface
• 340 mm length, 3-slot design
• 360 W TDP — 16-pin 12VHPWR connector
• 4-year warranty (online registration required)
