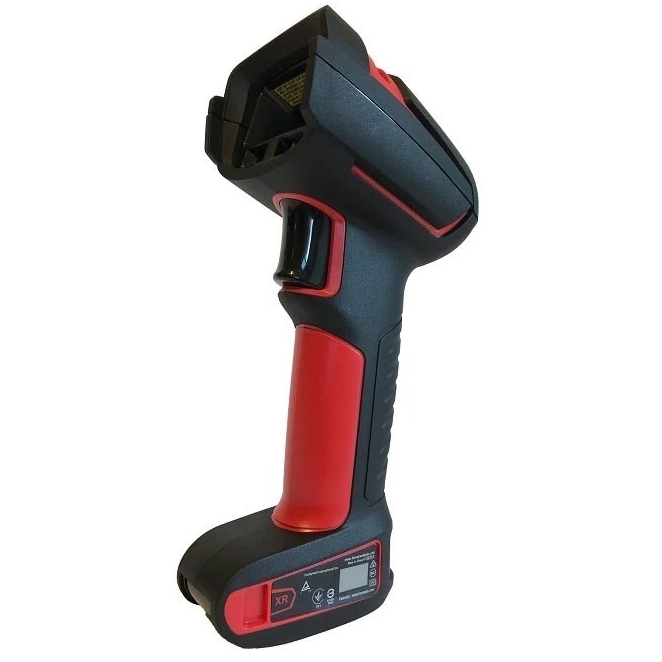

Honeywell 1990IXR Ultra Rugged 1D/2D/PDF417/XR USB Scanner
R5,255.00 inc. VAT
The Honeywell 1990IXR Ultra Rugged scanner combines extreme durability with versatile 1D/2D/PDF417/XR barcode reading in a compact USB form factor. Engineered to withstand drops, dust, and harsh environments, it is ideal for demanding retail and logistics operations.
In stock
Description
Extreme Ruggedness
Designed to survive the harshest retail and warehouse environments, the 1990IXR can endure drops of up to 3 m, operates in temperatures from -30°C to 50°C, and boasts IP67 dust‑tight and water‑resistant sealing. Its vibration and beeper alerts can be adjusted for discreet operation.
Versatile Scanning Power
Equipped with an area‑imager sensor, the scanner reads 1D, 2D, PDF417, Postal, Digimarc, DOT Code and OCR symbologies at speeds up to 4500 mm/s. The wide scan angles (40° horizontal, 30° vertical) and motion tolerance ensure fast, accurate capture on imperfect surfaces.
Comprehensive Connectivity & Performance
Flexible host integration is provided via USB, Keyboard Wedge and RS‑32 TTL interfaces. Power consumption remains low with 2.35 W operating and 0.5 W standby draw, making it suitable for both POS terminals and mobile devices.
- Dimensions: 192 mm × 76 mm × 100 mm
- Weight (corded): 320 g
- Operating temperature: -30°C to 50°C
- Drop tests: 2 m (uncontrolled RH), 2.4 m (55 % RH), 3 m (MIL‑STD‑1081G)
- Environmental sealing: IP67 / IP65
- Scan pattern: 1280 × 800 pixel area imager
- Decode capabilities: 1D, 2D, PDF, Postal, Digimarc, DOT Code, OCR
- Host interfaces: USB, Keyboard Wedge, RS‑32 TTL
- Power: 2.35 W operating / 0.5 W standby
Key Highlights
- Adjustable beep, vibration and LED indicators
- Extended temperature and humidity tolerance
- Durable tumble‑test rating (7,000 drops)
- Compatible with major POS and enterprise software
Proudly sold by the Ringwood Digital Store.
Additional information
| Dimensions | 7.6 × 19.2 × 10.0 cm |
|---|---|
| Dimensions (L x W x H) | 192 mm x 76 mm x 100 mm (7.6 in x 3.0 in x 3.9 in) |
| Weight - Corded | 320 g (11.3 oz) |
| User Indicators | Good Decode LEDs, Beeper (adjustable tone and volume), Vibration (adjustable) |
| Input Voltage | 4.0 VDC to 5.5 VDC |
| Operating Power - Corded | 2.35 W (470 mA @ 5 VDC) |
| Standby Power - Corded | 0.5 W (100 mA @ 5 VDC) |
| Host System Interfaces | USB, Keyboard Wedge, RS-232 TTL |
| Operating Temperature* - Corded | -30°C to 50°C (-22°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | Up to 95% relative humidity, non-condensing |
| 2 m (6.5 ft) | 50 drops from -30°C to 50°C (-22°F to 122°F), uncontrolled RH |
| 2.4 m (8 ft) | 20 drops at 25°C (77°F), 55% RH |
| 3 m (10 ft) | MIL-STD-810G, 25°C (77°F), 55% RH |
| Tumble | 7,000 1 m (3.3 ft) tumbles |
| Environmental Sealing | IP67 and IP65 |
| Light Levels | 0 to 100,000 lux (9,290 foot-candles) |
| ESD | ±20 kV air discharge, ±8 kV contact discharge |
| Scan Pattern | Area Imager (1280 x 800 pixel array) |
| Motion Tolerance | Up to 4500 mm/s (177 in/s) |
| Scan Angle | Horizontal: 40°, Vertical: 30° |
| Print Contrast | 20% minimum reflectance difference |
| Roll, Pitch, Skew | -360°, 45°, 65° |
| Decode Capabilities | Reads standard 1D, PDF, 2D, Postal, Digimarc, DOT Code and OCR symbologies |
