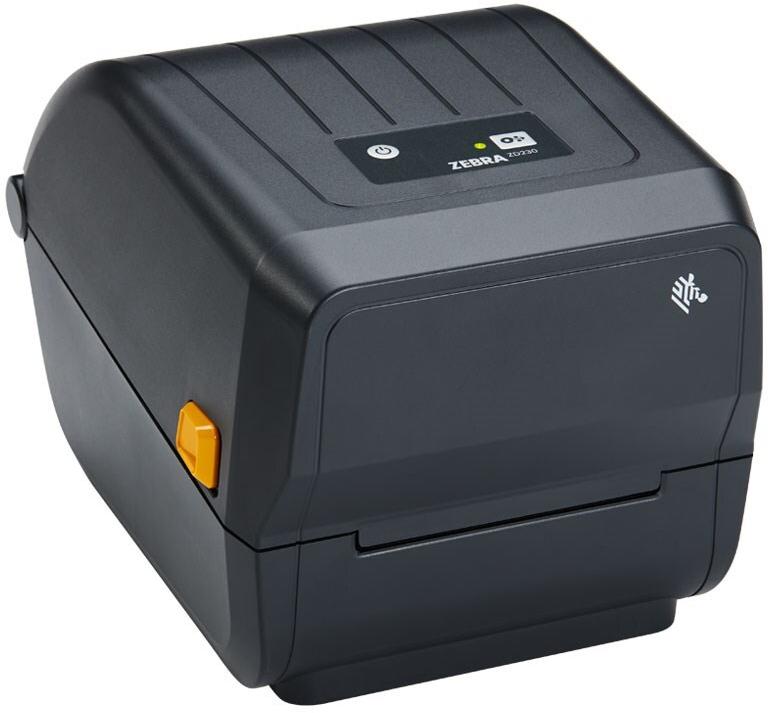

Zebra ZD230 Thermal Transfer USB/LAN Printer
R5,899.00 inc. VAT
The Zebra ZD230 is a rugged thermal transfer receipt printer with USB/LAN connectivity and ENERGY STAR qualification. It delivers high-speed printing up to 6 inches per second and supports a wide range of media formats.
In stock
Description
Thermal Transfer Capability
Designed for durability, the ZD230 uses thermal transfer technology to produce sharp, long‑lasting prints on a variety of label and receipt media.
Connectivity & Media Handling
Equipped with USB, LAN, and optional Bluetooth 4.1, the printer also features OpenACCESS for easy media loading and supports both roll‑fed and fan‑fold media.
Performance Specifications
With a resolution of 203 dpi, 256 MB flash memory, and a maximum print speed of 6 in/s, the ZD230 handles media widths from 1.00 in to 4.4 in and ribbon options up to 4.3 in.
Key Highlights
- Thermal Transfer / Direct Thermal
- Resolution: 203 dpi
- Memory: 256 MB Flash, 128 MB SDRAM
- Maximum Print Width: 4.09 in (104 mm)
- Print Speed: 6 in/s (152 mm/s)
- Media Width: 1.00‑4.4 in
- Ribbon Options: 300 m (1 in core) and 74 m (0.5 in core)
- Operating Temperature: 4.4‑41 °C
Proudly sold by the Ringwood Digital Store.
Additional information
| Dimensions | 19.7 × 26.7 × 19.1 cm |
|---|---|
| Standard Features | Thermal Transfer or Direct Thermal print method, ZPL and EPL programming languages, Single LED status indicator, Single button for feed/pause, USB connectivity, OpenACCESS for easy media loading, Dual-wall frame construction, ENERGY STAR qualified, ZebraDesigner Essentials – easy label design tool free at |
| Dimension | Thermal Transfer:, 10.5 in. L x 7.75 in. W x 7.5 in. H, 267 mm L x 197 mm W x 191 mm H, Direct Thermal, 8.6 in. L x 6.9 in. W x 5.9 in. H, 220 mm L x 176 mm W x 151 mm H |
| Weight | 2.5 lbs/1.1 kg |
| Resolution | 203 dpi/8 dots per mm |
| Memory | 256 MB Flash, 128 MB SDRAM |
| Maximum Print Width | 4.09 in./104 mm for 203 dpi |
| Maximum Print Speed | 6 in./152 mm per second |
| Media Sensors | Movable black mark sensor, limited range from center to left side, Fixed off-center gap sensor |
| Firmware | ZPL II, EPL 2, XML |
| Maximum Label Length | 39.0 in./991 mm |
| Media Width | 1.00 in./25.4 mm to 4.4 in./112 mm |
| Media Roll Size | 5.00 in./127 mm outer diameter Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1 mm) |
| Thickness | 0.003 in. (0.08 mm) min, 0.0075 in. (.1905 mm) max. (tear-off mode only) |
| Media Types | Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands |
| Ribbon Outside Diameter | 2.6 in./66 mm (300 m), 1.34 in./34 mm (74 m) |
| Maximum Ribbon Length | 984 ft. (300 m) |
| Ribbon Ratio | 1:4 media to ribbon (300 m), 1:1 media to ribbon (74 m) |
| Ribbon Width | 1.33 in./33.8 mm ~ 4.3 in./109.2 mm |
| Ribbon Core I.D. | 300 Meter ribbon 1 in./25.4 mm, 74 Meter ribbon 0.5 in./12.7 mm |
| Operating Temp. | 40° to 105° F/4.4° to 41° C |
| Storage Temp. | -40° to 140° F/-40° to 60° C |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 95% non-condensing |
| Electrical | Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz, ENERGY STAR qualified |
| Media Handling | Factory installed peeler or cutter |
| Communications | Factory-installed USB and Ethernet, Factory-installed USB and Bluetooth 4.1, Factory-installed USB 802.11ac Wi-Fi and Bluetooth 4.1 |
| Real Time Clock | None |
| Keyboard Display Unit | No serial port, thus no KDU/ZKDU |
| Bar Code Ratios | 2:1 and 3:1 |
| 1D Bar Codes | Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code |
| 2D Bar Codes | Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec |
| Fonts and Graphics | 16 resident expandable ZPL II bitmap fonts, Two resident scalable ZPL fonts, Five resident expandable EPL2 fonts, Native open-type font support, Unicode compliant for multi-language, on demand thermal printing, China units include SimSun simplified Chinese font, 50 MB user available non-volatile memory, 8 MB user available SDRAM |
