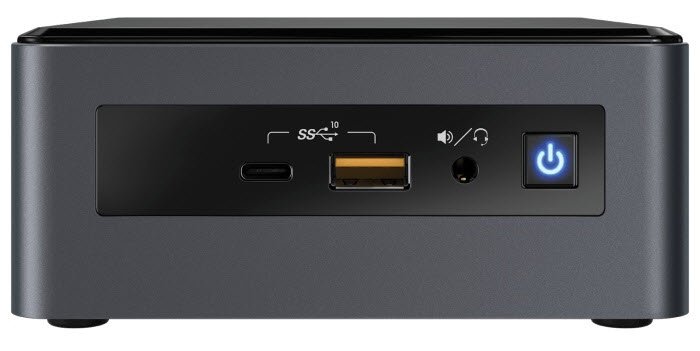

Intel NUC8 (Intel Core i7-8565U) Mini PC

Description

Discrete GPU in a 117 mm Mini PC

The Intel NUC8 Mainstream-G (Islay Canyon) is unusual in the NUC lineup for a reason that matters: it includes a dedicated AMD Radeon 540X GPU alongside the CPU, eliminating the integrated-graphics-only constraint of standard NUC builds. The Radeon 540X (512 stream processors, 1219 MHz, 2 GB 64-bit GDDR5 at 48 GB/s bandwidth, 1250 GFLOPS) delivers a meaningful step above Intel UHD integrated graphics — handling casual gaming at 1080p medium settings, light creative GPU workloads, and multi-display media rendering that would otherwise tax an integrated GPU. Combined with the i7-8565U’s 4-core, 8-thread Whiskey Lake architecture (up to 4.6 GHz boost, 8 MB cache), this is a genuinely capable small-form-factor system for users who need more than entry-level compute but can’t accommodate a full tower.

The 117 × 112 × 51 mm chassis includes a 2.5″ SATA bay (9.5mm max) for an HDD or SATA SSD, and an M.2 2280 slot (PCIe or SATA) for an NVMe or SATA M.2 SSD — providing flexible storage options once populated. An SDXC card reader, VESA wall mount kit, consumer-grade HDMI and Mini DisplayPort outputs, and the standard NUC connectivity stack complete the package.

⚠️ The 8 GB LPDDR3-1866 memory is soldered directly to the board — there are no SODIMM slots and memory cannot be upgraded. 8 GB is the maximum and only configuration available on this unit. Workloads requiring more than 8 GB RAM cannot be accommodated on this platform.

⚠️ No SSD is included — the system cannot boot without adding storage. An M.2 PCIe/SATA SSD (2280) in the M.2 slot, or a 2.5″ drive in the SATA bay, must be purchased separately. An operating system must also be installed unless a pre-imaged drive is supplied.

⚠️ The AMD Radeon 540X is an entry-level discrete GPU — it is not suited to demanding AAA gaming at high settings, 3D rendering, or GPU compute tasks. It excels at casual gaming (esports, older titles), 4K media playback, and GPU-assisted creative apps. For heavier gaming workloads, a NUC with an external GPU via Thunderbolt, or a dedicated gaming system, is required.

⚠️ Wi-Fi is Wireless-AC (802.11ac, Wi-Fi 5) — not Wi-Fi 6 or 6E.

💡 The presence of both discrete GPU outputs (HDMI and Mini DisplayPort) and the M.2 + 2.5″ storage combo makes this NUC a particularly strong HTPC and compact gaming build platform — the discrete GPU handles hardware video decode and display rendering workloads that stress integrated graphics in 4K HDR scenarios.

Technical Specifications

The i7-8565U uses Intel’s 14nm Whiskey Lake architecture with 4 cores, 8 threads, a 1.8 GHz base clock, 4.6 GHz max turbo, and 8 MB Smart Cache at 15W TDP. Memory: 8 GB LPDDR3-1866 soldered — fixed, non-upgradeable. GPU: AMD Radeon 540X (Polaris, 512 SP, 1219 MHz, 2 GB 64-bit GDDR5, 48 GB/s bandwidth). Display: 1× HDMI 2.0a + 1× Mini DisplayPort 1.2 (both driven by Radeon 540X). Storage: 1× M.2 2280 (PCIe x4 / SATA / Optane) + 1× 2.5″ SATA 6G bay (9.5mm max). Networking: Gigabit Ethernet + Intel Wireless-AC (802.11ac, dual-band) + Bluetooth 5.0. USB: 2× USB 3.0 Type-A (front) + 2× USB 3.0 Type-A (rear) + 2× USB 2.0 Type-A (rear). Additional: SDXC card reader, 3.5mm audio combo jack, consumer IR sensor, VESA mount kit. External 65W/90W AC adapter.

Key Highlights

• Intel Core i7-8565U — Whiskey Lake 8th Gen, 4 cores / 8 threads, 1.8–4.6 GHz, 15W TDP, 8 MB cache
• AMD Radeon 540X — 512 SP, 1219 MHz, 2 GB 64-bit GDDR5, 48 GB/s — discrete GPU
• 8 GB LPDDR3-1866 soldered onboard — not upgradeable, no SODIMM slots
• No SSD included — M.2 2280 (PCIe/SATA/Optane) + 2.5″ SATA bay available
• 1× HDMI 2.0a + 1× Mini DisplayPort 1.2 (via Radeon 540X)
• Gigabit Ethernet (RJ-45)
• Intel Wireless-AC (802.11ac, dual-band) + Bluetooth 5.0 — Wi-Fi 5 only
• 2× USB 3.0 Type-A (front) + 2× USB 3.0 Type-A (rear) + 2× USB 2.0 Type-A (rear)
• SDXC card reader
• 3.5mm audio combo jack
• Consumer IR sensor (remote control support)
• VESA wall mount kit included
• External 65W/90W AC adapter
• 117 × 112 × 51 mm — Black & Silver
• Windows 10/11 compatible (8th Gen Whiskey Lake)
• Windows 11 upgrade possible (TPM and UEFI dependent on configuration)
