Kingston Fury Renegade 16GB (DDR5-6400, CL32) Desktop RAM

Description

FURY Renegade: Kingston’s Flagship DDR5 Line

The FURY Renegade sits at the apex of Kingston’s FURY DDR5 gaming memory hierarchy. Kingston FURY Renegade DDR5 offers speeds from 6000MT/s up to 8800MT/s, with on-die ECC for improved stability at extreme speeds and dual 32-bit subchannels for increased efficiency. The KF564C32RS-16 represents the 6400MT/s CL32 entry point into the Renegade lineup — a module that prioritises both raw bandwidth and tight primary latency in equal measure. DDR5-6400 CL32 delivers approximately 10ns absolute memory access latency, matching the best CL30 DDR5-6000 modules in raw latency terms while running at a higher clock frequency.

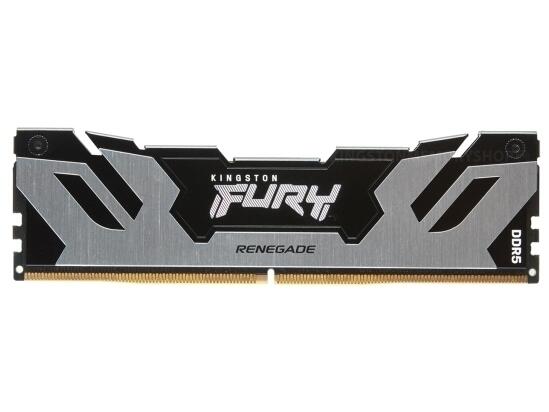

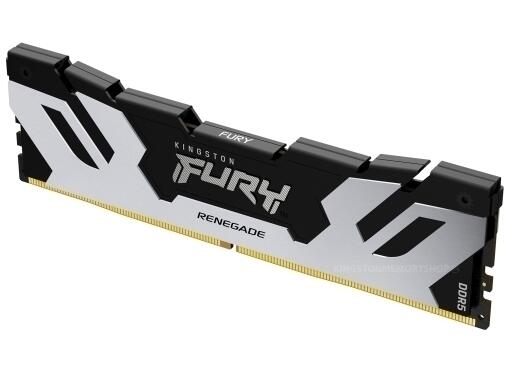

Heat Spreader Design

The FURY Renegade’s silver and black heat spreader dissipates heat quickly and efficiently. A lack of ARGB functionality ensures a neat and clean look for those seeking enhanced power without distracting lighting. The Renegade’s heat spreader is taller and more aggressively sculpted than the Fury Beast’s compact design — delivering increased thermal mass for sustained high-frequency XMP operation — while maintaining a professional, performance-first aesthetic that suits both open-frame and windowed builds where the focus should be on the rest of the hardware.

Performance: DDR5-6400 CL32-39-39

Each module has been tested to run at DDR5-6400 at a low latency timing of 32-39-39 at 1.4V. The SPDs are programmed to JEDEC standard DDR5-4800 timing of 40-39-39 at 1.1V. CL32 at DDR5-6400 is an exceptional latency profile — tighter than CL36 Corsair Vengeance and CL38 GeIL Orion at DDR5-6000, and matching or bettering CL30 modules at DDR5-6000 in absolute nanosecond terms due to the higher clock frequency. Intel XMP 3.0 enables one-click overclocking to the rated profile from BIOS.

💡 XMP 3.0 must be enabled for rated speed: Without activating XMP 3.0 in BIOS, this module defaults to JEDEC DDR5-4800 at CL40-39-39 at 1.1V. Enable XMP 3.0 to unlock DDR5-6400 at CL32-39-39. Updating your BIOS before installation is strongly recommended.

💡 1.4V is normal at DDR5-6400 CL32: The elevated operating voltage is within safe DDR5 parameters for this speed and timing grade.

IC Configuration & Build Quality

The KF564C32RS-16 is a 2G×64-bit (16GB) DDR5-6400 CL32 SDRAM, 1Rx8 single-rank module based on eight 2G×8-bit FBGA components with gold contact fingers. The 1Rx8 x8 IC topology delivers excellent signal integrity and broad motherboard compatibility. Kingston backs this with 100% factory testing and a lifetime warranty.

Renegade vs FURY Beast DDR5

The FURY Renegade targets the same Intel DDR5 platforms as the FURY Beast but with a more premium specification, tighter-timed XMP profile, and higher-grade heat spreader. Where the Fury Beast DDR5-6000 CL30 (KF560C30BB-8) offers AMD EXPO alongside XMP 3.0, the Renegade is XMP 3.0 only — optimised for Intel DDR5 platforms. AMD Ryzen 7000 (AM5) users should verify DOCP compatibility on their specific motherboard.

DDR5 Platform Requirements

DDR5 is not compatible with DDR4 motherboards or slots. A DDR5-capable motherboard and CPU is required — Intel 12th generation or later on a DDR5-compatible board.

⚠️ DDR5 is not compatible with DDR4 slots: Verify that both your motherboard and CPU support DDR5 before purchasing.

⚠️ AMD platform note: The KF564C32RS-16 carries Intel XMP 3.0 only. AMD Ryzen 7000 (AM5) users should verify DOCP compatibility on their specific motherboard before purchasing.

⚠️ Single stick = single channel: For dual-channel bandwidth, install a second KF564C32RS-16 in your motherboard’s recommended paired DIMM slots. Refer to your board’s manual for the correct slot configuration.

Key Highlights

• Capacity: 16GB (1×16GB)
• Type: DDR5 | 288-pin DIMM (Desktop)
• Speed: 6400MT/s (PC5-51200) via XMP 3.0
• Timings: CL32-39-39 @ 1.4V (XMP 3.0); CL40-39-39 @ 1.1V (JEDEC DDR5-4800)
• Rank / IC: 1Rx8 single rank; 8× 2G×8-bit FBGA components
• Voltage: 1.4V (XMP 3.0) / 1.1V (JEDEC)
• Overclocking: Intel XMP 3.0 supported
• On-Die ECC: Yes
• PMIC: Yes
• Dual Subchannel: Yes
• RGB / ARGB: None
• Heat Spreader: Silver and black aluminium — FURY Renegade series
• Contact fingers: Gold
• Colour: Silver / Black
• Platform: Intel 12th gen+ (DDR5 boards) — XMP 3.0; AMD AM5 verify DOCP
• Warranty: Lifetime
